MAK RTIspy API Documentation for HLA 1516
|

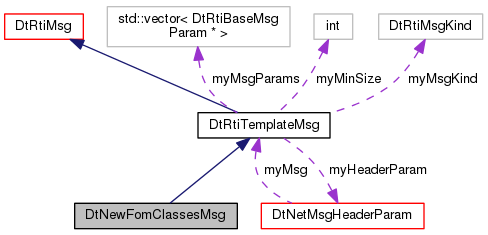

Inheritance diagram for DtNewFomClassesMsg: Collaboration diagram for DtNewFomClassesMsg:Additional Inherited Members | |
| Public Member Functions inherited from DtRtiTemplateMsg | |
| virtual | ~DtRtiTemplateMsg () |
| Destructor. More... | |
| unsigned | addParameter (DtRtiBaseMsgParam *param) |
| Adds a new parameter to this message. More... | |
| virtual void | printData (DtLogicalTimeFactory *logicalTimeFactory) const |
| Print the data section. Message parameters must be created first. More... | |
| Public Member Functions inherited from DtRtiMsg | |
| virtual | ~DtRtiMsg () |
| Destructor. More... | |
| virtual DtRtiMsg * | clone (bool copy=true) const =0 |
| Return a copy/empty object of the same type as this. More... | |
| virtual DtRtiMsg * | cloneWithTransport (bool copy=true) const |
| Return a copy/empty object of the same type as this using clone and set the transport type from the host message. More... | |
| virtual DtNetMsgHeader * | netHeader () const |
| Get header of network representation. More... | |
| virtual int | version () const |
| Return the message version. More... | |
| virtual bool | isValidVersion () const |
| Returns bool: message version is valid? More... | |
| virtual void | setFedEx (const MAKRti::DtString &name) |
| All RTI messages contain information to identify which federation execution the message applies to. More... | |
| virtual void | setFedEx (int handle) |
| Set federation execution identifier as a handle. More... | |
| virtual bool | isForExec (const MAKRti::DtString &execName, int execHandle) const |
| Returns true if the current message belongs to the indicated federation execution, false otherwise. More... | |
| virtual DtRtiMsgKind | msgKind () const |
| Get the message kind. More... | |
| virtual const char * | kindString () const |
| Returns the message kind string name. More... | |
| virtual bool | isConstrained () const |
| Return boolean: message type can be time constrained? More... | |
| virtual bool | isAllowedDuringSave () const |
| Return boolean: message type can be processed during save? More... | |
| virtual void | setTime (const RTI::FedTime &time) |
| Set/Get time Used in timestamped messages. More... | |
| virtual RTI::FedTime const * | time (DtLogicalTimeFactory *fedTimeFactory) const |
| virtual bool | hasTime () const |
| Returns true if time field is valid. More... | |
| virtual void | setSerialNumber (unsigned long serialNumberValue) |
| Set/Get event retraction serial number Used in timestamped messages. More... | |
| virtual unsigned long | serialNumber () const |
| virtual void | setTransportType (DtTransportHandle type) |
| Set/Get transport type. More... | |
| virtual DtTransportHandle | transportType () const |
| virtual DtOrderHandle | orderType () const |
| This base implementation always returns recieve order. More... | |
| virtual bool | isMetadataPresent () const |
| Test if metadata has been added to a DtRtiMsg object. More... | |
| virtual bool | addMetadata (caddr_t *mtdAddr, unsigned int size, unsigned int *alignPad, unsigned int *headerPad=NULL) |
| Allocate space for next block of metadata. More... | |
| virtual void | removeMetadata (unsigned int size) |
| Update the size of the message when metadata has been removed. More... | |
| bool | isInteractionMsgType () const |
| Utility functions, check the message type against known interaciton/update message types. More... | |
| bool | isUpdateMsgType () const |
| virtual void | print (DtLogicalTimeFactory *logicalTimeFactory) const |
| Printing functions. More... | |
| virtual void | printHeader (DtLogicalTimeFactory *logicalTimeFactory) const |
| virtual void | printTime (const char *label, RTI::FedTime const *timeValue) const |
| Print the given time. More... | |
| virtual void | printInterval (const char *label, RTI::FedTime const *intervalValue) const |
| Print the interval. More... | |
| virtual int | status () const |
| Returns MSG_STATUS_OK if OK, a reason enumeration otherwise. More... | |
| virtual const MAKRti::DtString | fedExName () const |
| These two functions should be avoided in favor of isForExec(). More... | |
| virtual int | fedExHandle () const |
| Get the federation execution identifier as a handle Returns 0 if the identifier is being represented as a name. More... | |
| virtual void | setFederateHandle (DtFederateHandle handle) |
| Set/Get federate handle. More... | |
| virtual DtFederateHandle | federateHandle () const |
| Set/Get federate handle. More... | |
| virtual void | setSequenceNumber (unsigned long value) |
| Set/Get message sequence number. More... | |
| virtual unsigned long | sequenceNumber () const |
| Set/Get message sequence number. More... | |
| virtual void | setServiceCallNumber (unsigned long value) |
| Set/Get service call number. More... | |
| virtual unsigned long | serviceCallNumber () const |
| Set/Get service call number. More... | |
| virtual void | setTriggerMessageNumber (unsigned long value) |
| Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent). More... | |
| virtual unsigned long | triggerMessageNumber () const |
| Set/Get trigger message sequence number (i.e., the message being processed that triggered this message being sent). More... | |
| Static Public Member Functions inherited from DtRtiMsg | |
| static const DtNetMsgHeader * | netHeader (const void *buffer) |
| Extracts the header network representation from the buffer. More... | |
| static const char * | kindToString (DtRtiMsgKind kind) |
| Returns the name of the message, by kind enumeration. More... | |
| static const char * | kindString (const void *buffer) |
| Extracts the message kind from the given buffer and returns its string name. More... | |
| static unsigned long | totalSize (const void *buffer) |
| Extracts the message total size form the given buffer. More... | |
| static const DtRtiMsgKind | msgKind (const void *buffer) |
| Extracts the message kind from the given buffer. More... | |
| static unsigned int | version (const void *buffer) |
| Extracts the message version form the given buffer. More... | |
| static unsigned int | fedExHandle (const void *buffer) |
| Extracts the message fedEx handle form the given buffer (0 if lightweight fedEx name) More... | |
| static DtFederateHandle | federateHandle (const void *buffer) |
| Extracts the message federate handle form the given buffer. More... | |
| static unsigned long | sequenceNumber (const void *buffer) |
| Extracts the message sequence number form the given buffer. More... | |
| static unsigned char | flags (const void *buffer) |
| Extracts the message flags form the given buffer. More... | |
| static unsigned long | metadataSize (const void *buffer) |
| Extracts the message metadata size form the given buffer. More... | |
| static void | setDefaultRegionSet (unsigned long defaultRegionSet) |
| Set the default region set handle. More... | |
| static void | setUse32BitsForValueSize (bool use32BitsForValueSizeEnabled) |
| Set/Get flag to enable use of 32 bit size field for attribute/parameter values. More... | |
| static bool | use32BitsForValueSize () |
| static void | setSmartForwardingEnabled (bool enabled) |
| Set/Get is SmartForwarding enabled? More... | |
| static bool | smartForwardingEnabled () |
| Static Public Attributes inherited from DtRtiMsg | |
| static unsigned long | theDefaultRegionSetHandle |
| static const char * | theDefaultTag |
| Protected Member Functions inherited from DtRtiTemplateMsg | |
| DtRtiTemplateMsg (DtRtiMsgKind msgKind) | |
| Constructor. More... | |
| virtual DtRtiMsgKind | internalDtRtiMsgKind () |
| Returns the kind of this message. More... | |
| virtual int | minSize () const |
| Returns minimum size of a message, including header. More... | |
| Protected Member Functions inherited from DtRtiMsg | |
| DtRtiMsg () | |
| Constructor. More... | |
| virtual void | sizeChanged (int size) |
| Called whenever size is changed using changeSize, or insert/deleteBytes. More... | |
| void | initDtRtiMsg (int size, DtRtiMsgKind msgKindVal, DtBufferPtr buffer) |
| Called by ctor, so not virtual. More... | |
| void | initDtRtiMsg (const void *initial, int size, DtBufferPtr buffer) |
| void | initDtRtiMsg (const DtNetMsgHeader *header, DtBufferPtr buffer) |
| virtual void | adjustBytes (int offset, int numBytes) |
| Adjust numBytes bytes at the indicated offset in the net rep. More... | |
| virtual void | adjustBytes (void *address, int numBytes) |
| Adjust the numBytes starting at the indicated addres. More... | |
| Protected Attributes inherited from DtRtiTemplateMsg | |
| DtNetMsgHeaderParam * | myHeaderParam |
| The parameter which points to the message header. More... | |
| std::vector< DtRtiBaseMsgParam * > | myMsgParams |
| The list of other message parameters. More... | |
| DtRtiMsgKind | myMsgKind |
| The message kind. More... | |
| int | myMinSize |
| The minimum size needed for this message. More... | |
| Protected Attributes inherited from DtRtiMsg | |
| DtTransportHandle | myTransportType |
| DtOrderHandle | myOrderType |
| RTI::FedTime * | myFedTime |
| bool | myTimeIsValid |
| bool | myConstrained |
| bool | myAllowedDuringSave |
| unsigned long | mySerialNumber |
| unsigned long | myServiceCallNumber |
| unsigned long | myTriggerMessage |
| Static Protected Attributes inherited from DtRtiMsg | |
| static bool | theUse32BitsForValueSize |
| static bool | theSmartForwardingEnabled |
