The 30 mm cannon system is a system of controller and actuator components that comprise a model of a particular type of ballistic gun.

 This system is configured on a number of ground vehicles in VR-Forces, such as the BMP2 entitiy.

Defined in system defintion file: 30mm-cannon.sysdef

The 30 mm cannon system can be configured as part of a Ground Vehicle.

Components that make up the 30mm Cannon System

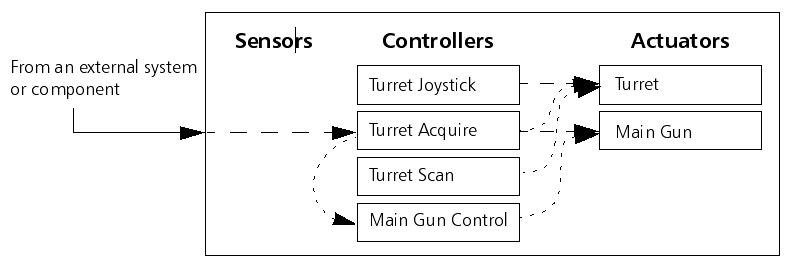

The figure below shows which systems and simulation components are configured as part of the 30 mm cannon system. The boxes (nodes) represent indivdiual DtSimComponent classes. The edges connecting the boxes indicate port or port group connections between components.

Sensors

There are no sensors configured as part of this system.

Controllers

• Turret Joystick -- Joystick control of turret.
• Turret-acquire -- Orient turret in direction of target.
• Turret-scan -- Direct turret to scan sector of responsibiltiy for potential targets.
• Main Gun Control -- Control loading/unloading of ammo, pull the trigger.

Actuators

• Turret -- The articulating turret our main gun is mounted on.
• Main Gun -- Ballistic gun.

Note:

If you modify the system defintion file, or any of the components it contains, all entity types that includes this system in its parameter database file will be modified.
