9.17 - Spot Report Receiver System

Table of Contents

• 9.17.1 Components
  • 9.17.1.1 Sensors
  • 9.17.1.2 Controllers
  • 9.17.1.3 Actuators

The spot report receiver system is a system comprised of one sensor component that listens for and tracks spot reports.

It is used in conjunction with the Spot Report Generator System to simulate Fog of War. This system is configured as part of many of the entity models in VR-Forces, including ground vehicles and human entities

Defined in system definition file: spot-report-receiver.sysdef

9.17.1 Components

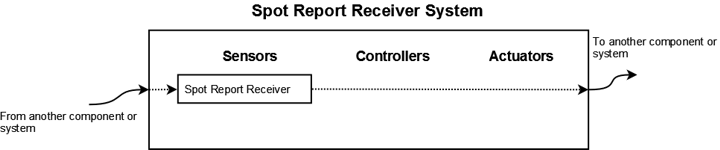

The figure below shows the DtSimComponent controller component that comprises the spot report receiver system. Note that the system accepts input and produces output. It acts as a wrapper around the individual controller component contained within. The dotted lines show the input and output connections between the controller component and the system. These connections are internal to the system. The solid lines indicate the public connections used to connect this system to outside components and/or systems.

Spot Report Receiver System

9.17.1.1 Sensors

There are no sensors configured as part of this system.

9.17.1.2 Controllers

• DtSpotReportReceiver – Listen for and track spot report messages.

9.17.1.3 Actuators

There are no actuators configured as part of this system.

Note

If you modify the system definition file, or any of the components it contains, multiple entity types may be affected. All entity types that include this system in its parameter database file will be modified.
