9.14 - Attack Missile Launcher System

Table of Contents

• 9.14.1 Components
  • 9.14.1.1 Sensors
  • 9.14.1.2 Controllers
  • 9.14.1.3 Actuators

VR-Forces has systems for several missile launchers.

They provide a system of controller and actuator components that comprise a model of an airborne missile launcher. The systems are configured on several fixed-wing and rotary-wing entities in VR-Forces. Similar missile systems exist for configuration on other types of entities (see the Entity Editor and/or OPD Editor to see the various types of weapon systems available).

Defined in system definition file: fixed-maverick-missile-launcher.sysdef
fixed-sidewinder-missile-launcher.sysdef This system can be configured as part of a rotary-wing entity.

9.14.1 Components

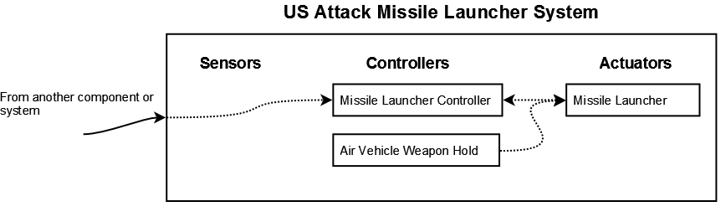

The figure below shows which systems and simulation components are configured as part of this system. The boxes (nodes) represent indivdiual DtSimComponent classes. The edges connecting the boxes indicate port or port group connections between components. Dashed lines indicate connections internal to the system. Solid lines indicate public connections between this system and external components/or systems.

US Attack Missile Launcher System

9.14.1.1 Sensors

There are no sensors configured as part of this system.

9.14.1.2 Controllers

• DtLauncherController – Acquire the target, load the ammo, trigger the launch.
• DtAirVehicleWeaponHoldController – Hold fire given certain altitude constraints.

9.14.1.3 Actuators

• DtLauncherActuator – Fire the weapon

Note

If you modify the system definition file, or any of the components it contains, all entity types that includes this system in its parameter database file will be modified.
