9.9 - Ground Tracked Movement System

Table of Contents

• 9.9.1 Components
  • 9.9.1.1 Sensors
  • 9.9.1.2 Controllers
  • 9.9.1.3 Actuators

The tracked-movement system is a system of sensor, controller, and actuator components that comprise the movement model for ground vehicles.

This system is configured on several entity types in VR-Forces, such as the M1A2 and BMP2 entities.

Defined in system definition file: ground-tracked.sysdef

This system can be configured as part of a ground vehicle.

9.9.1 Components

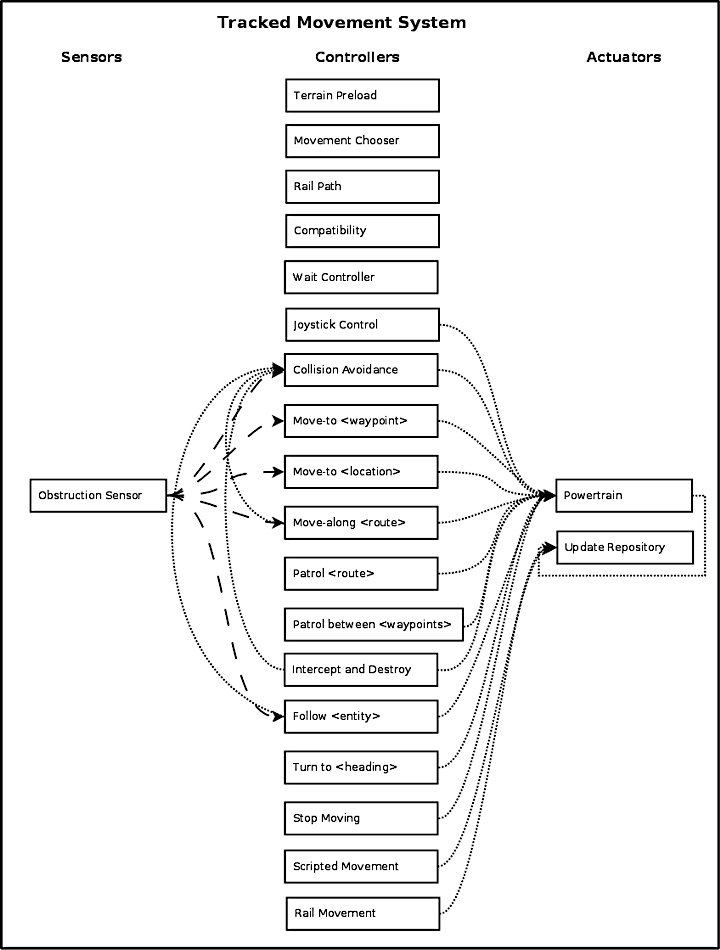

The figure below shows what systems and simulation components are configured as part of the tracked-movement system. The boxes (nodes) represent indivdiual DtSimComponent classes. The edges connecting the boxes indicate port or port group connections between components.

Ground Tracked Movement System

9.9.1.1 Sensors

• DtObstructionSensor – What entities or terrain features are in my way?

9.9.1.2 Controllers

• DtMovementBasedTerrainPreloadController – Predicts the terrain that will be needed in the near future.
• DtGroundMovementChooserController – Manages movement tasks for ground entities.
• DtRailPathController – Manages movement along a generated path.
• DtCompatibilityController – Handles backwards compatibility for movement tasks.
• DtWaitController – Stop moving and wait.
• DtGroundJoyMoveController – Control movement through a joystick.
• DtGroundCollisionAvoidanceController – Try to avoid potential collisions with obstructions.
• DtGroundMoveToControllerComponent – Execute move-to <waypoint> tasks.
• DtGroundMoveToLocationControllerComponent – Execute move-to-location tasks.
• DtGroundMoveAlongControllerComponent – Execute move-along route tasks.
• DtGroundPatrolRouteController – Execute patrol-along-route tasks.
• DtGroundPatrolBetweenController – Execute patrol-between <waypoint> tasks.
• DtGroundInterceptAndDestroyController – Models moving to an entity and destroying it.
• DtGroundFollowEntityController – Follow another entity.
• DtGroundTurnToControllerComponent – Turn to desired heading.
• DtGroundStopMovingControllerComponent – Respond to stop-moving tasks.
• DtScriptedMovementController – Processes scripted movement messages.
• DtRailMovementController – Models movement along a path as if it were on rails.

9.9.1.3 Actuators

• DtAutomotiveActuatorComponent – Kinematics model for ground vehicle movement.
• DtUpdateRepositoryActuator – Updates the VR-Forces state repository.

Note

If you modify the system definition file, or any of the components it contains, multiple entity types may be affected. All entity types that include this system in its parameter database file will be modified.
