MAKLogger::DtLgrAnnotation Class Reference

Base annotation class defines interface for all annotations. More...

Inheritance diagram for MAKLogger::DtLgrAnnotation:

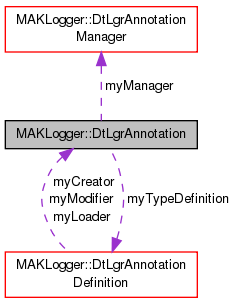

Collaboration diagram for MAKLogger::DtLgrAnnotation:

Public Member Functions
	DtLgrAnnotation (const DtLgrAnnotationDefinition *definition)
	CTOR.
virtual	~DtLgrAnnotation ()
const DtLgrAnnotationDefinition *	definition () const
	Get the definition of of this type of annotation.
virtual void	addedToManager (DtLgrAnnotationManager *manager)
	Called by manager after added to a given manager.
virtual const DtString &	type () const =0
virtual void	setName (const DtString &name)=0
virtual const DtString &	name () const =0
virtual void	setText (const DtString &text)=0
virtual const DtString &	text () const =0
virtual void	setStartTime (const DtAbsoluteTime &time)=0
virtual const DtAbsoluteTime &	startTime () const =0
virtual void	setEndTime (const DtAbsoluteTime &time)=0
virtual const DtAbsoluteTime &	endTime () const =0
virtual void	initializeFromObject (const DtEnvObject *annotationObject)=0
	Initialize from environment object.
virtual void	createObject (DtEnvironment environment)=0
	Set the attributes on an environment object.

Static Public Member Functions
static bool	compareNames (const DtLgrAnnotation *a, const DtLgrAnnotation *b)
	Static function used for sorting.

Protected Member Functions
virtual void	annotationChanged ()
	Function should be called by any annotation function which modifies the state of the annotation.

Protected Attributes
DtLgrAnnotationManager *	myManager
const DtLgrAnnotationDefinition *	myTypeDefinition

Detailed Description

Base annotation class defines interface for all annotations.

Constructor & Destructor Documentation

MAKLogger::DtLgrAnnotation::DtLgrAnnotation

(

const DtLgrAnnotationDefinition *

definition

)

CTOR.

virtual MAKLogger::DtLgrAnnotation::~DtLgrAnnotation ( )

virtual

Member Function Documentation

virtual void MAKLogger::DtLgrAnnotation::addedToManager ( DtLgrAnnotationManager *  manager )

virtual

Called by manager after added to a given manager.

Annotations maintain a pointer to the manager to notify it of changes.

virtual void MAKLogger::DtLgrAnnotation::annotationChanged ( )

protectedvirtual

Function should be called by any annotation function which modifies the state of the annotation.

static bool MAKLogger::DtLgrAnnotation::compareNames ( const DtLgrAnnotation *  a, const DtLgrAnnotation *  b  )

static

Static function used for sorting.

virtual void MAKLogger::DtLgrAnnotation::createObject ( DtEnvironment  environment )

pure virtual

Set the attributes on an environment object.

Implemented in MAKLogger::DtLgrPointAnnotation, and MAKLogger::DtLgrRangeAnnotation.

const DtLgrAnnotationDefinition* MAKLogger::DtLgrAnnotation::definition

(

)

const

Get the definition of of this type of annotation.

This is non null if object is created using the annotation factory.

virtual const DtAbsoluteTime& MAKLogger::DtLgrAnnotation::endTime ( ) const

pure virtual

Implemented in MAKLogger::DtLgrRangeAnnotation, and MAKLogger::DtLgrPointAnnotation.

virtual void MAKLogger::DtLgrAnnotation::initializeFromObject ( const DtEnvObject *  annotationObject )

pure virtual

Initialize from environment object.

Implemented in MAKLogger::DtLgrPointAnnotation, and MAKLogger::DtLgrRangeAnnotation.

virtual const DtString& MAKLogger::DtLgrAnnotation::name ( ) const

pure virtual

Implemented in MAKLogger::DtLgrRangeAnnotation, and MAKLogger::DtLgrPointAnnotation.

virtual void MAKLogger::DtLgrAnnotation::setEndTime ( const DtAbsoluteTime &  time )

pure virtual

Implemented in MAKLogger::DtLgrPointAnnotation, and MAKLogger::DtLgrRangeAnnotation.

virtual void MAKLogger::DtLgrAnnotation::setName ( const DtString &  name )

pure virtual

Implemented in MAKLogger::DtLgrRangeAnnotation, and MAKLogger::DtLgrPointAnnotation.

virtual void MAKLogger::DtLgrAnnotation::setStartTime ( const DtAbsoluteTime &  time )

pure virtual

Implemented in MAKLogger::DtLgrPointAnnotation, and MAKLogger::DtLgrRangeAnnotation.

virtual void MAKLogger::DtLgrAnnotation::setText ( const DtString &  text )

pure virtual

Implemented in MAKLogger::DtLgrRangeAnnotation, and MAKLogger::DtLgrPointAnnotation.

virtual const DtAbsoluteTime& MAKLogger::DtLgrAnnotation::startTime ( ) const

pure virtual

Implemented in MAKLogger::DtLgrRangeAnnotation, and MAKLogger::DtLgrPointAnnotation.

virtual const DtString& MAKLogger::DtLgrAnnotation::text ( ) const

pure virtual

Implemented in MAKLogger::DtLgrRangeAnnotation, and MAKLogger::DtLgrPointAnnotation.

virtual const DtString& MAKLogger::DtLgrAnnotation::type ( ) const

pure virtual

Implemented in MAKLogger::DtLgrRangeAnnotation, and MAKLogger::DtLgrPointAnnotation.

Member Data Documentation

DtLgrAnnotationManager* MAKLogger::DtLgrAnnotation::myManager

protected

const DtLgrAnnotationDefinition* MAKLogger::DtLgrAnnotation::myTypeDefinition

protected

---

The documentation for this class was generated from the following file:

• lgrAnnotation.h
