MAKLogger::DtLgrClock Class Reference

A clock which provides time steps via a time provider and with optional scaling. More...

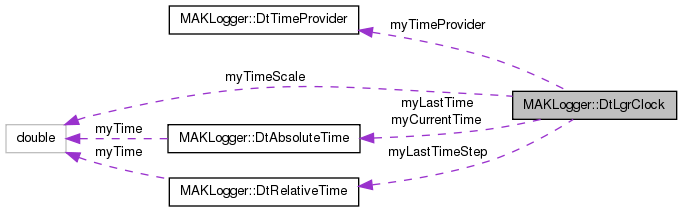

Collaboration diagram for MAKLogger::DtLgrClock:

Public Member Functions
	DtLgrClock (const DtTimeProvider *timeProvider)
	Constructor timeProvider - a pointer (owned by someone else) of the DtTime Provider class.
virtual	~DtLgrClock ()
	Destructor.
virtual void	tick ()
	Tick the clock which increments the time.
DtAbsoluteTime	currentTime () const
	Gets the current time, this value will not change until tick is called again.
void	setCurrentTime (const DtAbsoluteTime &newTime)
	Sets the internal current time.
virtual DtAbsoluteTime	pendingTime () const
	Get the pending time - time if provider were ticked now.
DtRelativeTime	lastTimeStep () const
	The last change in time between ticks.
virtual void	stop ()
	The same as two calls to setCurrentTime( 0.0 ), setTimeScale( 0.0 );.
virtual void	pause ()
	The same as a call to setTimeScale( 0.0 );.
virtual void	setTimeScale (double scaleValue)
	Changes the time scale.
virtual double	timeScale () const
	Gets the time scale value.
virtual void	setTimeProvider (const DtTimeProvider *timeProvider)
	Set the time provider.
virtual const DtTimeProvider *	timeProvider () const
	Get the time provider.

Protected Attributes
const DtTimeProvider *	myTimeProvider
DtAbsoluteTime	myLastTime
DtAbsoluteTime	myCurrentTime
DtRelativeTime	myLastTimeStep
double	myTimeScale

Detailed Description

A clock which provides time steps via a time provider and with optional scaling.

Constructor & Destructor Documentation

MAKLogger::DtLgrClock::DtLgrClock

(

const DtTimeProvider *

timeProvider

)

Constructor timeProvider - a pointer (owned by someone else) of the DtTime Provider class.

DtLgrClock does not take ownership of this pointer, it only uses it.

virtual MAKLogger::DtLgrClock::~DtLgrClock ( )

virtual

Destructor.

Member Function Documentation

DtAbsoluteTime MAKLogger::DtLgrClock::currentTime

(

)

const

Gets the current time, this value will not change until tick is called again.

DtRelativeTime MAKLogger::DtLgrClock::lastTimeStep

(

)

const

The last change in time between ticks.

virtual void MAKLogger::DtLgrClock::pause ( )

virtual

The same as a call to setTimeScale( 0.0 );.

virtual DtAbsoluteTime MAKLogger::DtLgrClock::pendingTime ( ) const

virtual

Get the pending time - time if provider were ticked now.

void MAKLogger::DtLgrClock::setCurrentTime

(

const DtAbsoluteTime &

newTime

)

Sets the internal current time.

virtual void MAKLogger::DtLgrClock::setTimeProvider ( const DtTimeProvider *  timeProvider )

virtual

Set the time provider.

This class does not take ownership of this pointer, and only uses it.

virtual void MAKLogger::DtLgrClock::setTimeScale ( double  scaleValue )

virtual

Changes the time scale.

Warning

SetTimeScale internally calls tick before modifying the time scale.

virtual void MAKLogger::DtLgrClock::stop ( )

virtual

The same as two calls to setCurrentTime( 0.0 ), setTimeScale( 0.0 );.

virtual void MAKLogger::DtLgrClock::tick ( )

virtual

Tick the clock which increments the time.

Calculated via currentTime = currentTime + time elapsed * timescale

virtual const DtTimeProvider* MAKLogger::DtLgrClock::timeProvider ( ) const

virtual

Get the time provider.

virtual double MAKLogger::DtLgrClock::timeScale ( ) const

virtual

Gets the time scale value.

Member Data Documentation

DtAbsoluteTime MAKLogger::DtLgrClock::myCurrentTime

protected

DtAbsoluteTime MAKLogger::DtLgrClock::myLastTime

protected

DtRelativeTime MAKLogger::DtLgrClock::myLastTimeStep

protected

const DtTimeProvider* MAKLogger::DtLgrClock::myTimeProvider

protected

double MAKLogger::DtLgrClock::myTimeScale

protected

---

The documentation for this class was generated from the following file:

• lgrClock.h
