MAKLogger::DtDisConnectionDialog Class Reference

The DIS connection dialog interface. More...

Inheritance diagram for MAKLogger::DtDisConnectionDialog:

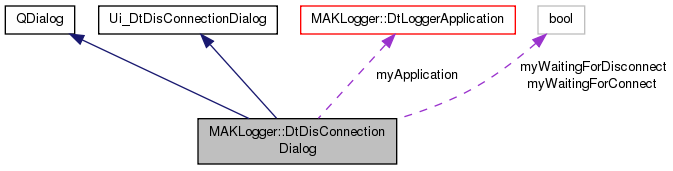

Collaboration diagram for MAKLogger::DtDisConnectionDialog:

Public Member Functions
	DtDisConnectionDialog (DtLoggerApplication &app, QWidget *parent)
	CTOR.
virtual	~DtDisConnectionDialog ()
	DTOR.
virtual void	setSiteId (const int val)
	Set the Site ID.
virtual int	siteId () const
virtual void	setPort (const int val)
virtual int	port () const
virtual void	setAppNum (const int val)
virtual int	appNum () const
virtual void	setExerciseId (const int val)
virtual int	exerciseId () const
virtual void	setSendBufferSize (const int val)
virtual int	sendBufferSize () const
virtual void	setRecvBufferSize (const int val)
virtual int	recvBufferSize () const
virtual void	setMulticastTtl (const int val)
virtual int	multicastTtl () const
virtual void	setUseAsyncIO (bool val)
virtual bool	useAsyncIO () const
virtual void	setDestAddrString (const QString &val)
virtual QString	destAddrString () const
virtual void	setNetmask (const QString &val)
virtual QString	netmaskString () const
virtual void	setDeviceAddrStrings (const QStringList &deviceAddrs)
virtual QString	deviceAddrString () const
virtual void	setMcastAddresses (const QString &val)
virtual QString	mcastAddresses () const
virtual void	setEditable (bool state)
	Freeze or unfreeze the interface based on the state parameter.
void	configureConnectionButton ()
	, sets the state of the connection button (to "connected" or "disconnected")
virtual void	disconnect ()
	disconnects the simulation
virtual bool	connect ()
	connects the simulation An initial check of the data (e.g., valid ip addresses) is made and the connection is not made if the data is invalid Returns bool: Initial check of data was valid and connect command sent?
virtual void	connectStatusChanged (bool connected)
	Process a connection change.
virtual void	unableToConnect ()
	process a failed connect action

Protected Slots
void	connectButtonPressed ()
	A callback for when the connect button is pressed.

Protected Attributes
DtLoggerApplication &	myApplication
bool	myWaitingForConnect
bool	myWaitingForDisconnect

Detailed Description

The DIS connection dialog interface.

This wraps the Ui_DtDisConnectionDialog created by QT Designer with useful methods for manipulation. This class knows how to connect itself and disconnect itself, as well as the current state of the connection. However, it only knows the current state of the connection from the SimManager, which may be off for several seconds after the connection state has changed.

Constructor & Destructor Documentation

MAKLogger::DtDisConnectionDialog::DtDisConnectionDialog	(	DtLoggerApplication &	app,
		QWidget *	parent
	)

CTOR.

virtual MAKLogger::DtDisConnectionDialog::~DtDisConnectionDialog ( )

virtual

DTOR.

Member Function Documentation

virtual int MAKLogger::DtDisConnectionDialog::appNum ( ) const

virtual

void MAKLogger::DtDisConnectionDialog::configureConnectionButton

(

)

, sets the state of the connection button (to "connected" or "disconnected")

virtual bool MAKLogger::DtDisConnectionDialog::connect ( )

virtual

connects the simulation An initial check of the data (e.g., valid ip addresses) is made and the connection is not made if the data is invalid Returns bool: Initial check of data was valid and connect command sent?

void MAKLogger::DtDisConnectionDialog::connectButtonPressed ( )

protectedslot

A callback for when the connect button is pressed.

The connect button is used for both connection and disconnection. Its text changes.

virtual void MAKLogger::DtDisConnectionDialog::connectStatusChanged ( bool  connected )

virtual

Process a connection change.

virtual QString MAKLogger::DtDisConnectionDialog::destAddrString ( ) const

virtual

virtual QString MAKLogger::DtDisConnectionDialog::deviceAddrString ( ) const

virtual

virtual void MAKLogger::DtDisConnectionDialog::disconnect ( )

virtual

disconnects the simulation

virtual int MAKLogger::DtDisConnectionDialog::exerciseId ( ) const

virtual

virtual QString MAKLogger::DtDisConnectionDialog::mcastAddresses ( ) const

virtual

virtual int MAKLogger::DtDisConnectionDialog::multicastTtl ( ) const

virtual

virtual QString MAKLogger::DtDisConnectionDialog::netmaskString ( ) const

virtual

virtual int MAKLogger::DtDisConnectionDialog::port ( ) const

virtual

virtual int MAKLogger::DtDisConnectionDialog::recvBufferSize ( ) const

virtual

virtual int MAKLogger::DtDisConnectionDialog::sendBufferSize ( ) const

virtual

virtual void MAKLogger::DtDisConnectionDialog::setAppNum ( const int  val )

virtual

virtual void MAKLogger::DtDisConnectionDialog::setDestAddrString ( const QString &  val )

virtual

virtual void MAKLogger::DtDisConnectionDialog::setDeviceAddrStrings ( const QStringList &  deviceAddrs )

virtual

virtual void MAKLogger::DtDisConnectionDialog::setEditable ( bool  state )

virtual

Freeze or unfreeze the interface based on the state parameter.

virtual void MAKLogger::DtDisConnectionDialog::setExerciseId ( const int  val )

virtual

virtual void MAKLogger::DtDisConnectionDialog::setMcastAddresses ( const QString &  val )

virtual

virtual void MAKLogger::DtDisConnectionDialog::setMulticastTtl ( const int  val )

virtual

virtual void MAKLogger::DtDisConnectionDialog::setNetmask ( const QString &  val )

virtual

virtual void MAKLogger::DtDisConnectionDialog::setPort ( const int  val )

virtual

virtual void MAKLogger::DtDisConnectionDialog::setRecvBufferSize ( const int  val )

virtual

virtual void MAKLogger::DtDisConnectionDialog::setSendBufferSize ( const int  val )

virtual

virtual void MAKLogger::DtDisConnectionDialog::setSiteId ( const int  val )

virtual

Set the Site ID.

virtual void MAKLogger::DtDisConnectionDialog::setUseAsyncIO ( bool  val )

virtual

virtual int MAKLogger::DtDisConnectionDialog::siteId ( ) const

virtual

virtual void MAKLogger::DtDisConnectionDialog::unableToConnect ( )

virtual

process a failed connect action

virtual bool MAKLogger::DtDisConnectionDialog::useAsyncIO ( ) const

virtual

Member Data Documentation

DtLoggerApplication& MAKLogger::DtDisConnectionDialog::myApplication

protected

bool MAKLogger::DtDisConnectionDialog::myWaitingForConnect

protected

bool MAKLogger::DtDisConnectionDialog::myWaitingForDisconnect

protected

---

The documentation for this class was generated from the following file:

• disConnectionDialog.h
