MAKLogger::DtLgrMainWindow Class Reference

The main window for the logger application. More...

Inheritance diagram for MAKLogger::DtLgrMainWindow:

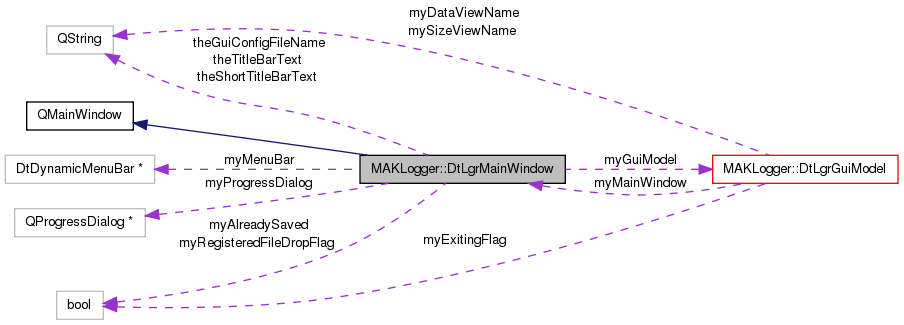

Collaboration diagram for MAKLogger::DtLgrMainWindow:

Public Slots
virtual void	show ()

Public Member Functions
	DtLgrMainWindow (DtLgrGuiModel *model)
	CTOR.
virtual	~DtLgrMainWindow ()
	DTOR.
virtual void	saveGuiConfiguration (bool forceSave=false)
	Save the GUI configuration.
virtual void	loadGuiConfiguration ()
	Loads the GUI configuration (window sizes, docking options)
virtual bool	getConfigurationDirectory (DtFilename &configPath, bool makeDirEnabled)
	Get the configuration directory.
virtual void	updateTitleBar (const DtString loggerName)
	Update the title bar.
bool	yesNoQuestion (QString question)
	Ask the user a question.
int	yesNoCancelQuestion (QString question)
	Ask the user a yes,no question that can be canceled.
void	errorMessage (QString message)
	Display an error message which blocks user interaction until acknowledged.
void	showProgress (QString name, bool canBeCanceled)
	Show progress indicator.
void	updateProgress (QString msg, int progress)
	Update progress indicator.
void	finishProgress ()
	Finish the progress indicator.
const DtLgrGuiModel *	guiModel () const
	Get the GUI model.
MAKCommonWidgets::DtDynamicMenuBar &	dynamicMenuBar ()
	Get the dynamic menu bar for this window.
void	addMenu (QString previousMenuName, DtLgrMenu *menu)
virtual void	setVisible (bool on)
	Override visibility.

Static Public Attributes
static QString	theTitleBarText
static QString	theShortTitleBarText
static QString	theGuiConfigFileName

Protected Member Functions
void	closeEvent (QCloseEvent *ce)
void	printMessage (const DtString &message)
void	closeMainWindow (const bool &closeFlag)
bool	savedState ()

Protected Attributes
DtLgrGuiModel *	myGuiModel
MAKCommonWidgets::DtDynamicMenuBar *	myMenuBar
QProgressDialog *	myProgressDialog
bool	myAlreadySaved
bool	myRegisteredFileDropFlag

Detailed Description

The main window for the logger application.

Constructor & Destructor Documentation

MAKLogger::DtLgrMainWindow::DtLgrMainWindow

(

DtLgrGuiModel *

model

)

CTOR.

virtual MAKLogger::DtLgrMainWindow::~DtLgrMainWindow ( )

virtual

DTOR.

Member Function Documentation

void MAKLogger::DtLgrMainWindow::addMenu	(	QString	previousMenuName,
		DtLgrMenu *	menu
	)

void MAKLogger::DtLgrMainWindow::closeEvent ( QCloseEvent *  ce )

protected

void MAKLogger::DtLgrMainWindow::closeMainWindow ( const bool &  closeFlag )

protected

MAKCommonWidgets::DtDynamicMenuBar& MAKLogger::DtLgrMainWindow::dynamicMenuBar

(

)

Get the dynamic menu bar for this window.

void MAKLogger::DtLgrMainWindow::errorMessage

(

QString

message

)

Display an error message which blocks user interaction until acknowledged.

void MAKLogger::DtLgrMainWindow::finishProgress

(

)

Finish the progress indicator.

virtual bool MAKLogger::DtLgrMainWindow::getConfigurationDirectory ( DtFilename &  configPath, bool  makeDirEnabled  )

virtual

Get the configuration directory.

If enabled, call will make the directory (if it does not exist). Return bool: directory exists or was created successfully?

const DtLgrGuiModel* MAKLogger::DtLgrMainWindow::guiModel

(

)

const

Get the GUI model.

virtual void MAKLogger::DtLgrMainWindow::loadGuiConfiguration ( )

virtual

Loads the GUI configuration (window sizes, docking options)

void MAKLogger::DtLgrMainWindow::printMessage ( const DtString &  message )

protected

bool MAKLogger::DtLgrMainWindow::savedState ( )

protected

virtual void MAKLogger::DtLgrMainWindow::saveGuiConfiguration ( bool  forceSave = false )

virtual

Save the GUI configuration.

We do this when we shutdown. Save performed once unless forced.

virtual void MAKLogger::DtLgrMainWindow::setVisible ( bool  on )

virtual

Override visibility.

virtual void MAKLogger::DtLgrMainWindow::show ( )

virtualslot

void MAKLogger::DtLgrMainWindow::showProgress	(	QString	name,
		bool	canBeCanceled
	)

Show progress indicator.

void MAKLogger::DtLgrMainWindow::updateProgress	(	QString	msg,
		int	progress
	)

Update progress indicator.

virtual void MAKLogger::DtLgrMainWindow::updateTitleBar ( const DtString  loggerName )

virtual

Update the title bar.

int MAKLogger::DtLgrMainWindow::yesNoCancelQuestion

(

QString

question

)

Ask the user a yes,no question that can be canceled.

Return values

0	Answer was yes.
1	answer was no.
2	answer was cancel.

bool MAKLogger::DtLgrMainWindow::yesNoQuestion

(

QString

question

)

Ask the user a question.

Return values

true	Answer was yes.
false	answer was not yes.

Member Data Documentation

bool MAKLogger::DtLgrMainWindow::myAlreadySaved

protected

DtLgrGuiModel* MAKLogger::DtLgrMainWindow::myGuiModel

protected

MAKCommonWidgets::DtDynamicMenuBar* MAKLogger::DtLgrMainWindow::myMenuBar

protected

QProgressDialog* MAKLogger::DtLgrMainWindow::myProgressDialog

protected

bool MAKLogger::DtLgrMainWindow::myRegisteredFileDropFlag

protected

QString MAKLogger::DtLgrMainWindow::theGuiConfigFileName

static

QString MAKLogger::DtLgrMainWindow::theShortTitleBarText

static

QString MAKLogger::DtLgrMainWindow::theTitleBarText

static

---

The documentation for this class was generated from the following file:

• lgrMainWindow.h
