MAKLogger::DtLogger Class Reference

DtLogger provides the core system structure and controls the execution model for the underlying objects. More...

Inheritance diagram for MAKLogger::DtLogger:

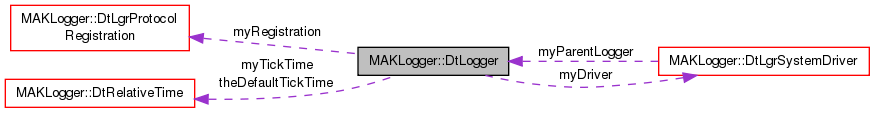

Collaboration diagram for MAKLogger::DtLogger:

Public Member Functions
virtual	~DtLogger ()
virtual void	init ()
	, Ticks the logger once.
virtual void	registerSimulationProtocol (DtLgrProtocolRegistration *)
	This method must be called by a simulation plug-in during initialization.
virtual const DtLgrProtocolRegistration *	simulationProtocol () const
	Gets the protocol registration the logger was registered with.
virtual bool	tick ()
	Tick the logger once, function is non-blocking.
virtual DtRelativeTime	tickTime () const
	Get the estimated time between ticks.
virtual void	setTickTime (DtRelativeTime time)
	Set the estimated time between tick calls.
virtual void	submitCommand (const DtCommand &command)
	Send a command to the logger to execute.
virtual DtLgrCommandHandlerSP	getCommandHandler (const DtLgrCommandType &type) const
	Lookup the command handler for a specific type of command.
virtual const DtLibraryList &	libraries () const
	Gets the Loaded libraries.
virtual DtLgrSimManager *	simManager ()
	Access simulation manager;.
DtLgrSystemDriver &	driver ()
	Get system driver.

Protected Attributes
DtLgrProtocolRegistration *	myRegistration
DtLgrSystemDriver *	myDriver
	The driver which defines the logger executions.
DtRelativeTime	myTickTime
	The time between ticks.

Static Protected Attributes
static DtRelativeTime	theDefaultTickTime
	Default tick time.

Detailed Description

DtLogger provides the core system structure and controls the execution model for the underlying objects.

Constructor & Destructor Documentation

virtual MAKLogger::DtLogger::~DtLogger ( )

virtual

Member Function Documentation

DtLgrSystemDriver& MAKLogger::DtLogger::driver

(

)

Get system driver.

virtual DtLgrCommandHandlerSP MAKLogger::DtLogger::getCommandHandler ( const DtLgrCommandType &  type ) const

virtual

Lookup the command handler for a specific type of command.

virtual void MAKLogger::DtLogger::init ( )

virtual

, Ticks the logger once.

And ensures that the logger is in a valid state after the tick. Startup commands should be submitted before init. Init will throw if the logger is not in a valid state. Possible examples of invalid states include no simulation components loaded.

Reimplemented in MAKLogger::DtDisLogger.

virtual const DtLibraryList& MAKLogger::DtLogger::libraries ( ) const

virtual

Gets the Loaded libraries.

virtual void MAKLogger::DtLogger::registerSimulationProtocol ( DtLgrProtocolRegistration *  )

virtual

This method must be called by a simulation plug-in during initialization.

Additional calls may be made during initialization however once initialization is complete further calls will have no effect on the logger.

virtual void MAKLogger::DtLogger::setTickTime ( DtRelativeTime  time )

virtual

Set the estimated time between tick calls.

virtual DtLgrSimManager* MAKLogger::DtLogger::simManager ( )

virtual

Access simulation manager;.

virtual const DtLgrProtocolRegistration* MAKLogger::DtLogger::simulationProtocol ( ) const

virtual

Gets the protocol registration the logger was registered with.

virtual void MAKLogger::DtLogger::submitCommand ( const DtCommand &  command )

virtual

Send a command to the logger to execute.

Parameters

Input
command	The logger command to be executed.

Warning

The command will not be executed until tick is called.

virtual bool MAKLogger::DtLogger::tick ( )

virtual

Tick the logger once, function is non-blocking.

This causes the logger to tick for one round of execution. Typically an application will have a loop where it ticks the logger.

Returns

Returns whether the logger should continue to be ticked.

Return values

true	The logger can still tick.
false	The logger should exit.

Reimplemented in MAKLogger::DtDisLogger.

virtual DtRelativeTime MAKLogger::DtLogger::tickTime ( ) const

virtual

Get the estimated time between ticks.

Member Data Documentation

DtLgrSystemDriver* MAKLogger::DtLogger::myDriver

protected

The driver which defines the logger executions.

The logger is responsible for executing the driver.

DtLgrProtocolRegistration* MAKLogger::DtLogger::myRegistration

protected

DtRelativeTime MAKLogger::DtLogger::myTickTime

protected

The time between ticks.

DtRelativeTime MAKLogger::DtLogger::theDefaultTickTime

staticprotected

Default tick time.

---

The documentation for this class was generated from the following file:

• logger.h
