MAKLogger::DtHlaConnectionDialog Class Reference

The HLA Connection Dialog interface. More...

Inheritance diagram for MAKLogger::DtHlaConnectionDialog:

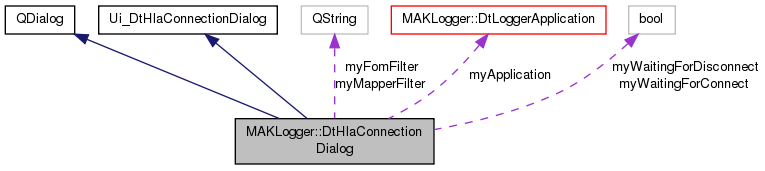

Collaboration diagram for MAKLogger::DtHlaConnectionDialog:

Public Member Functions
	DtHlaConnectionDialog (DtLoggerApplication &app, QWidget *parent)
	CTOR.
virtual	~DtHlaConnectionDialog ()
	DTOR.
virtual void	setExerciseName (const QString &exerciseName)
	Set the exercise name.
virtual QString	exerciseName () const
virtual void	setFederateType (const QString &federateType)
	Set the federate type.
virtual QString	federateType () const
virtual void	setFedFileName (const QString &fedFileName)
	Set the fed file name.
virtual QString	fedFileName () const
virtual void	setRPRFomVersion (double fomVersion, int fomRevision)
	Set the RPR FOM version.
virtual double	rprFomVersion () const
virtual int	rprFomRevision () const
	Set the RPR FOM revision.
virtual void	setUseMatrexFomMapper (bool enabled)
	Set the use MATREX fom mapper state.
virtual bool	useMatrexFomMapper () const
virtual void	setMatrexFomMapperInitString (const QString &fomMapperInitString)
	Set the fom mapper init string.
virtual QString	matrexFomMapperInitString () const
virtual void	setCustomFomMapperFileName (const QString &fomMapperFileName)
	Set the fom mapper file name.
virtual QString	fomMapperFileName () const
virtual void	setCustomFomMapperInitString (const QString &fomMapperInitString)
	Set the fom mapper init string.
virtual QString	fomMapperInitString () const
virtual void	setUseEmptyFomMapper (bool enabled)
	Set the use generic fom mapper state.
virtual bool	useEmptyFomMapper () const
virtual void	setIgnoreAdvisories (bool enabled)
	Set the use advisories state.
virtual bool	ignoreAdvisories () const
virtual void	setEditable (bool state)
	Freeze or unfreeze the interface based on the state parameter.
void	configureConnectionButton ()
	, sets the state of the connection button (to "connected" or "disconnected")
virtual void	disconnect ()
	disconnects the simulation
virtual void	connect ()
	connects the simulation
virtual void	connectStatusChanged (bool connected)
	Process a connection change.
virtual void	unableToConnect ()
	process a failed connect action

Protected Slots
void	connectButtonPressed ()
	A callback for when the connect button is pressed.
void	useRprFomRadioButtonClicked ()
	A callback for when the rpr fom mapper radio button is clicked.
void	useMatrexFomMapperRadioButtonClicked ()
	A callback for when the matrex fom mapper check box is clicked.
void	useCustomFomRadioButtonClicked ()
	A callback for when the custom fom mapper radio button is clicked.
void	useEmptyFomMapperRadioButtonClicked ()
	A callback for when the empty fom mapper check box is clicked.
virtual void	fedFileBrowse ()
	Browse for fed file.
virtual void	fomModuleBrowse ()
	Browse for FOM Module files.
virtual void	mimBrowse ()
	Browse for fed file.
virtual void	fomMapperBrowse ()
	Browse for Fom Mapper files.

Protected Attributes
DtLoggerApplication &	myApplication
bool	myWaitingForConnect
bool	myWaitingForDisconnect
QString	myFomFilter
QString	myMapperFilter

Detailed Description

The HLA Connection Dialog interface.

This wraps the Ui_DtHlaConnectionDialog created by QT Designer with useful methods for manipulation. This class knows how to connect itself and disconnect itself, as well as the current state of the connection. However, it only knows the current state of the connection from the SimManager, which may be off for several seconds after the connection state has changed.

Constructor & Destructor Documentation

MAKLogger::DtHlaConnectionDialog::DtHlaConnectionDialog	(	DtLoggerApplication &	app,
		QWidget *	parent
	)

CTOR.

virtual MAKLogger::DtHlaConnectionDialog::~DtHlaConnectionDialog ( )

virtual

DTOR.

Member Function Documentation

void MAKLogger::DtHlaConnectionDialog::configureConnectionButton

(

)

, sets the state of the connection button (to "connected" or "disconnected")

virtual void MAKLogger::DtHlaConnectionDialog::connect ( )

virtual

connects the simulation

void MAKLogger::DtHlaConnectionDialog::connectButtonPressed ( )

protectedslot

A callback for when the connect button is pressed.

The connect button is used for both connection and disconnection. Its text changes.

virtual void MAKLogger::DtHlaConnectionDialog::connectStatusChanged ( bool  connected )

virtual

Process a connection change.

virtual void MAKLogger::DtHlaConnectionDialog::disconnect ( )

virtual

disconnects the simulation

virtual QString MAKLogger::DtHlaConnectionDialog::exerciseName ( ) const

virtual

virtual QString MAKLogger::DtHlaConnectionDialog::federateType ( ) const

virtual

virtual void MAKLogger::DtHlaConnectionDialog::fedFileBrowse ( )

protectedvirtualslot

Browse for fed file.

virtual QString MAKLogger::DtHlaConnectionDialog::fedFileName ( ) const

virtual

virtual void MAKLogger::DtHlaConnectionDialog::fomMapperBrowse ( )

protectedvirtualslot

Browse for Fom Mapper files.

virtual QString MAKLogger::DtHlaConnectionDialog::fomMapperFileName ( ) const

virtual

virtual QString MAKLogger::DtHlaConnectionDialog::fomMapperInitString ( ) const

virtual

virtual void MAKLogger::DtHlaConnectionDialog::fomModuleBrowse ( )

protectedvirtualslot

Browse for FOM Module files.

virtual bool MAKLogger::DtHlaConnectionDialog::ignoreAdvisories ( ) const

virtual

virtual QString MAKLogger::DtHlaConnectionDialog::matrexFomMapperInitString ( ) const

virtual

virtual void MAKLogger::DtHlaConnectionDialog::mimBrowse ( )

protectedvirtualslot

Browse for fed file.

virtual int MAKLogger::DtHlaConnectionDialog::rprFomRevision ( ) const

virtual

Set the RPR FOM revision.

virtual double MAKLogger::DtHlaConnectionDialog::rprFomVersion ( ) const

virtual

virtual void MAKLogger::DtHlaConnectionDialog::setCustomFomMapperFileName ( const QString &  fomMapperFileName )

virtual

Set the fom mapper file name.

virtual void MAKLogger::DtHlaConnectionDialog::setCustomFomMapperInitString ( const QString &  fomMapperInitString )

virtual

Set the fom mapper init string.

virtual void MAKLogger::DtHlaConnectionDialog::setEditable ( bool  state )

virtual

Freeze or unfreeze the interface based on the state parameter.

virtual void MAKLogger::DtHlaConnectionDialog::setExerciseName ( const QString &  exerciseName )

virtual

Set the exercise name.

virtual void MAKLogger::DtHlaConnectionDialog::setFederateType ( const QString &  federateType )

virtual

Set the federate type.

virtual void MAKLogger::DtHlaConnectionDialog::setFedFileName ( const QString &  fedFileName )

virtual

Set the fed file name.

virtual void MAKLogger::DtHlaConnectionDialog::setIgnoreAdvisories ( bool  enabled )

virtual

Set the use advisories state.

virtual void MAKLogger::DtHlaConnectionDialog::setMatrexFomMapperInitString ( const QString &  fomMapperInitString )

virtual

Set the fom mapper init string.

virtual void MAKLogger::DtHlaConnectionDialog::setRPRFomVersion ( double  fomVersion, int  fomRevision  )

virtual

Set the RPR FOM version.

virtual void MAKLogger::DtHlaConnectionDialog::setUseEmptyFomMapper ( bool  enabled )

virtual

Set the use generic fom mapper state.

virtual void MAKLogger::DtHlaConnectionDialog::setUseMatrexFomMapper ( bool  enabled )

virtual

Set the use MATREX fom mapper state.

virtual void MAKLogger::DtHlaConnectionDialog::unableToConnect ( )

virtual

process a failed connect action

void MAKLogger::DtHlaConnectionDialog::useCustomFomRadioButtonClicked ( )

protectedslot

A callback for when the custom fom mapper radio button is clicked.

virtual bool MAKLogger::DtHlaConnectionDialog::useEmptyFomMapper ( ) const

virtual

void MAKLogger::DtHlaConnectionDialog::useEmptyFomMapperRadioButtonClicked ( )

protectedslot

A callback for when the empty fom mapper check box is clicked.

virtual bool MAKLogger::DtHlaConnectionDialog::useMatrexFomMapper ( ) const

virtual

void MAKLogger::DtHlaConnectionDialog::useMatrexFomMapperRadioButtonClicked ( )

protectedslot

A callback for when the matrex fom mapper check box is clicked.

void MAKLogger::DtHlaConnectionDialog::useRprFomRadioButtonClicked ( )

protectedslot

A callback for when the rpr fom mapper radio button is clicked.

Member Data Documentation

DtLoggerApplication& MAKLogger::DtHlaConnectionDialog::myApplication

protected

QString MAKLogger::DtHlaConnectionDialog::myFomFilter

protected

QString MAKLogger::DtHlaConnectionDialog::myMapperFilter

protected

bool MAKLogger::DtHlaConnectionDialog::myWaitingForConnect

protected

bool MAKLogger::DtHlaConnectionDialog::myWaitingForDisconnect

protected

---

The documentation for this class was generated from the following file:

• hlaConnectionDialog.h
