DtObjectAttributeDataDlg Class Reference

Shows attribute data of a particular object. More...

Inheritance diagram for DtObjectAttributeDataDlg:

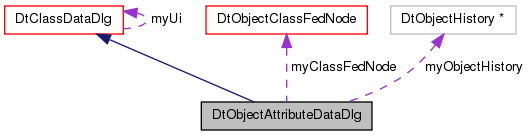

Collaboration diagram for DtObjectAttributeDataDlg:

Public Slots
virtual void	updateObjectCb (DtObjectHistory *objectHistory)
	Update the specified object.

Public Member Functions
	DtObjectAttributeDataDlg (DtDatatypeManager &dm, QWidget *parent=0, Qt::WFlags fl=0)
	Constructor.
virtual	~DtObjectAttributeDataDlg ()
	Destructor.
virtual void	fillAttributes (DtObjectClassFedNode *classFedNode, DtObjectHistory *objectHistory)
	Fill the list of attributes using the given object class node and force an update using the object history.
virtual void	updateAttributes ()
	Update the attribute items for attributes whose data has been updated.
virtual QSize	sizeHint () const
	Returns the recommended size of this widget.
virtual void	removeObject ()
	Remove the object (history) and clear the dialog.
Public Member Functions inherited from DtClassDataDlg
	DtClassDataDlg (DtDatatypeManager &dm, QWidget *parent=0, Qt::WFlags fl=0)
	Constructor.
virtual	~DtClassDataDlg ()
	Destructor.
virtual void	clearList ()

Protected Member Functions
	DtObjectAttributeDataDlg (const DtObjectAttributeDataDlg &orig)
	Copy Constructor.
DtObjectAttributeDataDlg &	operator= (const DtObjectAttributeDataDlg &rhs)
	Assignment Operator.
virtual void	closeEvent (QCloseEvent *)
	Process close event.
virtual Q3ListViewItem *	createClassItem (Q3ListViewItem *parent, Q3ListViewItem *after, const char *label)
	Create a list view item to contain the value string.
virtual void	fillAttributeData (DtObjectClassFedNode *classFedNode)
Protected Member Functions inherited from DtClassDataDlg
	DtClassDataDlg (const DtClassDataDlg &orig)
	Copy Constructor.
DtClassDataDlg &	operator= (const DtClassDataDlg &rhs)
	Assignment Operator.
virtual void	hideEvent (QHideEvent *e)
	Process hide event.
virtual void	showEvent (QShowEvent *e)
	Process show event.
virtual void	resizeEvent (QResizeEvent *e)
	Process resize event.
virtual void	removeFutureChildren (Q3ListViewItem *childItem)
	helper function that removes all items after the specified item.
virtual void	updateComponent (DtStringTree *strTree, Q3ListViewItem *parentItem, QString &valueString)
	Process a datatype component found in an item value.
virtual void	updateComponentElements (DtStringTree *strTree, Q3ListViewItem *parentItem, QString &valueString)
	Process the array elements of a component.
virtual void	updateSubComponents (DtStringTree *strTree, Q3ListViewItem *parentItem, QString &valueString)
	Process the subcomponents of a component.

Static Protected Member Functions
static void	reflectObjectUpdateCb (const DtStateMsg &msg, DtHlaObject *object, void *usr)
	Callback for reflect update.

Protected Attributes
DtObjectHistory *	myObjectHistory
DtObjectClassFedNode *	myClassFedNode
Protected Attributes inherited from DtClassDataDlg
Ui::DtClassDataDlg	myUi
DtDatatypeManager &	myDatatypeManager

Additional Inherited Members
Signals inherited from DtClassDataDlg
void	hideWidget ()
void	showWidget ()
void	closeWidget ()

Detailed Description

Shows attribute data of a particular object.

Constructor & Destructor Documentation

DtObjectAttributeDataDlg::DtObjectAttributeDataDlg	(	DtDatatypeManager &	dm,
		QWidget *	parent = 0,
		Qt::WFlags	fl = 0
	)

Constructor.

virtual DtObjectAttributeDataDlg::~DtObjectAttributeDataDlg ( )

virtual

Destructor.

DtObjectAttributeDataDlg::DtObjectAttributeDataDlg ( const DtObjectAttributeDataDlg &  orig )

protected

Copy Constructor.

Member Function Documentation

virtual void DtObjectAttributeDataDlg::closeEvent ( QCloseEvent *  )

protectedvirtual

Process close event.

Reimplemented from DtClassDataDlg.

virtual Q3ListViewItem* DtObjectAttributeDataDlg::createClassItem ( Q3ListViewItem *  parent, Q3ListViewItem *  after, const char *  label  )

protectedvirtual

Create a list view item to contain the value string.

Reimplemented from DtClassDataDlg.

virtual void DtObjectAttributeDataDlg::fillAttributeData ( DtObjectClassFedNode *  classFedNode )

protectedvirtual

virtual void DtObjectAttributeDataDlg::fillAttributes ( DtObjectClassFedNode *  classFedNode, DtObjectHistory *  objectHistory  )

virtual

Fill the list of attributes using the given object class node and force an update using the object history.

The object serves

DtObjectAttributeDataDlg& DtObjectAttributeDataDlg::operator= ( const DtObjectAttributeDataDlg &  rhs )

protected

Assignment Operator.

static void DtObjectAttributeDataDlg::reflectObjectUpdateCb ( const DtStateMsg &  msg, DtHlaObject *  object, void *  usr  )

staticprotected

Callback for reflect update.

virtual void DtObjectAttributeDataDlg::removeObject ( )

virtual

Remove the object (history) and clear the dialog.

virtual QSize DtObjectAttributeDataDlg::sizeHint ( ) const

virtual

Returns the recommended size of this widget.

virtual void DtObjectAttributeDataDlg::updateAttributes ( )

virtual

Update the attribute items for attributes whose data has been updated.

virtual void DtObjectAttributeDataDlg::updateObjectCb ( DtObjectHistory *  objectHistory )

virtualslot

Update the specified object.

Member Data Documentation

DtObjectClassFedNode* DtObjectAttributeDataDlg::myClassFedNode

protected

DtObjectHistory* DtObjectAttributeDataDlg::myObjectHistory

protected

---

The documentation for this class was generated from the following file:

• objectAttributeDataDlg.h
