MAKLogger::DtLgrAppGui Class Reference

The specific interface for interacting with the default logger GUI. More...

Inheritance diagram for MAKLogger::DtLgrAppGui:

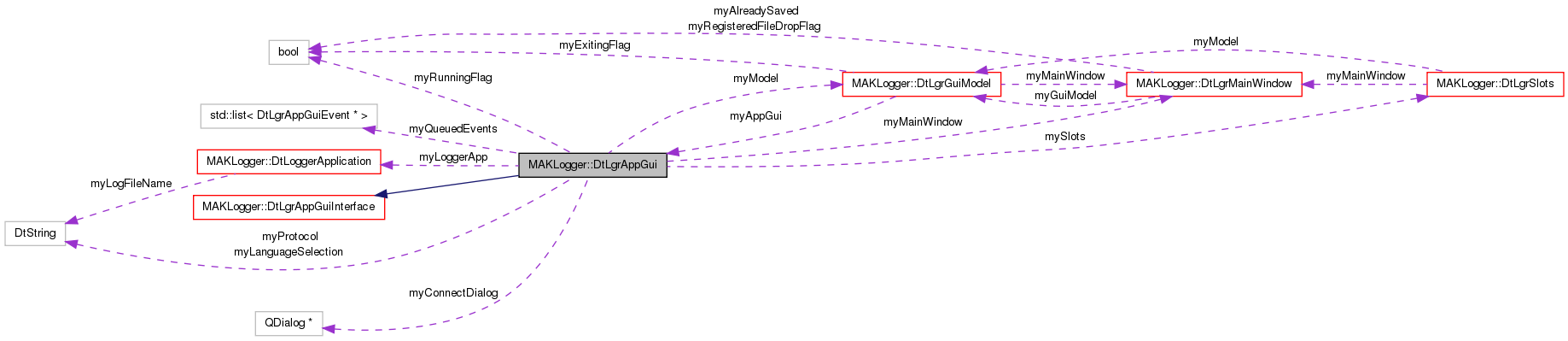

Collaboration diagram for MAKLogger::DtLgrAppGui:

Public Member Functions
virtual	~DtLgrAppGui ()
	DTOR.
virtual void	launchHelp (const char *helpFile)
	Show the help file.
virtual void	setTranslations (const char *translationFile)
	Set the translation file.
virtual bool	isConnectionDialogHidden () const
	Return whether connection dialog is hidden.
virtual void	raiseConnectionDialog ()
	Raise the connection dialog.
virtual void	setProtocol (const char *protocol)
	Set the protocol information.
virtual void	run ()
	Start the gui running.
virtual void	stop ()
	Stop the gui running.
DtLgrGuiModel *	model ()
	Get the Application Gui object.
DtLgrMainWindow *	mainWindow ()
	Get the Main Window object.
DtLoggerApplication *	application ()
	Get the application object.
QObject *	eventHandler ()
	Get the event handler object.
virtual void	postEvent (DtLgrAppGuiEvent *event)
	Posts an lgrAppGuiEvent to the mainWindow.
virtual const DtString &	languageSelection () const
	Get access to the language to be used.
virtual void	setConnectionDialog (QDialog *connectDialog)
	Set/Get the connection dialog.
virtual QDialog *	connectionDialog ()
	Set/Get the connection dialog.
virtual const DtLgrFullInterface *	fullInterface () const
	Get a full interface for the gui.
virtual DtLgrFullInterface *	fullInterface ()
	Get a full interface for the gui.
Public Member Functions inherited from MAKLogger::DtLgrAppGuiInterface
	DtLgrAppGuiInterface ()
	Virtual CTOR.
virtual	~DtLgrAppGuiInterface ()
	DTOR;.

Static Public Member Functions
static DtLgrAppGui *	getQtGui (DtLoggerApplication &)

Protected Types
typedef std::list < DtLgrAppGuiEvent * >	EventList

Protected Member Functions
void	addDefaultComponents ()

Static Protected Member Functions
static void	messageOutput (QtMsgType type, const char *msg)

Protected Attributes
DtLgrGuiModel *	myModel
DtLgrMainWindow *	myMainWindow
DtLgrSlots *	mySlots
DtLoggerApplication *	myLoggerApp
QDialog *	myConnectDialog
DtString	myLanguageSelection
DtString	myProtocol
bool	myRunningFlag
EventList	myQueuedEvents

Detailed Description

The specific interface for interacting with the default logger GUI.

Member Typedef Documentation

typedef std::list<DtLgrAppGuiEvent*> MAKLogger::DtLgrAppGui::EventList

protected

Constructor & Destructor Documentation

virtual MAKLogger::DtLgrAppGui::~DtLgrAppGui ( )

virtual

DTOR.

Member Function Documentation

void MAKLogger::DtLgrAppGui::addDefaultComponents ( )

protected

DtLoggerApplication* MAKLogger::DtLgrAppGui::application

(

)

Get the application object.

virtual QDialog* MAKLogger::DtLgrAppGui::connectionDialog ( )

virtual

Set/Get the connection dialog.

QObject* MAKLogger::DtLgrAppGui::eventHandler

(

)

Get the event handler object.

virtual const DtLgrFullInterface* MAKLogger::DtLgrAppGui::fullInterface ( ) const

virtual

Get a full interface for the gui.

Implements MAKLogger::DtLgrAppGuiInterface.

virtual DtLgrFullInterface* MAKLogger::DtLgrAppGui::fullInterface ( )

virtual

Get a full interface for the gui.

static DtLgrAppGui* MAKLogger::DtLgrAppGui::getQtGui ( DtLoggerApplication &  )

static

virtual bool MAKLogger::DtLgrAppGui::isConnectionDialogHidden ( ) const

virtual

Return whether connection dialog is hidden.

virtual const DtString& MAKLogger::DtLgrAppGui::languageSelection ( ) const

virtual

Get access to the language to be used.

virtual void MAKLogger::DtLgrAppGui::launchHelp ( const char *  helpFile )

virtual

Show the help file.

DtLgrMainWindow* MAKLogger::DtLgrAppGui::mainWindow

(

)

Get the Main Window object.

static void MAKLogger::DtLgrAppGui::messageOutput ( QtMsgType  type, const char *  msg  )

staticprotected

DtLgrGuiModel* MAKLogger::DtLgrAppGui::model

(

)

Get the Application Gui object.

virtual void MAKLogger::DtLgrAppGui::postEvent ( DtLgrAppGuiEvent *  event )

virtual

Posts an lgrAppGuiEvent to the mainWindow.

If the application has not been run, the events will be queued until run() is called.

virtual void MAKLogger::DtLgrAppGui::raiseConnectionDialog ( )

virtual

Raise the connection dialog.

virtual void MAKLogger::DtLgrAppGui::run ( )

virtual

Start the gui running.

virtual void MAKLogger::DtLgrAppGui::setConnectionDialog ( QDialog *  connectDialog )

virtual

Set/Get the connection dialog.

virtual void MAKLogger::DtLgrAppGui::setProtocol ( const char *  protocol )

virtual

Set the protocol information.

Implements MAKLogger::DtLgrAppGuiInterface.

virtual void MAKLogger::DtLgrAppGui::setTranslations ( const char *  translationFile )

virtual

Set the translation file.

Implements MAKLogger::DtLgrAppGuiInterface.

virtual void MAKLogger::DtLgrAppGui::stop ( )

virtual

Stop the gui running.

Member Data Documentation

QDialog* MAKLogger::DtLgrAppGui::myConnectDialog

protected

DtString MAKLogger::DtLgrAppGui::myLanguageSelection

protected

DtLoggerApplication* MAKLogger::DtLgrAppGui::myLoggerApp

protected

DtLgrMainWindow* MAKLogger::DtLgrAppGui::myMainWindow

protected

DtLgrGuiModel* MAKLogger::DtLgrAppGui::myModel

protected

DtString MAKLogger::DtLgrAppGui::myProtocol

protected

EventList MAKLogger::DtLgrAppGui::myQueuedEvents

protected

bool MAKLogger::DtLgrAppGui::myRunningFlag

protected

DtLgrSlots* MAKLogger::DtLgrAppGui::mySlots

protected

---

The documentation for this class was generated from the following file:

• lgrAppGui.h
