DtLgcyLgrEofActionPdu Class Reference

Instances of DtLgcyLgrEofActionPdu are to tell a remote logger that it should pause, wrap, or stop at the end of playback. More...

Inheritance diagram for DtLgcyLgrEofActionPdu:

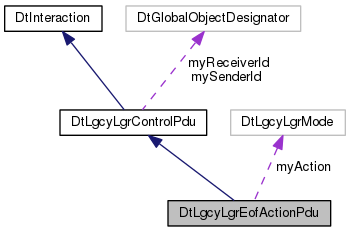

Collaboration diagram for DtLgcyLgrEofActionPdu:

Public Member Functions
	DtLgcyLgrEofActionPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	(default) constructor More...
	DtLgcyLgrEofActionPdu (const DtNetLgcyLgrControlPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	constructor (construct from network representation) More...
	DtLgcyLgrEofActionPdu (DtGlobalObjectDesignator &sender, DtGlobalObjectDesignator &receiver, DtLgcyLgrMode mode, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	constructor (construct and prepare for send) More...
virtual	~DtLgcyLgrEofActionPdu ()
	destructor More...
	DtLgcyLgrEofActionPdu (const DtLgcyLgrEofActionPdu &src)
	copy constructor More...
DtLgcyLgrEofActionPdu &	operator= (const DtLgcyLgrEofActionPdu &src)
	assignment operator More...
virtual DtLgcyLgrMode	action () const
	Set/Get value for what to do when Logger reaches EOF. More...
virtual void	setAction (DtLgcyLgrMode cmd)
virtual DtLgcyLgrIntParams *	params () const
	Return correctly casted parameters pointer; see legacyLgrControlP.h. More...
Public Member Functions inherited from DtLgcyLgrControlPdu
	DtLgcyLgrControlPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	(default) constructor More...
	DtLgcyLgrControlPdu (const DtNetLgcyLgrControlPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	constructor (constructs from network representation) More...
virtual	~DtLgcyLgrControlPdu ()
	destructor More...
	DtLgcyLgrControlPdu (const DtLgcyLgrControlPdu &src)
	copy constructor More...
DtLgcyLgrControlPdu &	operator= (const DtLgcyLgrControlPdu &src)
	assignment operator More...
const DtGlobalObjectDesignator &	receiverId () const
	Get/set Object Identifier of intended recipient (logger). More...
virtual void	setReceiverId (const DtGlobalObjectDesignator &id)
virtual const DtGlobalObjectDesignator &	senderId () const
	Get/set Object Identifier of sender, if applicable. More...
virtual void	setSenderId (const DtGlobalObjectDesignator &id)
DtLgrCommand	lgrCommand () const
	Get message-type for proper casting to a subclass. More...
DtNetLgcyLgrControlParams *	defaultParams () const
	Data place holder. More...
virtual void	printData () const
	Print contents. More...

Private Attributes
DtLgcyLgrMode	myAction
	Parameter. More...

Additional Inherited Members
Static Public Member Functions inherited from DtLgcyLgrControlPdu
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	Create a PDU representation from a network packet. More...
static DtLgcyLgrControlPdu *	create (DtLgrCommand command)
	Create a PDU from DtLgrCommand. More...
static void	addCallback (DtExerciseConn *conn, DtLgcyLgrControlInteractionCb cb, void *usr)
	DIS – install/remove handler to call when receiving a LC packet. More...
static void	removeCallback (DtExerciseConn *conn, DtLgcyLgrControlInteractionCb cb, void *usr)
static const char *	lgrModeEnum2string (DtLgcyLgrMode md)
	The name (as a string) of a 'DtLgcyLgrMode'-type enum (from value) More...
static const char *	lgrFilePosEnum2string (DtLgcyLgrFilePosition pos)
	The name (as a string) of a 'DtLgcyLgrFilePosition'-type enum (from value) More...
static const char *	lgrStateFlag2string (DtLgcyLgrCtrlFlagStates flg)
	The name (as a string) of a 'DtLgcyLgrCtrlFlagStates'-type enum (from value) More...
Protected Member Functions inherited from DtLgcyLgrControlPdu
DtPduKind	internalGetPduKind () const
	Identity for use by toolkit. More...
void	setLgrCommand (DtLgrCommand com)
	Set is done by constructing the proper subclass. More...

Detailed Description

Instances of DtLgcyLgrEofActionPdu are to tell a remote logger that it should pause, wrap, or stop at the end of playback.

Constructor & Destructor Documentation

DtLgcyLgrEofActionPdu::DtLgcyLgrEofActionPdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

(default) constructor

DtLgcyLgrEofActionPdu::DtLgcyLgrEofActionPdu	(	const DtNetLgcyLgrControlPdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

constructor (construct from network representation)

DtLgcyLgrEofActionPdu::DtLgcyLgrEofActionPdu	(	DtGlobalObjectDesignator &	sender,
		DtGlobalObjectDesignator &	receiver,
		DtLgcyLgrMode	mode,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

constructor (construct and prepare for send)

virtual DtLgcyLgrEofActionPdu::~DtLgcyLgrEofActionPdu ( )

virtual

destructor

DtLgcyLgrEofActionPdu::DtLgcyLgrEofActionPdu

(

const DtLgcyLgrEofActionPdu &

src

)

copy constructor

Member Function Documentation

virtual DtLgcyLgrMode DtLgcyLgrEofActionPdu::action ( ) const

virtual

Set/Get value for what to do when Logger reaches EOF.

DtLgcyLgrEofActionPdu& DtLgcyLgrEofActionPdu::operator=

(

const DtLgcyLgrEofActionPdu &

src

)

assignment operator

virtual DtLgcyLgrIntParams* DtLgcyLgrEofActionPdu::params ( ) const

virtual

Return correctly casted parameters pointer; see legacyLgrControlP.h.

virtual void DtLgcyLgrEofActionPdu::setAction ( DtLgcyLgrMode  cmd )

virtual

Member Data Documentation

DtLgcyLgrMode DtLgcyLgrEofActionPdu::myAction

private

Parameter.

---

The documentation for this class was generated from the following file:

• legacyLcEofAction.h
