DtLgcyLgrTimeoutPdu Class Reference

Instances of DtLgcyLgrTimeoutPdu are to tell a remote logger how long to generate interim packets for an entity before assuming no more packets in file. More...

Inheritance diagram for DtLgcyLgrTimeoutPdu:

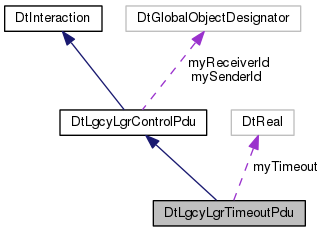

Collaboration diagram for DtLgcyLgrTimeoutPdu:

Public Member Functions
	DtLgcyLgrTimeoutPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	(default) constructor More...
	DtLgcyLgrTimeoutPdu (const DtNetLgcyLgrControlPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	constructor (construct from network representation) More...
	DtLgcyLgrTimeoutPdu (DtGlobalObjectDesignator &sender, DtGlobalObjectDesignator &receiver, DtReal val, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	constructor (construct and prepare for send) More...
virtual	~DtLgcyLgrTimeoutPdu ()
	destructor More...
	DtLgcyLgrTimeoutPdu (const DtLgcyLgrTimeoutPdu &src)
	copy constructor More...
DtLgcyLgrTimeoutPdu &	operator= (const DtLgcyLgrTimeoutPdu &src)
	assignment operator More...
virtual DtReal	timeout () const
	Get/set timeout. See class description. More...
virtual void	setTimeout (DtReal val)
virtual DtLgcyLgrRealParams *	params () const
	Return correctly casted parameters pointer. See legacyLgrControlP.h. More...
virtual void	printData () const
	Diagnostic output. More...
Public Member Functions inherited from DtLgcyLgrControlPdu
	DtLgcyLgrControlPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	(default) constructor More...
	DtLgcyLgrControlPdu (const DtNetLgcyLgrControlPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	constructor (constructs from network representation) More...
virtual	~DtLgcyLgrControlPdu ()
	destructor More...
	DtLgcyLgrControlPdu (const DtLgcyLgrControlPdu &src)
	copy constructor More...
DtLgcyLgrControlPdu &	operator= (const DtLgcyLgrControlPdu &src)
	assignment operator More...
const DtGlobalObjectDesignator &	receiverId () const
	Get/set Object Identifier of intended recipient (logger). More...
virtual void	setReceiverId (const DtGlobalObjectDesignator &id)
virtual const DtGlobalObjectDesignator &	senderId () const
	Get/set Object Identifier of sender, if applicable. More...
virtual void	setSenderId (const DtGlobalObjectDesignator &id)
DtLgrCommand	lgrCommand () const
	Get message-type for proper casting to a subclass. More...
DtNetLgcyLgrControlParams *	defaultParams () const
	Data place holder. More...

Private Attributes
DtReal	myTimeout
	Parameter. More...

Additional Inherited Members
Static Public Member Functions inherited from DtLgcyLgrControlPdu
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	Create a PDU representation from a network packet. More...
static DtLgcyLgrControlPdu *	create (DtLgrCommand command)
	Create a PDU from DtLgrCommand. More...
static void	addCallback (DtExerciseConn *conn, DtLgcyLgrControlInteractionCb cb, void *usr)
	DIS – install/remove handler to call when receiving a LC packet. More...
static void	removeCallback (DtExerciseConn *conn, DtLgcyLgrControlInteractionCb cb, void *usr)
static const char *	lgrModeEnum2string (DtLgcyLgrMode md)
	The name (as a string) of a 'DtLgcyLgrMode'-type enum (from value) More...
static const char *	lgrFilePosEnum2string (DtLgcyLgrFilePosition pos)
	The name (as a string) of a 'DtLgcyLgrFilePosition'-type enum (from value) More...
static const char *	lgrStateFlag2string (DtLgcyLgrCtrlFlagStates flg)
	The name (as a string) of a 'DtLgcyLgrCtrlFlagStates'-type enum (from value) More...
Protected Member Functions inherited from DtLgcyLgrControlPdu
DtPduKind	internalGetPduKind () const
	Identity for use by toolkit. More...
void	setLgrCommand (DtLgrCommand com)
	Set is done by constructing the proper subclass. More...

Detailed Description

Instances of DtLgcyLgrTimeoutPdu are to tell a remote logger how long to generate interim packets for an entity before assuming no more packets in file.

Useful during slow-motion playback.

Constructor & Destructor Documentation

DtLgcyLgrTimeoutPdu::DtLgcyLgrTimeoutPdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

(default) constructor

DtLgcyLgrTimeoutPdu::DtLgcyLgrTimeoutPdu	(	const DtNetLgcyLgrControlPdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

constructor (construct from network representation)

DtLgcyLgrTimeoutPdu::DtLgcyLgrTimeoutPdu	(	DtGlobalObjectDesignator &	sender,
		DtGlobalObjectDesignator &	receiver,
		DtReal	val,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER
	)

constructor (construct and prepare for send)

virtual DtLgcyLgrTimeoutPdu::~DtLgcyLgrTimeoutPdu ( )

virtual

destructor

DtLgcyLgrTimeoutPdu::DtLgcyLgrTimeoutPdu

(

const DtLgcyLgrTimeoutPdu &

src

)

copy constructor

Member Function Documentation

DtLgcyLgrTimeoutPdu& DtLgcyLgrTimeoutPdu::operator=

(

const DtLgcyLgrTimeoutPdu &

src

)

assignment operator

virtual DtLgcyLgrRealParams* DtLgcyLgrTimeoutPdu::params ( ) const

virtual

Return correctly casted parameters pointer. See legacyLgrControlP.h.

virtual void DtLgcyLgrTimeoutPdu::printData ( ) const

virtual

Diagnostic output.

Reimplemented from DtLgcyLgrControlPdu.

virtual void DtLgcyLgrTimeoutPdu::setTimeout ( DtReal  val )

virtual

virtual DtReal DtLgcyLgrTimeoutPdu::timeout ( ) const

virtual

Get/set timeout. See class description.

Member Data Documentation

DtReal DtLgcyLgrTimeoutPdu::myTimeout

private

Parameter.

---

The documentation for this class was generated from the following file:

• legacyLcTimeout.h
