MAKLogger::DtObserveConnectionComponent Class Reference

DtObserveConnectionComponent object which is the base class for events and observers which can be connected together. More...

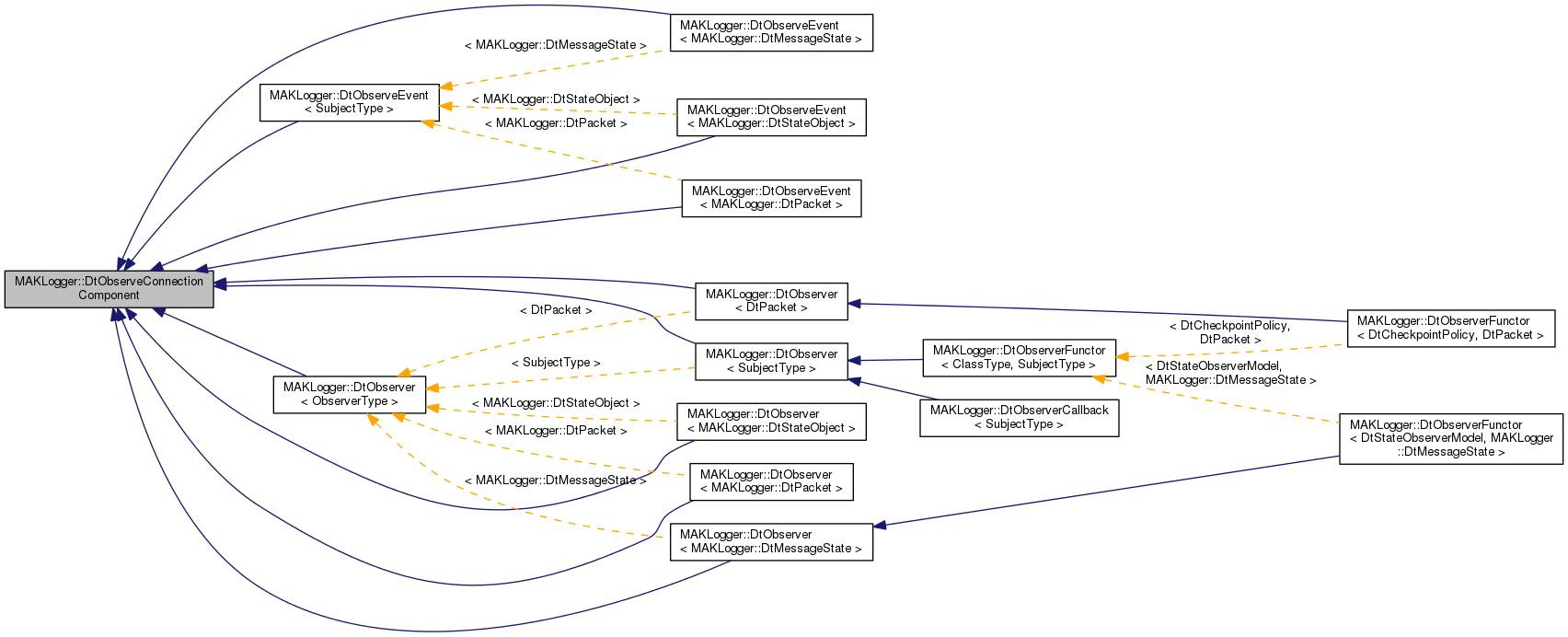

Inheritance diagram for MAKLogger::DtObserveConnectionComponent:

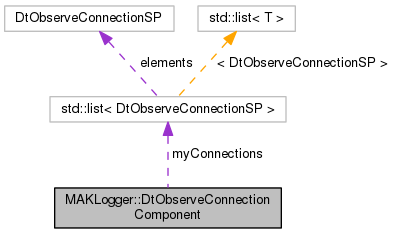

Collaboration diagram for MAKLogger::DtObserveConnectionComponent:

Public Types
typedef std::list < DtObserveConnectionSP >	ConnectionList

Public Member Functions
virtual	~DtObserveConnectionComponent ()
virtual void	connect (DtObserveConnectionSP con)
virtual void	disconnect (DtObserveConnectionSP con)
virtual void	disconnect (DtObserveConnectionComponent *component)
virtual bool	isConnected (DtObserveConnectionComponent *component)
void	disconnectAll ()
	Must be non virtual since called by destructor. More...

Protected Member Functions
	DtObserveConnectionComponent ()
	DtObserveConnection C. More...
	DtObserveConnectionComponent (const DtObserveConnectionComponent &)
	CopyCTOR not implemented. More...
DtObserveConnectionComponent &	operator= (const DtObserveConnectionComponent &)
	Assignment operator not implemented. More...
DtObserveConnectionSP	findEventObserverConnection (DtObserveConnectionComponent *event, DtObserveConnectionComponent *observer)

Protected Attributes
ConnectionList	myConnections

Detailed Description

DtObserveConnectionComponent object which is the base class for events and observers which can be connected together.

Member Typedef Documentation

typedef std::list<DtObserveConnectionSP> MAKLogger::DtObserveConnectionComponent::ConnectionList

Constructor & Destructor Documentation

virtual MAKLogger::DtObserveConnectionComponent::~DtObserveConnectionComponent ( )

virtual

MAKLogger::DtObserveConnectionComponent::DtObserveConnectionComponent ( )

protected

DtObserveConnection C.

MAKLogger::DtObserveConnectionComponent::DtObserveConnectionComponent ( const DtObserveConnectionComponent &  )

protected

CopyCTOR not implemented.

Member Function Documentation

virtual void MAKLogger::DtObserveConnectionComponent::connect ( DtObserveConnectionSP  con )

virtual

Reimplemented in MAKLogger::DtObserveEvent< SubjectType >, MAKLogger::DtObserveEvent< MAKLogger::DtPacket >, MAKLogger::DtObserveEvent< MAKLogger::DtMessageState >, and MAKLogger::DtObserveEvent< MAKLogger::DtStateObject >.

Referenced by MAKLogger::DtObserveConnection::connect(), and MAKLogger::DtObserveEvent< MAKLogger::DtStateObject >::connect().

virtual void MAKLogger::DtObserveConnectionComponent::disconnect ( DtObserveConnectionSP  con )

virtual

Reimplemented in MAKLogger::DtObserveEvent< SubjectType >, MAKLogger::DtObserveEvent< MAKLogger::DtPacket >, MAKLogger::DtObserveEvent< MAKLogger::DtMessageState >, and MAKLogger::DtObserveEvent< MAKLogger::DtStateObject >.

Referenced by MAKLogger::DtObserveEvent< MAKLogger::DtStateObject >::disconnect().

virtual void MAKLogger::DtObserveConnectionComponent::disconnect ( DtObserveConnectionComponent *  component )

virtual

void MAKLogger::DtObserveConnectionComponent::disconnectAll

(

)

Must be non virtual since called by destructor.

Referenced by MAKLogger::DtObserver< SubjectType >::~DtObserver().

DtObserveConnectionSP MAKLogger::DtObserveConnectionComponent::findEventObserverConnection ( DtObserveConnectionComponent *  event, DtObserveConnectionComponent *  observer  )

protected

Referenced by MAKLogger::DtObserver< SubjectType >::disconnect(), and MAKLogger::DtObserveEvent< MAKLogger::DtStateObject >::disconnect().

virtual bool MAKLogger::DtObserveConnectionComponent::isConnected ( DtObserveConnectionComponent *  component )

virtual

Referenced by MAKLogger::DtObserveConnection::connect().

DtObserveConnectionComponent& MAKLogger::DtObserveConnectionComponent::operator= ( const DtObserveConnectionComponent &  )

protected

Assignment operator not implemented.

Member Data Documentation

ConnectionList MAKLogger::DtObserveConnectionComponent::myConnections

protected

---

The documentation for this class was generated from the following file:

• observeConnection.h
