Provides an instance of DtLogger which can be run from a thread. More...

Inheritance diagram for MAKLogger::DtThreadedLogger:

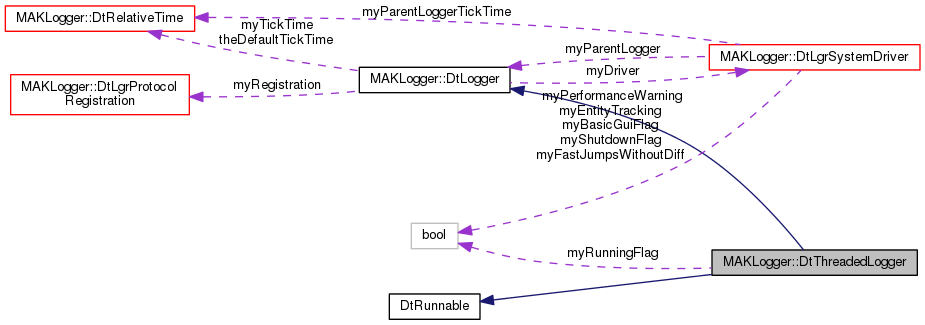

Collaboration diagram for MAKLogger::DtThreadedLogger:

Public Member Functions
virtual	~DtThreadedLogger ()
	Virtual constructor. More...

virtual void	run ()
	Start the logger running in a thread. More...

virtual void	stop ()
	Stop the logger. More...

virtual bool	isRunning () const
	Check to see if the logger is running. More...

Public Member Functions inherited from MAKLogger::DtLogger
virtual	~DtLogger ()

virtual void	init ()
	, Ticks the logger once. More...

virtual void	registerSimulationProtocol (DtLgrProtocolRegistration *)
	This method must be called by a simulation plug-in during initialization. More...

virtual const DtLgrProtocolRegistration *	simulationProtocol () const
	Gets the protocol registration the logger was registered with. More...

virtual bool	tick ()
	Tick the logger once, function is non-blocking. More...

virtual DtRelativeTime	tickTime () const
	Get the estimated time between ticks. More...

virtual void	setTickTime (DtRelativeTime time)
	Set the estimated time between tick calls. More...

virtual void	submitCommand (const DtCommand &command)
	Send a command to the logger to execute. More...

virtual DtLgrCommandHandlerSP	getCommandHandler (const DtLgrCommandType &type) const
	Lookup the command handler for a specific type of command. More...

virtual const DtLibraryList &	libraries () const
	Gets the Loaded libraries. More...

virtual DtLgrSimManager *	simManager ()
	Access simulation manager;. More...

DtLgrSystemDriver &	driver ()
	Get system driver. More...

Protected Member Functions
virtual void	setRunning (bool flag)
	Protected method to control the running flag. More...

Protected Attributes
volatile bool	myRunningFlag
	Running flag is used to stop the logger when stop() has been called. More...

Protected Attributes inherited from MAKLogger::DtLogger
DtLgrProtocolRegistration *	myRegistration

DtLgrSystemDriver *	myDriver
	The driver which defines the logger executions. More...

DtRelativeTime	myTickTime
	The time between ticks. More...

Additional Inherited Members
Static Protected Attributes inherited from MAKLogger::DtLogger
static DtRelativeTime	theDefaultTickTime
	Default tick time. More...

Detailed Description

Provides an instance of DtLogger which can be run from a thread.

An instance of this class is created by the DtLoggerApplication and serves as the main interface into the logging thread.

Constructor & Destructor Documentation

virtual MAKLogger::DtThreadedLogger::~DtThreadedLogger ( )

virtual

Virtual constructor.

DTOR

virtual bool MAKLogger::DtThreadedLogger::isRunning ( ) const

virtual

Check to see if the logger is running.

virtual void MAKLogger::DtThreadedLogger::run ( )

virtual

Start the logger running in a thread.

virtual void MAKLogger::DtThreadedLogger::setRunning ( bool flag )

protectedvirtual

Protected method to control the running flag.

virtual void MAKLogger::DtThreadedLogger::stop ( )

virtual

Stop the logger.

volatile bool MAKLogger::DtThreadedLogger::myRunningFlag

protected

Running flag is used to stop the logger when stop() has been called.

The documentation for this class was generated from the following file:
