MAK Data Logger API Documentation for HLA
|
Instances of DtLgrDelFilePdu are used to tell a remote logger to delete a logger file. More...

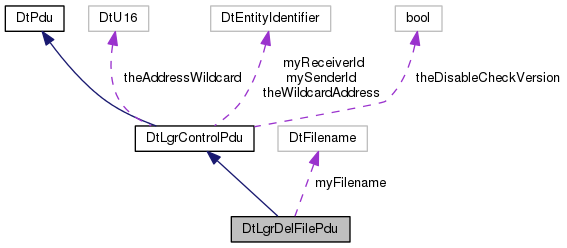

Inheritance diagram for DtLgrDelFilePdu: Collaboration diagram for DtLgrDelFilePdu:Public Member Functions | |
| DtLgrDelFilePdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| (default) constructor More... | |
| DtLgrDelFilePdu (const DtNetLgrControlPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0) | |
| constructor (construct from network representation) More... | |
| DtLgrDelFilePdu (const DtEntityIdentifier &sender, const DtEntityIdentifier &receiver, const char *name, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| constructor (construct and prepare for send) More... | |
| virtual | ~DtLgrDelFilePdu () |
| destructor More... | |
| DtLgrDelFilePdu (const DtLgrDelFilePdu &src) | |
| copy constructor More... | |
| DtLgrDelFilePdu & | operator= (const DtLgrDelFilePdu &src) |
| assignment operator More... | |
| virtual const char * | filename () const |
| Get/set the name of file to be deleted. More... | |
| virtual void | setFilename (const char *path) |
| virtual DtLgrStringParams * | params () const |
| Return correctly casted parameters pointer; see lgrControlP.h. More... | |
| virtual void | printData () const |
| Diagnostic output. More... | |
| Public Member Functions inherited from DtLgrControlPdu | |
| DtLgrControlPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, int pduSize=sizeof(DtNetLgrControlPdu)) | |
| (default) constructor More... | |
| DtLgrControlPdu (const DtNetLgrControlPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0) | |
| constructor (constructs from network representation) More... | |
| virtual | ~DtLgrControlPdu () |
| destructor More... | |
| DtLgrControlPdu (const DtLgrControlPdu &src) | |
| copy constructor More... | |
| DtLgrControlPdu & | operator= (const DtLgrControlPdu &src) |
| assignment operator More... | |
| virtual const DtEntityIdentifier & | receiverId () const |
| Get/set identifier of intended recipient (logger). More... | |
| virtual void | setReceiverId (const DtEntityIdentifier &id) |
| virtual const DtEntityIdentifier & | senderId () const |
| Get/set identifier of sender, if applicable. More... | |
| virtual void | setSenderId (const DtEntityIdentifier &id) |
| virtual DtLgrCommand | lgrCommand () const |
| Get message-type for proper casting to a subclass. More... | |
| virtual DtU16 | lctVersion () const |
| Get/set version. More... | |
| void | setLctVersion (DtU16 versionNumber) |
| Called in constructor so not virtual. More... | |
| virtual DtU32 | sequence () const |
| Get/set sequence number. More... | |
| virtual void | setSequence (DtU32 sequenceNumber) |
| virtual void | printDataToStream (std::ostream &stream) const |
| Print contents. More... | |
| virtual bool | checkVersion () const |
| Check that this PDU's LCT version is compatible. More... | |
Private Attributes | |
| DtFilename | myFilename |
| Parameter. More... | |
Additional Inherited Members | |
| Static Public Member Functions inherited from DtLgrControlPdu | |
| static DtPdu * | create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0) |
| Create a PDU representation from a network packet. More... | |
| static DtLgrControlPdu * | create (DtLgrCommand command) |
| Create a PDU from DtLgrCommand. More... | |
| static DtLgrControlPdu * | create (DtLgrCommandExt command) |
| Create a PDU from DtLgrCommandExt. More... | |
| static bool | checkVersion (DtNetLgrControlPdu *header) |
| Given a LC header, check that the LCT version is compatible. More... | |
| static DtU16 | addressWildcard () |
| Wildcard value for addresses. More... | |
| static const DtEntityIdentifier & | wildcardAddress () |
| Wildcard address. More... | |
| static const char * | lgrModeEnum2string (DtLgrMode md) |
| The name (as a string) of a 'DtLgrMode'-type enum (from value) More... | |
| static const char * | lgrFilePosEnum2string (DtLgrFilePosition pos) |
| The name (as a string) of a 'DtLgrFilePosition'-type enum (from value) More... | |
| static const char * | lgrStateFlag2string (DtLgrCtrlFlagStates flg) |
| The name (as a string) of a 'DtLgrCtrlFlagStates'-type enum (from value) More... | |
| Static Public Attributes inherited from DtLgrControlPdu | |
| static bool | theDisableCheckVersion |
| Enable/Disable version check. More... | |
| Protected Member Functions inherited from DtLgrControlPdu | |
| virtual void | setLgrCommand (DtLgrCommand com) |
| Set is done by constructing the proper subclass. More... | |
| virtual void | setLgrCommand (DtLgrCommandExt com) |
| Set is done by constructing the proper subclass. More... | |
| virtual DtNetLgrControlPdu * | controlHeader () |
| Access to the payload as control pdu header. More... | |
| virtual DtNetLgrControlPdu * | controlHeader () const |
| Access to the payload as control pdu header. More... | |
| DtPduKind | internalGetPduKind () const |
| Identity for use by toolkit. More... | |
| Protected Attributes inherited from DtLgrControlPdu | |
| DtEntityIdentifier | mySenderId |
| Parameter. More... | |
| DtEntityIdentifier | myReceiverId |
| Static Protected Attributes inherited from DtLgrControlPdu | |
| static const DtU16 | theAddressWildcard = ((1<<16)-1) |
| static const DtEntityIdentifier | theWildcardAddress |
Instances of DtLgrDelFilePdu are used to tell a remote logger to delete a logger file.
| DtLgrDelFilePdu::DtLgrDelFilePdu | ( | DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER | ) |
(default) constructor
| DtLgrDelFilePdu::DtLgrDelFilePdu | ( | const DtNetLgrControlPdu * | initial, |
| DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER, |
||
| DtPduFactory * | pduFactory = 0 |
||
| ) |
constructor (construct from network representation)
| DtLgrDelFilePdu::DtLgrDelFilePdu | ( | const DtEntityIdentifier & | sender, |
| const DtEntityIdentifier & | receiver, | ||
| const char * | name, | ||
| DtBufferPtr | buffer = DtUSE_INTERNAL_BUFFER |
||
| ) |
constructor (construct and prepare for send)
|
virtual |
destructor
| DtLgrDelFilePdu::DtLgrDelFilePdu | ( | const DtLgrDelFilePdu & | src | ) |
copy constructor
|
virtual |
Get/set the name of file to be deleted.
| DtLgrDelFilePdu& DtLgrDelFilePdu::operator= | ( | const DtLgrDelFilePdu & | src | ) |
assignment operator
|
virtual |
Return correctly casted parameters pointer; see lgrControlP.h.
|
virtual |
Diagnostic output.
|
virtual |
|
private |
Parameter.
