An online fom description that has access to the RTI Ambassidor. More...

Inheritance diagram for MAKLogger::DtLgrOnlineFomDesc:

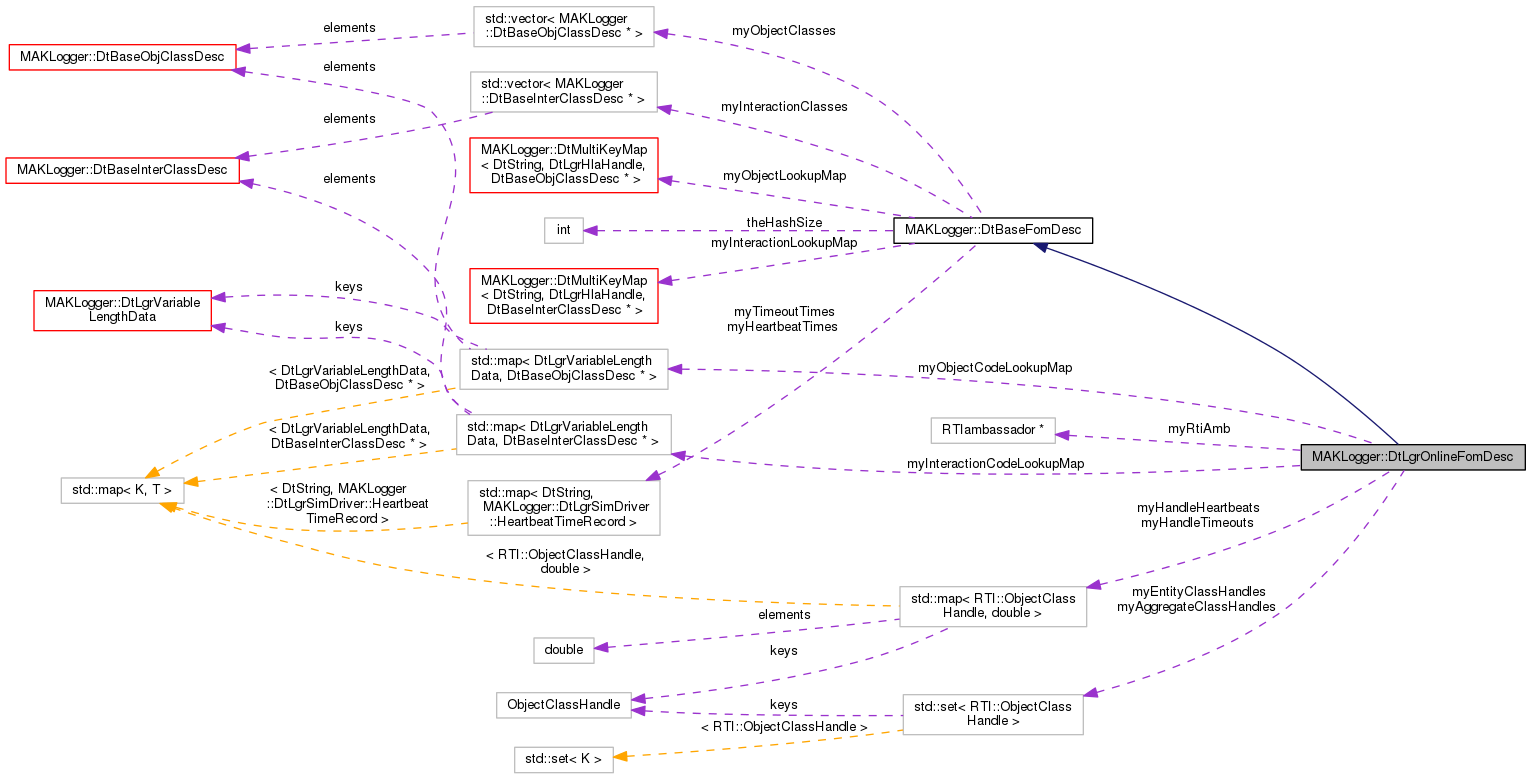

Collaboration diagram for MAKLogger::DtLgrOnlineFomDesc:

Public Member Functions
	DT_VIRTUAL_CTR_DEFAULTS (DtLgrOnlineFomDesc,(DtExerciseConn exconn, const std::map< DtString, DtLgrSimDriver::HeartbeatTimeRecord > heartbeatTimes, const std::map< DtString, DtLgrSimDriver::HeartbeatTimeRecord > timeoutTimes),(DtExerciseConn exconn, const std::map< DtString, DtLgrSimDriver::HeartbeatTimeRecord > heartbeatTimes=0, const std::map< DtString, DtLgrSimDriver::HeartbeatTimeRecord > timeoutTimes=0)) virtual ~DtLgrOnlineFomDesc()
	Virtual Constructor. More...

RTI::RTIambassador *const	rtiAmb () const
	Get the RTI ambassador. More...

virtual DtBaseObjClassDesc *	addObjectClass (const DtBaseObjClassDesc &)
	Add an object class. More...

virtual DtBaseInterClassDesc *	addInteractionClass (const DtBaseInterClassDesc &)
	Add an interaction class. More...

virtual bool	isEntity (RTI::ObjectClassHandle handle) const
	Lookup to see if object is entity. More...

virtual bool	isAggregate (RTI::ObjectClassHandle handle) const
	Lookup to see if object is aggregate. More...

virtual double	heartbeatTime (RTI::ObjectClassHandle handle) const
	Lookup to see object's heartbeat interval. More...

virtual double	timeoutTime (RTI::ObjectClassHandle handle) const
	Lookup to see object's timeout interval. More...


virtual DtBaseObjClassDesc *	objDesc (RTI::ObjectClassHandle)
	Return the class descriptor for an object RTI handle. More...

virtual const DtBaseObjClassDesc *	objDesc (RTI::ObjectClassHandle) const
	Return the class descriptor for an object RTI handle. More...


virtual DtBaseInterClassDesc *	interDesc (RTI::InteractionClassHandle)
	Return the class descriptor for an RTI handle. More...

virtual const DtBaseInterClassDesc *	interDesc (RTI::InteractionClassHandle) const
	Return the class descriptor for an RTI handle. More...

Public Member Functions inherited from MAKLogger::DtBaseFomDesc
virtual	~DtBaseFomDesc ()
	Virtual Constructor. More...

virtual int	readFromFile (FILE *fp)
	Initialize by reading FOM from a logger file. More...

virtual int	readFromFile64 (int fd)

virtual int	writeToFile (FILE *fp) const
	Write contents to a logger file. More...

virtual int	writeToFile64 (int fd) const

virtual int	setFromSerialForm (const void *p)
	Initialize by reading FOM from a "serialized-form" buffer. More...

virtual char *	serialize (int *pSize=0) const
	Obtain a copy of the current fom in serialized form. More...

int	objectClassCount () const
	Get the number of object classes in the FOM. More...

int	interactionClassCount () const
	Get the number of interaction classes in the FOM. More...

int	count () const
	Get the total number of classes in the FOM (object and interaction) More...

virtual bool	equivalent (const DtBaseFomDesc &other) const
	Returns true if we represent an equivalent FOM to other. More...

virtual bool	identical (const DtBaseFomDesc &other) const
	Returns true if we are identical FOMs including the handles. More...

virtual void	setFilterByClass (const DtSubscriptionMap *map)
	Set the current "Filter-By-Class" Map. More...

virtual void	setFilterAllObjectClasses ()
	Filter all object. More...

virtual void	setFilterNoObjectClasses ()
	Filter no objects. More...

virtual void	setFilterAllInteractionClasses ()
	Filter all interactions. More...

virtual void	setFilterNoInteractionClasses ()
	Filter no interactions. More...

virtual void	empty ()
	Reset the current data (note: erases everything!) More...

virtual void	setObjectClassHeartbeatTime (const DtString &className, double time, bool includeSubclasses=false)
	Set the heartbeat period for the specified object class. More...

virtual bool	getObjectClassHeartbeatTime (const DtString &className, double &heartbeat) const
	Get the heartbeat period for the specified object class Return bool: heartbeat of the specified class was found? More...

virtual bool	objectClassHeartbeatInheritable (const DtString &className) const
	Return whether the heartbeat period for the specified class is inheritable. More...

virtual void	setObjectClassTimeoutTime (const DtString &className, double time, bool includeSubclasses=false)
	Set the timeout period for the specified object class. More...

virtual bool	getObjectClassTimeoutTime (const DtString &className, double &timeout) const
	Get the timeout period for the specified object class Return bool: timeout of the specified class was found? More...

virtual bool	objectClassTimeoutInheritable (const DtString &className) const
	Return whether the timeout period for the specified class is inheritable. More...

objectIterator	obj_begin ()
	Get the iterator to the first object class. More...

const_objectIterator	obj_begin () const
	Get the iterator to the first object class. More...

objectIterator	obj_end ()
	Get the iterator beyond the last object class. More...

const_objectIterator	obj_end () const
	Get the iterator beyond the last object class. More...

interactionIterator	inter_begin ()
	Get the iterator to the first interaction class. More...

const_interactionIterator	inter_begin () const
	Get the iterator to the first interaction class. More...

interactionIterator	inter_end ()
	Get the iterator beyond the last interaction class. More...

const_interactionIterator	inter_end () const
	Get the iterator beyond the last interaction class. More...

virtual DtBaseObjClassDesc *	objDesc (unsigned int hand)
	Return the class descriptor for an object class handle. More...

virtual const DtBaseObjClassDesc *	objDesc (unsigned int hand) const
	Return the class descriptor for an object class handle. More...

virtual DtBaseObjClassDesc *	objDesc (const DtString &_name)
	Return the class descriptor for an object class name. More...

virtual const DtBaseObjClassDesc *	objDesc (const DtString &_name) const
	Return the class descriptor for an object class name. More...

virtual DtBaseInterClassDesc *	interDesc (unsigned int hand)
	Return the class descriptor for an interaction class handle. More...

virtual const DtBaseInterClassDesc *	interDesc (unsigned int hand) const
	Return the class descriptor for an interaction class handle. More...

virtual DtBaseInterClassDesc *	interDesc (const DtString &_name)
	Return the class descriptor for an interaction class name. More...

virtual const DtBaseInterClassDesc *	interDesc (const DtString &_name) const
	Return the class descriptor for an interaction class name. More...

virtual void	initObjClasses ()
	These functions complete the initialization of the object and interaction classes; i.e., they effect the proper referencing of a base class inside an object or interaction class. More...

virtual void	initIntClasses ()
	These functions complete the initialization of the object and interaction classes; i.e., they effect the proper referencing of a base class inside an object or interaction class. More...

Protected Types
typedef std::map < DtLgrVariableLengthData, DtBaseObjClassDesc * >	ObjectCodeMap

typedef std::map < DtLgrVariableLengthData, DtBaseInterClassDesc * >	InteractionCodeMap

typedef std::set < RTI::ObjectClassHandle >	DtHandleSet

Protected Types inherited from MAKLogger::DtBaseFomDesc
typedef DtMultiKeyMap < DtString, DtLgrHlaHandle, DtBaseObjClassDesc * >	ObjectMap

typedef DtMultiKeyMap < DtString, DtLgrHlaHandle, DtBaseInterClassDesc * >	InteractionMap

Protected Member Functions
void	setFomMapperLists (DtFomMapper *)
	Set fom mapper lists from exconn. More...

void	setFromFom (DtFom &fom)
	Initialize from a VR-Link FOM object. More...

virtual void	deleteObjClasses ()
	Delete all internal object class information. More...

virtual void	deleteIntClasses ()
	Delete all internal interaction class information. More...

void	addObjectFromFom (DtObjClassDesc *dsc, DtDynamicBuffer &dynBfr, DtLgrHlaHandle objectHandle)
	Adds an object from a fom. More...

void	addInteractionFromFom (DtInterClassDesc *item, DtDynamicBuffer &dynBfr, DtLgrHlaHandle interHandle)
	Adds an interaction from a fom. More...

void	addAttributeFromFom (RTI::AttributeHandleSet::const_iterator attrIter, RTI::ObjectClassHandle classHandle, DtDynamicBuffer &dynBfr, unsigned long lgrAttrHandle, DtBaseObjClassDesc *objDsc)
	Adds an object attribute from a fom. More...

void	addParameterFromFom (RTI::ParameterHandleSet::const_iterator paramIter, RTI::InteractionClassHandle classHandle, DtDynamicBuffer &dynBfr, unsigned long lgrParamHandle, DtBaseInterClassDesc *intDsc)
	Adds an interaction parameter from a fom. More...

Protected Member Functions inherited from MAKLogger::DtBaseFomDesc
bool	processCommand (const char command, char tkn, const char *sep)
	Process command while reading file. More...

void	resetAll ()
	Delete all internal class information. More...

void	initFromSource (const DtBaseFomDesc &src)
	to duplicate fom description. More...

int	unserialize (const char *bfr)
	Deserialize from buffer. More...

Protected Attributes
ObjectCodeMap	myObjectCodeLookupMap

InteractionCodeMap	myInteractionCodeLookupMap

DtHandleSet	myEntityClassHandles

DtHandleSet	myAggregateClassHandles

std::map < RTI::ObjectClassHandle, double >	myHandleHeartbeats

std::map < RTI::ObjectClassHandle, double >	myHandleTimeouts

RTI::RTIambassador *	myRtiAmb

Protected Attributes inherited from MAKLogger::DtBaseFomDesc
ObjectMap	myObjectLookupMap

InteractionMap	myInteractionLookupMap

std::vector< DtBaseObjClassDesc * >	myObjectClasses

std::vector < DtBaseInterClassDesc * >	myInteractionClasses

std::map< DtString, DtLgrSimDriver::HeartbeatTimeRecord >	myHeartbeatTimes

std::map< DtString, DtLgrSimDriver::HeartbeatTimeRecord >	myTimeoutTimes

Additional Inherited Members
Public Types inherited from MAKLogger::DtBaseFomDesc
typedef std::vector < DtBaseObjClassDesc * > ::iterator	objectIterator

typedef std::vector < DtBaseObjClassDesc * > ::const_iterator	const_objectIterator

typedef std::vector < DtBaseInterClassDesc * > ::iterator	interactionIterator

typedef std::vector < DtBaseInterClassDesc * > ::const_iterator	const_interactionIterator

Static Protected Attributes inherited from MAKLogger::DtBaseFomDesc
static int	theHashSize

Detailed Description

An online fom description that has access to the RTI Ambassidor.

This class is only safe to use in the same thread as the ExerciseConnection.

Member Typedef Documentation

typedef std::set<RTI::ObjectClassHandle> MAKLogger::DtLgrOnlineFomDesc::DtHandleSet

protected

typedef std::map<DtLgrVariableLengthData,DtBaseInterClassDesc*> MAKLogger::DtLgrOnlineFomDesc::InteractionCodeMap

protected

typedef std::map<DtLgrVariableLengthData,DtBaseObjClassDesc*> MAKLogger::DtLgrOnlineFomDesc::ObjectCodeMap

protected

Member Function Documentation

void MAKLogger::DtLgrOnlineFomDesc::addAttributeFromFom	(	RTI::AttributeHandleSet::const_iterator	attrIter,
		RTI::ObjectClassHandle	classHandle,
		DtDynamicBuffer &	dynBfr,
		unsigned long	lgrAttrHandle,
		DtBaseObjClassDesc *	objDsc
	)

protected

Adds an object attribute from a fom.

virtual DtBaseInterClassDesc* MAKLogger::DtLgrOnlineFomDesc::addInteractionClass ( const DtBaseInterClassDesc & )

virtual

Add an interaction class.

Reimplemented from MAKLogger::DtBaseFomDesc.

void MAKLogger::DtLgrOnlineFomDesc::addInteractionFromFom	(	DtInterClassDesc *	item,
		DtDynamicBuffer &	dynBfr,
		DtLgrHlaHandle	interHandle
	)

protected

Adds an interaction from a fom.

virtual DtBaseObjClassDesc* MAKLogger::DtLgrOnlineFomDesc::addObjectClass ( const DtBaseObjClassDesc & )

virtual

Add an object class.

Reimplemented from MAKLogger::DtBaseFomDesc.

void MAKLogger::DtLgrOnlineFomDesc::addObjectFromFom	(	DtObjClassDesc *	dsc,
		DtDynamicBuffer &	dynBfr,
		DtLgrHlaHandle	objectHandle
	)

protected

Adds an object from a fom.

void MAKLogger::DtLgrOnlineFomDesc::addParameterFromFom	(	RTI::ParameterHandleSet::const_iterator	paramIter,
		RTI::InteractionClassHandle	classHandle,
		DtDynamicBuffer &	dynBfr,
		unsigned long	lgrParamHandle,
		DtBaseInterClassDesc *	intDsc
	)

protected

Adds an interaction parameter from a fom.

virtual void MAKLogger::DtLgrOnlineFomDesc::deleteIntClasses ( )

protectedvirtual

Delete all internal interaction class information.

Reimplemented from MAKLogger::DtBaseFomDesc.

virtual void MAKLogger::DtLgrOnlineFomDesc::deleteObjClasses ( )

protectedvirtual

Delete all internal object class information.

Reimplemented from MAKLogger::DtBaseFomDesc.

MAKLogger::DtLgrOnlineFomDesc::DT_VIRTUAL_CTR_DEFAULTS	(	DtLgrOnlineFomDesc	,
		(DtExerciseConn exconn, const std::map< DtString, DtLgrSimDriver::HeartbeatTimeRecord > heartbeatTimes, const std::map< DtString, DtLgrSimDriver::HeartbeatTimeRecord > *timeoutTimes)	,
		(DtExerciseConn exconn, const std::map< DtString, DtLgrSimDriver::HeartbeatTimeRecord > heartbeatTimes=0, const std::map< DtString, DtLgrSimDriver::HeartbeatTimeRecord > *timeoutTimes=0)
	)

Virtual Constructor.

Virtual copy and assignment operator.

virtual double MAKLogger::DtLgrOnlineFomDesc::heartbeatTime ( RTI::ObjectClassHandle handle ) const

virtual

Lookup to see object's heartbeat interval.

virtual DtBaseInterClassDesc* MAKLogger::DtLgrOnlineFomDesc::interDesc ( RTI::InteractionClassHandle )

virtual

Return the class descriptor for an RTI handle.

virtual const DtBaseInterClassDesc* MAKLogger::DtLgrOnlineFomDesc::interDesc ( RTI::InteractionClassHandle ) const

virtual

Return the class descriptor for an RTI handle.

virtual bool MAKLogger::DtLgrOnlineFomDesc::isAggregate ( RTI::ObjectClassHandle handle ) const

virtual

Lookup to see if object is aggregate.

virtual bool MAKLogger::DtLgrOnlineFomDesc::isEntity ( RTI::ObjectClassHandle handle ) const

virtual

Lookup to see if object is entity.

virtual DtBaseObjClassDesc* MAKLogger::DtLgrOnlineFomDesc::objDesc ( RTI::ObjectClassHandle )

virtual

Return the class descriptor for an object RTI handle.

virtual const DtBaseObjClassDesc* MAKLogger::DtLgrOnlineFomDesc::objDesc ( RTI::ObjectClassHandle ) const

virtual

Return the class descriptor for an object RTI handle.

RTI::RTIambassador *const MAKLogger::DtLgrOnlineFomDesc::rtiAmb ( ) const

inline

Get the RTI ambassador.

References myRtiAmb.

void MAKLogger::DtLgrOnlineFomDesc::setFomMapperLists ( DtFomMapper * )

protected

Set fom mapper lists from exconn.

void MAKLogger::DtLgrOnlineFomDesc::setFromFom ( DtFom & fom )

protected

Initialize from a VR-Link FOM object.

virtual double MAKLogger::DtLgrOnlineFomDesc::timeoutTime ( RTI::ObjectClassHandle handle ) const

virtual

Lookup to see object's timeout interval.

Member Data Documentation

DtHandleSet MAKLogger::DtLgrOnlineFomDesc::myAggregateClassHandles

protected

DtHandleSet MAKLogger::DtLgrOnlineFomDesc::myEntityClassHandles

protected

std::map<RTI::ObjectClassHandle, double> MAKLogger::DtLgrOnlineFomDesc::myHandleHeartbeats

protected

std::map<RTI::ObjectClassHandle, double> MAKLogger::DtLgrOnlineFomDesc::myHandleTimeouts

protected

InteractionCodeMap MAKLogger::DtLgrOnlineFomDesc::myInteractionCodeLookupMap

protected

ObjectCodeMap MAKLogger::DtLgrOnlineFomDesc::myObjectCodeLookupMap

protected

RTI::RTIambassador* MAKLogger::DtLgrOnlineFomDesc::myRtiAmb

protected

Referenced by rtiAmb().

The documentation for this class was generated from the following file:

onlineFomDesc.h

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Member Function Documentation

Member Data Documentation
