Legion::ControlManager Class Reference

The control manager is responsible for creating and adding controls to the simulation database. More...

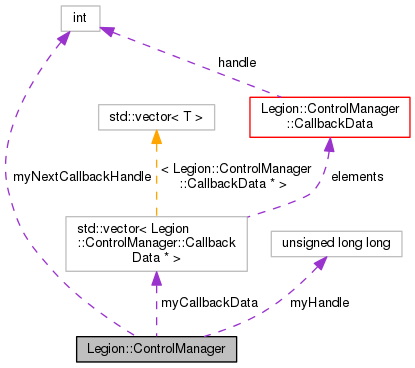

Collaboration diagram for Legion::ControlManager:

Classes
struct	CallbackData

Public Member Functions
template<typename CONTROL_TYPE >
CONTROL_TYPE	createControl ()
	create an control of a given type. The type must be registered with the control manager prior to creating it. More...
virtual ControlManagerHandle	handle () const
virtual UInt32	addControl (const ControlInstance &iControl)
	Adds a control to distribute to the control manager. This control must have been created by createControl(). More...
virtual ControlType	registerControlType (const ControlDescriptor &reg)
	Register control type so as to be able to access controls (add/peek/get) More...
virtual ParameterId	parameterId (ControlType controlType, const std::string &parameterName)
	Look up the parameter ID of a parameter of a control. More...
template<typename CONTROL_TYPE >
UInt32	addControlCallback (Callback< void(Span< CONTROL_TYPE > &)> cb)
	Adds a callback function for an interested control type. More...
template<typename CONTROL_TYPE >
bool	removeControlCallback (UInt32 handle)
	Remove a callback using the handle that was returned when it the callback was added. More...
template<typename CONTROL_TYPE >
const std::vector< CONTROL_TYPE >	getControls ()
	Get controls for this frame/next frames. More...
template<typename CONTROL_TYPE >
const std::vector< CONTROL_TYPE >	peekControls ()
	Peek controls for this frame/next frames. More...

Protected Member Functions
	ControlManager (ControlManagerHandle handle)
	Constructor. More...
virtual	~ControlManager ()
	Destructor. More...
virtual void	addInterest (const ControlType controlTypeId)
virtual void	removeInterest (const ControlType controlTypeId)

Static Protected Member Functions
static void	callback (void *usr, ControlHandle *controls, UInt32 count)

Protected Attributes
UInt32	myNextCallbackHandle
std::vector< CallbackData * >	myCallbackData
ControlManagerHandle	myHandle

Friends
class	SimulationDatabase

Detailed Description

The control manager is responsible for creating and adding controls to the simulation database.

The control manager is used to register new controls, create controls, add them to the database, and dispatch controls to application code that registered callbacks. The user can get the control manager from the Simulation Database.

Constructor & Destructor Documentation

Legion::ControlManager::ControlManager ( ControlManagerHandle  handle )

protected

Constructor.

virtual Legion::ControlManager::~ControlManager ( )

protectedvirtual

Destructor.

Member Function Documentation

virtual UInt32 Legion::ControlManager::addControl ( const ControlInstance &  iControl )

virtual

Adds a control to distribute to the control manager. This control must have been created by createControl().

template<typename CONTROL_TYPE >

UInt32 Legion::ControlManager::addControlCallback

(

Callback< void(Span< CONTROL_TYPE > &)>

cb

)

Adds a callback function for an interested control type.

So it can be notified whenever the type of controls are received This returns a handle for the callback, which is used to unregister the callback.

References addInterest(), callback(), Legion::ControlManager::CallbackData::convertAndExecute, Legion::ControlManager::CallbackData::handle, legion_controlManager_addCallback(), myCallbackData, and myHandle.

Referenced by Clutter::SimEngine::SimEngine().

virtual void Legion::ControlManager::addInterest ( const ControlType  controlTypeId )

protectedvirtual

Referenced by addControlCallback().

static void Legion::ControlManager::callback ( void *  usr, ControlHandle *  controls, UInt32  count  )

staticprotected

Referenced by addControlCallback(), and removeControlCallback().

template<typename CONTROL_TYPE >

CONTROL_TYPE Legion::ControlManager::createControl

(

)

create an control of a given type. The type must be registered with the control manager prior to creating it.

References handle(), legion_controlManager_createControl(), and myHandle.

template<typename CONTROL_TYPE >

const std::vector< CONTROL_TYPE > Legion::ControlManager::getControls

(

)

Get controls for this frame/next frames.

References legion_controlManager_getControls(), and myHandle.

virtual ControlManagerHandle Legion::ControlManager::handle ( ) const

virtual

Referenced by createControl().

virtual ParameterId Legion::ControlManager::parameterId ( ControlType  controlType, const std::string &  parameterName  )

virtual

Look up the parameter ID of a parameter of a control.

template<typename CONTROL_TYPE >

const std::vector< CONTROL_TYPE > Legion::ControlManager::peekControls

(

)

Peek controls for this frame/next frames.

References legion_controlManager_peekControls(), and myHandle.

virtual ControlType Legion::ControlManager::registerControlType ( const ControlDescriptor &  reg )

virtual

Register control type so as to be able to access controls (add/peek/get)

template<typename CONTROL_TYPE >

bool Legion::ControlManager::removeControlCallback

(

UInt32

handle

)

Remove a callback using the handle that was returned when it the callback was added.

This removes the interest of type of controls.

References callback(), legion_controlManager_removeCallback(), myCallbackData, myHandle, and removeInterest().

Referenced by Clutter::SimEngine::~SimEngine().

virtual void Legion::ControlManager::removeInterest ( const ControlType  controlTypeId )

protectedvirtual

Referenced by removeControlCallback().

Friends And Related Function Documentation

friend class SimulationDatabase

friend

Member Data Documentation

std::vector<CallbackData*> Legion::ControlManager::myCallbackData

protected

Referenced by addControlCallback(), and removeControlCallback().

ControlManagerHandle Legion::ControlManager::myHandle

protected

Referenced by addControlCallback(), createControl(), getControls(), peekControls(), and removeControlCallback().

UInt32 Legion::ControlManager::myNextCallbackHandle

protected

---

The documentation for this class was generated from the following files:

• controlManager.h
• controlManager.inl
