Legion::OwnershipManager Class Reference

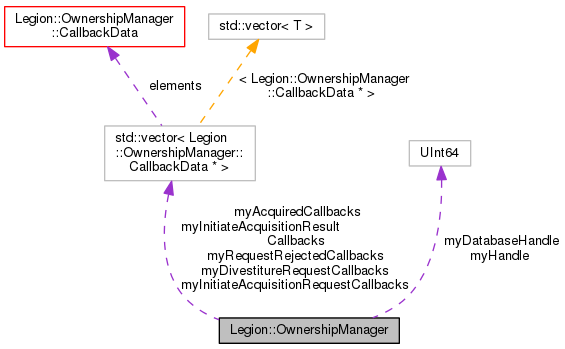

Collaboration diagram for Legion::OwnershipManager:

Classes
struct	AcquiredCallbackData
struct	CallbackData
struct	DivestitureRequestCallbackData
struct	InitiateAcquisitionRequestCallbackData
struct	InitiateAcquisitionResultCallbackData
struct	RequestRejectedCallbackData

Public Member Functions
virtual OwnershipManagerHandle	handle () const
virtual void	rejectDivestitureRequest (TransactionIdentifier transactionId, Span< GlobalIdentifier > globalIds, Span< char > privateData)
	Reject an ownership divestiture request for the given objects that where requested with the given transaction ID. More...
virtual void	divest (TransactionIdentifier transactionId, Span< GlobalIdentifier > globalIds, Span< char > privateData)
	Divest ownership of the given objects previously requested with the given transaction ID. More...
virtual void	initateAcquisitionRequestResponse (TransactionIdentifier transactionId, Span< GlobalIdentifier > globalIds, InitiateAcquisitionResult result, std::string exceptionDescription="")
	Provide results for the given objects to an initiated request. More...
virtual UInt64	requestAcquisition (Span< GlobalIdentifier > globalIds, Span< char > privateData, TransactionIdentifier transactionId=0)
	Request ownership acquisition for one or more objects (i.e., root parent attribute set) with the given global identifiers. More...
virtual UInt64	requestInitiateAcquisition (ClientIdentifier acquiringClientId, Span< GlobalIdentifier > globalIds, Span< char > privateData)
	Request another client initiate an ownership acquisition of the given attributes Return a transaction ID for the request (will be delivered in corresponding InitiateAcquisitionResult callback) More...
virtual UInt32	addDivestitureRequestCallback (DivestitureRequestCallback callback)
	Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback. More...
virtual bool	removeDivestitureRequestCallback (UInt32 callbackHandle)
	Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback. More...
virtual UInt32	addRequestRejectedCallback (RequestRejectedCallback callback)
	Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback. More...
virtual bool	removeRequestRejectedCallback (UInt32 callbackHandle)
	Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback. More...
virtual UInt32	addAcquiredCallback (AcquiredCallback callback)
	Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback. More...
virtual bool	removeAcquiredCallback (UInt32 callbackHandle)
	Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback. More...
virtual UInt32	addInitiateAcquisitionRequestCallback (InitiateAcquisitionRequestCallback callback)
	Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback. More...
virtual bool	removeInitiateAcquisitionRequestCallback (UInt32 callbackHandle)
	Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback. More...
virtual UInt32	addInitiateAcquisitionResultCallback (InitiateAcquisitionResultCallback callback)
	Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback. More...
virtual bool	removeInitiateAcquisitionResultCallback (UInt32 callbackHandle)
	Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback. More...

Protected Member Functions
	OwnershipManager (OwnershipManagerHandle ownershipHandle, DatabaseHandle databaseHandle)
	Constructor. More...
virtual	~OwnershipManager ()
	Destructor. More...
virtual CallbackData *	removeCallback (std::vector< CallbackData * > &callbackList, UInt32 callbackHandle)

Static Protected Member Functions
static void	divestitureRequestCallback (void *usr, divestitureRequestCallbackParameters)
static void	requestRejectedCallback (void *usr, requestRejectedCallbackParameters)
static void	acquiredCallback (void *usr, acquiredCallbackParameters)
static void	initiateAcquisitionRequestCallback (void *usr, initiateAcquisitionRequestCallbackParameters)
static void	initiateAcquisitionResultCallback (void *usr, initiateAcquisitionResultCallbackParameters)

Protected Attributes
OwnershipManagerHandle	myHandle
DatabaseHandle	myDatabaseHandle
std::vector< CallbackData * >	myDivestitureRequestCallbacks
std::vector< CallbackData * >	myRequestRejectedCallbacks
std::vector< CallbackData * >	myAcquiredCallbacks
std::vector< CallbackData * >	myInitiateAcquisitionRequestCallbacks
std::vector< CallbackData * >	myInitiateAcquisitionResultCallbacks

Friends
class	Connection

Constructor & Destructor Documentation

Legion::OwnershipManager::OwnershipManager ( OwnershipManagerHandle  ownershipHandle, DatabaseHandle  databaseHandle  )

protected

Constructor.

virtual Legion::OwnershipManager::~OwnershipManager ( )

protectedvirtual

Destructor.

Member Function Documentation

static void Legion::OwnershipManager::acquiredCallback ( void *  usr, acquiredCallbackParameters    )

staticprotected

virtual UInt32 Legion::OwnershipManager::addAcquiredCallback ( AcquiredCallback  callback )

virtual

Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback.

Referenced by main().

virtual UInt32 Legion::OwnershipManager::addDivestitureRequestCallback ( DivestitureRequestCallback  callback )

virtual

Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback.

Referenced by main().

virtual UInt32 Legion::OwnershipManager::addInitiateAcquisitionRequestCallback ( InitiateAcquisitionRequestCallback  callback )

virtual

Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback.

virtual UInt32 Legion::OwnershipManager::addInitiateAcquisitionResultCallback ( InitiateAcquisitionResultCallback  callback )

virtual

Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback.

virtual UInt32 Legion::OwnershipManager::addRequestRejectedCallback ( RequestRejectedCallback  callback )

virtual

Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback.

Referenced by main().

virtual void Legion::OwnershipManager::divest ( TransactionIdentifier  transactionId, Span< GlobalIdentifier >  globalIds, Span< char >  privateData  )

virtual

Divest ownership of the given objects previously requested with the given transaction ID.

The given private data is provided to the requesting client upon ownership acquisition The objects are no longer owned by this client upon returning from this call. The object may or may not still be known as remote objects with appropriate add/move/remove callbacks on views.

Referenced by doDivest(), and processOwnershipDivestitureRequest().

static void Legion::OwnershipManager::divestitureRequestCallback ( void *  usr, divestitureRequestCallbackParameters    )

staticprotected

virtual OwnershipManagerHandle Legion::OwnershipManager::handle ( ) const

virtual

virtual void Legion::OwnershipManager::initateAcquisitionRequestResponse ( TransactionIdentifier  transactionId, Span< GlobalIdentifier >  globalIds, InitiateAcquisitionResult  result, std::string  exceptionDescription = ""  )

virtual

Provide results for the given objects to an initiated request.

Supply a description of exception if one occurs e.g. problems with private data or creating write repository, etc.

static void Legion::OwnershipManager::initiateAcquisitionRequestCallback ( void *  usr, initiateAcquisitionRequestCallbackParameters    )

staticprotected

static void Legion::OwnershipManager::initiateAcquisitionResultCallback ( void *  usr, initiateAcquisitionResultCallbackParameters    )

staticprotected

virtual void Legion::OwnershipManager::rejectDivestitureRequest ( TransactionIdentifier  transactionId, Span< GlobalIdentifier >  globalIds, Span< char >  privateData  )

virtual

Reject an ownership divestiture request for the given objects that where requested with the given transaction ID.

Referenced by doReject(), and processOwnershipDivestitureRequest().

virtual bool Legion::OwnershipManager::removeAcquiredCallback ( UInt32  callbackHandle )

virtual

Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback.

virtual CallbackData* Legion::OwnershipManager::removeCallback ( std::vector< CallbackData * > &  callbackList, UInt32  callbackHandle  )

protectedvirtual

virtual bool Legion::OwnershipManager::removeDivestitureRequestCallback ( UInt32  callbackHandle )

virtual

Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback.

virtual bool Legion::OwnershipManager::removeInitiateAcquisitionRequestCallback ( UInt32  callbackHandle )

virtual

Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback.

virtual bool Legion::OwnershipManager::removeInitiateAcquisitionResultCallback ( UInt32  callbackHandle )

virtual

Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback.

virtual bool Legion::OwnershipManager::removeRequestRejectedCallback ( UInt32  callbackHandle )

virtual

Add/Remove callbacks to handle the ownership actions A handle is returned when adding a callback and it can be used to remove the callback.

virtual UInt64 Legion::OwnershipManager::requestAcquisition ( Span< GlobalIdentifier >  globalIds, Span< char >  privateData, TransactionIdentifier  transactionId = 0  )

virtual

Request ownership acquisition for one or more objects (i.e., root parent attribute set) with the given global identifiers.

The actual request will include all extensions (and decedent attribute sets) for each object. A buffer of private data can be included and will be presented to owning client when request to divest object(s) is made. If the request has been initiated by another client, that transaction ID can be used for this transaction; otherwise, a new transaction ID will be generated and returned Return a transaction ID for the request (will be delivered in corresponding ownershipAcquired callback) Currently only supports the first object in the list

Referenced by requestOwnership().

virtual UInt64 Legion::OwnershipManager::requestInitiateAcquisition ( ClientIdentifier  acquiringClientId, Span< GlobalIdentifier >  globalIds, Span< char >  privateData  )

virtual

Request another client initiate an ownership acquisition of the given attributes Return a transaction ID for the request (will be delivered in corresponding InitiateAcquisitionResult callback)

static void Legion::OwnershipManager::requestRejectedCallback ( void *  usr, requestRejectedCallbackParameters    )

staticprotected

Friends And Related Function Documentation

friend class Connection

friend

Member Data Documentation

std::vector<CallbackData*> Legion::OwnershipManager::myAcquiredCallbacks

protected

DatabaseHandle Legion::OwnershipManager::myDatabaseHandle

protected

std::vector<CallbackData*> Legion::OwnershipManager::myDivestitureRequestCallbacks

protected

OwnershipManagerHandle Legion::OwnershipManager::myHandle

protected

std::vector<CallbackData*> Legion::OwnershipManager::myInitiateAcquisitionRequestCallbacks

protected

std::vector<CallbackData*> Legion::OwnershipManager::myInitiateAcquisitionResultCallbacks

protected

std::vector<CallbackData*> Legion::OwnershipManager::myRequestRejectedCallbacks

protected

---

The documentation for this class was generated from the following file:

• ownershipManager.h
