Inheritance diagram for DtComplexComponentNode:

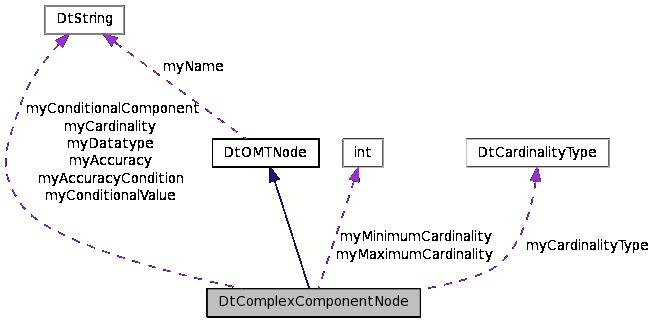

Collaboration diagram for DtComplexComponentNode:

Public Types
enum	DtCardinalityType { DtFixed = 0, DtRange, DtConditional, DtZeroTerminated, DtLocation, DtExternalCount, DtModulus }
Public Member Functions
	DtComplexComponentNode ()
	Used for PaddingTo16 and PaddingTo32 items.
virtual	~DtComplexComponentNode ()
	Destructor.
	DtComplexComponentNode (const DtComplexComponentNode &orig)
	Copy Constructor.
DtComplexComponentNode &	operator= (const DtComplexComponentNode &rhs)
	Assignment Operator.
virtual void	setDatatype (const DtString &)
virtual const DtString &	getDatatype ()
virtual void	setCardinality (const DtString &)
virtual const DtString &	getCardinality ()
virtual void	setAccuracy (const DtString &)
virtual const DtString &	getAccuracy ()
virtual void	setAccuracyCondition (const DtString &)
virtual const DtString &	getAccuracyCondition ()
virtual int	getMinimumCardinality ()
	The following functions are derivative information from the information above.
virtual int	getMaximumCardinality ()
virtual const DtString &	getConditionalComponent ()
virtual const DtString &	getConditionalValue ()
virtual DtCardinalityType	getCardinalityType ()
Protected Member Functions
virtual void	setDerivedValues ()
Protected Attributes
DtString	myDatatype
DtString	myCardinality
DtString	myAccuracy
DtString	myAccuracyCondition
int	myMinimumCardinality
int	myMaximumCardinality
DtString	myConditionalComponent
DtString	myConditionalValue
DtCardinalityType	myCardinalityType

Member Enumeration Documentation

Enumerator:

DtRange	Fixed sized. This never varies.
DtConditional	Range sized.
DtZeroTerminated	Size is either min or max depending on the conditional being true.
DtLocation	Keeps reading until it finds a null byte. Or, if at end of read, until the byte stream ends
DtExternalCount	Line up the end to a particular bit.
DtModulus	The conditional determines the number in cardinality.

Constructor & Destructor Documentation

DtComplexComponentNode::DtComplexComponentNode ( )

Used for PaddingTo16 and PaddingTo32 items.

Default Constructor

The documentation for this class was generated from the following file:
