Instances of DtLgrControlPdu are a family of messages used to control a remote instance of the MAK-Logger over the network. More...

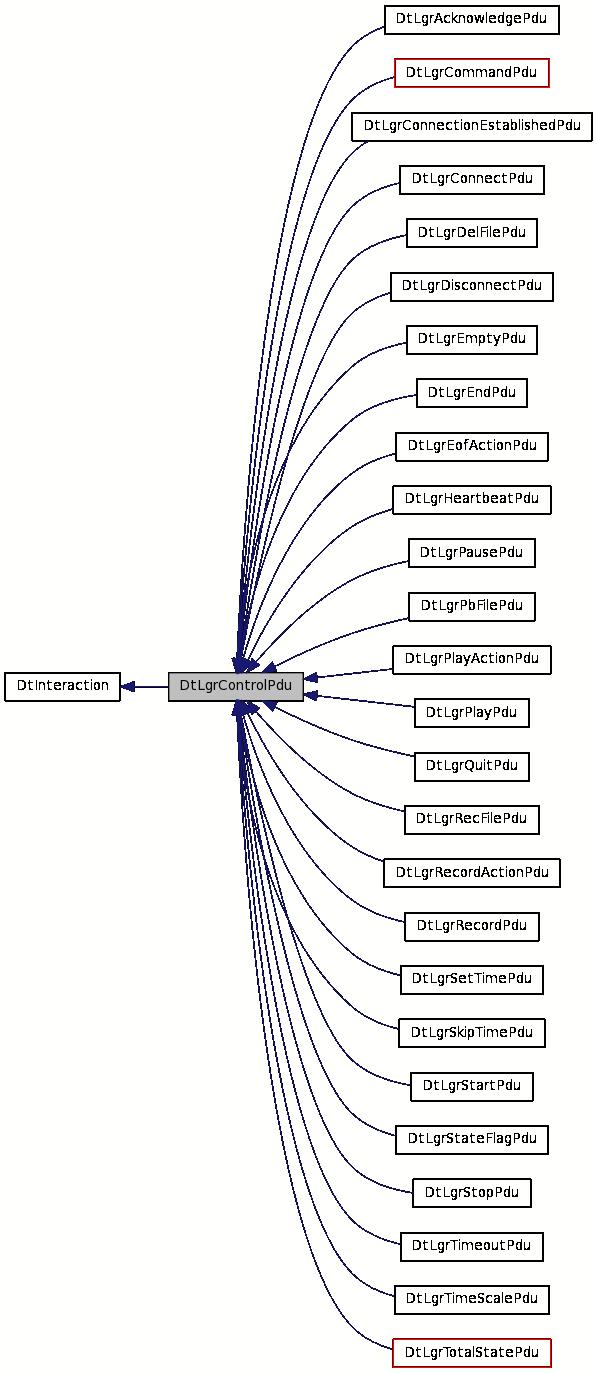

Inheritance diagram for DtLgrControlPdu:

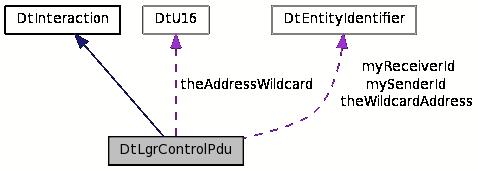

Collaboration diagram for DtLgrControlPdu:
Public Member Functions | |
| DtLgrControlPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, int pduSize=sizeof(DtNetLgrControlPdu)) | |
| (default) constructor | |
| DtLgrControlPdu (const DtNetLgrControlPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) | |
| constructor (constructs from network representation) | |
| virtual | ~DtLgrControlPdu () |
| destructor | |
| DtLgrControlPdu (const DtLgrControlPdu &src) | |
| copy constructor | |
| DtLgrControlPdu & | operator= (const DtLgrControlPdu &src) |
| assignment operator | |
| virtual const DtEntityIdentifier & | receiverId () const |
| Get/set identifier of intended recipient (logger). | |
| virtual void | setReceiverId (const DtEntityIdentifier &id) |
| virtual const DtEntityIdentifier & | senderId () const |
| Get/set identifier of sender, if applicable. | |
| virtual void | setSenderId (const DtEntityIdentifier &id) |
| virtual DtLgrCommand | lgrCommand () const |
| Get message-type for proper casting to a subclass. | |
| virtual DtU32 | sequence () const |
| Get/set sequence number. | |
| virtual void | setSequence (DtU32 sequenceNumber) |
| virtual void | printDataToStream (std::ostream &stream) const |
| Print contents. | |
Static Public Member Functions | |
| static DtPdu * | create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER) |
| Create a PDU representation from a network packet. | |
| static DtLgrControlPdu * | create (DtLgrCommand command) |
| Create a PDU from DtLgrCommand. | |
| static DtLgrControlPdu * | create (DtLgrCommandExt command) |
| Create a PDU from DtLgrCommandExt. | |
| static void | addCallback (DtExerciseConn *conn, DtLgrControlInteractionCb cb, void *usr) |
| DIS -- install/remove handler to call when receiving a LC packet. | |
| static void | removeCallback (DtExerciseConn *conn, DtLgrControlInteractionCb cb, void *usr) |
| static DtU16 | addressWildcard () |
| Wildcard value for addresses. | |
| static const DtEntityIdentifier & | wildcardAddress () |
| Wildcard address. | |
| static const char * | lgrModeEnum2string (DtLgrMode md) |
| The name (as a string) of a 'DtLgrMode'-type enum (from value) | |
| static const char * | lgrFilePosEnum2string (DtLgrFilePosition pos) |
| The name (as a string) of a 'DtLgrFilePosition'-type enum (from value) | |
| static const char * | lgrStateFlag2string (DtLgrCtrlFlagStates flg) |
| The name (as a string) of a 'DtLgrCtrlFlagStates'-type enum (from value) | |
Protected Member Functions | |
| virtual void | setLgrCommand (DtLgrCommand com) |
| Set is done by constructing the proper subclass. | |
| virtual void | setLgrCommand (DtLgrCommandExt com) |
| Set is done by constructing the proper subclass. | |
| virtual DtNetLgrControlPdu * | controlHeader () |
| Access to the payload as control pdu header. | |
| virtual DtNetLgrControlPdu * | controlHeader () const |
| Access to the payload as control pdu header. | |
| DtPduKind | internalGetPduKind () const |
| Identity for use by toolkit. | |
Protected Attributes | |
| DtEntityIdentifier | mySenderId |
| Parameter. | |
| DtEntityIdentifier | myReceiverId |
Static Protected Attributes | |
| static const DtU16 | theAddressWildcard = ((1<<16)-1) |
| static const DtEntityIdentifier | theWildcardAddress |
Detailed Description
Instances of DtLgrControlPdu are a family of messages used to control a remote instance of the MAK-Logger over the network.
See lc*.h.
The documentation for this class was generated from the following file:
