A generic packed of typed binary data. More...

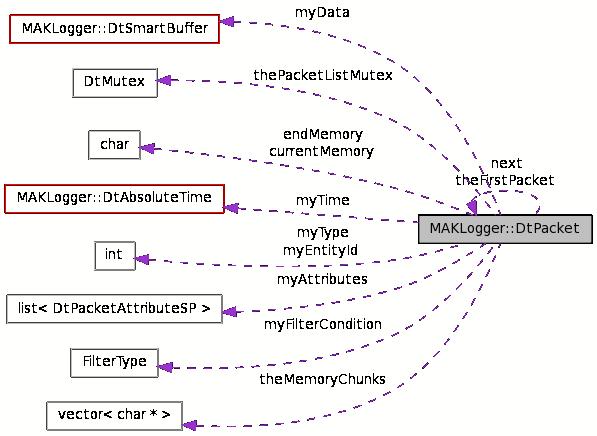

Collaboration diagram for MAKLogger::DtPacket:

Public Types
enum	DtPacketType { Type_Interaction = 0, Type_Update = 1, Type_Removal = 2, Type_Annotation = 3, Type_Pdu = 4, Type_Fom = 5, Type_Audio = 6, Type_Checkpoint = 7, Type_IndexTable = 8, Type_MultiTSUpdates = 9, Type_RecordingData = 11, Type_SimulationData = 12, Type_EntityTable = 13, Type_ConfigData = 14, Type_UpdateDDM = 15, Type_InteractionDDM = 16, Type_TapeTimeDate = 17, Type_Pause = 18, Type_Unpause = 19, Type_None = 0x7FFFFFF0 }
	MIGRATION Info Same values as LtPacketKind in Logger 3.x versions. More...
enum	FilterType { Unfiltered, Filtered, Dropped }
Public Member Functions
	~DtPacket ()
	DTOR which releases resources.
void	operator delete (void *v, size_t t)
	Customized delete packet.
bool	operator< (const DtPacket &) const
	Check to see if this packet comes before another packet.
FilterType	filter () const
	Get the filter setting applied to this packet.
size_t	size () const
	Get the size of the packet's data in bytes.
const DtAbsoluteTime &	time () const
	Get the time of the packet.
int	type () const
	Get the type of the packet.
DtLgrEntityTracker::EntryHandle	entityId () const
	Get the entity ID of the packet.
void	setEntityId (DtLgrEntityTracker::EntryHandle id)
	Set the entity ID of the packet.
void	setFilter (FilterType filter)
void	setTime (DtAbsoluteTime time)
void	setType (int type)
void	addAttribute (DtPacketAttributeSP)
	Add integer mapped attributes.
bool	removeAttribute (int)
	Removes the attribute.
DtPacketAttributeSP	lookupAttribute (int)
	Lookup attribute, fairly fast.
void	convertTime (DtAbsoluteTime inputCurrentTime, DtAbsoluteTime outputCurrentTime)

char *	data ()
	Get the data pointer.
const char *	data () const
	Get the data pointer.

DtSmartBuffer &	buffer ()
	Get the internal buffer of the packet.
const DtSmartBuffer &	buffer () const
	Get the internal buffer of the packet.
Static Public Member Functions
static DtPacket *	create (DtSmartBuffer data, DtAbsoluteTime time, int type, int id=-1)
	CTOR which takes a shared smart buffer and the time and type.
static DtPacket *	create (size_t size, DtAbsoluteTime time, int type, int id=-1)
	CTOR which defines the size, which will create it's own smart buffer.
static DtAbsoluteTime	convertTime (DtAbsoluteTime inputCurrentTime, DtAbsoluteTime outputCurrentTime, DtAbsoluteTime arrivalTime)
	Convert the arrivalTime using both the Current Input time, and the current ouputTime.
Protected Member Functions
	DtPacket (DtSmartBuffer data, DtAbsoluteTime time, int type, int id)
	DtPacket (size_t size, DtAbsoluteTime time, int type, int id)
	CTOR which defines the size, which will create it's own smart buffer.
void *	operator new (size_t t)
Protected Attributes
DtAbsoluteTime	myTime
	The time of the packet (typically the arrival time)
DtLgrEntityTracker::EntryHandle	myEntityId
int	myType
	The type of packet.
FilterType	myFilterCondition
	The filter condition of a packet Initially DtUnfiltered.
DtSmartBuffer	myData
	Pointer to packet data.
std::list< DtPacketAttributeSP >	myAttributes
	Attribute list, initially NULL.
static DtPacket *	theFirstPacket
	Deallocate the chunks of data used.
static DtMutex	thePacketListMutex
	Deallocate the chunks of data used.
static std::vector< char * >	theMemoryChunks
	Deallocate the chunks of data used.
static char *	currentMemory
	Deallocate the chunks of data used.
static char *	endMemory
	Deallocate the chunks of data used.
DtPacket *	next
	Deallocate the chunks of data used.
static void	deleteChunks ()
	Deallocate the chunks of data used.

Detailed Description

A generic packed of typed binary data.

Member Enumeration Documentation

enum MAKLogger::DtPacket::DtPacketType

MIGRATION Info Same values as LtPacketKind in Logger 3.x versions.

Enumerator:

Type_RecordingData	New for 4.0, multiple time stamped updates. Type_GeneratedUpdate = 10, //! New for 4.0 use the time of the packet when ! sending.
Type_ConfigData	entity metadata
Type_UpdateDDM	configuration metadata These two are new for Logger 4.4
Type_InteractionDDM	update with DDM region data (Only makes sense for HLA)
Type_TapeTimeDate	interaction with DDM data (Only makes sense for HLA)

Member Function Documentation

void MAKLogger::DtPacket::addAttribute ( DtPacketAttributeSP )

Add integer mapped attributes.

Used to store cached data. The integer must be >= 0 or add will quietly fail.

static DtAbsoluteTime MAKLogger::DtPacket::convertTime	(	DtAbsoluteTime	inputCurrentTime,
		DtAbsoluteTime	outputCurrentTime,
		DtAbsoluteTime	arrivalTime
	)		`[static]`

Convert the arrivalTime using both the Current Input time, and the current ouputTime.

DtPacketAttributeSP MAKLogger::DtPacket::lookupAttribute ( int )

Lookup attribute, fairly fast.

Return values:

null	Attribute was not found.

bool MAKLogger::DtPacket::removeAttribute ( int )

Removes the attribute.

Return values:

true	Attribute was removed.
false	Attribute was not removed (due to not being found).

The documentation for this class was generated from the following file:

packet.h
