MAKLogger::DtLgrAnnotation Class Reference

Base annotation class defines interface for all annotations. More...

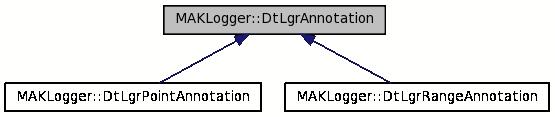

Inheritance diagram for MAKLogger::DtLgrAnnotation:

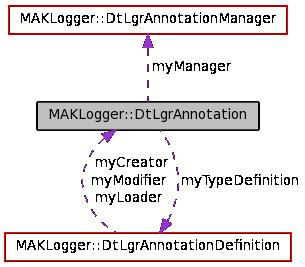

Collaboration diagram for MAKLogger::DtLgrAnnotation:

List of all members.

Public Member Functions
	DtLgrAnnotation (const DtLgrAnnotationDefinition *definition)
	CTOR.
const DtLgrAnnotationDefinition *	definition () const
	Get the definition of of this type of annotation.
virtual void	addedToManager (DtLgrAnnotationManager *manager)
	Called by manager after added to a given manager.
virtual const DtString &	type () const =0
virtual void	setName (const DtString &name)=0
virtual const DtString &	name () const =0
virtual void	setText (const DtString &text)=0
virtual const DtString &	text () const =0
virtual void	setStartTime (const DtAbsoluteTime &time)=0
virtual const DtAbsoluteTime &	startTime () const =0
virtual void	setEndTime (const DtAbsoluteTime &time)=0
virtual const DtAbsoluteTime &	endTime () const =0
virtual void	initializeFromObject (const DtEnvObject *annotationObject)=0
	Initialize from environment object.
virtual void	createObject (DtEnvironment environment)=0
	Set the attributes on an environment object.
Static Public Member Functions
static bool	compareNames (const DtLgrAnnotation *a, const DtLgrAnnotation *b)
	Static function used for sorting.
Protected Member Functions
virtual void	annotationChanged ()
	Function should be called by any annotation function which modifies the state of the annotation.
Protected Attributes
DtLgrAnnotationManager *	myManager
const DtLgrAnnotationDefinition *	myTypeDefinition

---

Detailed Description

Base annotation class defines interface for all annotations.

---

Member Function Documentation

virtual void MAKLogger::DtLgrAnnotation::addedToManager

(

DtLgrAnnotationManager *

manager

)

[virtual]

Called by manager after added to a given manager.

Annotations maintain a pointer to the manager to notify it of changes.

virtual void MAKLogger::DtLgrAnnotation::annotationChanged

(

)

[protected, virtual]

Function should be called by any annotation function which modifies the state of the annotation.

const DtLgrAnnotationDefinition* MAKLogger::DtLgrAnnotation::definition

(

)

const

Get the definition of of this type of annotation.

This is non null if object is created using the annotation factory.

---

The documentation for this class was generated from the following file:

• lgrAnnotation.h
