MAKLogger::DtPage Class Reference

The page is a single widget component which is viewed in a page collection. More...

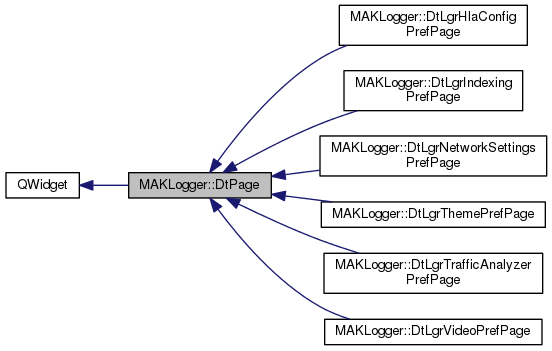

Inheritance diagram for MAKLogger::DtPage:

Collaboration diagram for MAKLogger::DtPage:

Public Member Functions
	DtPage (QWidget *parent=0, Qt::WindowFlags f=0)
	CTOR for page. More...
virtual	~DtPage ()
	DTOR for page. More...
virtual QIcon	icon ()=0
	Get the icon of the page. More...
virtual DtQIconConfigurations	qIconConfigurations () const =0
	Get the icon configurations for the page. More...
virtual QString	title ()=0
	Get the title of the page. More...
virtual const std::string &	pageClassName () const =0
	Get the class name of the page. More...
virtual void	load ()=0
	Loads the current configuration values and populates the page. More...
virtual void	accept ()=0
	Accepts current input. More...
virtual void	reject ()=0
	Rejects current input. More...

Protected Member Functions
virtual void	activate ()=0
	Called when the page is displayed. More...
virtual void	deactivate ()=0
	Called when the page is hidden. More...
void	addPageHeader (const QString &title, QLayout *layout)
	Adds a page header to the given layout. More...

Friends
class	DtPreferencesPageCollection

Detailed Description

The page is a single widget component which is viewed in a page collection.

Constructor & Destructor Documentation

MAKLogger::DtPage::DtPage	(	QWidget *	parent = 0,
		Qt::WindowFlags	f = 0
	)

CTOR for page.

The DtPage should not populate itself automatically. It should only do this when activate is called.

virtual MAKLogger::DtPage::~DtPage ( )

virtual

DTOR for page.

Member Function Documentation

virtual void MAKLogger::DtPage::accept ( )

pure virtual

Accepts current input.

Implemented in MAKLogger::DtLgrTrafficAnalyzerPrefPage, MAKLogger::DtLgrHlaConfigPrefPage, MAKLogger::DtLgrIndexingPrefPage, MAKLogger::DtLgrVideoPrefPage, MAKLogger::DtLgrNetworkSettingsPrefPage, and MAKLogger::DtLgrThemePrefPage.

virtual void MAKLogger::DtPage::activate ( )

protectedpure virtual

Called when the page is displayed.

Implemented in MAKLogger::DtLgrHlaConfigPrefPage, MAKLogger::DtLgrTrafficAnalyzerPrefPage, MAKLogger::DtLgrNetworkSettingsPrefPage, MAKLogger::DtLgrIndexingPrefPage, MAKLogger::DtLgrVideoPrefPage, and MAKLogger::DtLgrThemePrefPage.

void MAKLogger::DtPage::addPageHeader ( const QString &  title, QLayout *  layout  )

protected

Adds a page header to the given layout.

virtual void MAKLogger::DtPage::deactivate ( )

protectedpure virtual

Called when the page is hidden.

Implemented in MAKLogger::DtLgrHlaConfigPrefPage, MAKLogger::DtLgrTrafficAnalyzerPrefPage, MAKLogger::DtLgrNetworkSettingsPrefPage, MAKLogger::DtLgrIndexingPrefPage, MAKLogger::DtLgrVideoPrefPage, and MAKLogger::DtLgrThemePrefPage.

virtual QIcon MAKLogger::DtPage::icon ( )

pure virtual

Get the icon of the page.

Implemented in MAKLogger::DtLgrTrafficAnalyzerPrefPage, MAKLogger::DtLgrHlaConfigPrefPage, MAKLogger::DtLgrVideoPrefPage, MAKLogger::DtLgrIndexingPrefPage, MAKLogger::DtLgrNetworkSettingsPrefPage, and MAKLogger::DtLgrThemePrefPage.

virtual void MAKLogger::DtPage::load ( )

pure virtual

Loads the current configuration values and populates the page.

Implemented in MAKLogger::DtLgrTrafficAnalyzerPrefPage, MAKLogger::DtLgrHlaConfigPrefPage, MAKLogger::DtLgrVideoPrefPage, MAKLogger::DtLgrIndexingPrefPage, MAKLogger::DtLgrNetworkSettingsPrefPage, and MAKLogger::DtLgrThemePrefPage.

virtual const std::string& MAKLogger::DtPage::pageClassName ( ) const

pure virtual

Get the class name of the page.

Implemented in MAKLogger::DtLgrTrafficAnalyzerPrefPage, MAKLogger::DtLgrHlaConfigPrefPage, MAKLogger::DtLgrVideoPrefPage, MAKLogger::DtLgrIndexingPrefPage, MAKLogger::DtLgrNetworkSettingsPrefPage, and MAKLogger::DtLgrThemePrefPage.

virtual DtQIconConfigurations MAKLogger::DtPage::qIconConfigurations ( ) const

pure virtual

Get the icon configurations for the page.

This is used to style the page's icon based on application settings.

Implemented in MAKLogger::DtLgrTrafficAnalyzerPrefPage, MAKLogger::DtLgrHlaConfigPrefPage, MAKLogger::DtLgrVideoPrefPage, MAKLogger::DtLgrIndexingPrefPage, MAKLogger::DtLgrNetworkSettingsPrefPage, and MAKLogger::DtLgrThemePrefPage.

virtual void MAKLogger::DtPage::reject ( )

pure virtual

Rejects current input.

Implemented in MAKLogger::DtLgrTrafficAnalyzerPrefPage, MAKLogger::DtLgrHlaConfigPrefPage, MAKLogger::DtLgrIndexingPrefPage, MAKLogger::DtLgrVideoPrefPage, MAKLogger::DtLgrNetworkSettingsPrefPage, and MAKLogger::DtLgrThemePrefPage.

virtual QString MAKLogger::DtPage::title ( )

pure virtual

Get the title of the page.

Implemented in MAKLogger::DtLgrTrafficAnalyzerPrefPage, MAKLogger::DtLgrHlaConfigPrefPage, MAKLogger::DtLgrVideoPrefPage, MAKLogger::DtLgrIndexingPrefPage, MAKLogger::DtLgrNetworkSettingsPrefPage, and MAKLogger::DtLgrThemePrefPage.

Friends And Related Function Documentation

friend class DtPreferencesPageCollection

friend

---

The documentation for this class was generated from the following file:

• preferencesPage.h
