DtLgcyLgrControlPdu Class Reference

Instances of DtLgcyLgrControlPdu are a family of messages used to control a remote instance of the MAK-Logger over the network. More...

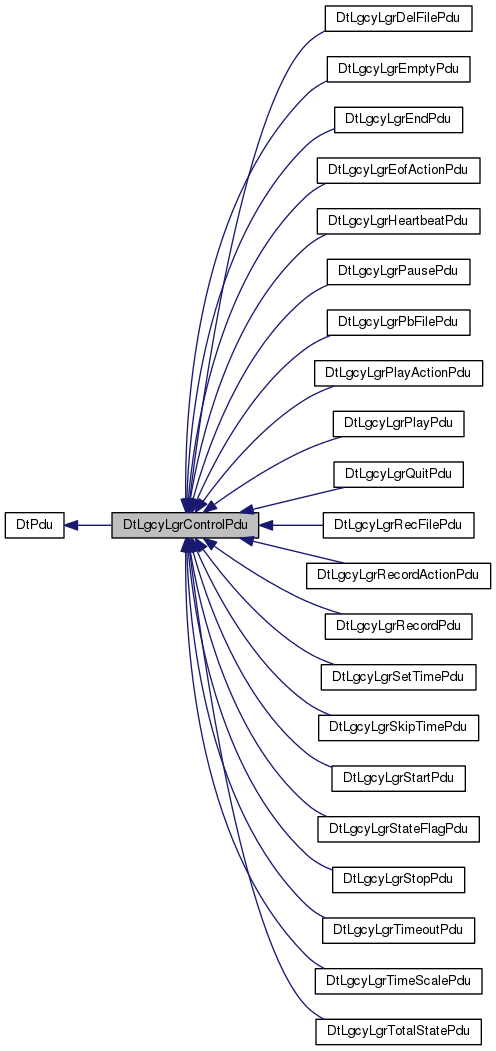

Inheritance diagram for DtLgcyLgrControlPdu:

Collaboration diagram for DtLgcyLgrControlPdu:

Public Member Functions
	DtLgcyLgrControlPdu (DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER)
	(default) constructor More...
	DtLgcyLgrControlPdu (const DtNetLgcyLgrControlPdu *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	constructor (constructs from network representation) More...
virtual	~DtLgcyLgrControlPdu ()
	destructor More...
	DtLgcyLgrControlPdu (const DtLgcyLgrControlPdu &src)
	copy constructor More...
DtLgcyLgrControlPdu &	operator= (const DtLgcyLgrControlPdu &src)
	assignment operator More...
const DtGlobalObjectDesignator &	receiverId () const
	Get/set Object Identifier of intended recipient (logger). More...
virtual void	setReceiverId (const DtGlobalObjectDesignator &id)
virtual const DtGlobalObjectDesignator &	senderId () const
	Get/set Object Identifier of sender, if applicable. More...
virtual void	setSenderId (const DtGlobalObjectDesignator &id)
DtLgrCommand	lgrCommand () const
	Get message-type for proper casting to a subclass. More...
DtNetLgcyLgrControlParams *	defaultParams () const
	Data place holder. More...
virtual void	printData () const
	Print contents. More...

Static Public Member Functions
static DtPdu *	create (const DtNetPacket *initial, DtBufferPtr buffer=DtUSE_INTERNAL_BUFFER, DtPduFactory *pduFactory=0)
	Create a PDU representation from a network packet. More...
static DtLgcyLgrControlPdu *	create (DtLgrCommand command)
	Create a PDU from DtLgrCommand. More...
static const char *	lgrModeEnum2string (DtLgcyLgrMode md)
	The name (as a string) of a 'DtLgcyLgrMode'-type enum (from value) More...
static const char *	lgrFilePosEnum2string (DtLgcyLgrFilePosition pos)
	The name (as a string) of a 'DtLgcyLgrFilePosition'-type enum (from value) More...
static const char *	lgrStateFlag2string (DtLgcyLgrCtrlFlagStates flg)
	The name (as a string) of a 'DtLgcyLgrCtrlFlagStates'-type enum (from value) More...

Protected Member Functions
DtPduKind	internalGetPduKind () const
	Identity for use by toolkit. More...
void	setLgrCommand (DtLgrCommand com)
	Set is done by constructing the proper subclass. More...

Private Attributes
DtGlobalObjectDesignator	mySenderId
	Parameter. More...
DtGlobalObjectDesignator	myReceiverId

Detailed Description

Instances of DtLgcyLgrControlPdu are a family of messages used to control a remote instance of the MAK-Logger over the network.

See lc*.h.

Constructor & Destructor Documentation

DtLgcyLgrControlPdu::DtLgcyLgrControlPdu

(

DtBufferPtr

buffer = DtUSE_INTERNAL_BUFFER

)

(default) constructor

DtLgcyLgrControlPdu::DtLgcyLgrControlPdu	(	const DtNetLgcyLgrControlPdu *	initial,
		DtBufferPtr	buffer = DtUSE_INTERNAL_BUFFER,
		DtPduFactory *	pduFactory = 0
	)

constructor (constructs from network representation)

virtual DtLgcyLgrControlPdu::~DtLgcyLgrControlPdu ( )

virtual

destructor

DtLgcyLgrControlPdu::DtLgcyLgrControlPdu

(

const DtLgcyLgrControlPdu &

src

)

copy constructor

Member Function Documentation

static DtPdu* DtLgcyLgrControlPdu::create ( const DtNetPacket *  initial, DtBufferPtr  buffer = DtUSE_INTERNAL_BUFFER, DtPduFactory *  pduFactory = 0  )

static

Create a PDU representation from a network packet.

static DtLgcyLgrControlPdu* DtLgcyLgrControlPdu::create ( DtLgrCommand  command )

static

Create a PDU from DtLgrCommand.

DtNetLgcyLgrControlParams* DtLgcyLgrControlPdu::defaultParams

(

)

const

Data place holder.

DtPduKind DtLgcyLgrControlPdu::internalGetPduKind ( ) const

inlineprotected

Identity for use by toolkit.

DtLgrCommand DtLgcyLgrControlPdu::lgrCommand

(

)

const

Get message-type for proper casting to a subclass.

static const char* DtLgcyLgrControlPdu::lgrFilePosEnum2string ( DtLgcyLgrFilePosition  pos )

static

The name (as a string) of a 'DtLgcyLgrFilePosition'-type enum (from value)

static const char* DtLgcyLgrControlPdu::lgrModeEnum2string ( DtLgcyLgrMode  md )

static

The name (as a string) of a 'DtLgcyLgrMode'-type enum (from value)

static const char* DtLgcyLgrControlPdu::lgrStateFlag2string ( DtLgcyLgrCtrlFlagStates  flg )

static

The name (as a string) of a 'DtLgcyLgrCtrlFlagStates'-type enum (from value)

DtLgcyLgrControlPdu& DtLgcyLgrControlPdu::operator=

(

const DtLgcyLgrControlPdu &

src

)

assignment operator

virtual void DtLgcyLgrControlPdu::printData ( ) const

virtual

Print contents.

Reimplemented in DtLgcyLgrTotalStatePdu, DtLgcyLgrDelFilePdu, DtLgcyLgrRecFilePdu, DtLgcyLgrTimeoutPdu, DtLgcyLgrHeartbeatPdu, DtLgcyLgrPbFilePdu, DtLgcyLgrSetTimePdu, DtLgcyLgrSkipTimePdu, and DtLgcyLgrTimeScalePdu.

const DtGlobalObjectDesignator& DtLgcyLgrControlPdu::receiverId

(

)

const

Get/set Object Identifier of intended recipient (logger).

virtual const DtGlobalObjectDesignator& DtLgcyLgrControlPdu::senderId ( ) const

virtual

Get/set Object Identifier of sender, if applicable.

void DtLgcyLgrControlPdu::setLgrCommand ( DtLgrCommand  com )

protected

Set is done by constructing the proper subclass.

virtual void DtLgcyLgrControlPdu::setReceiverId ( const DtGlobalObjectDesignator &  id )

virtual

virtual void DtLgcyLgrControlPdu::setSenderId ( const DtGlobalObjectDesignator &  id )

virtual

Member Data Documentation

DtGlobalObjectDesignator DtLgcyLgrControlPdu::myReceiverId

private

DtGlobalObjectDesignator DtLgcyLgrControlPdu::mySenderId

private

Parameter.

---

The documentation for this class was generated from the following file:

• legacyLcPdu.h
