DtObjectInstanceListCtrl Class Reference

DtObjectInstanceListCtrl UI Controller type for object instances Populates a QListView with the object instances Catches selectionChanged events and forwards them as a signal Responds to object instance discovery and removal. More...

Inheritance diagram for DtObjectInstanceListCtrl:

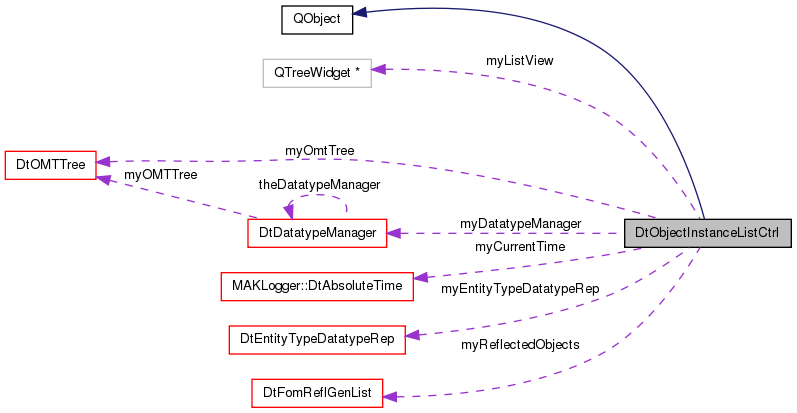

Collaboration diagram for DtObjectInstanceListCtrl:

Public Member Functions
	DtObjectInstanceListCtrl (DtFomReflGenList &reflectedObjects, DtOMTTree &omtTree, DtDatatypeManager &datatypeManager, DtDisDictionary &entityTypeDictionary)
	Constructor.
virtual	~DtObjectInstanceListCtrl ()
	Destructor.
virtual void	fillListView (QTreeWidget *listView)
virtual DtObjectClassFedNode *	findCurrentObjFedNode (QTreeWidgetItem *currentLoc)
virtual void	setCurrentTime (const MAKLogger::DtAbsoluteTime &newTime)
	Update current time.
virtual const MAKLogger::DtAbsoluteTime &	currentTime () const
	Get current time.
virtual DtReflectedGenericObject *	reflectedObject (const DtString &objectName)
	Get the reflected object with the given name.
virtual void	discoverObject (DtReflectedGenericObject *obj)
	Process a discovered object.
virtual void	removeObject (DtReflectedGenericObject *obj)
	Remove the specified object.

Protected Member Functions
virtual void	updateEntityType (DtReflectedGenericObject *obj)
	Process an object update to capture a missing entity type.
virtual void	updateObjectTime (const DtStateMsg &msg, DtHlaObject *obj)
	Process an object update to update time.
virtual bool	getEntityType (DtReflectedGenericObject *obj, bool addCallback, QString &entityTypeString)
	Display the object's entity type when it becomes available.
	DtObjectInstanceListCtrl (const DtObjectInstanceListCtrl &)
DtObjectInstanceListCtrl &	operator= (const DtObjectInstanceListCtrl &)

Static Protected Member Functions
static void	updateEntityTypeCb (DtReflectedGenericObject *obj, void *userData)
	Callback for object updates to process entity type.
static void	updateObjectTimeCb (const DtStateMsg &msg, DtHlaObject *obj, void *usr)
	Callback for object updates to process time.

Protected Attributes
QTreeWidget *	myListView
DtFomReflGenList &	myReflectedObjects
DtOMTTree &	myOmtTree
DtDatatypeManager &	myDatatypeManager
DtEntityTypeDatatypeRep	myEntityTypeDatatypeRep
MAKLogger::DtAbsoluteTime	myCurrentTime

Detailed Description

DtObjectInstanceListCtrl UI Controller type for object instances Populates a QListView with the object instances Catches selectionChanged events and forwards them as a signal Responds to object instance discovery and removal.

Constructor & Destructor Documentation

DtObjectInstanceListCtrl::DtObjectInstanceListCtrl	(	DtFomReflGenList &	reflectedObjects,
		DtOMTTree &	omtTree,
		DtDatatypeManager &	datatypeManager,
		DtDisDictionary &	entityTypeDictionary
	)

Constructor.

virtual DtObjectInstanceListCtrl::~DtObjectInstanceListCtrl ( )

virtual

Destructor.

DtObjectInstanceListCtrl::DtObjectInstanceListCtrl ( const DtObjectInstanceListCtrl &  )

protected

Member Function Documentation

virtual const MAKLogger::DtAbsoluteTime& DtObjectInstanceListCtrl::currentTime ( ) const

virtual

Get current time.

virtual void DtObjectInstanceListCtrl::discoverObject ( DtReflectedGenericObject *  obj )

virtual

Process a discovered object.

virtual void DtObjectInstanceListCtrl::fillListView ( QTreeWidget *  listView )

virtual

virtual DtObjectClassFedNode* DtObjectInstanceListCtrl::findCurrentObjFedNode ( QTreeWidgetItem *  currentLoc )

virtual

virtual bool DtObjectInstanceListCtrl::getEntityType ( DtReflectedGenericObject *  obj, bool  addCallback, QString &  entityTypeString  )

protectedvirtual

Display the object's entity type when it becomes available.

Initially, callback should be added. Subsequent calls should remove callback should be removed when entity type is updated.

DtObjectInstanceListCtrl& DtObjectInstanceListCtrl::operator= ( const DtObjectInstanceListCtrl &  )

protected

virtual DtReflectedGenericObject* DtObjectInstanceListCtrl::reflectedObject ( const DtString &  objectName )

virtual

Get the reflected object with the given name.

virtual void DtObjectInstanceListCtrl::removeObject ( DtReflectedGenericObject *  obj )

virtual

Remove the specified object.

virtual void DtObjectInstanceListCtrl::setCurrentTime ( const MAKLogger::DtAbsoluteTime &  newTime )

virtual

Update current time.

virtual void DtObjectInstanceListCtrl::updateEntityType ( DtReflectedGenericObject *  obj )

protectedvirtual

Process an object update to capture a missing entity type.

static void DtObjectInstanceListCtrl::updateEntityTypeCb ( DtReflectedGenericObject *  obj, void *  userData  )

staticprotected

Callback for object updates to process entity type.

virtual void DtObjectInstanceListCtrl::updateObjectTime ( const DtStateMsg &  msg, DtHlaObject *  obj  )

protectedvirtual

Process an object update to update time.

static void DtObjectInstanceListCtrl::updateObjectTimeCb ( const DtStateMsg &  msg, DtHlaObject *  obj, void *  usr  )

staticprotected

Callback for object updates to process time.

Member Data Documentation

MAKLogger::DtAbsoluteTime DtObjectInstanceListCtrl::myCurrentTime

protected

DtDatatypeManager& DtObjectInstanceListCtrl::myDatatypeManager

protected

DtEntityTypeDatatypeRep DtObjectInstanceListCtrl::myEntityTypeDatatypeRep

protected

QTreeWidget* DtObjectInstanceListCtrl::myListView

protected

DtOMTTree& DtObjectInstanceListCtrl::myOmtTree

protected

DtFomReflGenList& DtObjectInstanceListCtrl::myReflectedObjects

protected

---

The documentation for this class was generated from the following file:

• objectInstanceListCtrl.h
