MAKLogger::DtBaseHla1516Class< ValueType > Class Template Reference

Base class representing any HLA 1516 class. More...

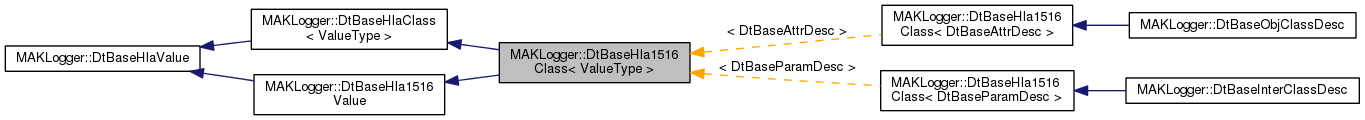

Inheritance diagram for MAKLogger::DtBaseHla1516Class< ValueType >:

Collaboration diagram for MAKLogger::DtBaseHla1516Class< ValueType >:

Public Member Functions
	DtBaseHla1516Class (const DtString &name, DtBaseHlaClass< ValueType > *baseClass, DtLgrHlaHandle handle, const DtLgrVariableLengthData &code)
	Constructor with valid pointer to base class object. More...
	DtBaseHla1516Class (const DtString &name, const DtString &baseClassName, DtLgrHlaHandle handle, const DtLgrVariableLengthData &code)
	Constructor with only the base class name. More...
	DtBaseHla1516Class (const DtBaseHla1516Class< ValueType > &src)
	Copy constructor. More...
DtBaseHla1516Class< ValueType > &	operator= (const DtBaseHla1516Class< ValueType > &src)
	Assignment operator. More...
virtual	~DtBaseHla1516Class ()
	DTOR. More...
ValueType *	findValueByCode (const DtLgrVariableLengthData &code, bool thisClassOnly)
	Look up a value by its encoded handle. More...
const ValueType *	findValueByCode (const DtLgrVariableLengthData &code, bool thisClassOnly) const
	Look up a value by its encoded handle. More...
Public Member Functions inherited from MAKLogger::DtBaseHlaClass< ValueType >
	DtBaseHlaClass (const DtString &name, DtBaseHlaClass< ValueType > *baseClass, DtLgrHlaHandle handle)
	Constructor with valid pointer to base class object. More...
	DtBaseHlaClass (const DtString &name, const DtString &baseClassName, DtLgrHlaHandle handle)
	Constructor with only the base class name. More...
	DtBaseHlaClass (const DtBaseHlaClass< ValueType > &src)
	Copy constructor. More...
DtBaseHlaClass< ValueType > &	operator= (const DtBaseHlaClass< ValueType > &src)
	Assignment operator. More...
virtual	~DtBaseHlaClass ()
	DTOR. More...
const DtString &	baseName () const
	Get the base class name, it can be empty. More...
DtString	simpleName () const
	Get the simple class name, which does not include the base name. More...
const char *	baseName2print () const
	Get a raw pointer to the base name for printing. More...
void	setBaseNameOnly (const DtString &name0)
	Set the base class name. More...
void	setBaseClass (DtBaseHlaClass< ValueType > *baseClass)
	Set the base class pointer. More...
bool	isOfClass (DtLgrHlaHandle handle) const
	Checks whether this class is or inherits from a class with the handle. More...
bool	isOfClass (const DtString &name) const
	Checks whether this class is or inherits from a class with the name. More...
bool	isOfClass (const DtBaseHlaClass &baseClass) const
	Checks whether this class is or inherits from the class (via ptr) More...
void	addValue (const ValueType &value)
	Add a value to the class. More...
void	clearValues ()
	Clears all values added. More...
int	valueCount (bool thisClassOnly) const
	Get the number of values in this class. More...
int	minHandle (bool thisClassOnly) const
	Get the minum handle of its values; If thisClassOnly = true, only this class will be checked. More...
int	maxHandle (bool thisClassOnly) const
	Get the maximum handle of its values; If thisClassOnly = true, only this class will be checked. More...
DtBaseHlaClass< ValueType > *	baseClass ()
	Get the base class. More...
const DtBaseHlaClass< ValueType > *	baseClass () const
	Get the base class. More...
iterator	begin ()
	Get iterator to first value. More...
const_iterator	begin () const
	Get iterator to first value. More...
iterator	end ()
	Get iterator past last value. More...
const_iterator	end () const
	Get iterator past last value. More...
ValueType *	findValueByName (const DtString &name, bool thisClassOnly)
	Look up a value by its name. More...
const ValueType *	findValueByName (const DtString &name, bool thisClassOnly) const
	Look up a value by its name. More...
ValueType *	findValueByHandle (DtLgrHlaHandle handle, bool thisClassOnly)
	Look up a value by its handle. More...
const ValueType *	findValueByHandle (DtLgrHlaHandle handle, bool thisClassOnly) const
	Look up a value by its handle. More...
Public Member Functions inherited from MAKLogger::DtBaseHlaValue
	DtBaseHlaValue (const DtString &name, DtLgrHlaHandle handle)
virtual	~DtBaseHlaValue ()
	DtBaseHlaValue (const DtBaseHlaValue &value)
DtBaseHlaValue &	operator= (const DtBaseHlaValue &value)
DtU32	flags () const
	Get the encoded flags. More...
void	setFlags (DtU32)
	Set the encoded flags. More...
const DtString &	name () const
void	setName (const DtString &name)
const char *	name2print () const
DtLgrHlaHandle	handle () const
void	setHandle (DtLgrHlaHandle handle)
Public Member Functions inherited from MAKLogger::DtBaseHla1516Value
	DtBaseHla1516Value (const DtString &name, DtU32 handle, const DtLgrVariableLengthData &code)
	Main constructor. More...
virtual	~DtBaseHla1516Value ()
	Destructor. More...
	DtBaseHla1516Value (const DtBaseHla1516Value &src)
	Copy constructor. More...
DtBaseHla1516Value &	operator= (const DtBaseHla1516Value &src)
	Assignment operator. More...
const DtLgrVariableLengthData &	encodedHandle () const
	Get the encoded handle. More...
const void *	code () const
	Return the encoded handle data.. More...
int	codeLength () const
	Return the encoded handle size. More...
void	setCode (const DtLgrVariableLengthData &code)
	Set the encoded handle. More...
void	setCode (const void *data, int size)
	Set the encoded handle. More...

Additional Inherited Members
Public Types inherited from MAKLogger::DtBaseHlaClass< ValueType >
typedef std::vector< ValueType >	ValueVector
typedef ValueVector::iterator	iterator
typedef ValueVector::const_iterator	const_iterator

Detailed Description

template<typename ValueType>
class MAKLogger::DtBaseHla1516Class< ValueType >

Base class representing any HLA 1516 class.

Constructor & Destructor Documentation

template<typename ValueType>

MAKLogger::DtBaseHla1516Class< ValueType >::DtBaseHla1516Class	(	const DtString &	name,
		DtBaseHlaClass< ValueType > *	baseClass,
		DtLgrHlaHandle	handle,
		const DtLgrVariableLengthData &	code
	)

Constructor with valid pointer to base class object.

template<typename ValueType>

MAKLogger::DtBaseHla1516Class< ValueType >::DtBaseHla1516Class	(	const DtString &	name,
		const DtString &	baseClassName,
		DtLgrHlaHandle	handle,
		const DtLgrVariableLengthData &	code
	)

Constructor with only the base class name.

template<typename ValueType>

MAKLogger::DtBaseHla1516Class< ValueType >::DtBaseHla1516Class

(

const DtBaseHla1516Class< ValueType > &

src

)

Copy constructor.

Warning

BaseClass pointer is set to null since copy may not be in same hierarchy.

template<typename ValueType>

virtual MAKLogger::DtBaseHla1516Class< ValueType >::~DtBaseHla1516Class ( )

virtual

DTOR.

Member Function Documentation

template<typename ValueType>

ValueType* MAKLogger::DtBaseHla1516Class< ValueType >::findValueByCode	(	const DtLgrVariableLengthData &	code,
		bool	thisClassOnly
	)

Look up a value by its encoded handle.

If thisClassOnly = true, base classes will not be checked. If thisClassOnly = false if the value is not found in this class the base class findValueByName is called.

Returns

An iterator to the value or a pointer to end() if not found.

template<typename ValueType>

const ValueType* MAKLogger::DtBaseHla1516Class< ValueType >::findValueByCode	(	const DtLgrVariableLengthData &	code,
		bool	thisClassOnly
	)		const

Look up a value by its encoded handle.

If thisClassOnly = true, base classes will not be checked. If thisClassOnly = false if the value is not found in this class the base class findValueByName is called.

Returns

An iterator to the value or a pointer to end() if not found.

template<typename ValueType>

DtBaseHla1516Class<ValueType>& MAKLogger::DtBaseHla1516Class< ValueType >::operator=

(

const DtBaseHla1516Class< ValueType > &

src

)

Assignment operator.

Warning

BaseClass pointer is set to null since copy may not be in same hierarchy.

---

The documentation for this class was generated from the following file:

• baseHla1516Class.h
