DtAddrMap Class Reference

Maintain mappings between handles and network addresses The mappings are assumed to be propogated through the network to be used for establishing multicast groups. More...

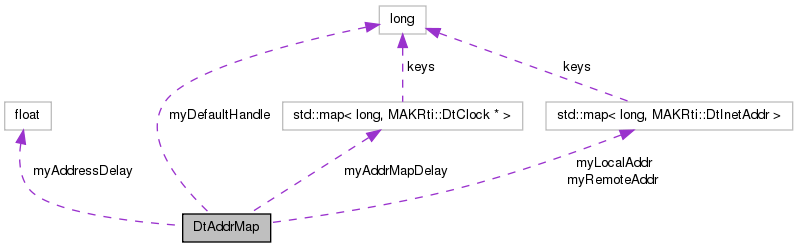

Collaboration diagram for DtAddrMap:

List of all members.

Public Member Functions
	DtAddrMap (long defaultHandle, float delayValue)
	Constructor.
virtual	~DtAddrMap ()
	Destructor.
virtual void	setDelay (float delayValue)
	Set/Get address delay.
virtual float	delay ()
virtual void	addLocalAddrMap (long handle, const MAKRti::DtInetAddr &addr)
	Add/Remove/Get mappings between handles and network addresses.
virtual void	removeLocalAddrMap (long handle)
virtual MAKRti::DtInetAddr	localAddrMap (long handle)
virtual void	addRemoteAddrMap (long handle, const MAKRti::DtInetAddr &addr)
virtual void	removeRemoteAddrMap (long handle)
virtual MAKRti::DtInetAddr	remoteAddrMap (long handle)
virtual void	addAddrMapDelay (long handle)
	Add/Remove/Query the delay status of an address map.
virtual void	removeAddrMapDelay (long handle)
virtual bool	addrMapDelayExpired (long handle)
virtual void	empty ()
	Empty mappings.
Protected Attributes
float	myAddressDelay
long	myDefaultHandle
std::map< long, MAKRti::DtInetAddr >	myLocalAddr
std::map< long, MAKRti::DtInetAddr >	myRemoteAddr
std::map< long, MAKRti::DtClock * >	myAddrMapDelay

---

Detailed Description

Maintain mappings between handles and network addresses The mappings are assumed to be propogated through the network to be used for establishing multicast groups.

The mappings are delayed to allow the propgation to take effect.

---

Constructor & Destructor Documentation

DtAddrMap::DtAddrMap	(	long	defaultHandle,
		float	delayValue
	)

Constructor.

References addLocalAddrMap(), and myDefaultHandle.

DtAddrMap::~DtAddrMap

(

)

[virtual]

Destructor.

References empty().

---

Member Function Documentation

void DtAddrMap::addAddrMapDelay

(

long

handle

)

[virtual]

Add/Remove/Query the delay status of an address map.

Address maps require some time to propagate to remote federates. Addresses used for sending data should be added to the delay pool. Query the pool to determine if the address can be used. Deleted or expired addressed should be removed.

References myAddrMapDelay.

Referenced by addLocalAddrMap().

void DtAddrMap::addLocalAddrMap	(	long	handle,
		const MAKRti::DtInetAddr &	addr
	)		[virtual]

Add/Remove/Get mappings between handles and network addresses.

References addAddrMapDelay(), and myLocalAddr.

Referenced by DtAddrMap().

void DtAddrMap::addRemoteAddrMap	(	long	handle,
		const MAKRti::DtInetAddr &	addr
	)		[virtual]

References myRemoteAddr.

bool DtAddrMap::addrMapDelayExpired

(

long

handle

)

[virtual]

References myAddressDelay, myAddrMapDelay, and removeAddrMapDelay().

Referenced by localAddrMap().

float DtAddrMap::delay

(

)

[inline, virtual]

References myAddressDelay.

void DtAddrMap::empty

(

)

[virtual]

Empty mappings.

References myAddrMapDelay, myLocalAddr, and myRemoteAddr.

Referenced by DtObjectMgr::destroyObjectLists(), and ~DtAddrMap().

MAKRti::DtInetAddr DtAddrMap::localAddrMap

(

long

handle

)

[virtual]

References addrMapDelayExpired(), and myLocalAddr.

MAKRti::DtInetAddr DtAddrMap::remoteAddrMap

(

long

handle

)

[virtual]

References myRemoteAddr.

void DtAddrMap::removeAddrMapDelay

(

long

handle

)

[virtual]

References myAddrMapDelay.

Referenced by addrMapDelayExpired(), and removeLocalAddrMap().

void DtAddrMap::removeLocalAddrMap

(

long

handle

)

[virtual]

References myLocalAddr, and removeAddrMapDelay().

void DtAddrMap::removeRemoteAddrMap

(

long

handle

)

[virtual]

References myRemoteAddr.

void DtAddrMap::setDelay

(

float

delayValue

)

[virtual]

Set/Get address delay.

References myAddressDelay.

---

Member Data Documentation

float DtAddrMap::myAddressDelay [protected]

Referenced by addrMapDelayExpired(), delay(), and setDelay().

std::map<long, MAKRti::DtClock*> DtAddrMap::myAddrMapDelay [protected]

Referenced by addAddrMapDelay(), addrMapDelayExpired(), empty(), and removeAddrMapDelay().

long DtAddrMap::myDefaultHandle [protected]

Referenced by DtAddrMap().

std::map<long, MAKRti::DtInetAddr> DtAddrMap::myLocalAddr [protected]

Referenced by addLocalAddrMap(), empty(), localAddrMap(), and removeLocalAddrMap().

std::map<long, MAKRti::DtInetAddr> DtAddrMap::myRemoteAddr [protected]

Referenced by addRemoteAddrMap(), empty(), remoteAddrMap(), and removeRemoteAddrMap().

---

The documentation for this class was generated from the following files:

• addrMap.h
• addrMap.cxx
