DtAssistantConnConfigWidget Class Reference

Widget that can be brought up by the user to configure their RTI config preferences. More...

Inheritance diagram for DtAssistantConnConfigWidget:

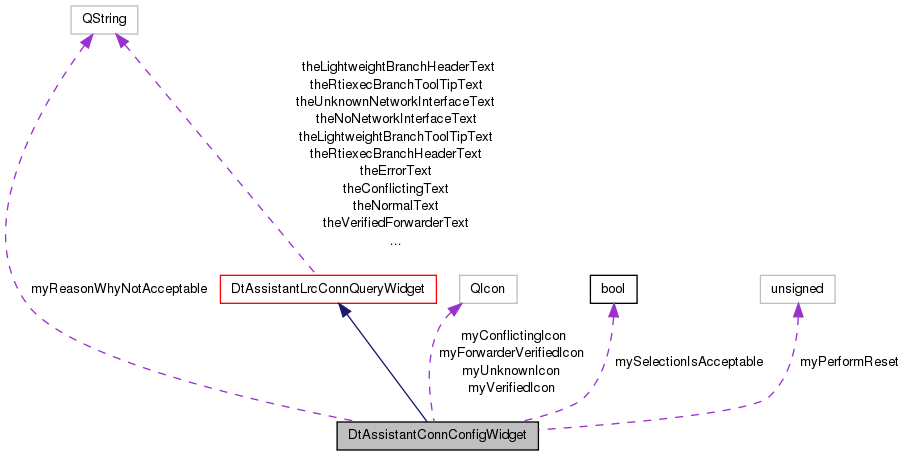

Collaboration diagram for DtAssistantConnConfigWidget:

List of all members.

Public Slots
void	enableOrDisablePrefAccept ()
	Determines whether or not the preference dialog accept button should be enabled or disabled.
Public Member Functions
	DtAssistantConnConfigWidget (QWidget *parent, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantConnConfigWidget ()
	Destructor.
Protected Member Functions
virtual void	updateDisplayedConnection (const QString &name, const DtRtiConnectionInfoDataPair &updatedConn, QTreeWidgetItem *connItem)
	Depending on the type of our current query connection, we update connItem based on updatedConn.
virtual void	showEvent (QShowEvent *event)
	Prepare the widget to be shown.
virtual void	clearAllConnections ()
	Clears the entire connection list.
virtual void	setAcceptEnabled (bool enabled, const QString &reasonForDisable)
	Sets whether or not accept is enabled.
Protected Attributes
bool	mySelectionIsAcceptable
	Whether or not the current selection is acceptable.
QString	myReasonWhyNotAcceptable
	Reason why the selection is not acceptable.
unsigned	myPerformReset
	Flag to determine whether or not display should be reset on show event.
QIcon	myVerifiedIcon
	Icons.
QIcon	myForwarderVerifiedIcon
	Icons.
QIcon	myUnknownIcon
	Icons.
QIcon	myConflictingIcon
	Icons.
Private Member Functions
	DtAssistantConnConfigWidget (DtAssistantConnConfigWidget const &)
	Copy constructor not implemented.
DtAssistantConnConfigWidget &	operator= (DtAssistantConnConfigWidget const &)
	Assignment operator not implemented.

---

Detailed Description

Widget that can be brought up by the user to configure their RTI config preferences.

---

Constructor & Destructor Documentation

DtAssistantConnConfigWidget::DtAssistantConnConfigWidget	(	QWidget *	parent,
		Qt::WindowFlags	f = 0
	)

Constructor.

References connect(), DtRtiLibPath(), enableOrDisablePrefAccept(), myConflictingIcon, myForwarderVerifiedIcon, DtAssistantConnQueryWidget::myUiImpl, myUnknownIcon, myVerifiedIcon, DtAssistantConnQueryWidget::showStartRtiexecButton(), DtAssistantConnQueryWidget::StatusCol, and DtAssistantConnQueryWidget::useButtonsInsteadOfCheckBox().

DtAssistantConnConfigWidget::~DtAssistantConnConfigWidget

(

)

[virtual]

Destructor.

DtAssistantConnConfigWidget::DtAssistantConnConfigWidget

(

DtAssistantConnConfigWidget const &

)

[private]

Copy constructor not implemented.

---

Member Function Documentation

void DtAssistantConnConfigWidget::clearAllConnections

(

)

[protected, virtual]

Clears the entire connection list.

Reimplemented from DtAssistantLrcConnQueryWidget.

References myPerformReset.

void DtAssistantConnConfigWidget::enableOrDisablePrefAccept

(

)

[slot]

Determines whether or not the preference dialog accept button should be enabled or disabled.

References myReasonWhyNotAcceptable, mySelectionIsAcceptable, DtAssistantConnQueryWidget::myUiImpl, and setAcceptEnabled().

Referenced by DtAssistantConnConfigWidget(), and setAcceptEnabled().

DtAssistantConnConfigWidget& DtAssistantConnConfigWidget::operator=

(

DtAssistantConnConfigWidget const &

)

[private]

Assignment operator not implemented.

void DtAssistantConnConfigWidget::setAcceptEnabled	(	bool	enabled,
		const QString &	reasonForDisable
	)		[protected, virtual]

Sets whether or not accept is enabled.

Reimplemented from DtAssistantConnQueryWidget.

References enableOrDisablePrefAccept(), myReasonWhyNotAcceptable, and mySelectionIsAcceptable.

Referenced by enableOrDisablePrefAccept().

void DtAssistantConnConfigWidget::showEvent

(

QShowEvent *

event

)

[protected, virtual]

Prepare the widget to be shown.

Reimplemented from DtAssistantLrcConnQueryWidget.

References DtAssistantConnQueryWidget::ConnectionNameCol, myPerformReset, DtAssistantConnQueryWidget::myUiImpl, and DtAssistantConnQueryWidget::StatusCol.

void DtAssistantConnConfigWidget::updateDisplayedConnection	(	const QString &	name,
		const DtRtiConnectionInfoDataPair &	updatedConn,
		QTreeWidgetItem *	connItem
	)		[protected, virtual]

Depending on the type of our current query connection, we update connItem based on updatedConn.

Reimplemented from DtAssistantLrcConnQueryWidget.

References DtAssistantConnQueryWidget::ConnectionNameCol, DtRtiAssociatedConnectionData::DtConnectionForwarderVerified, DtRtiAssociatedConnectionData::DtConnectionVerified, DtRtiAssociatedConnectionData::DtUnknownState, DtAssistantConnQueryWidget::isItemDisabled(), myConflictingIcon, myForwarderVerifiedIcon, myUnknownIcon, myVerifiedIcon, DtAssistantConnQueryWidget::setConnItemToolTip(), DtAssistantConnQueryWidget::SortCol, DtAssistantConnQueryWidget::StatusCol, DtAssistantLrcConnQueryWidget::theConflictingText, DtAssistantLrcConnQueryWidget::theUnknownNetworkInterfaceText, DtAssistantLrcConnQueryWidget::theUnknownText, DtAssistantLrcConnQueryWidget::theVerifiedForwarderText, and DtAssistantLrcConnQueryWidget::theVerifiedText.

---

Member Data Documentation

QIcon DtAssistantConnConfigWidget::myConflictingIcon [protected]

Icons.

Referenced by DtAssistantConnConfigWidget(), and updateDisplayedConnection().

QIcon DtAssistantConnConfigWidget::myForwarderVerifiedIcon [protected]

Icons.

Referenced by DtAssistantConnConfigWidget(), and updateDisplayedConnection().

unsigned DtAssistantConnConfigWidget::myPerformReset [protected]

Flag to determine whether or not display should be reset on show event.

Referenced by clearAllConnections(), and showEvent().

QString DtAssistantConnConfigWidget::myReasonWhyNotAcceptable [protected]

Reason why the selection is not acceptable.

Referenced by enableOrDisablePrefAccept(), and setAcceptEnabled().

bool DtAssistantConnConfigWidget::mySelectionIsAcceptable [protected]

Whether or not the current selection is acceptable.

Referenced by enableOrDisablePrefAccept(), and setAcceptEnabled().

QIcon DtAssistantConnConfigWidget::myUnknownIcon [protected]

Icons.

Referenced by DtAssistantConnConfigWidget(), and updateDisplayedConnection().

QIcon DtAssistantConnConfigWidget::myVerifiedIcon [protected]

Icons.

Referenced by DtAssistantConnConfigWidget(), and updateDisplayedConnection().

---

The documentation for this class was generated from the following files:

• connConfigWidget.h
• connConfigWidget.cxx
