DtAssistantForwarderInfo Class Reference

Stores the current state of a single forwarder. More...

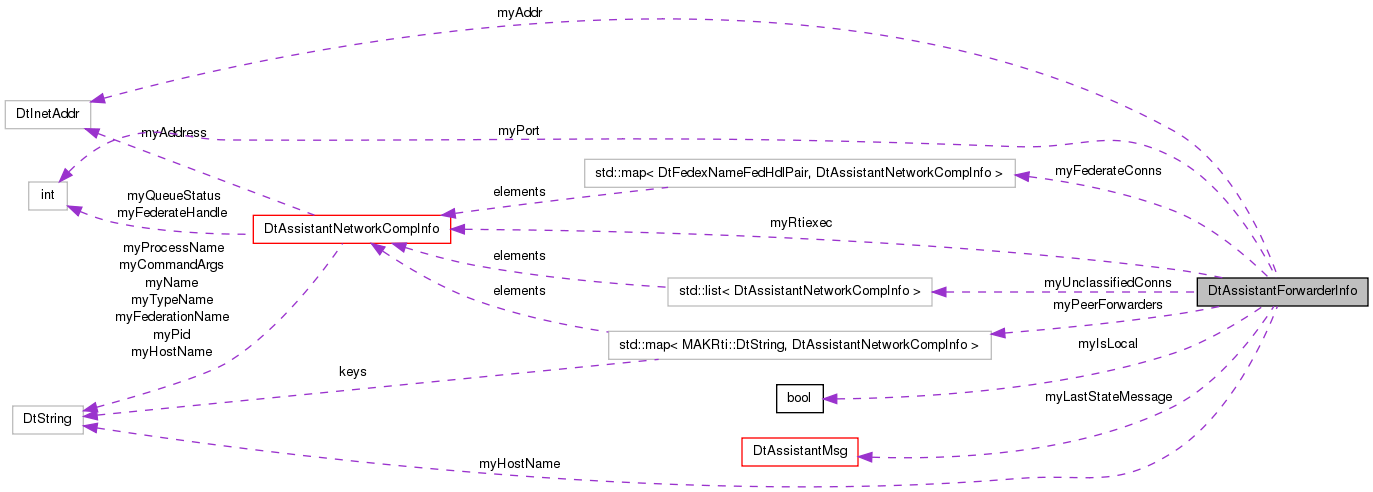

Collaboration diagram for DtAssistantForwarderInfo:

List of all members.

Public Types
typedef std::pair < MAKRti::DtString, int >	DtFedexNameFedHdlPair
	Typedefs for information storage.
typedef std::map < DtFedexNameFedHdlPair, DtAssistantNetworkCompInfo >	DtCompByFederationAndHandleMap
	Typedefs for information storage.
typedef std::map < MAKRti::DtString, DtAssistantNetworkCompInfo >	DtPeerForwarderByIdMap
	Typedefs for information storage.
Public Member Functions
	DtAssistantForwarderInfo (bool isLocal)
	Constructor.
	~DtAssistantForwarderInfo ()
	Destructor.
void	updateFromStateMsg (const DtAssistantForwarderStateMsg &msg)
	Updates the state from a status message.
const DtAssistantMsg *	lastStateMsg () const
	Returns a pointer to the last state message we received for this forwarder.
MAKRti::DtInetAddr	address () const
	Methods to get forwarder information.
int	port () const
	Methods to get forwarder information.
MAKRti::DtString	hostName () const
	Methods to get forwarder information.
const DtPeerForwarderByIdMap *	peerForwarders () const
	Methods to get forwarder information.
const DtAssistantNetworkCompInfo *	rtiexecInfo () const
	Methods to get forwarder information.
const DtAssistantNetworkCompInfo *	federateInfo (const MAKRti::DtString &federation, int handle) const
	Methods to get forwarder information.
const DtCompByFederationAndHandleMap *	federates () const
	Methods to get forwarder information.
const DtAssistantNetworkCompInfoList *	unclassifiedConns () const
	Methods to get forwarder information.
Protected Attributes
MAKRti::DtInetAddr	myAddr
	Address of this forwarder.
int	myPort
	Forwarder port for this forwarder.
MAKRti::DtString	myHostName
	Host name of this forwarder.
DtPeerForwarderByIdMap	myPeerForwarders
	Map of forwarder identifiers to connected peer forwarder info.
DtAssistantNetworkCompInfo	myRtiexec
	Info on the rtiexec connected to this forwarder.
DtCompByFederationAndHandleMap	myFederateConns
	Map of federation name/connection handle pairs to info on federate connections.
std::list < DtAssistantNetworkCompInfo >	myUnclassifiedConns
	List of unclassified connections.
bool	myIsLocal
	Whether or not this forwarder is local to this assistant.
DtAssistantMsg *	myLastStateMessage
	The last received forwarder state message.

---

Detailed Description

Stores the current state of a single forwarder.

---

Member Typedef Documentation

typedef std::map<DtFedexNameFedHdlPair, DtAssistantNetworkCompInfo> DtAssistantForwarderInfo::DtCompByFederationAndHandleMap

Typedefs for information storage.

typedef std::pair<MAKRti::DtString, int> DtAssistantForwarderInfo::DtFedexNameFedHdlPair

Typedefs for information storage.

typedef std::map<MAKRti::DtString, DtAssistantNetworkCompInfo> DtAssistantForwarderInfo::DtPeerForwarderByIdMap

Typedefs for information storage.

---

Constructor & Destructor Documentation

DtAssistantForwarderInfo::DtAssistantForwarderInfo

(

bool

isLocal

)

Constructor.

DtAssistantForwarderInfo::~DtAssistantForwarderInfo

(

)

Destructor.

References myLastStateMessage.

---

Member Function Documentation

MAKRti::DtInetAddr DtAssistantForwarderInfo::address

(

)

const [inline]

Methods to get forwarder information.

Referenced by DtNCVTree::updateInformation().

const DtAssistantNetworkCompInfo * DtAssistantForwarderInfo::federateInfo	(	const MAKRti::DtString &	federation,
		int	handle
	)		const

Methods to get forwarder information.

References myFederateConns.

const DtCompByFederationAndHandleMap* DtAssistantForwarderInfo::federates

(

)

const [inline]

Methods to get forwarder information.

Referenced by DtNCVTree::updateInformation().

MAKRti::DtString DtAssistantForwarderInfo::hostName

(

)

const

Methods to get forwarder information.

References myHostName.

Referenced by DtNCVTree::updateInformation().

const DtAssistantMsg* DtAssistantForwarderInfo::lastStateMsg

(

)

const [inline]

Returns a pointer to the last state message we received for this forwarder.

Only stored for local forwarders.

const DtPeerForwarderByIdMap* DtAssistantForwarderInfo::peerForwarders

(

)

const [inline]

Methods to get forwarder information.

Referenced by DtNCVTree::updateInformation().

int DtAssistantForwarderInfo::port

(

)

const [inline]

Methods to get forwarder information.

const DtAssistantNetworkCompInfo* DtAssistantForwarderInfo::rtiexecInfo

(

)

const [inline]

Methods to get forwarder information.

Referenced by DtNCVTree::updateInformation().

const DtAssistantNetworkCompInfoList* DtAssistantForwarderInfo::unclassifiedConns

(

)

const [inline]

Methods to get forwarder information.

Referenced by DtNCVTree::updateInformation().

void DtAssistantForwarderInfo::updateFromStateMsg

(

const DtAssistantForwarderStateMsg &

msg

)

Updates the state from a status message.

References DtAssistantForwarderStateMsg::clone(), DtAssistantForwarderStateMsg::getAllData(), myAddr, myFederateConns, myHostName, myIsLocal, myLastStateMessage, myPeerForwarders, myRtiexec, myUnclassifiedConns, DtAssistantForwarderStateMsg::numClientConnections(), DtAssistantForwarderStateMsg::numClientConnectionsThatAreExecs(), DtAssistantForwarderStateMsg::numForwarderToForwarderConnections(), DtAssistantNetworkCompInfo::setAddress(), DtAssistantNetworkCompInfo::setCommandArgs(), DtAssistantNetworkCompInfo::setFederateHandle(), DtAssistantNetworkCompInfo::setFederationName(), DtAssistantNetworkCompInfo::setHlaVersion(), DtAssistantNetworkCompInfo::setHostName(), DtAssistantNetworkCompInfo::setName(), DtAssistantNetworkCompInfo::setPid(), DtAssistantNetworkCompInfo::setProcessName(), DtAssistantNetworkCompInfo::setQueueStatus(), and DtAssistantNetworkCompInfo::setTypeName().

---

Member Data Documentation

MAKRti::DtInetAddr DtAssistantForwarderInfo::myAddr [protected]

Address of this forwarder.

Referenced by updateFromStateMsg().

DtCompByFederationAndHandleMap DtAssistantForwarderInfo::myFederateConns [protected]

Map of federation name/connection handle pairs to info on federate connections.

Referenced by federateInfo(), and updateFromStateMsg().

MAKRti::DtString DtAssistantForwarderInfo::myHostName [protected]

Host name of this forwarder.

Referenced by hostName(), and updateFromStateMsg().

bool DtAssistantForwarderInfo::myIsLocal [protected]

Whether or not this forwarder is local to this assistant.

Referenced by updateFromStateMsg().

DtAssistantMsg* DtAssistantForwarderInfo::myLastStateMessage [protected]

The last received forwarder state message.

Referenced by updateFromStateMsg(), and ~DtAssistantForwarderInfo().

DtPeerForwarderByIdMap DtAssistantForwarderInfo::myPeerForwarders [protected]

Map of forwarder identifiers to connected peer forwarder info.

Referenced by updateFromStateMsg().

int DtAssistantForwarderInfo::myPort [protected]

Forwarder port for this forwarder.

DtAssistantNetworkCompInfo DtAssistantForwarderInfo::myRtiexec [protected]

Info on the rtiexec connected to this forwarder.

Referenced by updateFromStateMsg().

std::list<DtAssistantNetworkCompInfo> DtAssistantForwarderInfo::myUnclassifiedConns [protected]

List of unclassified connections.

These are most likely federates which are not currently joined to a federation.

Referenced by updateFromStateMsg().

---

The documentation for this class was generated from the following files:

• forwarderInfo.h
• forwarderInfo.cxx
