Widget used to request the user to provide new connection parameters when an rtiexec cannot establish an RTI connection. More...

Inheritance diagram for DtAssistantRtiexecConnQueryWidget:

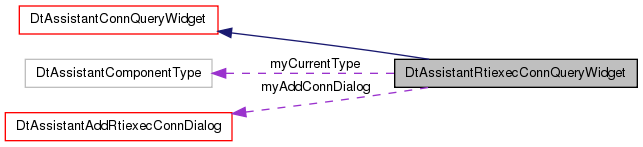

Collaboration diagram for DtAssistantRtiexecConnQueryWidget:

List of all members.

Public Member Functions
	DtAssistantRtiexecConnQueryWidget (QWidget *parent=0, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantRtiexecConnQueryWidget ()
	Destructor.
virtual void	setQueryMode (DtAssistantComponentType type)
	sets whether the connection query dialog is handling a forwarder connection or an rtiExec connection.
Protected Member Functions
virtual bool	addConnection (const DtRtiConnectionInfoDataPair &conn, const DtRtiConfigurationInfoDataPair &config, DtNameToConnInfoMap::iterator &connIter)
	Adds an available connection to the list.
virtual void	removeConnection (const DtRtiConnectionInfoDataPair &conn)
	Removes an available connection from the list.
virtual void	clearAllConnections ()
	Clears the entire connection list.
virtual void	updateDisplayedConnection (const QString &name, const DtRtiConnectionInfoDataPair &updatedConn, QTreeWidgetItem *connItem)
	Depending on the type of our current query connection, we update connItem based on updatedConn.
virtual QTreeWidgetItem *	findConnInTree (const DtRtiConnectionInfo &conn, DtNameToConnInfoMap::iterator &connIter)
	Finds the connection item in the tree.
virtual void	getConnStatusText (const QTreeWidgetItem *item, const DtRtiConnectionInfoDataPair &conn, const DtRtiConfigurationInfoDataPair &, QString &text)
	Gets the connection status text for the given connection.
virtual void	loadLocalInterfaceList ()
	Reloads the list of local network interfaces which can be selected for new connections.
virtual void	showEvent (QShowEvent *event)
	Prepare the widget to be shown.
virtual bool	promptUserForNewConnInfo (DtRtiConnectionInfoDataPair &conn)
	Prompts the user for new connection info.
virtual bool	promptUserToEditConnInfo (DtRtiConnectionInfoDataPair &conn)
	Prompts the user to edit connection info.
virtual bool	promptUserForConnInfo (DtRtiConnectionInfoDataPair &conn, const QString &dialogTitle, bool useNameOfGivenConn)
	Prompts the user for connection info.
virtual void	setAcceptEnabledBasedOnConn (const DtRtiConnectionInfoDataPair *conn)
	Enables or disables the accept button based on the state of the given currently selected connection.
Protected Attributes
DtAssistantAddRtiexecConnDialog *	myAddConnDialog
	Dialog used to set information for a new connection.
DtAssistantComponentType	myCurrentType
	The type of the current querying component (rtiexec or forwarder).
Private Member Functions
	DtAssistantRtiexecConnQueryWidget (DtAssistantRtiexecConnQueryWidget const &)
	Copy constructor not implemented.
DtAssistantRtiexecConnQueryWidget &	operator= (DtAssistantRtiexecConnQueryWidget const &)
	Assignment operator not implemented.

Detailed Description

Widget used to request the user to provide new connection parameters when an rtiexec cannot establish an RTI connection.

Constructor & Destructor Documentation

DtAssistantRtiexecConnQueryWidget::DtAssistantRtiexecConnQueryWidget	(	QWidget *	parent = `0`,
		Qt::WindowFlags	f = `0`
	)

Constructor.

References DtAssistantConnQueryWidget::myUiImpl.

DtAssistantRtiexecConnQueryWidget::~DtAssistantRtiexecConnQueryWidget ( ) [virtual]

Destructor.

DtAssistantRtiexecConnQueryWidget::DtAssistantRtiexecConnQueryWidget ( DtAssistantRtiexecConnQueryWidget const & ) [private]

Copy constructor not implemented.

Member Function Documentation

bool DtAssistantRtiexecConnQueryWidget::addConnection	(	const DtRtiConnectionInfoDataPair &	conn,
		const DtRtiConfigurationInfoDataPair &	config,
		DtNameToConnInfoMap::iterator &	connIter
	)		`[protected, virtual]`

Adds an available connection to the list.

Returns true if it was successfully added and sets the iterator to location in the map of the new connection.

References DtAssistantConnQueryWidget::DtRtiConnAndAssociatedConfig::config, DtAssistantConnQueryWidget::DtRtiConnAndAssociatedConfig::conn, findConnInTree(), DtAssistantConnQueryWidget::myConnectionInfo, DtAssistantConnQueryWidget::myUiImpl, DtAssistantConnQueryWidget::reserveNameForConnection(), and updateDisplayedConnection().

void DtAssistantRtiexecConnQueryWidget::clearAllConnections ( ) [protected, virtual]

Clears the entire connection list.

Implements DtAssistantConnQueryWidget.

References DtAssistantConnQueryWidget::myChosenConnection, DtAssistantConnQueryWidget::myConnectionInfo, DtAssistantConnQueryWidget::myPredefinedLightweightConnection, DtAssistantConnQueryWidget::myPredefinedRtiexecConnection, and DtAssistantConnQueryWidget::myUiImpl.

QTreeWidgetItem * DtAssistantRtiexecConnQueryWidget::findConnInTree	(	const DtRtiConnectionInfo &	conn,
		DtNameToConnInfoMap::iterator &	connIter
	)		`[protected, virtual]`

Finds the connection item in the tree.

Returns a pointer to the tree item as well as an iterator to its location in the map.

References DtAssistantConnQueryWidget::ConnectionNameCol, DtAssistantConnQueryWidget::myConnectionInfo, and DtAssistantConnQueryWidget::myUiImpl.

Referenced by addConnection(), and removeConnection().

void DtAssistantRtiexecConnQueryWidget::getConnStatusText	(	const QTreeWidgetItem *	item,
		const DtRtiConnectionInfoDataPair &	conn,
		const DtRtiConfigurationInfoDataPair &	,
		QString &	text
	)		`[protected, virtual]`

Gets the connection status text for the given connection.

Implements DtAssistantConnQueryWidget.

References DtAssistantForwarderComponent, DtAssistantRtiexecComponent, DtRtiAssociatedConnectionData::DtConnectionConflicting, DtRtiAssociatedConnectionData::DtConnectionForwarderVerified, DtRtiAssociatedConnectionData::DtConnectionVerified, DtAssistantConnQueryWidget::isItemDisabled(), and myCurrentType.

void DtAssistantRtiexecConnQueryWidget::loadLocalInterfaceList ( ) [protected, virtual]

Reloads the list of local network interfaces which can be selected for new connections.

Implements DtAssistantConnQueryWidget.

References DtAssistantConnQueryWidget::ConnectionNameCol, DtAssistantConnQueryWidget::disableItem(), DtRtiConnectionInfo::invalidConn(), DtRtiConnectionInfo::localIpAddresses(), myAddConnDialog, DtAssistantConnQueryWidget::myAddConnectionAction, DtAssistantConnQueryWidget::myConnectionInfo, DtAssistantConnQueryWidget::myEnableLoopbackDevice, DtAssistantConnQueryWidget::myUiImpl, DtRtiConnectionInfo::networkInterfaceAddr(), DtAssistantAddRtiexecConnDialog::setNetworkInterfaceAddrs(), and updateDisplayedConnection().

Referenced by promptUserForConnInfo(), and showEvent().

DtAssistantRtiexecConnQueryWidget& DtAssistantRtiexecConnQueryWidget::operator= ( DtAssistantRtiexecConnQueryWidget const & ) [private]

Assignment operator not implemented.

bool DtAssistantRtiexecConnQueryWidget::promptUserForConnInfo	(	DtRtiConnectionInfoDataPair &	conn,
		const QString &	dialogTitle,
		bool	useNameOfGivenConn
	)		`[protected, virtual]`

Prompts the user for connection info.

References DtAssistantConnQueryWidget::checkForPortConflicts(), DtAssistantConnQueryWidget::checkForValidAddr(), DtRtiConnectionInfo::defaultBestEffortIp(), DtRtiConnectionInfo::defaultForwarderPort(), DtRtiConnectionInfo::defaultHostName(), DtRtiConnectionInfo::defaultNetworkInterfaceAddr(), DtRtiConnectionInfo::defaultReliableIp(), DtRtiConnectionInfo::defaultRtiexecPort(), DtGetLocalHostName(), DtRtiAssociatedConnectionData::DtUnknownState, DtAssistantAddRtiexecConnDialog::getData(), loadLocalInterfaceList(), myAddConnDialog, DtAssistantConnQueryWidget::myConnectionInfo, DtAssistantConnQueryWidget::myPredefinedRtiexecConnection, DtAssistantAddRtiexecConnDialog::setData(), DtAssistantAddRtiexecConnDialog::setName(), and tcpPort.

Referenced by promptUserForNewConnInfo(), and promptUserToEditConnInfo().

bool DtAssistantRtiexecConnQueryWidget::promptUserForNewConnInfo ( DtRtiConnectionInfoDataPair & conn ) [protected, virtual]

Prompts the user for new connection info.

Implements DtAssistantConnQueryWidget.

References promptUserForConnInfo().

bool DtAssistantRtiexecConnQueryWidget::promptUserToEditConnInfo ( DtRtiConnectionInfoDataPair & conn ) [protected, virtual]

Prompts the user to edit connection info.

Implements DtAssistantConnQueryWidget.

References promptUserForConnInfo().

void DtAssistantRtiexecConnQueryWidget::removeConnection ( const DtRtiConnectionInfoDataPair & conn ) [protected, virtual]

Removes an available connection from the list.

Implements DtAssistantConnQueryWidget.

References findConnInTree(), DtAssistantConnQueryWidget::myConnectionInfo, DtAssistantConnQueryWidget::myUiImpl, and DtAssistantConnQueryWidget::unreserveNameForConnection().

void DtAssistantRtiexecConnQueryWidget::setAcceptEnabledBasedOnConn ( const DtRtiConnectionInfoDataPair * conn ) [protected, virtual]

Enables or disables the accept button based on the state of the given currently selected connection.

Implements DtAssistantConnQueryWidget.

References DtAssistantForwarderComponent, DtAssistantRtiexecComponent, myCurrentType, and DtAssistantConnQueryWidget::setAcceptEnabled().

void DtAssistantRtiexecConnQueryWidget::setQueryMode ( DtAssistantComponentType type ) [virtual]

sets whether the connection query dialog is handling a forwarder connection or an rtiExec connection.

References myCurrentType.

void DtAssistantRtiexecConnQueryWidget::showEvent ( QShowEvent * event ) [protected, virtual]

Prepare the widget to be shown.

void DtAssistantRtiexecConnQueryWidget::updateDisplayedConnection	(	const QString &	name,
		const DtRtiConnectionInfoDataPair &	updatedConn,
		QTreeWidgetItem *	connItem
	)		`[protected, virtual]`
