Inheritance diagram for DtFederateTree:

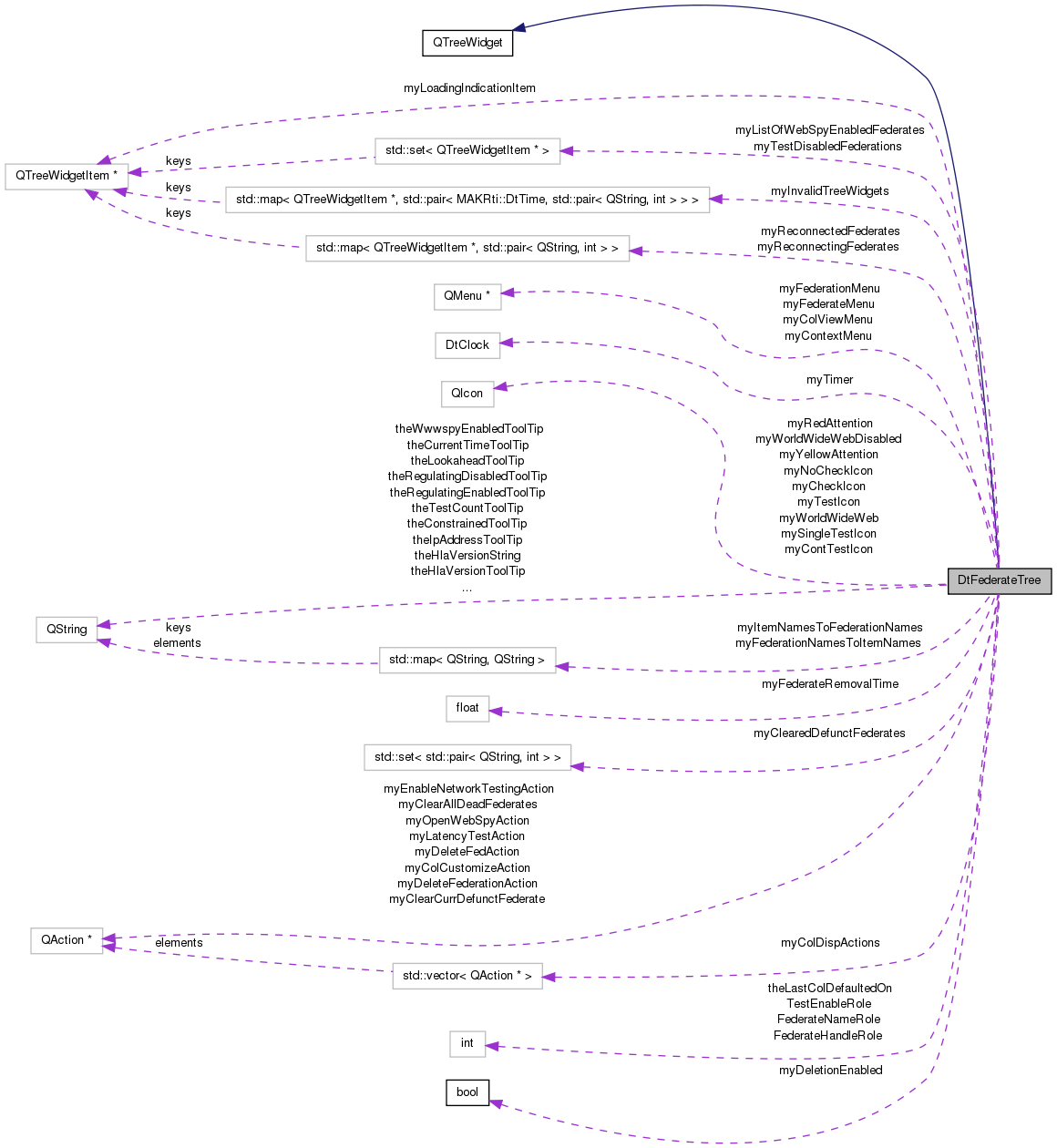

Collaboration diagram for DtFederateTree:

Public Types
enum	DtFederateTreeCol { FederationNameIndex = 0, FederateTypeAndHandleIndex = 0, FederateIPIndex, HlaVersionIndex, WebSpyIndex, FederateNameIndex, RegulatingStateIndex, ConstrainedStateIndex, LbtsIndex, LookAheadIndex, CurrentTimeIndex, TestStatusIndex, TestCountIndex }
Public Slots
virtual void	showColumns ()
	Updates which columns are shown or hidden.
virtual void	setAllColumns (const std::map< QString, std::pair< int, bool > > &columns)
	Set the columns that are currently shown.
virtual void	allColumns (std::map< QString, std::pair< int, bool > > &columns)
	Get the columns and their position / visible value (cols in emptied and populated).
virtual void	showColCustomizeDlg ()
	Displays the column view customize dialog.
virtual void	deleteSelectedFed ()
	Emits the fedDeleteRequest signal for the selected federate.
virtual void	destroySelectedFederations ()
	For each federation selected, resign the federates then emit federationDelete.
virtual void	updateEnableNetworkTestingForSelectedFederations ()
	For each federation selected, enables or disables testing.
virtual void	openFedWebSpy ()
	Emits the openFedWebSpyRequest signal for the selected federate.
virtual void	showLatencyTest ()
	Emits the showFedLatencyTest signal for the selected federate.
virtual void	clearAllDeadFederates ()
	Clears all defunct federates.
virtual bool	hasValidFederates () const
	returns whether any federates are valid.
virtual void	clearCurrDefunctFederates ()
	Clear only the currently selected dead federates.
void	refreshMenus ()
	Refresh the currently available menu options.
virtual void	showContextMenu (const QPoint &)
	Shows the context menu at the given position.
Signals
void	fedDeleteRequest (int, const QString &)
void	federationDeleteRequest (const QString &fedexName)
void	openFedWebSpyRequest (const QString &, int)
void	enableNetworkTestingRequest (const QString &)
void	disableNetworkTestingRequest (const QString &)
void	showFedLatencyTest (const QString &, int)
Public Member Functions
	DtFederateTree (QWidget *parent)
virtual	~DtFederateTree ()
virtual bool	updateFederation (const DtAssistantFederationInfo &federation)
	Updates or adds a federation to the tree.
virtual bool	removeFederation (const QString &name)
	Removes the federation with the given name from the tree.
virtual void	removeAllFederations ()
	Removes all of the federations from the tree.
virtual bool	updateFederate (const DtAssistantFederateInfo &federate, const QString &fedexName)
	Updates or adds a federate to an existing federation in the tree.
virtual bool	removeFederate (int federateHandle, const QString &fedexName, bool clearedDefunct=false)
	Removes a federate from an existing federation in the tree.
virtual void	displayLoadingIndication ()
	Displays a message that the current federation information is loading.
virtual void	removeLoadingIndication ()
	Removes the loading indication messages.
bool	isFederateValid (int federateHandle, const QString &fedexName) const
	Is this federate valid?
void	processInvalidList ()
	Process the list of Invalid federates for automatic removal.
QMenu *	columnViewMenu ()
	Returns a pointer to the menu which allows users to hide/display any columns in the tree.
QMenu *	federateMenu ()
	Returns a pointer to the menu which allows users to perform actions related to the currently selected federates.
QMenu *	federationMenu ()
	Returns a pointer to the menu which allows users to perform actions related to the current selected federations.
void	setFederateRemovalTime (float newTime)
	Change the time after which a federate that fails to reconnect will be removed from the rtiexec federate tree.
float	getFederateRemovalTime () const
	Get the time for the federate removal.
void	enableDeletion (bool enable)
	Enables or disables federate and federation deletion options.
QString	getTreeFederationName (const MAKRti::DtString &federationName)
	Get the federation name the tree uses ( with the handle )
Static Public Attributes
static const QString	theLoadingText = tr("Loading...")
	The message that indicates information is being loaded.

static const QString	theFederationFederateString = tr("Federation/Federate")
	Column header strings.
static const QString	theIpAddressString = tr("Hostname (IP Address)")
	Column header strings.
static const QString	theRegulatingString = tr("Regulating")
	Column header strings.
static const QString	theConstrainedString = tr("Constrained")
	Column header strings.
static const QString	theLBTSString = tr("LBTS")
	Column header strings.
static const QString	theLookaheadString = tr("Lookahead")
	Column header strings.
static const QString	theCurrentTimeString = tr("Current Time")
	Column header strings.
static const QString	theWwwspyString = tr("RTIspy")
	Column header strings.
static const QString	theTestCapableString = tr("Test Capable")
	Column header strings.
static const QString	theTestStatusString = tr("Testing")
	Column header strings.
static const QString	theTestCountString = tr("Test Count")
	Column header strings.
static const QString	theFederateNameString = tr("Federate Name")
	Column header strings.
static const QString	theHlaVersionString = tr("HLA Version")
	Column header strings.

static const QString	theFederationFederateToolTip
	Tool tip strings.
static const QString	theFederationNameToolTip
	Tool tip strings.
static const QString	theFederateTypeToolTip
	Tool tip strings.
static const QString	theIpAddressToolTip
	Tool tip strings.
static const QString	theRegulatingToolTip
	Tool tip strings.
static const QString	theRegulatingEnabledToolTip
	Tool tip strings.
static const QString	theRegulatingDisabledToolTip
	Tool tip strings.
static const QString	theConstrainedToolTip
	Tool tip strings.
static const QString	theConstrainedEnabledToolTip
	Tool tip strings.
static const QString	theConstrainedDisabledToolTip
	Tool tip strings.
static const QString	theLBTSToolTip
	Tool tip strings.
static const QString	theLookaheadToolTip
	Tool tip strings.
static const QString	theCurrentTimeToolTip
	Tool tip strings.
static const QString	theWwwspyToolTip
	Tool tip strings.
static const QString	theWwwspyEnabledToolTip
	Tool tip strings.
static const QString	theWwwspyDisabledToolTip
	Tool tip strings.
static const QString	theTestCapableToolTip
	Tool tip strings.
static const QString	theTestCapableEnabledToolTip
	Tool tip strings.
static const QString	theTestCapableDisabledToolTip
	Tool tip strings.
static const QString	theTestStatusToolTip
	Tool tip strings.
static const QString	theNoTestToolTip
	Tool tip strings.
static const QString	theContinuousTestToolTip
	Tool tip strings.
static const QString	theSingleTestToolTip
	Tool tip strings.
static const QString	theTestCountToolTip
	Tool tip strings.
static const QString	theFederateNameToolTip
	Tool tip strings.
static const QString	theHlaVersionToolTip
	Tool tip strings.
Protected Member Functions
virtual void	updateFederateItems (const DtFederateInfoByHandleMap &federates, QTreeWidgetItem *fedexItem)
	Updates the federate items for the given federation item.
virtual void	updateFederateItem (const DtAssistantFederateInfo &federate, const QString &fedexName, QTreeWidgetItem *fedItem)
	Updates the federate item with the given information.
virtual void	removeAllFederateItems (QTreeWidgetItem *fedexItem)
	Removes all of federate items from the given federation item.
virtual void	removeFederateItem (QTreeWidgetItem fedItem, QTreeWidgetItem fedexItem, bool clearedDefunct=false)
	Removes and deletes the given federate item from the given federation item.
bool	isFederateValid (QTreeWidgetItem *item) const
	Is the federate represented by this QTreeWidgetItem valid.
Protected Attributes
QMenu *	myColViewMenu
	Column view menu.
std::vector< QAction * >	myColDispActions
	Column view actions.
QAction *	myColCustomizeAction
QMenu *	myContextMenu
	Context Menu.
QMenu *	myFederateMenu
QMenu *	myFederationMenu
QAction *	myDeleteFedAction
	Federate menu actions.
QAction *	myOpenWebSpyAction
QAction *	myLatencyTestAction
QAction *	myClearAllDeadFederates
QAction *	myClearCurrDefunctFederate
QAction *	myDeleteFederationAction
QAction *	myEnableNetworkTestingAction
std::map< QString, QString >	myFederationNamesToItemNames
	Map of federation names to the names used in the tree.
std::map< QString, QString >	myItemNamesToFederationNames
	Map of federation names to the names used in the tree.
std::map< QTreeWidgetItem *, std::pair< MAKRti::DtTime, std::pair< QString, int > > >	myInvalidTreeWidgets
	Items are added to myInvalidTreeWidgets when their socket breaks.
std::map< QTreeWidgetItem *, std::pair< QString, int > >	myReconnectingFederates
	Federates that are currently attempting to reconnect.
std::map< QTreeWidgetItem *, std::pair< QString, int > >	myReconnectedFederates
	Federates that have successfully reconnected.
std::set< std::pair< QString, int > >	myClearedDefunctFederates
	Defunct federates that have been cleared from the display.
std::set< QTreeWidgetItem * >	myTestDisabledFederations
	Federations that have testing disabled.
float	myFederateRemovalTime
	Time after which defunct federates will automatically be removed from the tree.
std::set< QTreeWidgetItem * >	myListOfWebSpyEnabledFederates
	Federate items for which web spy page can be loaded.
QTreeWidgetItem *	myLoadingIndicationItem
	Item that indicates federation information is currently being loaded.
bool	myDeletionEnabled
	Indicates whether or not federate and federation deletion is enabled.
MAKRti::DtClock	myTimer

QIcon	myCheckIcon
	Icons to be used in the federate tree.
QIcon	myNoCheckIcon
	Icons to be used in the federate tree.
QIcon	myContTestIcon
	Icons to be used in the federate tree.
QIcon	mySingleTestIcon
	Icons to be used in the federate tree.
QIcon	myYellowAttention
	Icons to be used in the federate tree.
QIcon	myRedAttention
	Icons to be used in the federate tree.
QIcon	myWorldWideWeb
	Icons to be used in the federate tree.
QIcon	myWorldWideWebDisabled
	Icons to be used in the federate tree.
QIcon	myTestIcon
	Icons to be used in the federate tree.
Static Protected Attributes
static const int	FederateNameRole = Qt::UserRole
static const int	FederateHandleRole = DtFederateTree::FederateNameRole+1
static const int	TestEnableRole = DtFederateTree::FederateHandleRole+1
static const int	theLastColDefaultedOn = WebSpyIndex
	The number of the last column which is displayed by default the first time the dialog is shown.
Private Member Functions
	DtFederateTree (DtFederateTree const &)
	Copy constructor not implemented -- Copy not allowed!
DtFederateTree &	operator= (DtFederateTree const &)
	Assignment operator not implemented -- Assignment not allowed!

Member Enumeration Documentation

enum DtFederateTree::DtFederateTreeCol

Enumerator:

FederationNameIndex
FederateTypeAndHandleIndex
FederateIPIndex
HlaVersionIndex
WebSpyIndex
FederateNameIndex
RegulatingStateIndex
ConstrainedStateIndex
LbtsIndex
LookAheadIndex
CurrentTimeIndex
TestStatusIndex
TestCountIndex

Constructor & Destructor Documentation

DtFederateTree::DtFederateTree ( QWidget * parent )

References clearAllDeadFederates(), clearCurrDefunctFederates(), connect(), ConstrainedStateIndex, CurrentTimeIndex, deleteSelectedFed(), destroySelectedFederations(), DtRtiLibPath(), FederateIPIndex, FederateNameIndex, FederateTypeAndHandleIndex, FederationNameIndex, HlaVersionIndex, LbtsIndex, LookAheadIndex, myCheckIcon, myClearAllDeadFederates, myClearCurrDefunctFederate, myColCustomizeAction, myColDispActions, myColViewMenu, myContextMenu, myContTestIcon, myDeleteFedAction, myDeleteFederationAction, myEnableNetworkTestingAction, myFederateMenu, myFederationMenu, myLatencyTestAction, myLoadingIndicationItem, myOpenWebSpyAction, myRedAttention, mySingleTestIcon, myTestIcon, myTimer, myWorldWideWeb, myWorldWideWebDisabled, myYellowAttention, openFedWebSpy(), refreshMenus(), RegulatingStateIndex, showColCustomizeDlg(), showColumns(), showContextMenu(), showLatencyTest(), TestCountIndex, TestStatusIndex, theConstrainedString, theConstrainedToolTip, theCurrentTimeString, theCurrentTimeToolTip, theFederateNameString, theFederateNameToolTip, theFederationFederateString, theFederationFederateToolTip, theHlaVersionString, theHlaVersionToolTip, theIpAddressString, theIpAddressToolTip, theLastColDefaultedOn, theLBTSString, theLBTSToolTip, theLoadingText, theLookaheadString, theLookaheadToolTip, theRegulatingString, theRegulatingToolTip, theTestCountString, theTestCountToolTip, theTestStatusString, theTestStatusToolTip, theWwwspyString, theWwwspyToolTip, updateEnableNetworkTestingForSelectedFederations(), and WebSpyIndex.

DtFederateTree::~DtFederateTree ( ) [virtual]

References myLoadingIndicationItem.

DtFederateTree::DtFederateTree ( DtFederateTree const & ) [private]

Copy constructor not implemented -- Copy not allowed!

Member Function Documentation

void DtFederateTree::allColumns ( std::map< QString, std::pair< int, bool > > & columns ) [virtual, slot]

Get the columns and their position / visible value (cols in emptied and populated).

References myColDispActions.

Referenced by DtFederationsViewDialog::saveGuiState().

void DtFederateTree::clearAllDeadFederates ( ) [virtual, slot]

Clears all defunct federates.

References myClearAllDeadFederates, myFederationMenu, myInvalidTreeWidgets, and removeFederate().

Referenced by DtFederateTree().

void DtFederateTree::clearCurrDefunctFederates ( ) [virtual, slot]

Clear only the currently selected dead federates.

References FederateHandleRole, FederateTypeAndHandleIndex, FederationNameIndex, myItemNamesToFederationNames, removeFederate(), and true.

Referenced by DtFederateTree().

QMenu* DtFederateTree::columnViewMenu ( ) [inline]

Returns a pointer to the menu which allows users to hide/display any columns in the tree.

Referenced by DtFederationsViewDialog::setupMenus().

void DtFederateTree::deleteSelectedFed ( ) [virtual, slot]

Emits the fedDeleteRequest signal for the selected federate.

References fedDeleteRequest(), FederateHandleRole, FederateTypeAndHandleIndex, FederationNameIndex, isFederateValid(), and myItemNamesToFederationNames.

Referenced by DtFederateTree().

void DtFederateTree::destroySelectedFederations ( ) [virtual, slot]

For each federation selected, resign the federates then emit federationDelete.

References fedDeleteRequest(), FederateHandleRole, FederateTypeAndHandleIndex, federationDeleteRequest(), FederationNameIndex, and myItemNamesToFederationNames.

Referenced by DtFederateTree().

void DtFederateTree::disableNetworkTestingRequest ( const QString & ) [signal]

Referenced by updateEnableNetworkTestingForSelectedFederations().

void DtFederateTree::displayLoadingIndication ( ) [virtual]

Displays a message that the current federation information is loading.

References myLoadingIndicationItem, and removeAllFederations().

Referenced by DtFederationsViewDialog::displayLoadingIndication().

void DtFederateTree::enableDeletion ( bool enable )

Enables or disables federate and federation deletion options.

References myDeletionEnabled, and refreshMenus().

Referenced by DtFederationsViewDialog::enableCommands().

void DtFederateTree::enableNetworkTestingRequest ( const QString & ) [signal]

Referenced by updateEnableNetworkTestingForSelectedFederations().

void DtFederateTree::fedDeleteRequest	(	int	,
		const QString &
	)		`[signal]`

Referenced by deleteSelectedFed(), and destroySelectedFederations().

QMenu* DtFederateTree::federateMenu ( ) [inline]

Returns a pointer to the menu which allows users to perform actions related to the currently selected federates.

Referenced by DtFederationsViewDialog::setupMenus().

void DtFederateTree::federationDeleteRequest ( const QString & fedexName ) [signal]

Referenced by destroySelectedFederations().

QMenu* DtFederateTree::federationMenu ( ) [inline]

Returns a pointer to the menu which allows users to perform actions related to the current selected federations.

Referenced by DtFederationsViewDialog::setupMenus().

float DtFederateTree::getFederateRemovalTime ( ) const

Get the time for the federate removal.

References myFederateRemovalTime.

Referenced by DtFederationsViewDialog::getFederateRemovalTime().

QString DtFederateTree::getTreeFederationName ( const MAKRti::DtString & federationName )

Get the federation name the tree uses ( with the handle )

References myFederationNamesToItemNames.

Referenced by DtFederationsViewDialog::removeFederation().

bool DtFederateTree::hasValidFederates ( ) const [virtual, slot]

returns whether any federates are valid.

References isFederateValid().

bool DtFederateTree::isFederateValid	(	int	federateHandle,
		const QString &	fedexName
	)		const

Is this federate valid?

References FederateHandleRole, FederateTypeAndHandleIndex, and myFederationNamesToItemNames.

Referenced by deleteSelectedFed(), hasValidFederates(), and refreshMenus().

bool DtFederateTree::isFederateValid ( QTreeWidgetItem * item ) const [protected]

Is the federate represented by this QTreeWidgetItem valid.

References myInvalidTreeWidgets, and myReconnectingFederates.

void DtFederateTree::openFedWebSpy ( ) [virtual, slot]

Emits the openFedWebSpyRequest signal for the selected federate.

References FederateHandleRole, FederateTypeAndHandleIndex, FederationNameIndex, myItemNamesToFederationNames, myListOfWebSpyEnabledFederates, and openFedWebSpyRequest().

Referenced by DtFederateTree().

void DtFederateTree::openFedWebSpyRequest	(	const QString &	,
		int
	)		`[signal]`

Referenced by openFedWebSpy().

DtFederateTree& DtFederateTree::operator= ( DtFederateTree const & ) [private]

Assignment operator not implemented -- Assignment not allowed!

void DtFederateTree::processInvalidList ( )

Process the list of Invalid federates for automatic removal.

References myClearAllDeadFederates, myFederateRemovalTime, myFederationMenu, myInvalidTreeWidgets, myTimer, and removeFederate().

Referenced by DtFederationsViewDialog::tick().

void DtFederateTree::refreshMenus ( ) [slot]

Refresh the currently available menu options.

References isFederateValid(), myClearCurrDefunctFederate, myContextMenu, myDeleteFedAction, myDeleteFederationAction, myDeletionEnabled, myEnableNetworkTestingAction, myFederateMenu, myFederationMenu, myLatencyTestAction, myListOfWebSpyEnabledFederates, myOpenWebSpyAction, myTestDisabledFederations, TestEnableRole, and TestStatusIndex.

Referenced by DtFederateTree(), enableDeletion(), removeAllFederations(), removeFederate(), removeFederation(), showContextMenu(), updateFederate(), and updateFederation().

void DtFederateTree::removeAllFederateItems ( QTreeWidgetItem * fedexItem ) [protected, virtual]

Removes all of federate items from the given federation item.

References removeFederateItem().

Referenced by removeAllFederations(), and removeFederation().

void DtFederateTree::removeAllFederations ( ) [virtual]

Removes all of the federations from the tree.

References myFederationNamesToItemNames, refreshMenus(), removeAllFederateItems(), and removeLoadingIndication().

Referenced by displayLoadingIndication(), and DtFederationsViewDialog::removeAllFederations().

bool DtFederateTree::removeFederate	(	int	federateHandle,
		const QString &	fedexName,
		bool	clearedDefunct = `false`
	)		`[virtual]`

Removes a federate from an existing federation in the tree.

Returns true if successful. If clearedDefunct flag is true, the federate item will not be removed, but instead be placed in the list of cleared defunct federates.

References FederateHandleRole, FederateTypeAndHandleIndex, myFederationNamesToItemNames, refreshMenus(), and removeFederateItem().

Referenced by clearAllDeadFederates(), clearCurrDefunctFederates(), processInvalidList(), and DtFederationsViewDialog::removeFederate().

void DtFederateTree::removeFederateItem	(	QTreeWidgetItem *	fedItem,
		QTreeWidgetItem *	fedexItem,
		bool	clearedDefunct = `false`
	)		`[protected, virtual]`

Removes and deletes the given federate item from the given federation item.

The item will be added to the list of cleared defunct federates if the clearedDefunct flag is true.

References FederateHandleRole, FederateTypeAndHandleIndex, FederationNameIndex, myClearedDefunctFederates, myItemNamesToFederationNames, myListOfWebSpyEnabledFederates, myReconnectedFederates, and myReconnectingFederates.

Referenced by removeAllFederateItems(), removeFederate(), and updateFederateItems().

bool DtFederateTree::removeFederation ( const QString & name ) [virtual]

Removes the federation with the given name from the tree.

Returns true if successful.

References myFederationNamesToItemNames, myItemNamesToFederationNames, refreshMenus(), and removeAllFederateItems().

Referenced by DtFederationsViewDialog::removeFederation().

void DtFederateTree::removeLoadingIndication ( ) [virtual]

Removes the loading indication messages.

References myLoadingIndicationItem.

Referenced by removeAllFederations(), DtFederationsViewDialog::removeLoadingIndication(), and updateFederation().

void DtFederateTree::setAllColumns ( const std::map< QString, std::pair< int, bool > > & columns ) [virtual, slot]

Set the columns that are currently shown.

References myColDispActions, and showColumns().

Referenced by DtFederationsViewDialog::setupFederateTree().

void DtFederateTree::setFederateRemovalTime ( float newTime )

Change the time after which a federate that fails to reconnect will be removed from the rtiexec federate tree.

References myFederateRemovalTime.

Referenced by DtFederationsViewDialog::updateFederateRemovalTime().

void DtFederateTree::showColCustomizeDlg ( ) [virtual, slot]

Displays the column view customize dialog.

References myColDispActions.

Referenced by DtFederateTree().

void DtFederateTree::showColumns ( ) [virtual, slot]

Updates which columns are shown or hidden.

References myColDispActions.

Referenced by DtFederateTree(), and setAllColumns().

void DtFederateTree::showContextMenu ( const QPoint & pos ) [virtual, slot]

Shows the context menu at the given position.

References myContextMenu, and refreshMenus().

Referenced by DtFederateTree().

void DtFederateTree::showFedLatencyTest	(	const QString &	,
		int
	)		`[signal]`

Referenced by showLatencyTest().

void DtFederateTree::showLatencyTest ( ) [virtual, slot]

Emits the showFedLatencyTest signal for the selected federate.

References FederateHandleRole, FederateTypeAndHandleIndex, FederationNameIndex, myItemNamesToFederationNames, and showFedLatencyTest().

Referenced by DtFederateTree().

void DtFederateTree::updateEnableNetworkTestingForSelectedFederations ( ) [virtual, slot]

For each federation selected, enables or disables testing.

References disableNetworkTestingRequest(), enableNetworkTestingRequest(), FederateHandleRole, FederateTypeAndHandleIndex, FederationNameIndex, myItemNamesToFederationNames, and myTestDisabledFederations.

Referenced by DtFederateTree().

bool DtFederateTree::updateFederate	(	const DtAssistantFederateInfo &	federate,
		const QString &	fedexName
	)		`[virtual]`

Updates or adds a federate to an existing federation in the tree.

Returns true if a new federation was added.

References ConstrainedStateIndex, CurrentTimeIndex, DtAssistantFederateInfo::federateHandle(), FederateHandleRole, FederateIPIndex, FederateNameIndex, FederateTypeAndHandleIndex, HlaVersionIndex, LbtsIndex, LookAheadIndex, myFederationNamesToItemNames, refreshMenus(), RegulatingStateIndex, TestCountIndex, TestStatusIndex, theConstrainedDisabledToolTip, theCurrentTimeToolTip, theFederateNameToolTip, theFederateTypeToolTip, theHlaVersionToolTip, theIpAddressToolTip, theLBTSToolTip, theLookaheadToolTip, theNoTestToolTip, theRegulatingDisabledToolTip, theTestCountToolTip, and updateFederateItem().

Referenced by DtFederationsViewDialog::updateFederate().

void DtFederateTree::updateFederateItem	(	const DtAssistantFederateInfo &	federate,
		const QString &	fedexName,
		QTreeWidgetItem *	fedItem
	)		`[protected, virtual]`

Updates the federate item with the given information.

Referenced by updateFederate(), and updateFederateItems().

void DtFederateTree::updateFederateItems	(	const DtFederateInfoByHandleMap &	federates,
		QTreeWidgetItem *	fedexItem
	)		`[protected, virtual]`

Updates the federate items for the given federation item.

References ConstrainedStateIndex, CurrentTimeIndex, FederateHandleRole, FederateIPIndex, FederateNameIndex, FederateTypeAndHandleIndex, FederationNameIndex, HlaVersionIndex, LbtsIndex, LookAheadIndex, myClearedDefunctFederates, myItemNamesToFederationNames, RegulatingStateIndex, removeFederateItem(), TestCountIndex, TestStatusIndex, theConstrainedDisabledToolTip, theCurrentTimeToolTip, theFederateNameToolTip, theFederateTypeToolTip, theHlaVersionToolTip, theIpAddressToolTip, theLBTSToolTip, theLookaheadToolTip, theNoTestToolTip, theRegulatingDisabledToolTip, theTestCountToolTip, and updateFederateItem().

Referenced by updateFederation().

bool DtFederateTree::updateFederation ( const DtAssistantFederationInfo & federation ) [virtual]

Updates or adds a federation to the tree.

Returns true if a new federation was added.

References DtAssistantFederationInfo::federates(), DtAssistantFederationInfo::federationHandle(), DtAssistantFederationInfo::federationName(), FederationNameIndex, myFederationNamesToItemNames, myItemNamesToFederationNames, myTestDisabledFederations, refreshMenus(), removeLoadingIndication(), DtAssistantFederationInfo::testingEnabled(), theFederationNameToolTip, and updateFederateItems().

Referenced by DtFederationsViewDialog::updateFederation().

Member Data Documentation

const int DtFederateTree::FederateHandleRole = DtFederateTree::FederateNameRole+1 [static, protected]

Referenced by clearCurrDefunctFederates(), deleteSelectedFed(), destroySelectedFederations(), isFederateValid(), openFedWebSpy(), removeFederate(), removeFederateItem(), showLatencyTest(), updateEnableNetworkTestingForSelectedFederations(), updateFederate(), updateFederateItem(), and updateFederateItems().

const int DtFederateTree::FederateNameRole = Qt::UserRole [static, protected]

Referenced by updateFederateItem().

QIcon DtFederateTree::myCheckIcon [protected]

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

QAction* DtFederateTree::myClearAllDeadFederates [protected]

Referenced by clearAllDeadFederates(), DtFederateTree(), processInvalidList(), and updateFederateItem().

QAction* DtFederateTree::myClearCurrDefunctFederate [protected]

Referenced by DtFederateTree(), and refreshMenus().

std::set< std::pair<QString, int > > DtFederateTree::myClearedDefunctFederates [protected]

Defunct federates that have been cleared from the display.

Referenced by removeFederateItem(), and updateFederateItems().

QAction* DtFederateTree::myColCustomizeAction [protected]

Referenced by DtFederateTree().

std::vector< QAction* > DtFederateTree::myColDispActions [protected]

Column view actions.

Referenced by allColumns(), DtFederateTree(), setAllColumns(), showColCustomizeDlg(), and showColumns().

QMenu* DtFederateTree::myColViewMenu [protected]

Column view menu.

Referenced by DtFederateTree().

QMenu* DtFederateTree::myContextMenu [protected]

Context Menu.

Referenced by DtFederateTree(), refreshMenus(), and showContextMenu().

QIcon DtFederateTree::myContTestIcon [protected]

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

QAction* DtFederateTree::myDeleteFedAction [protected]

Federate menu actions.

Referenced by DtFederateTree(), and refreshMenus().

QAction* DtFederateTree::myDeleteFederationAction [protected]

Referenced by DtFederateTree(), and refreshMenus().

bool DtFederateTree::myDeletionEnabled [protected]

Indicates whether or not federate and federation deletion is enabled.

Referenced by enableDeletion(), and refreshMenus().

QAction* DtFederateTree::myEnableNetworkTestingAction [protected]

Referenced by DtFederateTree(), and refreshMenus().

QMenu* DtFederateTree::myFederateMenu [protected]

Referenced by DtFederateTree(), and refreshMenus().

float DtFederateTree::myFederateRemovalTime [protected]

Time after which defunct federates will automatically be removed from the tree.

Referenced by getFederateRemovalTime(), processInvalidList(), and setFederateRemovalTime().

QMenu* DtFederateTree::myFederationMenu [protected]

Referenced by clearAllDeadFederates(), DtFederateTree(), processInvalidList(), refreshMenus(), and updateFederateItem().

std::map<QString, QString> DtFederateTree::myFederationNamesToItemNames [protected]

Map of federation names to the names used in the tree.

Referenced by getTreeFederationName(), isFederateValid(), removeAllFederations(), removeFederate(), removeFederation(), updateFederate(), and updateFederation().

std::map<QTreeWidgetItem*, std::pair<MAKRti::DtTime, std::pair<QString, int> > > DtFederateTree::myInvalidTreeWidgets [protected]

Items are added to myInvalidTreeWidgets when their socket breaks.

These federates are removed if: 1) They fail to reconnect and are manually removed 2) They fail to reconnect and are automatically removed by timer 3) The federation is destroyed

Referenced by clearAllDeadFederates(), isFederateValid(), processInvalidList(), and updateFederateItem().

std::map<QString, QString> DtFederateTree::myItemNamesToFederationNames [protected]

Map of federation names to the names used in the tree.

Referenced by clearCurrDefunctFederates(), deleteSelectedFed(), destroySelectedFederations(), openFedWebSpy(), removeFederateItem(), removeFederation(), showLatencyTest(), updateEnableNetworkTestingForSelectedFederations(), updateFederateItems(), and updateFederation().

QAction* DtFederateTree::myLatencyTestAction [protected]

Referenced by DtFederateTree(), and refreshMenus().

std::set<QTreeWidgetItem*> DtFederateTree::myListOfWebSpyEnabledFederates [protected]

Federate items for which web spy page can be loaded.

Referenced by openFedWebSpy(), refreshMenus(), removeFederateItem(), and updateFederateItem().

QTreeWidgetItem* DtFederateTree::myLoadingIndicationItem [protected]

Item that indicates federation information is currently being loaded.

Referenced by displayLoadingIndication(), DtFederateTree(), removeLoadingIndication(), and ~DtFederateTree().

QIcon DtFederateTree::myNoCheckIcon [protected]

Icons to be used in the federate tree.

QAction* DtFederateTree::myOpenWebSpyAction [protected]

Referenced by DtFederateTree(), and refreshMenus().

std::map<QTreeWidgetItem*, std::pair<QString, int> > DtFederateTree::myReconnectedFederates [protected]

Federates that have successfully reconnected.

Referenced by removeFederateItem(), and updateFederateItem().

std::map<QTreeWidgetItem*, std::pair<QString, int> > DtFederateTree::myReconnectingFederates [protected]

Federates that are currently attempting to reconnect.

Referenced by isFederateValid(), removeFederateItem(), and updateFederateItem().

QIcon DtFederateTree::myRedAttention [protected]

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

QIcon DtFederateTree::mySingleTestIcon [protected]

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

std::set<QTreeWidgetItem* > DtFederateTree::myTestDisabledFederations [protected]

Federations that have testing disabled.

Referenced by refreshMenus(), updateEnableNetworkTestingForSelectedFederations(), and updateFederation().

QIcon DtFederateTree::myTestIcon [protected]

Icons to be used in the federate tree.

Referenced by DtFederateTree().

MAKRti::DtClock DtFederateTree::myTimer [protected]

Referenced by DtFederateTree(), processInvalidList(), and updateFederateItem().

QIcon DtFederateTree::myWorldWideWeb [protected]

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

QIcon DtFederateTree::myWorldWideWebDisabled [protected]

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

QIcon DtFederateTree::myYellowAttention [protected]

Icons to be used in the federate tree.

Referenced by DtFederateTree(), and updateFederateItem().

const int DtFederateTree::TestEnableRole = DtFederateTree::FederateHandleRole+1 [static, protected]

Referenced by refreshMenus(), and updateFederateItem().

const QString DtFederateTree::theConstrainedDisabledToolTip [static]

Initial value:

 tr(
   "Federate is not time constrained" )

Tool tip strings.

Referenced by updateFederate(), updateFederateItem(), and updateFederateItems().

const QString DtFederateTree::theConstrainedEnabledToolTip [static]

Initial value:

 tr(
   "Federate is time constrained" )

Tool tip strings.

Referenced by updateFederateItem().

const QString DtFederateTree::theConstrainedString = tr("Constrained") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theConstrainedToolTip [static]

Initial value:

 tr(
   "Is the federate time constrained?" )

Tool tip strings.

Referenced by DtFederateTree().

const QString DtFederateTree::theContinuousTestToolTip [static]

Initial value:

 tr(
   "Federate is running a continuous network test" )

Tool tip strings.

Referenced by updateFederateItem().

const QString DtFederateTree::theCurrentTimeString = tr("Current Time") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theCurrentTimeToolTip [static]

Initial value:

 tr(
   "Federate's current view of simulation time" )

Tool tip strings.

Referenced by DtFederateTree(), updateFederate(), and updateFederateItems().

const QString DtFederateTree::theFederateNameString = tr("Federate Name") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theFederateNameToolTip [static]

Initial value:

 tr(
   "Federate name - Only HLA Evolved federates may specify.")

Tool tip strings.

Referenced by DtFederateTree(), updateFederate(), and updateFederateItems().

const QString DtFederateTree::theFederateTypeToolTip [static]

Initial value:

 tr(
   "Federate type and handle" )

Tool tip strings.

Referenced by updateFederate(), and updateFederateItems().

const QString DtFederateTree::theFederationFederateString = tr("Federation/Federate") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theFederationFederateToolTip [static]

Initial value:

 tr(
   "Federation name or Federate Type and handle" )

Tool tip strings.

Referenced by DtFederateTree().

const QString DtFederateTree::theFederationNameToolTip [static]

Initial value:

 tr(
   "Federation name and handle" )

Tool tip strings.

Referenced by updateFederation().

const QString DtFederateTree::theHlaVersionString = tr("HLA Version") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theHlaVersionToolTip [static]

Initial value:

 tr(
   "HLA version used by the federate")

Tool tip strings.

Referenced by DtFederateTree(), updateFederate(), and updateFederateItems().

const QString DtFederateTree::theIpAddressString = tr("Hostname (IP Address)") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theIpAddressToolTip [static]

Initial value:

 tr(
   "Federate IP Address" )

Tool tip strings.

Referenced by DtFederateTree(), updateFederate(), and updateFederateItems().

const int DtFederateTree::theLastColDefaultedOn = WebSpyIndex [static, protected]

The number of the last column which is displayed by default the first time the dialog is shown.

Referenced by DtFederateTree().

const QString DtFederateTree::theLBTSString = tr("LBTS") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theLBTSToolTip [static]

Initial value:

 tr(
   "Federate's Lower Bound Time Stamp" )

Tool tip strings.

Referenced by DtFederateTree(), updateFederate(), and updateFederateItems().

const QString DtFederateTree::theLoadingText = tr("Loading...") [static]

The message that indicates information is being loaded.

Referenced by DtFederateTree().

const QString DtFederateTree::theLookaheadString = tr("Lookahead") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theLookaheadToolTip [static]

Initial value:

 tr(
   "Federate's lookahead setting" )

Tool tip strings.

Referenced by DtFederateTree(), updateFederate(), and updateFederateItems().

const QString DtFederateTree::theNoTestToolTip [static]

Initial value:

 tr(
   "Federate is not running a network test" )

Tool tip strings.

Referenced by updateFederate(), updateFederateItem(), and updateFederateItems().

const QString DtFederateTree::theRegulatingDisabledToolTip [static]

Initial value:

 tr(
   "Federate is not time regulating" )

Tool tip strings.

Referenced by updateFederate(), updateFederateItem(), and updateFederateItems().

const QString DtFederateTree::theRegulatingEnabledToolTip [static]

Initial value:

 tr(
   "Federate is time regulating" )

Tool tip strings.

Referenced by updateFederateItem().

const QString DtFederateTree::theRegulatingString = tr("Regulating") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theRegulatingToolTip [static]

Initial value:

 tr(
   "Is the federate time regulating?" )

Tool tip strings.

Referenced by DtFederateTree().

const QString DtFederateTree::theSingleTestToolTip [static]

Initial value:

 tr(
   "Federate is running a single network test" )

Tool tip strings.

Referenced by updateFederateItem().

const QString DtFederateTree::theTestCapableDisabledToolTip [static]

Initial value:

 tr(
   "Federate is not capable of running network tests" )

Tool tip strings.

const QString DtFederateTree::theTestCapableEnabledToolTip [static]

Initial value:

 tr(
   "Federate is capable of running network tests" )

Tool tip strings.

const QString DtFederateTree::theTestCapableString = tr("Test Capable") [static]

Column header strings.

const QString DtFederateTree::theTestCapableToolTip [static]

Initial value:

 tr(
   "Is this federate capable of running network tests?" )

Tool tip strings.

const QString DtFederateTree::theTestCountString = tr("Test Count") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theTestCountToolTip [static]

Initial value:

 tr(
   "Counts of number of tests this federate has initiated\n"
   "and the number of test reports which have been generated." )

Tool tip strings.

Referenced by DtFederateTree(), updateFederate(), and updateFederateItems().

const QString DtFederateTree::theTestStatusString = tr("Testing") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theTestStatusToolTip [static]

Initial value:

 tr(
   "Is this federate currently running a network test?" )

Tool tip strings.

Referenced by DtFederateTree().

const QString DtFederateTree::theWwwspyDisabledToolTip [static]

Initial value:

 tr(
   "RTIspy web service is disabled for this federate" )

Tool tip strings.

Referenced by updateFederateItem().

const QString DtFederateTree::theWwwspyEnabledToolTip [static]

Initial value:

 tr(
   "RTIspy web service is enabled for this federate" )

Tool tip strings.

Referenced by updateFederateItem().

const QString DtFederateTree::theWwwspyString = tr("RTIspy") [static]

Column header strings.

Referenced by DtFederationsViewDialog::convertToConfigStrings(), DtFederationsViewDialog::convertToFederateTreeStrings(), and DtFederateTree().

const QString DtFederateTree::theWwwspyToolTip [static]

Initial value:

 tr(
   "Is the RTIspy web service enabled for this federate?" )

Tool tip strings.

Referenced by DtFederateTree().

The documentation for this class was generated from the following files:

Public Types

Public Slots

Signals

Public Member Functions

Static Public Attributes

Protected Member Functions

Protected Attributes

Static Protected Attributes

Private Member Functions

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
