DtNetMapForwarderXmlBlock Class Reference

Inheritance diagram for DtNetMapForwarderXmlBlock:

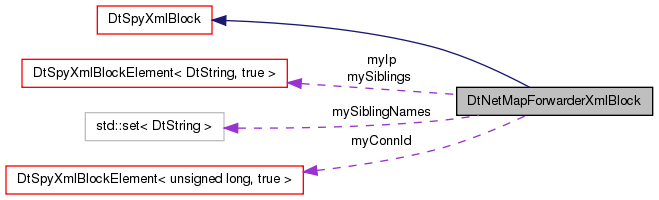

Collaboration diagram for DtNetMapForwarderXmlBlock:

List of all members.

Public Types
typedef std::set< DtString >	SiblingList
typedef std::set < DtNetMapNodeXmlBlockSP >	NetMapNodeXmlBlockSet
typedef std::set < DtNetMapForwarderXmlBlockSP >	NetMapForwarderXmlBlockSet
Public Member Functions
	DtNetMapForwarderXmlBlock (DtEnvValueSP existingNode, DtEnvValueSP root)
	DtNetMapForwarderXmlBlock (const DtString &name, unsigned long connId, const DtString &ip, DtEnvValueSP root)
virtual	~DtNetMapForwarderXmlBlock ()
virtual void	addChildForwarder (DtNetMapForwarderXmlBlockSP forwarder)
virtual DtNetMapForwarderXmlBlockSP	addChildForwarder (const DtString &name, unsigned long connId, const DtString &ip)
virtual NetMapForwarderXmlBlockSet	childForwarders () const
virtual void	addChildNode (DtNetMapNodeXmlBlockSP node)
virtual DtNetMapNodeXmlBlockSP	addChildNode (const DtString &name, const DtString &nodeType, unsigned long connId, const DtString &ip, const DtString &webServerIp="0", int webServerPort=0, unsigned long handle=0, const DtString &fedexName="")
virtual NetMapNodeXmlBlockSet	childNodes () const
virtual void	addSiblingRelationship (DtNetMapForwarderXmlBlockSP sibling)
virtual void	addSibling (const DtString &siblingName)
virtual DtString	siblings () const
virtual void	setConnId (unsigned long connId)
virtual unsigned long	connId () const
virtual void	setIp (const DtString &ip)
virtual DtString	ip () const
Static Public Member Functions
static DtSpyXmlBlockSP	create (DtNodeAndParentPair xmlNodeAndParent)
Protected Member Functions
virtual void	updateSiblings ()
Protected Attributes
SiblingList	mySiblingNames
DtSpyXmlBlockElement< DtString, true >	mySiblings
DtSpyXmlBlockElement< unsigned long, true >	myConnId
DtSpyXmlBlockElement< DtString, true >	myIp

---

Member Typedef Documentation

typedef std::set< DtNetMapForwarderXmlBlockSP > DtNetMapForwarderXmlBlock::NetMapForwarderXmlBlockSet

typedef std::set< DtNetMapNodeXmlBlockSP > DtNetMapForwarderXmlBlock::NetMapNodeXmlBlockSet

typedef std::set<DtString> DtNetMapForwarderXmlBlock::SiblingList

---

Constructor & Destructor Documentation

DtNetMapForwarderXmlBlock::DtNetMapForwarderXmlBlock	(	DtEnvValueSP	existingNode,
		DtEnvValueSP	root
	)

Referenced by addChildForwarder(), and create().

DtNetMapForwarderXmlBlock::DtNetMapForwarderXmlBlock	(	const DtString &	name,
		unsigned long	connId,
		const DtString &	ip,
		DtEnvValueSP	root
	)

DtNetMapForwarderXmlBlock::~DtNetMapForwarderXmlBlock

(

)

[virtual]

---

Member Function Documentation

void DtNetMapForwarderXmlBlock::addChildForwarder

(

DtNetMapForwarderXmlBlockSP

forwarder

)

[virtual]

References DtSpyXmlBlock::addChild().

DtNetMapForwarderXmlBlockSP DtNetMapForwarderXmlBlock::addChildForwarder	(	const DtString &	name,
		unsigned long	connId,
		const DtString &	ip
	)		[virtual]

References DtSpyXmlBlock::addChild(), DtNetMapForwarderXmlBlock(), and DtSpyXmlBlock::objectNode().

void DtNetMapForwarderXmlBlock::addChildNode

(

DtNetMapNodeXmlBlockSP

node

)

[virtual]

References DtSpyXmlBlock::addChild().

DtNetMapNodeXmlBlockSP DtNetMapForwarderXmlBlock::addChildNode	(	const DtString &	name,
		const DtString &	nodeType,
		unsigned long	connId,
		const DtString &	ip,
		const DtString &	webServerIp = "0",
		int	webServerPort = 0,
		unsigned long	handle = 0,
		const DtString &	fedexName = ""
	)		[virtual]

References DtSpyXmlBlock::addChild(), and DtSpyXmlBlock::objectNode().

void DtNetMapForwarderXmlBlock::addSibling

(

const DtString &

siblingName

)

[virtual]

References mySiblingNames, and updateSiblings().

Referenced by addSiblingRelationship().

void DtNetMapForwarderXmlBlock::addSiblingRelationship

(

DtNetMapForwarderXmlBlockSP

sibling

)

[virtual]

References addSibling(), and DtSpyXmlBlock::name().

DtNetMapForwarderXmlBlock::NetMapForwarderXmlBlockSet DtNetMapForwarderXmlBlock::childForwarders

(

)

const [virtual]

DtNetMapForwarderXmlBlock::NetMapNodeXmlBlockSet DtNetMapForwarderXmlBlock::childNodes

(

)

const [virtual]

unsigned long DtNetMapForwarderXmlBlock::connId

(

)

const [inline, virtual]

References myConnId.

Referenced by setConnId().

DtSpyXmlBlockSP DtNetMapForwarderXmlBlock::create

(

DtNodeAndParentPair

xmlNodeAndParent

)

[static]

References DtNetMapForwarderXmlBlock().

DtString DtNetMapForwarderXmlBlock::ip

(

)

const [inline, virtual]

References myIp.

Referenced by setIp().

void DtNetMapForwarderXmlBlock::setConnId

(

unsigned long

connId

)

[inline, virtual]

References connId(), and myConnId.

void DtNetMapForwarderXmlBlock::setIp

(

const DtString &

ip

)

[inline, virtual]

References ip(), and myIp.

DtString DtNetMapForwarderXmlBlock::siblings

(

)

const [inline, virtual]

References mySiblings.

void DtNetMapForwarderXmlBlock::updateSiblings

(

)

[protected, virtual]

References mySiblingNames, and mySiblings.

Referenced by addSibling().

---

Member Data Documentation

DtSpyXmlBlockElement< unsigned long, true > DtNetMapForwarderXmlBlock::myConnId [protected]

Referenced by connId(), and setConnId().

DtSpyXmlBlockElement< DtString, true > DtNetMapForwarderXmlBlock::myIp [protected]

Referenced by ip(), and setIp().

SiblingList DtNetMapForwarderXmlBlock::mySiblingNames [protected]

Referenced by addSibling(), and updateSiblings().

DtSpyXmlBlockElement< DtString, true > DtNetMapForwarderXmlBlock::mySiblings [protected]

Referenced by siblings(), and updateSiblings().

---

The documentation for this class was generated from the following files:

• netMapForwarderXmlBlock.h
• netMapForwarderXmlBlock.cxx
