DtNetWwwFederateStateMsg Class Reference

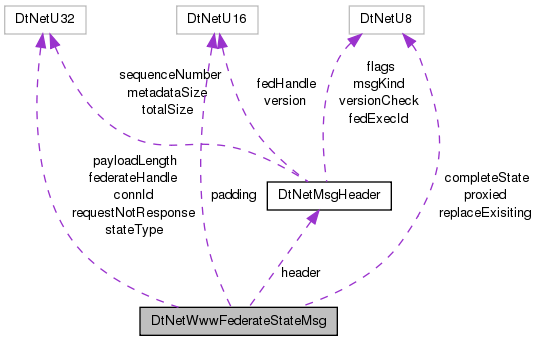

Collaboration diagram for DtNetWwwFederateStateMsg:

List of all members.

Public Attributes
DtNetMsgHeader	header
DtNetU32	requestNotResponse
	True if this message is a request, False if a response.
DtNetU32	connId
	The connection ID of the source/destination (really this is all that is needed to id the target)
DtNetU32	federateHandle
	Target Federate ID for message.
DtNetU32	stateType
	State Component ID requested/contained.
DtNetU8	replaceExisiting
	Does this state response replace the previous responses or append to them?
DtNetU8	completeState
	Is this a complete state response, or a fragment?
DtNetU8	proxied
	Is this a proxied update request?
DtNetU16	padding
	Padding.
DtNetU32	payloadLength
	Length of the Response data (0 if none present)

---

Member Data Documentation

DtNetU8 DtNetWwwFederateStateMsg::completeState

Is this a complete state response, or a fragment?

Referenced by DtWwwFederateStateRspMsg::isComplete(), and DtWwwFederateStateRspMsg::setIsComplete().

DtNetU32 DtNetWwwFederateStateMsg::connId

The connection ID of the source/destination (really this is all that is needed to id the target)

Referenced by DtWwwFederateStateRspMsg::setSourceConnectionId(), DtWwwFederateStateReqMsg::setTargetConnectionId(), DtWwwFederateStateRspMsg::sourceConnectionId(), and DtWwwFederateStateReqMsg::targetConnectionId().

DtNetU32 DtNetWwwFederateStateMsg::federateHandle

Target Federate ID for message.

Referenced by DtWwwFederateStateRspMsg::setSourceFederateHandle(), DtWwwFederateStateReqMsg::setTargetFederateHandle(), DtWwwFederateStateRspMsg::sourceFederateHandle(), and DtWwwFederateStateReqMsg::targetFederateHandle().

DtNetMsgHeader DtNetWwwFederateStateMsg::header

Referenced by DtWwwFederateStateReqMsg::DtWwwFederateStateReqMsg(), and DtWwwFederateStateRspMsg::DtWwwFederateStateRspMsg().

DtNetU16 DtNetWwwFederateStateMsg::padding

Padding.

DtNetU32 DtNetWwwFederateStateMsg::payloadLength

Length of the Response data (0 if none present)

Referenced by DtWwwFederateStateRspMsg::netMsgPayload(), and DtWwwFederateStateRspMsg::setPayload().

DtNetU8 DtNetWwwFederateStateMsg::proxied

Is this a proxied update request?

Referenced by DtWwwFederateStateReqMsg::isProxied(), and DtWwwFederateStateReqMsg::setProxied().

DtNetU8 DtNetWwwFederateStateMsg::replaceExisiting

Does this state response replace the previous responses or append to them?

Referenced by DtWwwFederateStateRspMsg::isReplacementNotAppend(), and DtWwwFederateStateRspMsg::setIsReplacementNotAppend().

DtNetU32 DtNetWwwFederateStateMsg::requestNotResponse

True if this message is a request, False if a response.

Referenced by DtWwwFederateStateReqMsg::DtWwwFederateStateReqMsg(), and DtWwwFederateStateRspMsg::DtWwwFederateStateRspMsg().

DtNetU32 DtNetWwwFederateStateMsg::stateType

State Component ID requested/contained.

Referenced by DtWwwFederateStateReqMsg::requestType(), DtWwwFederateStateRspMsg::responseType(), DtWwwFederateStateReqMsg::setRequestType(), and DtWwwFederateStateRspMsg::setResponseType().

---

The documentation for this class was generated from the following file:

• netWwwFederateStateMsg.h
