Manages the server connections of the RTI Assistant. More...

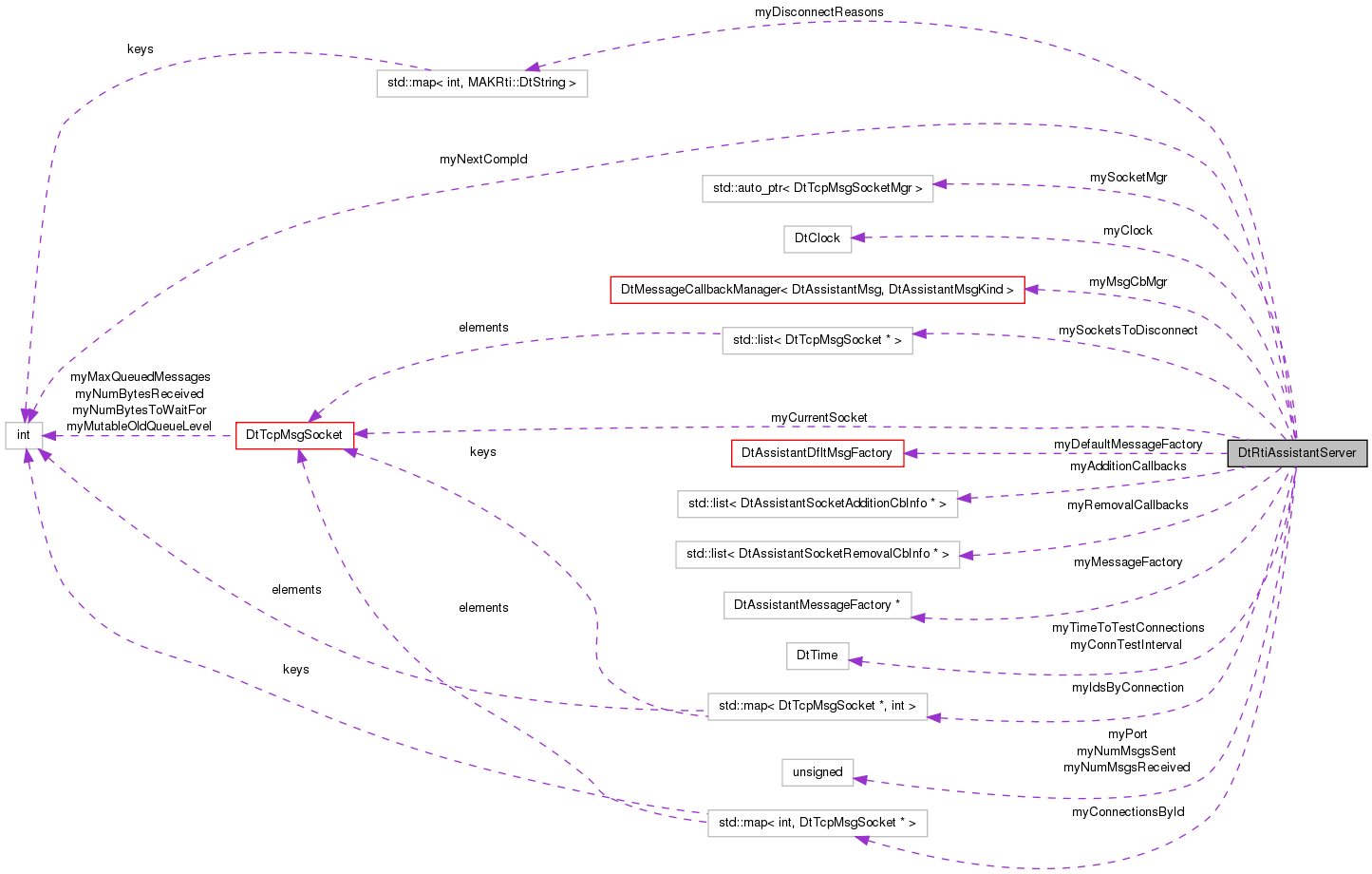

Collaboration diagram for DtRtiAssistantServer:

Public Member Functions
	DtRtiAssistantServer (DtNotifyLevelType level, int port=DtASSISTANT_DEFAULT_PORT, const MAKRti::DtInetAddr &networkInterface=MAKRti::DtInetAddr())
	Constructor, networkInterface defaults to INADDR_ANY.
virtual	~DtRtiAssistantServer ()
	Destructor.
bool	isOk () const
	Returns true if the server was successfully started.
virtual void	addMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
	Message Callbacks These callback functions operate on all of the connections.
virtual void	removeMsgCallback (DtAssistantMsgKind msgKind, DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	addWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	removeWildcardMsgCallback (DtAssistantMsgCbMgr::DtCallbackFcn fcn, void *usr)
virtual void	addSocketAdditionCallback (DtAssistantSocketAdditionCb cb, void *usr)
	These functions add callbacks for notification of the addition or removal of Assistant socket connections.
virtual void	removeSocketAdditionCallback (DtAssistantSocketAdditionCb cb, void *usr)
virtual void	addSocketRemovalCallback (DtAssistantSocketRemovalCb cb, void *usr)
virtual void	removeSocketRemovalCallback (DtAssistantSocketRemovalCb cb, void *usr)
virtual bool	tick (unsigned int timeout=0)
	Do the actual message processing.
virtual unsigned int	numConnections () const
	Return the number of current RTI component connections.
virtual void	sendMsgOnConn (int compId, const DtAssistantMsg &msg)
	Send the message over the specified connection.
virtual void	sendBroadcast (const DtAssistantMsg &msg)
	Send the message over the all connections.
virtual void	sendConnMsg (int compId, bool disconnect=false, const MAKRti::DtString &display=MAKRti::DtString::nullString())
	Sends a component ID back to a connecting component.
virtual void	sendConnRespMsg (int compId, const DtRtiConnectionInfoDataPair &conn, const DtRtiConnectionConfigurationInfo &config, bool accepted)
	Sends a connection query response message.
virtual void	sendLicRespMsg (int compId, bool runUnlicensed, const MAKRti::DtString &server, int port, bool accepted)
	Sends a license query response message.
virtual void	sendAssistantCommandResponseMsg (int compId, const MAKRti::DtString &formattedData)
	Sends a response to an assistant command message.
virtual void	sendNtfyLvlUpdateMsg (int compId, DtNotifyLevelType notifyLevel)
	Sends a notify level update message.
virtual void	sendLatencyTestRequestMsg (int compId, bool runTest, bool continuous, bool shouldHalt, bool observing, unsigned int interactionPeriod, unsigned int numInteractions, unsigned int payloadBytes, unsigned long federationHandle=0, unsigned long initFedHandle=0)
	Sends an initiate latency test request message.
virtual void	sendNetworkTestEnableMsg (int compId, int federationHdl, bool enable)
	Sends a message enabling or disabling network testing for the given federation.
virtual void	sendLogEnableMsg (int compId, bool enable)
	Sends a logging enable message.
virtual void	sendObserveRtiexecMsg (int compId, bool isObserved, unsigned int timeStateIntervalMs)
	Sends a message to tell an rtiexec that it should either start or stop sending its information.
virtual void	sendObserveRtiexecLogMsg (int connId, bool isObserved)
	Sends a message to tell an rtiexec that it should either start or stop sending its log information.
virtual void	sendObserveRtiForwarderMsg (int compId, bool isObserved, unsigned int timeStateIntervalMs, int defunctRemovalTime)
	Sends a message to tell an RTI Forwarder that it should either start or stop sending its information.
virtual void	sendSingleObserveRtiExecMsg (int compId)
	Sends a message to tell a local rtiExec that it should send its data one time only.
virtual void	sendSingleObserveForwarderMsg (int compId)
	Sends a message to tell a local forwarder that it should send its data one time only.
virtual void	sendFederateResignMsg (int compId, int federationHdl, int federateHdl)
	Sends a force federate resign message to an rtiexec.
virtual void	sendFederationDestroyMsg (int compId, int federationHdl)
	Sends a force federation destroy message to an rtiexec.
virtual void	sendDeleteFederateMsg (int compId, DtU16 fedexHandle, DtU16 fedHandle)
	Sends a message to tell an rtiexec that it shold delete a federate.
virtual void	sendRidParamsRequestMsg (int compId)
	Sends a RID parameter request to an rtiexec.
virtual void	sendLogRequestMsg (int compId, unsigned maxLogSize)
	Sends a log request to an rtiexec.
virtual void	sendExitMsg (int compId=-1)
	Sends an exit command message for the specified component, or for all components if none specified.
virtual void	sendDoNotWaitForForwardersMsg (int compId)
	Sends a message to the specified forwarder telling it to proceed without waiting for any more forwarders to connect.
virtual void	forwardMsg (const DtAssistantMsg &msg)
	Forwards a message from a remote assistant to the local component that is its final destination.
virtual void	sendSignalTickIntervalMsg (int compId, float signalTickInterval)
	sends the signal tick interval
virtual int	currentCompId () const
	Returns the component ID from which the current message being processed was received, or -1 if there is no such message.
virtual void	closeConn (int compId)
	Close the connection with the given component ID.
virtual int	port () const
	Returns the Assistant server port.
virtual DtU32	maxMsgSize () const
	Gets the maximum message size.
Static Public Member Functions
static void	tcpSocketAdditionCb (DtTcpMsgSocket sock, void usr)
	Callbacks on addition/removal of TCP sockets.
static void	tcpSocketRemovalCb (DtTcpMsgSocket sock, void usr)
Protected Types
typedef std::map< int, DtTcpMsgSocket * >	CompIdToSocketMap
	Maps of the connections and component IDs.
typedef std::map < DtTcpMsgSocket *, int >	SocketToCompIdMap
Protected Member Functions
virtual void	sendMsg (DtTcpMsgSocket *sock, const DtAssistantMsg &msg)
	Sends the message over the specified socket.
virtual void	testConnections ()
	Verify connection status and mark bad connections for removal.
virtual bool	readAndProcess (DtTime maxTimePerSocket)
	Make a single pass over the socket list allocating up to max.
virtual void	tcpSocketAdditionCb (DtTcpMsgSocket *sock)
	Callbacks on addition/removal of TCP sockets.
virtual void	tcpSocketRemovalCb (DtTcpMsgSocket *sock)
virtual std::auto_ptr < DtAssistantMsg >	netRead (DtTcpMsgSocket sock, int retCode) const
	Read a message from a socket.
virtual void	setMsgFactory (DtAssistantMessageFactory *fact)
	Get/Set the message factory .
virtual DtAssistantMessageFactory *	msgFactory () const
Protected Attributes
SocketToCompIdMap	myIdsByConnection
	Map of component IDs by connection.
CompIdToSocketMap	myConnectionsById
	Map of connections by component ID.
int	myNextCompId
	Next component ID to use.
DtAssistantMessageFactory *	myMessageFactory
	The message factory.
DtAssistantDfltMsgFactory	myDefaultMessageFactory
	Default message factory.
DtTcpMsgSocket *	myCurrentSocket
	The socket on which the current message being processed was received.
unsigned int	myPort
	Port to which RTI components may connect.
DtClock	myClock
	Clock for timeouts.
DtTime	myConnTestInterval
	Interval at which connections should be tested.
DtTime	myTimeToTestConnections
	Next time to test connections.
std::auto_ptr< DtTcpMsgSocketMgr >	mySocketMgr
	Manager for the sockets.
std::list< DtTcpMsgSocket * >	mySocketsToDisconnect
	List of sockets to be disconnected before next read.
DtAssistantMsgCbMgr	myMsgCbMgr
	Message callback manager.
std::map< int, MAKRti::DtString >	myDisconnectReasons
	List of reasons for socket disconnects.
DtAssistantSocketAdditionCallbackList	myAdditionCallbacks
	Lists of pointers to socket addition and socket removal callbacks.
DtAssistantSocketRemovalCallbackList	myRemovalCallbacks
unsigned	myNumMsgsSent
	Total messages sent.
unsigned	myNumMsgsReceived
	Total messages received.
Private Member Functions
	DtRtiAssistantServer (const DtRtiAssistantServer &)
	Copy and Assignment unimplemented.
DtRtiAssistantServer &	operator= (const DtRtiAssistantServer &)

Detailed Description

Manages the server connections of the RTI Assistant.

DtRtiAssistantServer manages the connections of the RTI Assistant. It also provides methods for packaging and sending messages to the connected RTI components.

Member Typedef Documentation

typedef std::map< int, DtTcpMsgSocket* > DtRtiAssistantServer::CompIdToSocketMap [protected]

Maps of the connections and component IDs.

typedef std::map< DtTcpMsgSocket*, int > DtRtiAssistantServer::SocketToCompIdMap [protected]

Constructor & Destructor Documentation

DtRtiAssistantServer::DtRtiAssistantServer	(	DtNotifyLevelType	level,
		int	port = `DtASSISTANT_DEFAULT_PORT`,
		const MAKRti::DtInetAddr &	networkInterface = `MAKRti::DtInetAddr()`
	)

Constructor, networkInterface defaults to INADDR_ANY.

References myPort, mySocketMgr, tcpSocketAdditionCb(), and tcpSocketRemovalCb().

DtRtiAssistantServer::~DtRtiAssistantServer ( ) [virtual]

Destructor.

References mySocketMgr, tcpSocketAdditionCb(), and tcpSocketRemovalCb().

DtRtiAssistantServer::DtRtiAssistantServer ( const DtRtiAssistantServer & ) [private]

Copy and Assignment unimplemented.

Member Function Documentation

void DtRtiAssistantServer::addMsgCallback	(	DtAssistantMsgKind	msgKind,
		DtAssistantMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr
	)		`[virtual]`

Message Callbacks These callback functions operate on all of the connections.

References myMsgCbMgr.

void DtRtiAssistantServer::addSocketAdditionCallback	(	DtAssistantSocketAdditionCb	cb,
		void *	usr
	)		`[virtual]`

These functions add callbacks for notification of the addition or removal of Assistant socket connections.

References myAdditionCallbacks.

void DtRtiAssistantServer::addSocketRemovalCallback	(	DtAssistantSocketRemovalCb	cb,
		void *	usr
	)		`[virtual]`

References myRemovalCallbacks.

void DtRtiAssistantServer::addWildcardMsgCallback	(	DtAssistantMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr
	)		`[virtual]`

References myMsgCbMgr.

void DtRtiAssistantServer::closeConn ( int compId ) [virtual]

Close the connection with the given component ID.

References myConnectionsById, and mySocketsToDisconnect.

Referenced by readAndProcess().

int DtRtiAssistantServer::currentCompId ( ) const [virtual]

Returns the component ID from which the current message being processed was received, or -1 if there is no such message.

References myCurrentSocket, and myIdsByConnection.

Referenced by readAndProcess().

void DtRtiAssistantServer::forwardMsg ( const DtAssistantMsg & msg ) [virtual]

Forwards a message from a remote assistant to the local component that is its final destination.

References DtAssistantMsg::compId(), DtAssistantMsg::isAssistantToAssistantMessage(), and sendMsgOnConn().

bool DtRtiAssistantServer::isOk ( ) const

Returns true if the server was successfully started.

References mySocketMgr.

DtU32 DtRtiAssistantServer::maxMsgSize ( ) const [virtual]

Gets the maximum message size.

References mySocketMgr.

std::auto_ptr< DtAssistantMsg > DtRtiAssistantServer::netRead	(	DtTcpMsgSocket *	sock,
		int *	retCode
	)		const `[protected, virtual]`

Read a message from a socket.

References DtASSISTANT_BUFFER_TOO_SMALL, DtASSISTANT_INVALID_VERSION, DtASSISTANT_READ_BAD_PACKET, DtASSISTANT_READ_FILTERED_PACKET, DtASSISTANT_READ_NO_PACKETS, DtASSISTANT_READ_SIZE_MISMATCH, DtASSISTANT_READ_SUCCESS, DtASSISTANT_UNKNOWN_ERROR, DtAssistantMessageVersion, DtAssistantMsg::isOk(), DtAssistantMsg::kindToString(), msgFactory(), and DtTcpMsgSocket::recvMessage().

Referenced by readAndProcess().

unsigned int DtRtiAssistantServer::numConnections ( ) const [virtual]

Return the number of current RTI component connections.

References myIdsByConnection.

DtRtiAssistantServer& DtRtiAssistantServer::operator= ( const DtRtiAssistantServer & ) [private]

int DtRtiAssistantServer::port ( ) const [virtual]

Returns the Assistant server port.

References myPort.

bool DtRtiAssistantServer::readAndProcess ( DtTime maxTimePerSocket ) [protected, virtual]

Make a single pass over the socket list allocating up to max.

time per socket to each.

References closeConn(), currentCompId(), DtASSISTANT_INVALID_VERSION, DtASSISTANT_READ_NO_PACKETS, DtASSISTANT_READ_SUCCESS, DtAssistantConnMsgKind, DtTcpMsgSocket::inetTcpSocket(), DtTcpMsgSocket::isConnected(), DtAssistantMsg::kindToString(), msgFactory(), DtAssistantMsg::msgKind(), myClock, myCurrentSocket, myDisconnectReasons, myMsgCbMgr, myNumMsgsReceived, mySocketMgr, mySocketsToDisconnect, netRead(), sendMsg(), and DtAssistantConnMsg::setDisconnect().

Referenced by tick().

void DtRtiAssistantServer::removeMsgCallback	(	DtAssistantMsgKind	msgKind,
		DtAssistantMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr
	)		`[virtual]`

References myMsgCbMgr.

void DtRtiAssistantServer::removeSocketAdditionCallback	(	DtAssistantSocketAdditionCb	cb,
		void *	usr
	)		`[virtual]`

References myAdditionCallbacks, DtAssistantSocketAdditionCbInfo::myCb, and DtAssistantSocketAdditionCbInfo::myUsr.

void DtRtiAssistantServer::removeSocketRemovalCallback	(	DtAssistantSocketRemovalCb	cb,
		void *	usr
	)		`[virtual]`

References DtAssistantSocketRemovalCbInfo::myCb, myRemovalCallbacks, and DtAssistantSocketRemovalCbInfo::myUsr.

void DtRtiAssistantServer::removeWildcardMsgCallback	(	DtAssistantMsgCbMgr::DtCallbackFcn	fcn,
		void *	usr
	)		`[virtual]`

References myMsgCbMgr.

void DtRtiAssistantServer::sendAssistantCommandResponseMsg	(	int	compId,
		const MAKRti::DtString &	formattedData
	)		`[virtual]`

Sends a response to an assistant command message.

References DtAssistantCommandMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantCommandMsg::setMessageString().

void DtRtiAssistantServer::sendBroadcast ( const DtAssistantMsg & msg ) [virtual]

Send the message over the all connections.

References DtAssistantMsg::kindToString(), DtAssistantMsg::msgKind(), myNumMsgsSent, mySocketMgr, and sendMsg().

Referenced by sendExitMsg().

void DtRtiAssistantServer::sendConnMsg	(	int	compId,
		bool	disconnect = `false`,
		const MAKRti::DtString &	display = `MAKRti::DtString::nullString()`
	)		`[virtual]`

Sends a component ID back to a connecting component.

References DtAssistantConnMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantConnMsg::setDisconnect(), and DtAssistantConnMsg::setDisplay().

void DtRtiAssistantServer::sendConnRespMsg	(	int	compId,
		const DtRtiConnectionInfoDataPair &	conn,
		const DtRtiConnectionConfigurationInfo &	config,
		bool	accepted
	)		`[virtual]`

Sends a connection query response message.

References DtAssistantConnQueryMsgKind, DtRtiConnectionConfigurationInfo::forceFullCompliance(), msgFactory(), sendMsgOnConn(), DtAssistantConnQueryMsg::setForwardingParameters(), and DtAssistantConnQueryMsg::setLRCParameters().

void DtRtiAssistantServer::sendDeleteFederateMsg	(	int	compId,
		DtU16	fedexHandle,
		DtU16	fedHandle
	)		`[virtual]`

Sends a message to tell an rtiexec that it shold delete a federate.

References DtAssistantDeleteFederateMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantDeleteFederateMsg::setFederateHandle(), and DtAssistantDeleteFederateMsg::setFederationHandle().

void DtRtiAssistantServer::sendDoNotWaitForForwardersMsg ( int compId ) [virtual]

Sends a message to the specified forwarder telling it to proceed without waiting for any more forwarders to connect.

References DtAssistantAwaitingForwardersMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantAwaitingForwardersMsg::setIsWaitingForForwarders().

void DtRtiAssistantServer::sendExitMsg ( int compId = -1 ) [virtual]

Sends an exit command message for the specified component, or for all components if none specified.

References DtAssistantExitMsgKind, msgFactory(), sendBroadcast(), and sendMsgOnConn().

void DtRtiAssistantServer::sendFederateResignMsg	(	int	compId,
		int	federationHdl,
		int	federateHdl
	)		`[virtual]`

Sends a force federate resign message to an rtiexec.

References DtAssistantDeleteFederateMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantDeleteFederateMsg::setFederateHandle(), and DtAssistantDeleteFederateMsg::setFederationHandle().

void DtRtiAssistantServer::sendFederationDestroyMsg	(	int	compId,
		int	federationHdl
	)		`[virtual]`

Sends a force federation destroy message to an rtiexec.

References DtAssistantDeleteFederationMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantDeleteFederationMsg::setFederationHandle().

void DtRtiAssistantServer::sendLatencyTestRequestMsg	(	int	compId,
		bool	runTest,
		bool	continuous,
		bool	shouldHalt,
		bool	observing,
		unsigned int	interactionPeriod,
		unsigned int	numInteractions,
		unsigned int	payloadBytes,
		unsigned long	federationHandle = `0`,
		unsigned long	initFedHandle = `0`
	)		`[virtual]`

Sends an initiate latency test request message.

Federation and initiating federate handles are only needed when recipient is an rtiexec.

void DtRtiAssistantServer::sendLicRespMsg	(	int	compId,
		bool	runUnlicensed,
		const MAKRti::DtString &	server,
		int	port,
		bool	accepted
	)		`[virtual]`

Sends a license query response message.

References DtAssistantLicQueryMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantLicQueryMsg::setAccepted(), DtAssistantLicQueryMsg::setLicenseServerName(), DtAssistantLicQueryMsg::setPort(), and DtAssistantLicQueryMsg::setUnlicensed().

void DtRtiAssistantServer::sendLogEnableMsg	(	int	compId,
		bool	enable
	)		`[virtual]`

Sends a logging enable message.

References DtAssistantLogEnableMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantLogEnableMsg::setEnable().

void DtRtiAssistantServer::sendLogRequestMsg	(	int	compId,
		unsigned	maxLogSize
	)		`[virtual]`

Sends a log request to an rtiexec.

The response will contain either the entire rtiexec log, or at most recent maxLogSize bytes.

References DtAssistantLogRequestMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantLogRequestMsg::setMaxLogSize().

void DtRtiAssistantServer::sendMsg	(	DtTcpMsgSocket *	sock,
		const DtAssistantMsg &	msg
	)		`[protected, virtual]`

Sends the message over the specified socket.

References myNumMsgsSent, and DtTcpMsgSocket::sendMessage().

Referenced by readAndProcess(), sendBroadcast(), and sendMsgOnConn().

void DtRtiAssistantServer::sendMsgOnConn	(	int	compId,
		const DtAssistantMsg &	msg
	)		`[virtual]`

void DtRtiAssistantServer::sendNetworkTestEnableMsg	(	int	compId,
		int	federationHdl,
		bool	enable
	)		`[virtual]`

Sends a message enabling or disabling network testing for the given federation.

References DtAssistantNetworkTestEnableMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantNetworkTestEnableMsg::setEnableTesting(), and DtAssistantNetworkTestEnableMsg::setFederationHandle().

void DtRtiAssistantServer::sendNtfyLvlUpdateMsg	(	int	compId,
		DtNotifyLevelType	notifyLevel
	)		`[virtual]`

Sends a notify level update message.

References DtAssistantNtfyLvlUpdateMsgKind, msgFactory(), sendMsgOnConn(), and DtAssistantNtfyLvlUpdateMsg::setNotifyLevel().

void DtRtiAssistantServer::sendObserveRtiexecLogMsg	(	int	connId,
		bool	isObserved
	)		`[virtual]`

Sends a message to tell an rtiexec that it should either start or stop sending its log information.

References DtAssistantStateObserveFederationsOrRtiexec, DtAssistantStateObserveMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantStateObserveMsg::setIsLogRequest(), DtAssistantStateObserveMsg::setIsObserved(), DtAssistantStateObserveMsg::setIsSingleView(), DtAssistantStateObserveMsg::setTargetType(), and DtAssistantStateObserveMsg::setTimeStateUpdateInterval().

void DtRtiAssistantServer::sendObserveRtiexecMsg	(	int	compId,
		bool	isObserved,
		unsigned int	timeStateIntervalMs
	)		`[virtual]`

Sends a message to tell an rtiexec that it should either start or stop sending its information.

References DtAssistantStateObserveFederationsOrRtiexec, DtAssistantStateObserveMsgKind, msgFactory(), sendMsgOnConn(), DtAssistantStateObserveMsg::setIsLogRequest(), DtAssistantStateObserveMsg::setIsObserved(), DtAssistantStateObserveMsg::setIsSingleView(), DtAssistantStateObserveMsg::setTargetType(), and DtAssistantStateObserveMsg::setTimeStateUpdateInterval().

void DtRtiAssistantServer::sendObserveRtiForwarderMsg	(	int	compId,
		bool	isObserved,
		unsigned int	timeStateIntervalMs,
		int	defunctRemovalTime
	)		`[virtual]`
