DtTestInteraction holds the data needed to send a test interaction An instance of this interaction be used to both send and receive interaction data. More...

Inheritance diagram for DtTestInteraction:

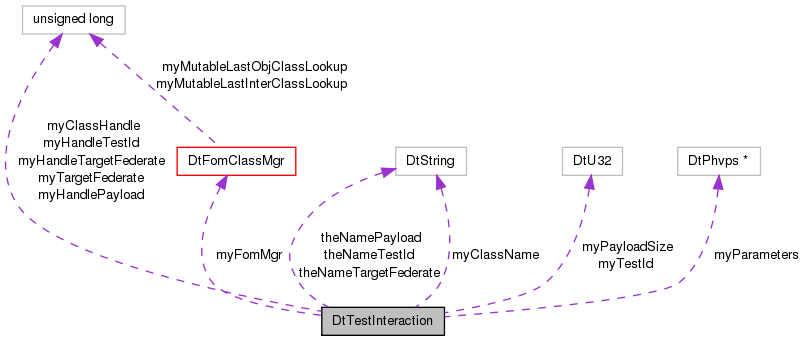

Collaboration diagram for DtTestInteraction:

List of all members.

Public Member Functions
	DtTestInteraction (DtFomClassMgr *fomMgr, MAKRti::DtString className)
	Constructor.
virtual	~DtTestInteraction ()
	Destructor.
virtual const MAKRti::DtString &	className () const
	Return the interaction class name.
virtual DtInteractionClassHandle	classHandle () const
	Return the interaction class handle.
virtual const DtPhvps &	parameters ()=0
	Return the parameter handle value pair set Calling this accessor results in the encoding of member data into the PHVPS.
virtual bool	setFromParameters (const DtPhvps &phvps)=0
	Initialize this interaction using the given parameters Return true if parameters were set successfully.
virtual DtFederateHandle	targetFederate () const
	get interaction target federate handle parameter
virtual void	setTargetFederate (DtFederateHandle handle)
	set interaction target federate handle parameter
virtual void	setTransportType (MAKRti::DtTransportType transport)
	set transport of parameters.
virtual void	setPayloadSize (unsigned int payload)
	Set payload size.
virtual unsigned int	payloadSize () const
	Get payload size.
virtual MAKRti::DtU32	testId () const
	get test id parameter
virtual void	setTestId (unsigned int id)
	set test id parameter
Static Public Attributes

static const MAKRti::DtString	theNameTargetFederate
	Parameter name.
static const MAKRti::DtString	theNameTestId
	Parameter name.
static const MAKRti::DtString	theNamePayload
	Parameter name.
Protected Member Functions
virtual void	encodeTargetFederate ()
	Encode target federate value into PHVPS.
virtual void	encodeTestId ()
	Encode test id value into PHVPS.
virtual void	encodePayload ()
	Encode payload into phvps.
virtual bool	decodeTargetFederate (const DtPhvps &parameters, int index)
	Decode target federate from given parameters into this interaction Return true if decoded successfully.
virtual bool	decodeTestId (const DtPhvps &parameters, int index)
	Decode test id from given parameters into this interaction Return true if decoded successfully.
virtual bool	decodePayload (const DtPhvps &parameters, int index)
	Decode payload from given parameters into this interaction Returns true if decoded successfully.
Static Protected Member Functions
static bool	decodeU32 (const DtPhvps &parameters, int index, MAKRti::DtU32 &value)
	Decode a 32 bit unsigned int from the given PHVPS Return true if decoded successfully.
static bool	decodeU64 (const DtPhvps &parameters, int index, MAKRti::DtU64 &value)
	Decode a 64 bit unsigned int from the given PHVPS Return true if decoded successfully.
Protected Attributes
DtFomClassMgr *	myFomMgr
MAKRti::DtString	myClassName
DtInteractionClassHandle	myClassHandle
DtPhvps *	myParameters

DtParameterHandle	myHandleTargetFederate
	Parameter handle.
DtParameterHandle	myHandleTestId
	Parameter handle.
DtParameterHandle	myHandlePayload
	Parameter handle.

DtFederateHandle	myTargetFederate
	Parameter value.
MAKRti::DtU32	myTestId
	Parameter value.
MAKRti::DtU32	myPayloadSize
	Parameter value.
Private Member Functions
	DtTestInteraction (DtTestInteraction const &orig)
	Copy Constructor - not allowed.
DtTestInteraction &	operator= (DtTestInteraction const &orig)
	Assignment operator - not allowed.

Detailed Description

DtTestInteraction holds the data needed to send a test interaction An instance of this interaction be used to both send and receive interaction data.

To send data, the parameter values are set using accessors and the parameter handle value pair set (PHVPS) can then be accessed. To receive data, a PHVPS is given to the interaction and the values are decoded into the interaction's data members.

Constructor & Destructor Documentation

DtTestInteraction::DtTestInteraction	(	DtFomClassMgr *	fomMgr,
		MAKRti::DtString	className
	)

Constructor.

References DtInteractionClassInfo::handle(), DtFomClassMgr::interactionByName(), myClassHandle, myClassName, myFomMgr, myHandlePayload, myHandleTargetFederate, myHandleTestId, myParameters, DtInteractionClassInfo::numParameters(), DtInteractionClassInfo::paramHandle(), theNamePayload, theNameTargetFederate, and theNameTestId.

DtTestInteraction::~DtTestInteraction ( ) [virtual]

Destructor.

References myParameters.

DtTestInteraction::DtTestInteraction ( DtTestInteraction const & orig ) [private]

Copy Constructor - not allowed.

Member Function Documentation

DtInteractionClassHandle DtTestInteraction::classHandle ( ) const [virtual]

Return the interaction class handle.

References myClassHandle.

Referenced by DtTestManager::isTestInteractionClassHandle(), DtTestManager::postJoinInit(), DtTestManager::resign(), DtTestManager::sendInteraction(), and DtTestManager::sendSingleLatencyInteraction().

const MAKRti::DtString & DtTestInteraction::className ( ) const [virtual]

Return the interaction class name.

References myClassName.

bool DtTestInteraction::decodePayload	(	const DtPhvps &	parameters,
		int	index
	)		`[protected, virtual]`

Decode payload from given parameters into this interaction Returns true if decoded successfully.

References myPayloadSize.

Referenced by DtLatencyTestInteraction::setFromParameters().

bool DtTestInteraction::decodeTargetFederate	(	const DtPhvps &	parameters,
		int	index
	)		`[protected, virtual]`

Decode target federate from given parameters into this interaction Return true if decoded successfully.

References decodeU32(), and myTargetFederate.

Referenced by DtLatencyTestInteraction::setFromParameters().

bool DtTestInteraction::decodeTestId	(	const DtPhvps &	parameters,
		int	index
	)		`[protected, virtual]`

Decode test id from given parameters into this interaction Return true if decoded successfully.

References decodeU32(), and myTestId.

Referenced by DtLatencyTestInteraction::setFromParameters().

bool DtTestInteraction::decodeU32	(	const DtPhvps &	parameters,
		int	index,
		MAKRti::DtU32 &	value
	)		`[static, protected]`

Decode a 32 bit unsigned int from the given PHVPS Return true if decoded successfully.

Referenced by decodeTargetFederate(), and decodeTestId().

bool DtTestInteraction::decodeU64	(	const DtPhvps &	parameters,
		int	index,
		MAKRti::DtU64 &	value
	)		`[static, protected]`

Decode a 64 bit unsigned int from the given PHVPS Return true if decoded successfully.

void DtTestInteraction::encodePayload ( ) [protected, virtual]

Encode payload into phvps.

References myHandlePayload, myParameters, and myPayloadSize.

Referenced by DtLatencyTestInteraction::parameters().

void DtTestInteraction::encodeTargetFederate ( ) [protected, virtual]

Encode target federate value into PHVPS.

References myHandleTargetFederate, myParameters, and myTargetFederate.

Referenced by DtLatencyTestInteraction::parameters().

void DtTestInteraction::encodeTestId ( ) [protected, virtual]

Encode test id value into PHVPS.

References myHandleTestId, myParameters, and myTestId.

Referenced by DtLatencyTestInteraction::parameters().

DtTestInteraction& DtTestInteraction::operator= ( DtTestInteraction const & orig ) [private]

Assignment operator - not allowed.

virtual const DtPhvps& DtTestInteraction::parameters ( ) [pure virtual]

Return the parameter handle value pair set Calling this accessor results in the encoding of member data into the PHVPS.

Implemented in DtLatencyTestInteraction.

unsigned int DtTestInteraction::payloadSize ( ) const [virtual]

Get payload size.

References myPayloadSize.

Referenced by DtTestManager::receiveInteraction(), and DtTestManager::sendSingleLatencyInteraction().

virtual bool DtTestInteraction::setFromParameters ( const DtPhvps & phvps ) [pure virtual]

Initialize this interaction using the given parameters Return true if parameters were set successfully.

Implemented in DtLatencyTestInteraction.

void DtTestInteraction::setPayloadSize ( unsigned int payload ) [virtual]

Set payload size.

References myPayloadSize.

Referenced by DtTestManager::sendSingleLatencyInteraction().

void DtTestInteraction::setTargetFederate ( DtFederateHandle handle ) [virtual]

set interaction target federate handle parameter

References myTargetFederate.

Referenced by DtTestManager::sendSingleLatencyInteraction().

void DtTestInteraction::setTestId ( unsigned int id ) [virtual]

set test id parameter

References myTestId.

Referenced by DtTestManager::receiveInteraction(), and DtTestManager::sendSingleLatencyInteraction().

void DtTestInteraction::setTransportType ( MAKRti::DtTransportType transport ) [virtual]

set transport of parameters.

References myParameters.

Referenced by DtTestManager::receiveInteraction(), and DtTestManager::sendSingleLatencyInteraction().

DtFederateHandle DtTestInteraction::targetFederate ( ) const [virtual]

get interaction target federate handle parameter

References myTargetFederate.

Referenced by DtTestManager::receiveInteraction().

MAKRti::DtU32 DtTestInteraction::testId ( ) const [virtual]

get test id parameter

References myTestId.

Referenced by DtTestManager::receiveInteraction().

Member Data Documentation

DtInteractionClassHandle DtTestInteraction::myClassHandle [protected]

Referenced by classHandle(), and DtTestInteraction().

MAKRti::DtString DtTestInteraction::myClassName [protected]

Referenced by className(), and DtTestInteraction().

DtFomClassMgr* DtTestInteraction::myFomMgr [protected]

Referenced by DtTestInteraction().

DtParameterHandle DtTestInteraction::myHandlePayload [protected]

Parameter handle.

Referenced by DtTestInteraction(), encodePayload(), and DtLatencyTestInteraction::setFromParameters().

DtParameterHandle DtTestInteraction::myHandleTargetFederate [protected]

Parameter handle.

Referenced by DtTestInteraction(), encodeTargetFederate(), and DtLatencyTestInteraction::setFromParameters().

DtParameterHandle DtTestInteraction::myHandleTestId [protected]

Parameter handle.

Referenced by DtTestInteraction(), encodeTestId(), and DtLatencyTestInteraction::setFromParameters().

DtPhvps* DtTestInteraction::myParameters [protected]

Referenced by DtTestInteraction(), encodePayload(), encodeTargetFederate(), encodeTestId(), DtLatencyTestInteraction::parameters(), setTransportType(), and ~DtTestInteraction().

MAKRti::DtU32 DtTestInteraction::myPayloadSize [protected]

Parameter value.

Referenced by decodePayload(), encodePayload(), payloadSize(), and setPayloadSize().

DtFederateHandle DtTestInteraction::myTargetFederate [protected]

Parameter value.

Referenced by decodeTargetFederate(), encodeTargetFederate(), setTargetFederate(), and targetFederate().

MAKRti::DtU32 DtTestInteraction::myTestId [protected]

Parameter value.

Referenced by decodeTestId(), encodeTestId(), setTestId(), and testId().

const MAKRti::DtString DtTestInteraction::theNamePayload [static]

Parameter name.

Referenced by addTestToFom(), and DtTestInteraction().

const MAKRti::DtString DtTestInteraction::theNameTargetFederate [static]

Parameter name.

Referenced by addTestToFom(), and DtTestInteraction().

const MAKRti::DtString DtTestInteraction::theNameTestId [static]

Parameter name.

Referenced by addTestToFom(), and DtTestInteraction().

The documentation for this class was generated from the following files:
