rtiSimple1516 Class Reference

simple test federate for evolved java bindings code ported from rtiSimple1516 More...

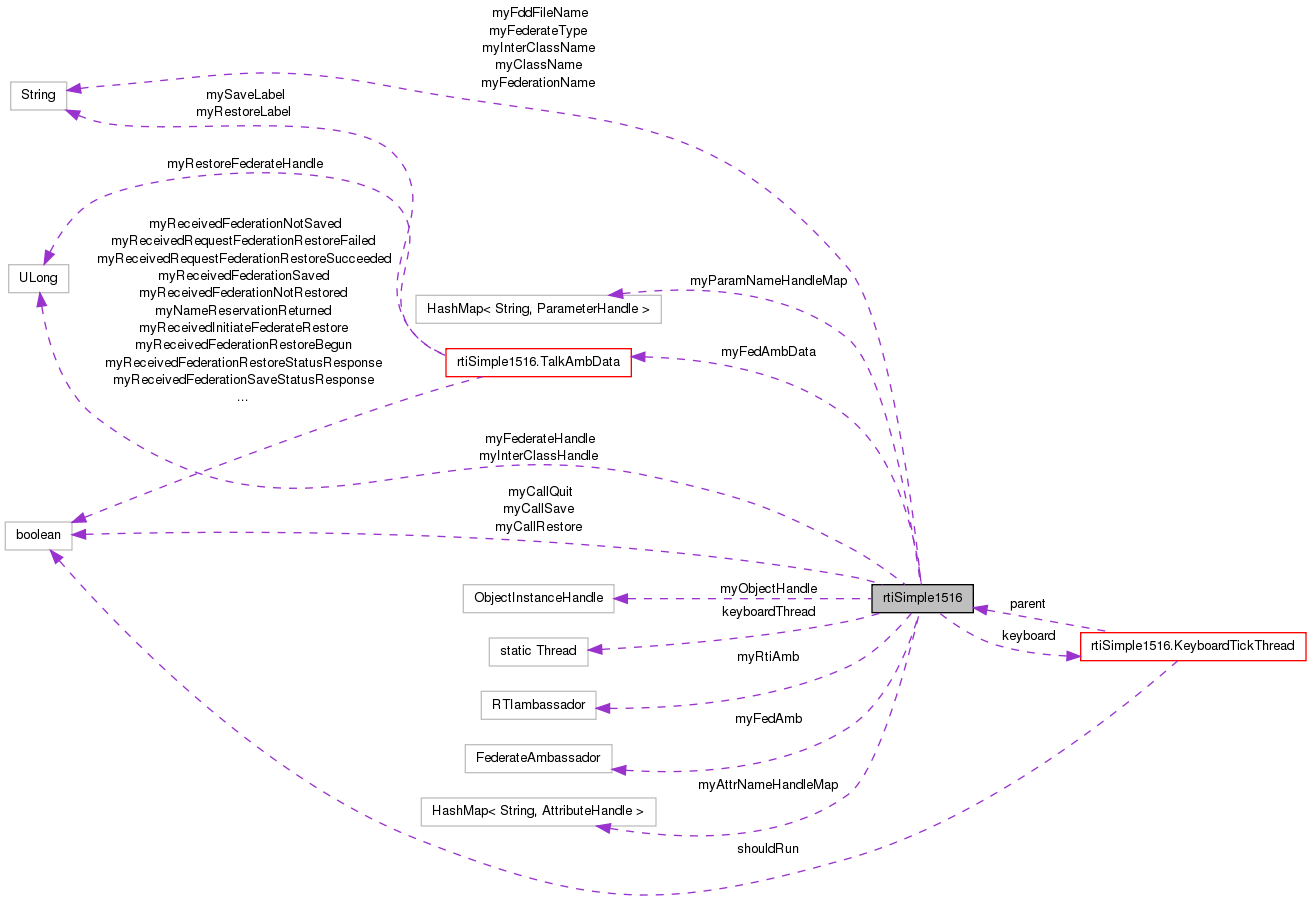

Collaboration diagram for rtiSimple1516:

List of all members.

Classes
class	KeyboardTickThread
class	SimpleFederateAmbassador
	A basic Federate Ambassador implementation. More...
class	TalkAmbData
	Simple data structure to provide communication between the main() and the FederateAmbassador. More...
Public Member Functions
	rtiSimple1516 () throws RTIinternalError
	Creates a new instance of rtiSimple1516.
void	createFedEx () throws RTIexception, java.net.MalformedURLException
void	joinFedEx () throws RTIexception, java.net.MalformedURLException
void	resignAndDestroyFedEx () throws RTIexception
void	queryFederationSaveStatus () throws RTIexception
boolean	requestFederationSave (String label) throws RTIexception
boolean	waitForFederationSaved () throws RTIexception
boolean	saveFederation (String label, boolean performRequest) throws RTIexception
void	queryRestoreStatus () throws RTIexception
boolean	requestFederationRestore (String label) throws RTIexception
boolean	waitForRestoreBegun () throws RTIexception
boolean	waitForInitiateRestore () throws RTIexception
boolean	waitForFederationRestored () throws RTIexception
boolean	restoreFederation (String label, boolean performRequest) throws RTIexception
boolean	publishSubscribeAndRegisterObject () throws RTIexception
boolean	publishAndSubscribeInteraction () throws RTIexception
void	evokeCallbacks (double min, double max) throws RTIexception
AttributeHandleValueMapFactory	getAttributeHandleValueMapFactory () throws FederateNotExecutionMember, RTIinternalError
ParameterHandleValueMapFactory	getParameterHandleValueMapFactory () throws FederateNotExecutionMember, RTIinternalError
void	callQuit ()
void	callSave ()
void	callRestore ()
Static Public Member Functions
static void	main (String[] args)
Public Attributes
RTIambassador	myRtiAmb
TalkAmbData	myFedAmbData
ObjectInstanceHandle	myObjectHandle
InteractionClassHandle	myInterClassHandle
HashMap< String, AttributeHandle >	myAttrNameHandleMap
HashMap< String, ParameterHandle >	myParamNameHandleMap
FederateAmbassador	myFedAmb
FederateHandle	myFederateHandle
String	myFederationName
String	myFddFileName
String	myFederateType
String	myClassName
String	myInterClassName
Static Public Attributes
static boolean	myCallQuit
static boolean	myCallSave
static boolean	myCallRestore
static Thread	keyboardThread
static KeyboardTickThread	keyboard

---

Detailed Description

simple test federate for evolved java bindings code ported from rtiSimple1516

Author:

amerrill

---

Constructor & Destructor Documentation

rtiSimple1516.rtiSimple1516

(

)

throws RTIinternalError [inline]

Creates a new instance of rtiSimple1516.

References myCallQuit, myCallRestore, myCallSave, myClassName, myFddFileName, myFedAmb, myFedAmbData, myFederateType, myFederationName, myInterClassName, and myRtiAmb.

Referenced by main().

---

Member Function Documentation

void rtiSimple1516.callQuit

(

)

[inline]

References myCallQuit.

Referenced by rtiSimple1516.KeyboardTickThread.run().

void rtiSimple1516.callRestore

(

)

[inline]

References myCallRestore.

Referenced by rtiSimple1516.KeyboardTickThread.run().

void rtiSimple1516.callSave

(

)

[inline]

References myCallSave.

Referenced by rtiSimple1516.KeyboardTickThread.run().

void rtiSimple1516.createFedEx

(

)

throws RTIexception, java.net.MalformedURLException [inline]

References myFddFileName, myFederationName, and myRtiAmb.

Referenced by main().

void rtiSimple1516.evokeCallbacks	(	double	min,
		double	max
	)		throws RTIexception [inline]

References myRtiAmb.

Referenced by joinFedEx(), main(), publishAndSubscribeInteraction(), publishSubscribeAndRegisterObject(), queryFederationSaveStatus(), queryRestoreStatus(), requestFederationRestore(), requestFederationSave(), waitForFederationRestored(), waitForFederationSaved(), waitForInitiateRestore(), and waitForRestoreBegun().

AttributeHandleValueMapFactory rtiSimple1516.getAttributeHandleValueMapFactory

(

)

throws FederateNotExecutionMember, RTIinternalError [inline]

References myRtiAmb.

Referenced by main().

ParameterHandleValueMapFactory rtiSimple1516.getParameterHandleValueMapFactory

(

)

throws FederateNotExecutionMember, RTIinternalError [inline]

References myRtiAmb.

Referenced by main().

void rtiSimple1516.joinFedEx

(

)

throws RTIexception, java.net.MalformedURLException [inline]

References evokeCallbacks(), myFedAmb, myFederateHandle, myFederateType, myFederationName, and myRtiAmb.

Referenced by main().

static void rtiSimple1516.main

(

String[]

args

)

[inline, static]

Parameters:

args	the command line arguments

References createFedEx(), evokeCallbacks(), getAttributeHandleValueMapFactory(), getParameterHandleValueMapFactory(), joinFedEx(), keyboardThread, myAttrNameHandleMap, myCallQuit, myCallRestore, myCallSave, myFedAmbData, myInterClassHandle, myObjectHandle, myParamNameHandleMap, rtiSimple1516.TalkAmbData.myReceivedFederationRestoreBegun, rtiSimple1516.TalkAmbData.myReceivedInitiateFederateSave, rtiSimple1516.TalkAmbData.myRestoreLabel, myRtiAmb, rtiSimple1516.TalkAmbData.mySaveLabel, publishAndSubscribeInteraction(), publishSubscribeAndRegisterObject(), resignAndDestroyFedEx(), restoreFederation(), rtiSimple1516(), and saveFederation().

boolean rtiSimple1516.publishAndSubscribeInteraction

(

)

throws RTIexception [inline]

References evokeCallbacks(), myInterClassHandle, myInterClassName, myParamNameHandleMap, and myRtiAmb.

Referenced by main().

boolean rtiSimple1516.publishSubscribeAndRegisterObject

(

)

throws RTIexception [inline]

References evokeCallbacks(), myAttrNameHandleMap, myClassName, myFedAmbData, rtiSimple1516.TalkAmbData.myNameReservationReturned, rtiSimple1516.TalkAmbData.myNameReservationSucceeded, myObjectHandle, and myRtiAmb.

Referenced by main().

void rtiSimple1516.queryFederationSaveStatus

(

)

throws RTIexception [inline]

References evokeCallbacks(), myFedAmbData, rtiSimple1516.TalkAmbData.myFederateHandleSaveStatus, rtiSimple1516.TalkAmbData.myReceivedFederationSaveStatusResponse, and myRtiAmb.

Referenced by requestFederationSave(), and waitForFederationSaved().

void rtiSimple1516.queryRestoreStatus

(

)

throws RTIexception [inline]

References evokeCallbacks(), myFedAmbData, rtiSimple1516.TalkAmbData.myFederateHandleRestoreStatus, rtiSimple1516.TalkAmbData.myReceivedFederationRestoreStatusResponse, and myRtiAmb.

Referenced by requestFederationRestore(), waitForFederationRestored(), waitForInitiateRestore(), and waitForRestoreBegun().

boolean rtiSimple1516.requestFederationRestore

(

String

label

)

throws RTIexception [inline]

References evokeCallbacks(), myFedAmbData, rtiSimple1516.TalkAmbData.myFederateHandleRestoreStatus, rtiSimple1516.TalkAmbData.myReceivedFederationNotRestored, rtiSimple1516.TalkAmbData.myReceivedFederationRestoreBegun, rtiSimple1516.TalkAmbData.myReceivedFederationRestored, rtiSimple1516.TalkAmbData.myReceivedFederationRestoreStatusResponse, rtiSimple1516.TalkAmbData.myReceivedInitiateFederateRestore, rtiSimple1516.TalkAmbData.myReceivedRequestFederationRestoreFailed, rtiSimple1516.TalkAmbData.myReceivedRequestFederationRestoreSucceeded, myRtiAmb, and queryRestoreStatus().

Referenced by restoreFederation().

boolean rtiSimple1516.requestFederationSave

(

String

label

)

throws RTIexception [inline]

References evokeCallbacks(), myFedAmbData, rtiSimple1516.TalkAmbData.myReceivedFederationNotSaved, rtiSimple1516.TalkAmbData.myReceivedFederationSaved, rtiSimple1516.TalkAmbData.myReceivedFederationSaveStatusResponse, rtiSimple1516.TalkAmbData.myReceivedInitiateFederateSave, myRtiAmb, and queryFederationSaveStatus().

Referenced by saveFederation().

void rtiSimple1516.resignAndDestroyFedEx

(

)

throws RTIexception [inline]

References myFederationName, and myRtiAmb.

Referenced by main().

boolean rtiSimple1516.restoreFederation	(	String	label,
		boolean	performRequest
	)		throws RTIexception [inline]

References myFedAmbData, rtiSimple1516.TalkAmbData.myFederateHandleRestoreStatus, rtiSimple1516.TalkAmbData.myReceivedFederationNotRestored, rtiSimple1516.TalkAmbData.myReceivedFederationRestoreBegun, rtiSimple1516.TalkAmbData.myReceivedFederationRestored, rtiSimple1516.TalkAmbData.myReceivedFederationRestoreStatusResponse, rtiSimple1516.TalkAmbData.myReceivedInitiateFederateRestore, rtiSimple1516.TalkAmbData.myReceivedRequestFederationRestoreFailed, rtiSimple1516.TalkAmbData.myReceivedRequestFederationRestoreSucceeded, myRtiAmb, requestFederationRestore(), waitForFederationRestored(), waitForInitiateRestore(), and waitForRestoreBegun().

Referenced by main().

boolean rtiSimple1516.saveFederation	(	String	label,
		boolean	performRequest
	)		throws RTIexception [inline]

References myFedAmbData, rtiSimple1516.TalkAmbData.myReceivedFederationNotSaved, rtiSimple1516.TalkAmbData.myReceivedFederationSaved, rtiSimple1516.TalkAmbData.myReceivedFederationSaveStatusResponse, rtiSimple1516.TalkAmbData.myReceivedInitiateFederateSave, myRtiAmb, requestFederationSave(), and waitForFederationSaved().

Referenced by main().

boolean rtiSimple1516.waitForFederationRestored

(

)

throws RTIexception [inline]

References evokeCallbacks(), myFedAmbData, rtiSimple1516.TalkAmbData.myReceivedFederationNotRestored, rtiSimple1516.TalkAmbData.myReceivedFederationRestored, and queryRestoreStatus().

Referenced by restoreFederation().

boolean rtiSimple1516.waitForFederationSaved

(

)

throws RTIexception [inline]

References evokeCallbacks(), myFedAmbData, rtiSimple1516.TalkAmbData.myReceivedFederationNotSaved, rtiSimple1516.TalkAmbData.myReceivedFederationSaved, and queryFederationSaveStatus().

Referenced by saveFederation().

boolean rtiSimple1516.waitForInitiateRestore

(

)

throws RTIexception [inline]

References evokeCallbacks(), myFedAmbData, myFederateHandle, rtiSimple1516.TalkAmbData.myReceivedFederationNotRestored, rtiSimple1516.TalkAmbData.myReceivedInitiateFederateRestore, rtiSimple1516.TalkAmbData.myRestoreFederateHandle, myRtiAmb, and queryRestoreStatus().

Referenced by restoreFederation().

boolean rtiSimple1516.waitForRestoreBegun

(

)

throws RTIexception [inline]

References evokeCallbacks(), myFedAmbData, rtiSimple1516.TalkAmbData.myReceivedFederationNotRestored, rtiSimple1516.TalkAmbData.myReceivedFederationRestoreBegun, and queryRestoreStatus().

Referenced by restoreFederation().

---

Member Data Documentation

KeyboardTickThread rtiSimple1516.keyboard [static]

Thread rtiSimple1516.keyboardThread [static]

Referenced by main().

HashMap<String, AttributeHandle> rtiSimple1516.myAttrNameHandleMap

Referenced by main(), and publishSubscribeAndRegisterObject().

boolean rtiSimple1516.myCallQuit [static]

Referenced by callQuit(), main(), and rtiSimple1516().

boolean rtiSimple1516.myCallRestore [static]

Referenced by callRestore(), main(), and rtiSimple1516().

boolean rtiSimple1516.myCallSave [static]

Referenced by callSave(), main(), and rtiSimple1516().

String rtiSimple1516.myClassName

Referenced by publishSubscribeAndRegisterObject(), and rtiSimple1516().

String rtiSimple1516.myFddFileName

Referenced by createFedEx(), and rtiSimple1516().

FederateAmbassador rtiSimple1516.myFedAmb

Referenced by joinFedEx(), and rtiSimple1516().

TalkAmbData rtiSimple1516.myFedAmbData

Referenced by main(), publishSubscribeAndRegisterObject(), queryFederationSaveStatus(), queryRestoreStatus(), requestFederationRestore(), requestFederationSave(), restoreFederation(), rtiSimple1516(), saveFederation(), waitForFederationRestored(), waitForFederationSaved(), waitForInitiateRestore(), and waitForRestoreBegun().

FederateHandle rtiSimple1516.myFederateHandle

Referenced by joinFedEx(), and waitForInitiateRestore().

String rtiSimple1516.myFederateType

Referenced by joinFedEx(), and rtiSimple1516().

String rtiSimple1516.myFederationName

Referenced by createFedEx(), joinFedEx(), resignAndDestroyFedEx(), and rtiSimple1516().

InteractionClassHandle rtiSimple1516.myInterClassHandle

Referenced by main(), and publishAndSubscribeInteraction().

String rtiSimple1516.myInterClassName

Referenced by publishAndSubscribeInteraction(), and rtiSimple1516().

ObjectInstanceHandle rtiSimple1516.myObjectHandle

Referenced by main(), and publishSubscribeAndRegisterObject().

HashMap<String, ParameterHandle> rtiSimple1516.myParamNameHandleMap

Referenced by main(), and publishAndSubscribeInteraction().

RTIambassador rtiSimple1516.myRtiAmb

Referenced by createFedEx(), evokeCallbacks(), getAttributeHandleValueMapFactory(), getParameterHandleValueMapFactory(), joinFedEx(), main(), publishAndSubscribeInteraction(), publishSubscribeAndRegisterObject(), queryFederationSaveStatus(), queryRestoreStatus(), requestFederationRestore(), requestFederationSave(), resignAndDestroyFedEx(), restoreFederation(), rtiSimple1516(), saveFederation(), and waitForInitiateRestore().

---

The documentation for this class was generated from the following file:

• rtiSimple1516.java
