Processes information on each local RTI component that is connected to this Assistant. More...

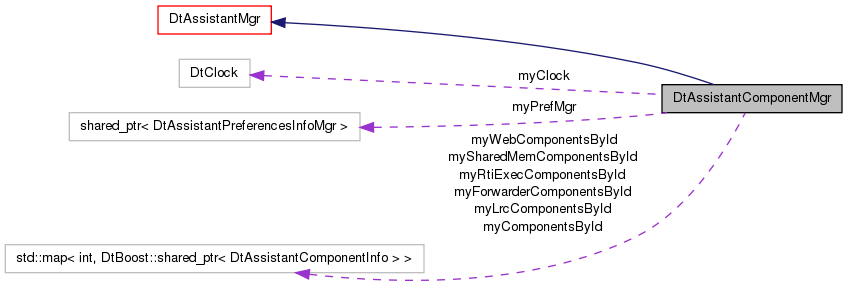

Inheritance diagram for DtAssistantComponentMgr: Collaboration diagram for DtAssistantComponentMgr:Signals | |
| void | localFederateJoined (int compId, const MAKRti::DtString &federateType, const MAKRti::DtString &federateName, unsigned federateHandle, const MAKRti::DtString &federationName, unsigned federationHandle, DtHlaVersionId hlaVersion) |
| Emitted when a local federate joins a federation. | |
| void | localFederateResigned (int compId) |
| Emitted when a local federate resigns from a federation. | |
| void | forwarderHasRtiexec (int compId) |
| Emitted when a local forwarder connects with an rtiexec. | |
| void | forwarderHasNoRtiexec (int compId) |
| Emitted when a local forwarder disconnects with an rtiexec. | |
Component added signals | |
Emitted when a new local RTI component is added | |
| void | lrcComponentAdded (int compId) |
| void | rtiexecComponentAdded (int compId) |
| void | forwarderComponentAdded (int compId) |
| void | webServerComponentAdded (int compId) |
| void | sharedMemComponentAdded (int compId) |
Component removed signals | |
Emitted when a local RTI component is removed | |
| void | lrcComponentRemoved (int compId) |
| void | rtiexecComponentRemoved (int compId) |
| void | forwarderComponentRemoved (int compId) |
| void | webServerComponentRemoved (int compId) |
| void | sharedMemComponentRemoved (int compId) |
Component removed unexpectedly signals | |
Emitted when a local RTI component is removed unexpectedly | |
| void | lrcComponentRemovedUnexpectedly (int compId) |
| void | rtiexecComponentRemovedUnexpectedly (int compId) |
| void | forwarderComponentRemovedUnexpectedly (int compId) |
| void | webServerComponentRemovedUnexpectedly (int compId) |
| void | sharedMemComponentRemovedUnexpectedly (int compId) |
Component renamed signals | |
Emitted when a local RTI component is renamed | |
| void | lrcComponentRenamed (int compId) |
| void | rtiexecComponentRenamed (int compId) |
| void | forwarderComponentRenamed (int compId) |
| void | webServerComponentRenamed (int compId) |
| void | sharedMemComponentRenamed (int compId) |
Component connected signals | |
| void | lrcComponentConnected (int compId) |
| void | rtiexecComponentConnected (int compId) |
| void | forwarderComponentConnected (int compId) |
| void | lrcComponentDisconnected (int compId) |
| void | rtiexecComponentDisconnected (int compId) |
| void | forwarderComponentDisconnected (int compId) |
Component updated signals | |
Emitted when a local RTI component is updated | |
| void | lrcComponentUpdated (int compId) |
| void | rtiexecComponentUpdated (int compId) |
| void | forwarderComponentUpdated (int compId) |
| void | webServerComponentUpdated (int compId) |
| void | sharedMemComponentUpdated (int compId) |
Public Member Functions | |
| DtAssistantComponentMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtBoost::shared_ptr< DtAssistantPreferencesInfoMgr > prefMgr) | |
| Constructor. | |
| virtual | ~DtAssistantComponentMgr () |
| Destructor. | |
| virtual const DtAssistantComponentInfo * | componentInfo (int compId) const |
| Returns a reference to the information for the component with the given component ID. | |
| virtual void | updateComponent (int compId, const DtAssistantComponentInfo &comp) |
| Updates the component with the given ID. | |
| virtual const DtIdToComponentInfoMap & | components () const |
| Returns components the assistant is connected to. | |
| virtual const DtIdToComponentInfoMap & | rtiexecComponents () const |
| Returns rtiexec components the assistant is connected to. | |
| virtual const DtIdToComponentInfoMap & | lrcComponents () const |
| Returns LRC components the assistant is connected to. | |
| virtual const DtIdToComponentInfoMap & | forwarderComponents () const |
| Returns forwarder components the assistant is connected to. | |
| virtual const DtIdToComponentInfoMap & | webServerComponents () const |
| Returns web server components the assistant is connected to. | |
| virtual const DtIdToComponentInfoMap & | sharedMemComponents () const |
| Returns shared memory queue components the assistant is connected to. | |
| virtual MAKRti::DtString | printLocalComponentList () const |
| Print list of local components. | |
| virtual MAKRti::DtString | printFederationList (const DtAssistantExecStateMsg &msg) |
| Print formatted federation info. | |
| virtual MAKRti::DtString | printRtiExecComponentsList (std::map< int, MAKRti::DtString > &data) const |
| Print list of rtiExec Components. | |
| virtual MAKRti::DtString | printForwarderComponentsList (const std::map< int, MAKRti::DtString > &data) const |
| Print list of Forwarder Components. | |
Protected Member Functions | |
| virtual void | processSocketRemoval (int compId, const MAKRti::DtString &reason) |
| Called by the callback function to process the removal of a socket. | |
Static Protected Member Functions | |
| static void | processSocketRemoval (int compId, const MAKRti::DtString &reason, void *usr) |
| Callback to process the removal of a socket connection. | |
Protected Attributes | |
| DtBoost::shared_ptr < DtAssistantPreferencesInfoMgr > | myPrefMgr |
| The manager responsible for maintaining user Assistant preferences. | |
| DtClock | myClock |
| The clock. | |
| DtIdToComponentInfoMap | myComponentsById |
| Map containing the information on all connected components indexed by component ID. | |
| DtIdToComponentInfoMap | myRtiExecComponentsById |
| Map containing the information on all connected components indexed by component ID. | |
| DtIdToComponentInfoMap | myLrcComponentsById |
| Map containing the information on all connected components indexed by component ID. | |
| DtIdToComponentInfoMap | myForwarderComponentsById |
| Map containing the information on all connected components indexed by component ID. | |
| DtIdToComponentInfoMap | myWebComponentsById |
| Map containing the information on all connected components indexed by component ID. | |
| DtIdToComponentInfoMap | mySharedMemComponentsById |
| Map containing the information on all connected components indexed by component ID. | |
Private Member Functions | |
| DtAssistantComponentMgr (DtAssistantComponentMgr const &) | |
| Copy Constructor not implemented -- Copy Not Allowed! | |
| DtAssistantComponentMgr & | operator= (DtAssistantComponentMgr const &) |
| Assignment not implemented -- Assignment Not Allowed! | |
Message Callbacks | |
| static void | processConnMsg (const DtAssistantConnMsg &msg, void *usr) |
| Callback to process a connection update message from a component. | |
| static void | processLrcCompInfoMsg (const DtAssistantLrcCompInfoMsg &msg, void *usr) |
| Callback to process a component information message from an LRC. | |
| static void | processRtiexecCompInfoMsg (const DtAssistantRtiexecCompInfoMsg &msg, void *usr) |
| Callback to process a component information message from an rtiexec. | |
| static void | processRtiForwarderCompInfoMsg (const DtAssistantRtiForwarderCompInfoMsg &msg, void *usr) |
| Callback to process a component information message from an RTI Forwarder. | |
| static void | processWwwCompInfoMsg (const DtAssistantWwwCompInfoMsg &msg, void *usr) |
| Callback to process a component information message from a web spy server. | |
| virtual void | processConnMsg (const DtAssistantConnMsg &msg) |
| Called by the callback function to process connection messages. | |
| virtual void | processNewConnMsg (const DtAssistantConnMsg &msg) |
| Processes a connection message for a new connection. | |
| virtual void | processCloseConnMsg (const DtAssistantConnMsg &msg) |
| Processes a connection message for a connection which is closing. | |
| virtual void | processLrcCompInfoMsg (const DtAssistantLrcCompInfoMsg &msg) |
| Called by the callback function to process LRC component information messages. | |
| virtual void | processRtiexecCompInfoMsg (const DtAssistantRtiexecCompInfoMsg &msg) |
| Called by the callback function to process rtiexec component information messages. | |
| virtual void | processRtiForwarderCompInfoMsg (const DtAssistantRtiForwarderCompInfoMsg &msg) |
| Called by the callback function to process RTI Forwarder component information messages. | |
| virtual void | processWwwCompInfoMsg (const DtAssistantWwwCompInfoMsg &msg) |
| Called by the callback function to process web spy server component information messages. | |
Processes information on each local RTI component that is connected to this Assistant.
This information is stored so that it may be retrieved by other assistant managers as needed. Emits signals to notify other classes when information has been updated.
| DtAssistantComponentMgr::DtAssistantComponentMgr | ( | DtBoost::shared_ptr< DtRtiAssistantServer > | server, |
| DtBoost::shared_ptr< DtRtiAssistantPeer > | peer, | ||
| DtBoost::shared_ptr< DtAssistantPreferencesInfoMgr > | prefMgr | ||
| ) |
Constructor.
References DtAssistantConnMsg::addCallback(), DtAssistantWwwCompInfoMsg::addCallback(), DtAssistantRtiForwarderCompInfoMsg::addCallback(), DtAssistantRtiexecCompInfoMsg::addCallback(), DtAssistantLrcCompInfoMsg::addCallback(), DtAssistantMgr::myServer, processConnMsg(), processLrcCompInfoMsg(), processRtiexecCompInfoMsg(), processRtiForwarderCompInfoMsg(), processSocketRemoval(), and processWwwCompInfoMsg().
| DtAssistantComponentMgr::~DtAssistantComponentMgr | ( | ) | [virtual] |
Destructor.
References DtAssistantMgr::myServer, processConnMsg(), processLrcCompInfoMsg(), processRtiexecCompInfoMsg(), processRtiForwarderCompInfoMsg(), processSocketRemoval(), processWwwCompInfoMsg(), DtAssistantConnMsg::removeCallback(), DtAssistantWwwCompInfoMsg::removeCallback(), DtAssistantRtiForwarderCompInfoMsg::removeCallback(), DtAssistantRtiexecCompInfoMsg::removeCallback(), and DtAssistantLrcCompInfoMsg::removeCallback().
| DtAssistantComponentMgr::DtAssistantComponentMgr | ( | DtAssistantComponentMgr const & | ) | [private] |
Copy Constructor not implemented -- Copy Not Allowed!
| const DtAssistantComponentInfo * DtAssistantComponentMgr::componentInfo | ( | int | compId | ) | const [virtual] |
Returns a reference to the information for the component with the given component ID.
Returns a null pointer if the component could not be found.
References myComponentsById.
| const DtIdToComponentInfoMap & DtAssistantComponentMgr::components | ( | ) | const [virtual] |
Returns components the assistant is connected to.
References myComponentsById.
| void DtAssistantComponentMgr::forwarderComponentAdded | ( | int | compId | ) | [signal] |
Referenced by processNewConnMsg().
| void DtAssistantComponentMgr::forwarderComponentConnected | ( | int | compId | ) | [signal] |
Referenced by processRtiForwarderCompInfoMsg().
| void DtAssistantComponentMgr::forwarderComponentDisconnected | ( | int | compId | ) | [signal] |
Referenced by processCloseConnMsg(), and processSocketRemoval().
| void DtAssistantComponentMgr::forwarderComponentRemoved | ( | int | compId | ) | [signal] |
Referenced by processCloseConnMsg().
| void DtAssistantComponentMgr::forwarderComponentRemovedUnexpectedly | ( | int | compId | ) | [signal] |
Referenced by processSocketRemoval().
| void DtAssistantComponentMgr::forwarderComponentRenamed | ( | int | compId | ) | [signal] |
| const DtIdToComponentInfoMap & DtAssistantComponentMgr::forwarderComponents | ( | ) | const [virtual] |
Returns forwarder components the assistant is connected to.
References myForwarderComponentsById.
| void DtAssistantComponentMgr::forwarderComponentUpdated | ( | int | compId | ) | [signal] |
Referenced by processRtiForwarderCompInfoMsg().
| void DtAssistantComponentMgr::forwarderHasNoRtiexec | ( | int | compId | ) | [signal] |
Emitted when a local forwarder disconnects with an rtiexec.
Referenced by processRtiForwarderCompInfoMsg().
| void DtAssistantComponentMgr::forwarderHasRtiexec | ( | int | compId | ) | [signal] |
Emitted when a local forwarder connects with an rtiexec.
Referenced by processRtiForwarderCompInfoMsg().
| void DtAssistantComponentMgr::localFederateJoined | ( | int | compId, |
| const MAKRti::DtString & | federateType, | ||
| const MAKRti::DtString & | federateName, | ||
| unsigned | federateHandle, | ||
| const MAKRti::DtString & | federationName, | ||
| unsigned | federationHandle, | ||
| DtHlaVersionId | hlaVersion | ||
| ) | [signal] |
Emitted when a local federate joins a federation.
Referenced by processLrcCompInfoMsg().
| void DtAssistantComponentMgr::localFederateResigned | ( | int | compId | ) | [signal] |
Emitted when a local federate resigns from a federation.
Referenced by processCloseConnMsg(), processLrcCompInfoMsg(), and processSocketRemoval().
| void DtAssistantComponentMgr::lrcComponentAdded | ( | int | compId | ) | [signal] |
Referenced by processNewConnMsg().
| void DtAssistantComponentMgr::lrcComponentConnected | ( | int | compId | ) | [signal] |
Referenced by processLrcCompInfoMsg().
| void DtAssistantComponentMgr::lrcComponentDisconnected | ( | int | compId | ) | [signal] |
Referenced by processCloseConnMsg(), processLrcCompInfoMsg(), and processSocketRemoval().
| void DtAssistantComponentMgr::lrcComponentRemoved | ( | int | compId | ) | [signal] |
Referenced by processCloseConnMsg().
| void DtAssistantComponentMgr::lrcComponentRemovedUnexpectedly | ( | int | compId | ) | [signal] |
Referenced by processSocketRemoval().
| void DtAssistantComponentMgr::lrcComponentRenamed | ( | int | compId | ) | [signal] |
Referenced by processLrcCompInfoMsg().
| const DtIdToComponentInfoMap & DtAssistantComponentMgr::lrcComponents | ( | ) | const [virtual] |
Returns LRC components the assistant is connected to.
References myLrcComponentsById.
| void DtAssistantComponentMgr::lrcComponentUpdated | ( | int | compId | ) | [signal] |
Referenced by processLrcCompInfoMsg().
| DtAssistantComponentMgr& DtAssistantComponentMgr::operator= | ( | DtAssistantComponentMgr const & | ) | [private] |
Assignment not implemented -- Assignment Not Allowed!
| MAKRti::DtString DtAssistantComponentMgr::printFederationList | ( | const DtAssistantExecStateMsg & | msg | ) | [virtual] |
Print formatted federation info.
References DtAssistantExecStateMsg::getAllData().
| MAKRti::DtString DtAssistantComponentMgr::printForwarderComponentsList | ( | const std::map< int, MAKRti::DtString > & | data | ) | const [virtual] |
Print list of Forwarder Components.
| MAKRti::DtString DtAssistantComponentMgr::printLocalComponentList | ( | ) | const [virtual] |
Print list of local components.
References myForwarderComponentsById, myLrcComponentsById, myRtiExecComponentsById, mySharedMemComponentsById, and myWebComponentsById.
| MAKRti::DtString DtAssistantComponentMgr::printRtiExecComponentsList | ( | std::map< int, MAKRti::DtString > & | data | ) | const [virtual] |
Print list of rtiExec Components.
References myRtiExecComponentsById.
| void DtAssistantComponentMgr::processCloseConnMsg | ( | const DtAssistantConnMsg & | msg | ) | [protected, virtual] |
Processes a connection message for a connection which is closing.
References DtAssistantForwarderComponent, DtAssistantLrcComponent, DtAssistantRtiexecComponent, DtAssistantShmExecComponent, DtAssistantToAssistantComponent, DtAssistantWwwComponent, forwarderComponentDisconnected(), forwarderComponentRemoved(), localFederateResigned(), lrcComponentDisconnected(), lrcComponentRemoved(), myComponentsById, myForwarderComponentsById, myLrcComponentsById, myRtiExecComponentsById, DtAssistantMgr::myServer, mySharedMemComponentsById, myWebComponentsById, rtiexecComponentDisconnected(), rtiexecComponentRemoved(), sharedMemComponentRemoved(), and webServerComponentRemoved().
Referenced by processConnMsg().
| void DtAssistantComponentMgr::processConnMsg | ( | const DtAssistantConnMsg & | msg, |
| void * | usr | ||
| ) | [static, protected] |
Callback to process a connection update message from a component.
Referenced by DtAssistantComponentMgr(), and ~DtAssistantComponentMgr().
| void DtAssistantComponentMgr::processConnMsg | ( | const DtAssistantConnMsg & | msg | ) | [protected, virtual] |
Called by the callback function to process connection messages.
References DtAssistantConnMsg::isDisconnect(), processCloseConnMsg(), and processNewConnMsg().
| void DtAssistantComponentMgr::processLrcCompInfoMsg | ( | const DtAssistantLrcCompInfoMsg & | msg, |
| void * | usr | ||
| ) | [static, protected] |
Callback to process a component information message from an LRC.
Referenced by DtAssistantComponentMgr(), and ~DtAssistantComponentMgr().
| void DtAssistantComponentMgr::processLrcCompInfoMsg | ( | const DtAssistantLrcCompInfoMsg & | msg | ) | [protected, virtual] |
Called by the callback function to process LRC component information messages.
References DtAssistantLrcCompInfoMsg::bestEffortIpAddress(), DtAssistantLrcCompInfoMsg::commandArgs(), DtAssistantLrcCompInfoMsg::federateHandle(), DtAssistantLrcCompInfoMsg::federateName(), DtAssistantLrcCompInfoMsg::federationHandle(), DtAssistantLrcCompInfoMsg::federationName(), DtAssistantLrcCompInfoMsg::forwarderPort(), DtAssistantLrcCompInfoMsg::fullCompliance(), DtAssistantLrcCompInfoMsg::hlaVersion(), DtAssistantLrcCompInfoMsg::ipAddress(), DtAssistantLrcCompInfoMsg::licServer(), localFederateJoined(), localFederateResigned(), DtAssistantLrcCompInfoMsg::logFilename(), lrcComponentConnected(), lrcComponentDisconnected(), lrcComponentRenamed(), lrcComponentUpdated(), myLrcComponentsById, DtAssistantMgr::myServer, DtAssistantLrcCompInfoMsg::name(), DtAssistantLrcCompInfoMsg::networkInterfaceAddress(), DtAssistantLrcCompInfoMsg::notifyLevel(), DtAssistantLrcCompInfoMsg::processId(), DtAssistantLrcCompInfoMsg::processName(), DtRtiConnectionInfo::setBestEffortIp(), DtRtiConnectionInfo::setForwarderPort(), DtRtiConnectionInfo::setHostName(), DtRtiConnectionInfo::setNetworkInterfaceAddr(), DtRtiConnectionInfo::setReliableIp(), DtRtiConnectionInfo::setTcpPort(), DtRtiConnectionInfo::setUdpPort(), DtRtiConnectionInfo::setUseRtiexec(), DtAssistantLrcCompInfoMsg::tcpPort(), DtAssistantLrcCompInfoMsg::udpPort(), DtAssistantLrcCompInfoMsg::useRtiexec(), DtAssistantLrcCompInfoMsg::webSpyId(), DtAssistantLrcCompInfoMsg::webSpyIpAddress(), and DtAssistantLrcCompInfoMsg::webSpyPort().
| void DtAssistantComponentMgr::processNewConnMsg | ( | const DtAssistantConnMsg & | msg | ) | [protected, virtual] |
Processes a connection message for a new connection.
References DtAssistantConnMsg::componentType(), DtAssistantConnMsg::display(), DtAssistantForwarderComponent, DtAssistantLrcComponent, DtAssistantRtiexecComponent, DtAssistantShmExecComponent, DtAssistantToAssistantComponent, DtAssistantWwwComponent, forwarderComponentAdded(), lrcComponentAdded(), myComponentsById, myForwarderComponentsById, myLrcComponentsById, myRtiExecComponentsById, DtAssistantMgr::myServer, mySharedMemComponentsById, myWebComponentsById, rtiexecComponentAdded(), sharedMemComponentAdded(), and webServerComponentAdded().
Referenced by processConnMsg().
| void DtAssistantComponentMgr::processRtiexecCompInfoMsg | ( | const DtAssistantRtiexecCompInfoMsg & | msg, |
| void * | usr | ||
| ) | [static, protected] |
Callback to process a component information message from an rtiexec.
Referenced by DtAssistantComponentMgr(), and ~DtAssistantComponentMgr().
| void DtAssistantComponentMgr::processRtiexecCompInfoMsg | ( | const DtAssistantRtiexecCompInfoMsg & | msg | ) | [protected, virtual] |
Called by the callback function to process rtiexec component information messages.
References DtAssistantRtiexecCompInfoMsg::bestEffortIpAddress(), DtAssistantRtiexecCompInfoMsg::forwarderPort(), DtAssistantRtiexecCompInfoMsg::fullCompliance(), DtAssistantRtiexecCompInfoMsg::hostName(), DtAssistantRtiexecCompInfoMsg::isConnected(), DtAssistantRtiexecCompInfoMsg::licServer(), DtAssistantRtiexecCompInfoMsg::logFilename(), myRtiExecComponentsById, DtAssistantMgr::myServer, DtAssistantRtiexecCompInfoMsg::notifyLevel(), DtAssistantRtiexecCompInfoMsg::reliableIpAddress(), rtiexecComponentConnected(), rtiexecComponentDisconnected(), rtiexecComponentUpdated(), DtRtiConnectionInfo::setBestEffortIp(), DtRtiConnectionInfo::setForwarderPort(), DtRtiConnectionInfo::setHostName(), DtRtiConnectionInfo::setNetworkInterfaceAddr(), DtRtiConnectionInfo::setReliableIp(), DtRtiConnectionInfo::setTcpPort(), DtRtiConnectionInfo::setUdpPort(), DtRtiConnectionInfo::setUseRtiexec(), DtAssistantRtiexecCompInfoMsg::tcpPort(), DtAssistantRtiexecCompInfoMsg::udpPort(), DtAssistantRtiexecCompInfoMsg::webSpyIpAddress(), and DtAssistantRtiexecCompInfoMsg::webSpyPort().
| void DtAssistantComponentMgr::processRtiForwarderCompInfoMsg | ( | const DtAssistantRtiForwarderCompInfoMsg & | msg, |
| void * | usr | ||
| ) | [static, protected] |
Callback to process a component information message from an RTI Forwarder.
Referenced by DtAssistantComponentMgr(), and ~DtAssistantComponentMgr().
| void DtAssistantComponentMgr::processRtiForwarderCompInfoMsg | ( | const DtAssistantRtiForwarderCompInfoMsg & | msg | ) | [protected, virtual] |
Called by the callback function to process RTI Forwarder component information messages.
References DtAssistantRtiForwarderCompInfoMsg::bestEffortIpAddress(), DtAssistantRtiForwarderCompInfoMsg::execConfirmed(), forwarderComponentConnected(), forwarderComponentUpdated(), forwarderHasNoRtiexec(), forwarderHasRtiexec(), DtAssistantRtiForwarderCompInfoMsg::forwarderPort(), DtAssistantRtiForwarderCompInfoMsg::fullCompliance(), DtAssistantRtiForwarderCompInfoMsg::hostName(), myForwarderComponentsById, DtAssistantMgr::myServer, DtAssistantRtiForwarderCompInfoMsg::reliableIpAddress(), DtRtiConnectionInfo::setBestEffortIp(), DtRtiConnectionInfo::setForwarderPort(), DtRtiConnectionInfo::setHostName(), DtRtiConnectionInfo::setNetworkInterfaceAddr(), DtRtiConnectionInfo::setReliableIp(), DtRtiConnectionInfo::setTcpPort(), DtRtiConnectionInfo::setUdpPort(), DtRtiConnectionInfo::setUseRtiexec(), DtAssistantRtiForwarderCompInfoMsg::tcpPort(), and DtAssistantRtiForwarderCompInfoMsg::udpPort().
| void DtAssistantComponentMgr::processSocketRemoval | ( | int | compId, |
| const MAKRti::DtString & | reason, | ||
| void * | usr | ||
| ) | [static, protected] |
Callback to process the removal of a socket connection.
Referenced by DtAssistantComponentMgr(), and ~DtAssistantComponentMgr().
| void DtAssistantComponentMgr::processSocketRemoval | ( | int | compId, |
| const MAKRti::DtString & | reason | ||
| ) | [protected, virtual] |
Called by the callback function to process the removal of a socket.
References DtAssistantMgr::displayNotification(), DtAssistantForwarderComponent, DtAssistantLrcComponent, DtAssistantRtiexecComponent, DtAssistantShmExecComponent, DtAssistantWwwComponent, forwarderComponentDisconnected(), forwarderComponentRemovedUnexpectedly(), localFederateResigned(), lrcComponentDisconnected(), lrcComponentRemovedUnexpectedly(), myComponentsById, myForwarderComponentsById, myLrcComponentsById, myRtiExecComponentsById, mySharedMemComponentsById, myWebComponentsById, rtiexecComponentDisconnected(), rtiexecComponentRemovedUnexpectedly(), sharedMemComponentRemovedUnexpectedly(), and webServerComponentRemovedUnexpectedly().
| void DtAssistantComponentMgr::processWwwCompInfoMsg | ( | const DtAssistantWwwCompInfoMsg & | msg, |
| void * | usr | ||
| ) | [static, protected] |
Callback to process a component information message from a web spy server.
Referenced by DtAssistantComponentMgr(), and ~DtAssistantComponentMgr().
| void DtAssistantComponentMgr::processWwwCompInfoMsg | ( | const DtAssistantWwwCompInfoMsg & | msg | ) | [protected, virtual] |
Called by the callback function to process web spy server component information messages.
References DtAssistantWwwCompInfoMsg::logFilename(), DtAssistantMgr::myServer, myWebComponentsById, webServerComponentUpdated(), DtAssistantWwwCompInfoMsg::webSpyHttpPort(), DtAssistantWwwCompInfoMsg::webSpyIpAddress(), and DtAssistantWwwCompInfoMsg::webSpyRtiPort().
| void DtAssistantComponentMgr::rtiexecComponentAdded | ( | int | compId | ) | [signal] |
Referenced by processNewConnMsg().
| void DtAssistantComponentMgr::rtiexecComponentConnected | ( | int | compId | ) | [signal] |
Referenced by processRtiexecCompInfoMsg().
| void DtAssistantComponentMgr::rtiexecComponentDisconnected | ( | int | compId | ) | [signal] |
Referenced by processCloseConnMsg(), processRtiexecCompInfoMsg(), and processSocketRemoval().
| void DtAssistantComponentMgr::rtiexecComponentRemoved | ( | int | compId | ) | [signal] |
Referenced by processCloseConnMsg().
| void DtAssistantComponentMgr::rtiexecComponentRemovedUnexpectedly | ( | int | compId | ) | [signal] |
Referenced by processSocketRemoval().
| void DtAssistantComponentMgr::rtiexecComponentRenamed | ( | int | compId | ) | [signal] |
| const DtIdToComponentInfoMap & DtAssistantComponentMgr::rtiexecComponents | ( | ) | const [virtual] |
Returns rtiexec components the assistant is connected to.
References myRtiExecComponentsById.
| void DtAssistantComponentMgr::rtiexecComponentUpdated | ( | int | compId | ) | [signal] |
Referenced by processRtiexecCompInfoMsg().
| void DtAssistantComponentMgr::sharedMemComponentAdded | ( | int | compId | ) | [signal] |
Referenced by processNewConnMsg().
| void DtAssistantComponentMgr::sharedMemComponentRemoved | ( | int | compId | ) | [signal] |
Referenced by processCloseConnMsg().
| void DtAssistantComponentMgr::sharedMemComponentRemovedUnexpectedly | ( | int | compId | ) | [signal] |
Referenced by processSocketRemoval().
| void DtAssistantComponentMgr::sharedMemComponentRenamed | ( | int | compId | ) | [signal] |
| const DtIdToComponentInfoMap & DtAssistantComponentMgr::sharedMemComponents | ( | ) | const [virtual] |
Returns shared memory queue components the assistant is connected to.
References mySharedMemComponentsById.
| void DtAssistantComponentMgr::sharedMemComponentUpdated | ( | int | compId | ) | [signal] |
| void DtAssistantComponentMgr::updateComponent | ( | int | compId, |
| const DtAssistantComponentInfo & | comp | ||
| ) | [virtual] |
Updates the component with the given ID.
References myComponentsById.
| void DtAssistantComponentMgr::webServerComponentAdded | ( | int | compId | ) | [signal] |
Referenced by processNewConnMsg().
| void DtAssistantComponentMgr::webServerComponentRemoved | ( | int | compId | ) | [signal] |
Referenced by processCloseConnMsg().
| void DtAssistantComponentMgr::webServerComponentRemovedUnexpectedly | ( | int | compId | ) | [signal] |
Referenced by processSocketRemoval().
| void DtAssistantComponentMgr::webServerComponentRenamed | ( | int | compId | ) | [signal] |
| const DtIdToComponentInfoMap & DtAssistantComponentMgr::webServerComponents | ( | ) | const [virtual] |
Returns web server components the assistant is connected to.
References myWebComponentsById.
| void DtAssistantComponentMgr::webServerComponentUpdated | ( | int | compId | ) | [signal] |
Referenced by processWwwCompInfoMsg().
DtClock DtAssistantComponentMgr::myClock [protected] |
The clock.
Map containing the information on all connected components indexed by component ID.
Referenced by componentInfo(), components(), processCloseConnMsg(), processNewConnMsg(), processSocketRemoval(), and updateComponent().
Map containing the information on all connected components indexed by component ID.
Referenced by forwarderComponents(), printLocalComponentList(), processCloseConnMsg(), processNewConnMsg(), processRtiForwarderCompInfoMsg(), and processSocketRemoval().
Map containing the information on all connected components indexed by component ID.
Referenced by lrcComponents(), printLocalComponentList(), processCloseConnMsg(), processLrcCompInfoMsg(), processNewConnMsg(), and processSocketRemoval().
DtBoost::shared_ptr<DtAssistantPreferencesInfoMgr> DtAssistantComponentMgr::myPrefMgr [protected] |
The manager responsible for maintaining user Assistant preferences.
Map containing the information on all connected components indexed by component ID.
Referenced by printLocalComponentList(), printRtiExecComponentsList(), processCloseConnMsg(), processNewConnMsg(), processRtiexecCompInfoMsg(), processSocketRemoval(), and rtiexecComponents().
Map containing the information on all connected components indexed by component ID.
Referenced by printLocalComponentList(), processCloseConnMsg(), processNewConnMsg(), processSocketRemoval(), and sharedMemComponents().
Map containing the information on all connected components indexed by component ID.
Referenced by printLocalComponentList(), processCloseConnMsg(), processNewConnMsg(), processSocketRemoval(), processWwwCompInfoMsg(), and webServerComponents().
