Inheritance diagram for DtEhsHttpConnectionMgr:

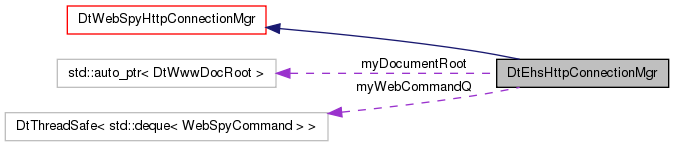

Collaboration diagram for DtEhsHttpConnectionMgr:

Public Member Functions
	DtEhsHttpConnectionMgr (DtWebSpyServer &parent)
virtual	~DtEhsHttpConnectionMgr ()
virtual void	tick (unsigned int timeout=0)
	Offer the web server processing time and Gets command messages from the HTTP server.
virtual void	postCommand (const DtWebSpyUtils::ConnectionIdentifier &connInfo, std::auto_ptr< DtString > command)
virtual void	addConnection (const DtWebSpyUtils::ConnectionIdentifier &connInfo)
	Add a new RTI object with associated connection information.
virtual void	updateConnection (const DtWebSpyUtils::ConnectionIdentifier &connInfo, std::auto_ptr< DtWebSpyUtils::ConnectionState > connState, bool appendToExisting)
	Update the state of an individual component behind an existing web server connection.
virtual void	appendConnectionLogEvent (const DtWebSpyUtils::ConnectionIdentifier &connInfo, unsigned long componentId, DtLrcConsoleLogXmlBlockSP logSegmentSP)
	Update the event log of an individual component behind an existing web server connection.
virtual void	removeConnection (const DtWebSpyUtils::ConnectionIdentifier &connInfo, const DtString &dropNotificationMsg="")
	Remove a connection and replace it with a disconnect message when its corresponding connection is dropped Caller may specify additional information about the reason for the drop via the optional dropNotificationMsg (accepts HTML)
Static Public Member Functions
static DtWebSpyHttpConnectionMgr *	create (DtWebSpyServer &parent)
	Virtual constructor.
Protected Types
typedef std::pair < DtWebSpyUtils::ConnectionIdentifier, DtString * >	WebSpyCommand
typedef DtThreadSafe < std::deque< WebSpyCommand > >	WebSpyCommandQ
Protected Member Functions
virtual WebSpyCommand	getNextCommand ()
Protected Attributes
WebSpyCommandQ	myWebCommandQ
std::auto_ptr< DtWwwDocRoot >	myDocumentRoot
Private Member Functions
	DtEhsHttpConnectionMgr (const DtEhsHttpConnectionMgr &)
DtEhsHttpConnectionMgr &	operator= (DtEhsHttpConnectionMgr &)

Member Typedef Documentation

typedef std::pair< DtWebSpyUtils::ConnectionIdentifier, DtString* > DtEhsHttpConnectionMgr::WebSpyCommand [protected]

typedef DtThreadSafe< std::deque< WebSpyCommand > > DtEhsHttpConnectionMgr::WebSpyCommandQ [protected]

Constructor & Destructor Documentation

DtEhsHttpConnectionMgr::DtEhsHttpConnectionMgr ( const DtEhsHttpConnectionMgr & ) [private]

Referenced by create().

DtEhsHttpConnectionMgr::DtEhsHttpConnectionMgr ( DtWebSpyServer & parent )

DtEhsHttpConnectionMgr::~DtEhsHttpConnectionMgr ( ) [virtual]

Member Function Documentation

void DtEhsHttpConnectionMgr::addConnection ( const DtWebSpyUtils::ConnectionIdentifier & connInfo ) [virtual]

Add a new RTI object with associated connection information.

Implements DtWebSpyHttpConnectionMgr.

References myDocumentRoot.

void DtEhsHttpConnectionMgr::appendConnectionLogEvent	(	const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		unsigned long	componentId,
		DtLrcConsoleLogXmlBlockSP	logSegmentSP
	)		`[virtual]`

Update the event log of an individual component behind an existing web server connection.

events are timestamped so that client may request a sub-set of the logged events ( i.e. - the 50 most recent events )

Implements DtWebSpyHttpConnectionMgr.

References myDocumentRoot.

DtWebSpyHttpConnectionMgr * DtEhsHttpConnectionMgr::create ( DtWebSpyServer & parent ) [static]

Virtual constructor.

Reimplemented from DtWebSpyHttpConnectionMgr.

References DtEhsHttpConnectionMgr().

DtEhsHttpConnectionMgr::WebSpyCommand DtEhsHttpConnectionMgr::getNextCommand ( ) [protected, virtual]

References myWebCommandQ.

Referenced by tick().

DtEhsHttpConnectionMgr& DtEhsHttpConnectionMgr::operator= ( DtEhsHttpConnectionMgr & ) [private]

void DtEhsHttpConnectionMgr::postCommand	(	const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		std::auto_ptr< DtString >	command
	)		`[virtual]`

References myWebCommandQ.

Referenced by DtFederateXML::handleLogRequest(), DtFederationXML::handleLogRequest(), DtFederateXML::handleRTICommand(), DtFederationXML::handleRtiExecCommand(), DtForwarderXML::handleStateRequest(), DtFederateXML::handleStateRequest(), DtFederationXML::handleStateRequest(), DtFederateXML::requestStateUpdate(), and DtFederationXML::requestStateUpdate().

void DtEhsHttpConnectionMgr::removeConnection	(	const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		const DtString &	dropNotificationMsg = `""`
	)		`[virtual]`

Remove a connection and replace it with a disconnect message when its corresponding connection is dropped Caller may specify additional information about the reason for the drop via the optional dropNotificationMsg (accepts HTML)

Implements DtWebSpyHttpConnectionMgr.

References myDocumentRoot.

void DtEhsHttpConnectionMgr::tick ( unsigned int timeout = 0 ) [virtual]

Offer the web server processing time and Gets command messages from the HTTP server.

commands from the HTTP server are simple xml command messages encoded by the client
commands must be decoded by the wwwSpyServer decoder

Implements DtWebSpyHttpConnectionMgr.

References getNextCommand(), DtWebSpyHttpConnectionMgr::myClock, DtWebSpyHttpConnectionMgr::myParent, and DtWebSpyServer::postHttpCommand().

void DtEhsHttpConnectionMgr::updateConnection	(	const DtWebSpyUtils::ConnectionIdentifier &	connInfo,
		std::auto_ptr< DtWebSpyUtils::ConnectionState >	connState,
		bool	appendToExisting
	)		`[virtual]`
