DtFileDistributor Class Reference

Distributes fomModule files from initiating federate to RtiExec and then from RtiExec to all joining federates. More...

Inheritance diagram for DtFileDistributor:

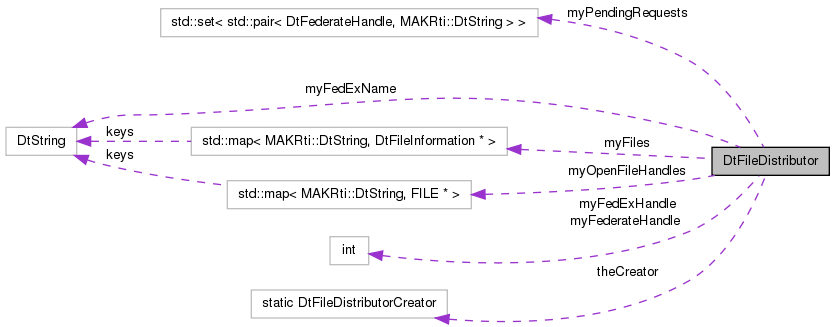

Collaboration diagram for DtFileDistributor:

List of all members.

Public Member Functions
virtual bool	sendFedFile (const std::vector< MAKRti::DtString > &modules)
	Override sendFedFile upload fed files passed in.
virtual bool	pushFedFile (DtConnectionMgr *connMgr, const MAKRti::DtString &fileName, const unsigned int fileSize, const char *fileBuffer, const DtFederateHandle destination=0)
	pushFedFile
virtual void	fedFileUploaded (const MAKRti::DtString fileUploaded)
	Called when Fom Module received successfully.
virtual bool	fileReceived (const DtFomModuleDistributionMsg &msg, bool &areAllHere)
virtual bool	fileRequested (const DtFomModuleRequestMsg &msg)
virtual void	removeFile (const MAKRti::DtString fileName)
	Remove all knowledge of this file from myFiles.
virtual void	removeFiles (const std::vector< MAKRti::DtString > &modules)
	Remove all knowledge of these file from myFiles.
virtual bool	fedFileReady (const MAKRti::DtString &fileName) const
	Does the distributor have a valid copy of this fom Module.
virtual bool	fedFilesReady (const std::vector< MAKRti::DtString > *fileNames) const
	Does the distributor have a valid copy of all of these fom Modules.
const FILE *	fedFilePtr (MAKRti::DtString fileName) const
	Get the fed file pointer.
const char *	fedFileBuff (MAKRti::DtString fileName) const
	Get the fed file buffer.
DtFileInformation *	takeFedFile (MAKRti::DtString fileName)
	Take ownership of the file.
unsigned int	fileSize (MAKRti::DtString fileName) const
FILE *	getTmpFile ()
void	setFedHandle (unsigned int newHandle)
	Set the Fed Handle of the distributor.
void	setFedexHandle (unsigned int newHandle)
bool	requestsPending () const
	Are there outstanding requests to be handled?
Static Public Member Functions
static void	setCreatorFunction (DtFileDistributorCreator fn)
Protected Types
typedef std::list< DtRtiMsg * >	rtiMsgList
Protected Member Functions
	DtFileDistributor (const int fedExHandle, const int federateHandle, const MAKRti::DtString &fedExName)
	Constructor.
virtual	~DtFileDistributor ()
	Destructor.
Protected Attributes
std::map< MAKRti::DtString, DtFileInformation * >	myFiles
	Map between files that have been uploaded to me and their 'file names'.
std::set< std::pair < DtFederateHandle, MAKRti::DtString > >	myPendingRequests
MAKRti::DtString	myFedExName
int	myFedExHandle
int	myFederateHandle
std::map< MAKRti::DtString, FILE * >	myOpenFileHandles
Static Protected Attributes
static DtFileDistributorCreator	theCreator = 0
Private Member Functions
	DtFileDistributor ()
	DtFileDistributor (const DtFileDistributor &orig)
DtFileDistributor &	operator= (const DtFileDistributor &orig)

---

Detailed Description

Distributes fomModule files from initiating federate to RtiExec and then from RtiExec to all joining federates.

---

Member Typedef Documentation

typedef std::list< DtRtiMsg* > DtFileDistributor::rtiMsgList [protected]

---

Constructor & Destructor Documentation

DtFileDistributor::DtFileDistributor	(	const int	fedExHandle,
		const int	federateHandle,
		const MAKRti::DtString &	fedExName
	)		[protected]

Constructor.

DtFileDistributor::~DtFileDistributor

(

)

[protected, virtual]

Destructor.

References myFiles, and myOpenFileHandles.

DtFileDistributor::DtFileDistributor

(

)

[private]

DtFileDistributor::DtFileDistributor

(

const DtFileDistributor &

orig

)

[private]

---

Member Function Documentation

const char * DtFileDistributor::fedFileBuff

(

MAKRti::DtString

fileName

)

const

Get the fed file buffer.

References myFiles.

const FILE * DtFileDistributor::fedFilePtr

(

MAKRti::DtString

fileName

)

const

Get the fed file pointer.

References myFiles.

Referenced by DtRtiExecFederateMgr::mergeFomModules().

bool DtFileDistributor::fedFileReady

(

const MAKRti::DtString &

fileName

)

const [virtual]

Does the distributor have a valid copy of this fom Module.

References myFiles.

Referenced by fedFilesReady().

bool DtFileDistributor::fedFilesReady

(

const std::vector< MAKRti::DtString > *

fileNames

)

const [virtual]

Does the distributor have a valid copy of all of these fom Modules.

References fedFileReady().

void DtFileDistributor::fedFileUploaded

(

const MAKRti::DtString

fileUploaded

)

[virtual]

Called when Fom Module received successfully.

References DtReadFile(), fileSize(), getTmpFile(), DtFileInformation::myBuffer, DtFileInformation::myFilePointer, myFiles, DtFileInformation::myFileSize, and NULL.

Referenced by DtSynchronousFileDistributor::multFileReceivedCb().

bool DtFileDistributor::fileReceived	(	const DtFomModuleDistributionMsg &	msg,
		bool &	areAllHere
	)		[virtual]

References DtFomModuleDistributionMsg::blockSize(), DtFomModuleDistributionMsg::destination(), DtRtiMsg::federateHandle(), DtFomModuleDistributionMsg::fomModuleName(), DtFomModuleDistributionMsg::fullFedExName(), maxBlockSize, myFederateHandle, myFedExName, myFiles, NULL, DtFomModuleDistributionMsg::numFomModuleBlocks(), DtFomModuleDistributionMsg::readFomModuleBlock(), DtFomModuleDistributionMsg::seqNum(), and DtFomModuleDistributionMsg::sourceID().

Referenced by DtSynchronousFileDistributor::multFileReceivedCb(), and DtAsyncFileDistributorRunnable::processFileReceived().

bool DtFileDistributor::fileRequested

(

const DtFomModuleRequestMsg &

msg

)

[virtual]

References DtFomModuleRequestMsg::destinationID(), DtFomModuleRequestMsg::fullFedExName(), myFederateHandle, and myFedExName.

Referenced by DtSynchronousFileDistributor::multFileRequestedCb(), and DtAsyncFileDistributorRunnable::processFileRequested().

unsigned int DtFileDistributor::fileSize

(

MAKRti::DtString

fileName

)

const

References myFiles.

Referenced by fedFileUploaded(), and pushFedFile().

FILE * DtFileDistributor::getTmpFile

(

)

References myOpenFileHandles.

Referenced by fedFileUploaded().

DtFileDistributor& DtFileDistributor::operator=

(

const DtFileDistributor &

orig

)

[private]

bool DtFileDistributor::pushFedFile	(	DtConnectionMgr *	connMgr,
		const MAKRti::DtString &	fileName,
		const unsigned int	fileSize,
		const char *	fileBuffer,
		const DtFederateHandle	destination = 0
	)		[virtual]

pushFedFile

References DtMessageFactory< T_Message, T_MessageKind, T_NetworkHeader >::create(), DtFomModuleDistributionMsgKind, fileSize(), maxBlockSize, DtConnectionMgr::msgFactory(), myFederateHandle, myFedExHandle, myFedExName, NULL, DtConnectionMgr::sendStampedAndDelete(), DtFomModuleDistributionMsg::setBlock(), DtFomModuleDistributionMsg::setDestination(), DtRtiMsg::setFederateHandle(), DtRtiMsg::setFedEx(), DtFomModuleDistributionMsg::setFomModuleName(), DtFomModuleDistributionMsg::setFullFedExName(), DtFomModuleDistributionMsg::setSourceID(), and DtConnectionMgr::tick().

Referenced by DtFedExec::pushFomModuleToSingleFederate(), DtSynchronousFileDistributor::sendFedFile(), and DtSynchronousFileDistributor::tick().

void DtFileDistributor::removeFile

(

const MAKRti::DtString

fileName

)

[virtual]

Remove all knowledge of this file from myFiles.

References DtFileInformation::myFileOwned, and myFiles.

Referenced by removeFiles().

void DtFileDistributor::removeFiles

(

const std::vector< MAKRti::DtString > &

modules

)

[virtual]

Remove all knowledge of these file from myFiles.

References removeFile().

Referenced by DtFedexRemoveFileCmd::operator()().

bool DtFileDistributor::requestsPending

(

)

const

Are there outstanding requests to be handled?

Reimplemented in DtAsyncFileDistributorRunnable.

References myPendingRequests.

bool DtFileDistributor::sendFedFile

(

const std::vector< MAKRti::DtString > &

modules

)

[virtual]

Override sendFedFile upload fed files passed in.

Reimplemented in DtSynchronousFileDistributor.

References DtReadFile(), maxBlockSize, myFiles, DtFileInformation::myFomModFileName, NULL, and DtLibRTIUtil::openFedFile().

Referenced by DtSynchronousFileDistributor::sendFedFile(), and DtAsyncFileDistributorRunnable::sendFedFile().

void DtFileDistributor::setCreatorFunction

(

DtFileDistributorCreator

fn

)

[static]

References theCreator.

void DtFileDistributor::setFedexHandle

(

unsigned int

newHandle

)

References myFedExHandle.

Referenced by DtFedExec::createDistributor().

void DtFileDistributor::setFedHandle

(

unsigned int

newHandle

)

Set the Fed Handle of the distributor.

Because federates will use the distributor before they're joined, they'll need to reassign from the connectHandle to their Fed Handle once they're joined.

References myFederateHandle.

Referenced by DtFedExec::createDistributor().

DtFileInformation * DtFileDistributor::takeFedFile

(

MAKRti::DtString

fileName

)

Take ownership of the file.

retVal will be zero if file not complete (or nonexistent)

References myFiles.

Referenced by DtAsyncFileDistributorRunnable::processTakeFileCmd().

---

Member Data Documentation

int DtFileDistributor::myFederateHandle [protected]

Referenced by fileReceived(), fileRequested(), DtSynchronousFileDistributor::pullEntireFedFile(), pushFedFile(), and setFedHandle().

int DtFileDistributor::myFedExHandle [protected]

Referenced by DtSynchronousFileDistributor::pullEntireFedFile(), pushFedFile(), and setFedexHandle().

MAKRti::DtString DtFileDistributor::myFedExName [protected]

Referenced by fileReceived(), fileRequested(), DtSynchronousFileDistributor::pullEntireFedFile(), and pushFedFile().

std::map<MAKRti::DtString, DtFileInformation*> DtFileDistributor::myFiles [protected]

Map between files that have been uploaded to me and their 'file names'.

Referenced by fedFileBuff(), fedFilePtr(), fedFileReady(), fedFileUploaded(), fileReceived(), fileSize(), DtSynchronousFileDistributor::multFileReceivedCb(), DtAsyncFileDistributorRunnable::processFileReceived(), DtSynchronousFileDistributor::pullEntireFedFile(), removeFile(), DtSynchronousFileDistributor::sendFedFile(), DtAsyncFileDistributorRunnable::sendFedFile(), sendFedFile(), takeFedFile(), DtSynchronousFileDistributor::tick(), and ~DtFileDistributor().

std::map<MAKRti::DtString, FILE* > DtFileDistributor::myOpenFileHandles [protected]

Referenced by getTmpFile(), and ~DtFileDistributor().

std::set<std::pair<DtFederateHandle, MAKRti::DtString> > DtFileDistributor::myPendingRequests [protected]

Referenced by DtSynchronousFileDistributor::multFileRequestedCb(), DtAsyncFileDistributorRunnable::requestsPending(), requestsPending(), and DtSynchronousFileDistributor::tick().

DtFileDistributorCreator DtFileDistributor::theCreator = 0 [static, protected]

Referenced by setCreatorFunction().

---

The documentation for this class was generated from the following files:

• fileDistributor.h
• fileDistributor.cxx
