DtForwarderFaultManager Class Reference

The DtForwarderFaultManager class tracks federates and forwarders within the RTI's forwarding network. More...

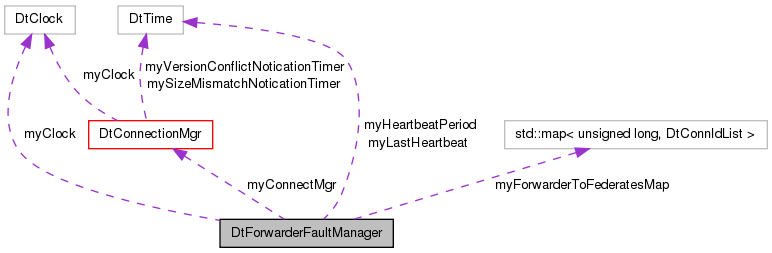

Collaboration diagram for DtForwarderFaultManager:

List of all members.

Public Member Functions
	DtForwarderFaultManager (DtConnectionMgr *connectMgr, MAKRti::DtTime heartbeatPeriod)
	Constructor.
virtual	~DtForwarderFaultManager ()
	Destructor.
virtual void	tick ()
	Tick - periodically heartbeat connected forwarders (otherwise faults will not be caught until a reliable msg is sent)
Static Public Member Functions
static void	processJoin (const DtJoinMsg &msg, void *usr)
	Callback on the Connect message.
static void	processConnectionLost (const DtForwarderConnectionLostMsg &msg, void *usr)
	Callback on the ForwarderConnectionLost message.
static void	processPing (const DtForwarderPingMsg &msg, void *usr)
	Callback on the ForwarderPing message.
Protected Types
typedef std::vector< unsigned long >	DtConnIdList
typedef std::map< unsigned long, DtConnIdList >	DtForwarderIdToConnIdsMap
Protected Member Functions
virtual void	processJoin (const DtJoinMsg &msg)
	Called when a Connect message is received Used to track forwarders and the federates connected to them.
virtual void	processConnectionLost (const DtForwarderConnectionLostMsg &msg)
	Callback on the ForwarderConnectionLost message Signals the start of a fault recovery cycle.
virtual void	processPing (const DtForwarderPingMsg &msg)
	Callback on the ForwarderPing message Used to identify faulty/normal forwarders.
virtual void	pingAllForwarders () const
	Send a ping to each known forwarder.
virtual void	pingForwarder (unsigned long forwarderId) const
	Send a ping message to the specified forwarder.
virtual void	resignForwarder (unsigned long forwarderId) const
	Send a resign message to the specified forwarder.
virtual void	disconnectFederates (const DtConnIdList &federates) const
	Send a disconnect for each federate in the list.
Protected Attributes
DtForwarderIdToConnIdsMap	myForwarderToFederatesMap
DtConnectionMgr *	myConnectMgr
MAKRti::DtClock	myClock
MAKRti::DtTime	myHeartbeatPeriod
MAKRti::DtTime	myLastHeartbeat
Private Member Functions
	DtForwarderFaultManager ()
	Default Ctor - unimplemented.

---

Detailed Description

The DtForwarderFaultManager class tracks federates and forwarders within the RTI's forwarding network.

In a distributed forwarder network the DtForwarderFaultManager is responsible for detecting and handling faults reported by the forwarders.

---

Member Typedef Documentation

typedef std::vector< unsigned long > DtForwarderFaultManager::DtConnIdList [protected]

typedef std::map< unsigned long, DtConnIdList > DtForwarderFaultManager::DtForwarderIdToConnIdsMap [protected]

---

Constructor & Destructor Documentation

DtForwarderFaultManager::DtForwarderFaultManager

(

)

[private]

Default Ctor - unimplemented.

DtForwarderFaultManager::DtForwarderFaultManager	(	DtConnectionMgr *	connectMgr,
		MAKRti::DtTime	heartbeatPeriod
	)

Constructor.

DtForwarderFaultManager::~DtForwarderFaultManager

(

)

[virtual]

Destructor.

References myConnectMgr, processConnectionLost(), processJoin(), processPing(), DtForwarderConnectionLostMsg::removeCallback(), DtForwarderPingMsg::removeCallback(), and DtJoinMsg::removeCallback().

---

Member Function Documentation

void DtForwarderFaultManager::disconnectFederates

(

const DtConnIdList &

federates

)

const [protected, virtual]

Send a disconnect for each federate in the list.

References DtConnectionMgr::internalTransportType(), myConnectMgr, and DtConnectionMgr::send().

Referenced by processPing().

void DtForwarderFaultManager::pingAllForwarders

(

)

const [protected, virtual]

Send a ping to each known forwarder.

References myForwarderToFederatesMap, and pingForwarder().

Referenced by processConnectionLost(), and tick().

void DtForwarderFaultManager::pingForwarder

(

unsigned long

forwarderId

)

const [protected, virtual]

Send a ping message to the specified forwarder.

References DtConnectionMgr::internalTransportType(), myConnectMgr, DtForwarderPingMsg::PingRequest, and DtConnectionMgr::send().

Referenced by pingAllForwarders().

void DtForwarderFaultManager::processConnectionLost	(	const DtForwarderConnectionLostMsg &	msg,
		void *	usr
	)		[static]

Callback on the ForwarderConnectionLost message.

Referenced by ~DtForwarderFaultManager().

void DtForwarderFaultManager::processConnectionLost

(

const DtForwarderConnectionLostMsg &

msg

)

[protected, virtual]

Callback on the ForwarderConnectionLost message Signals the start of a fault recovery cycle.

References pingAllForwarders().

void DtForwarderFaultManager::processJoin	(	const DtJoinMsg &	msg,
		void *	usr
	)		[static]

Callback on the Connect message.

Referenced by ~DtForwarderFaultManager().

void DtForwarderFaultManager::processJoin

(

const DtJoinMsg &

msg

)

[protected, virtual]

Called when a Connect message is received Used to track forwarders and the federates connected to them.

References myForwarderToFederatesMap, and DtJoinMsg::sourceID().

void DtForwarderFaultManager::processPing	(	const DtForwarderPingMsg &	msg,
		void *	usr
	)		[static]

Callback on the ForwarderPing message.

Referenced by ~DtForwarderFaultManager().

void DtForwarderFaultManager::processPing

(

const DtForwarderPingMsg &

msg

)

[protected, virtual]

Callback on the ForwarderPing message Used to identify faulty/normal forwarders.

References DtForwarderPingMsg::destination(), disconnectFederates(), myForwarderToFederatesMap, DtForwarderPingMsg::PingResponseNotFound, DtForwarderPingMsg::pingStatus(), and resignForwarder().

void DtForwarderFaultManager::resignForwarder

(

unsigned long

forwarderId

)

const [protected, virtual]

Send a resign message to the specified forwarder.

References DtConnectionMgr::internalTransportType(), myConnectMgr, DtForwarderResignMsg::ResignCommand, and DtConnectionMgr::send().

Referenced by processPing().

void DtForwarderFaultManager::tick

(

)

[virtual]

Tick - periodically heartbeat connected forwarders (otherwise faults will not be caught until a reliable msg is sent)

References myClock, myHeartbeatPeriod, myLastHeartbeat, and pingAllForwarders().

---

Member Data Documentation

MAKRti::DtClock DtForwarderFaultManager::myClock [protected]

Referenced by tick().

DtConnectionMgr* DtForwarderFaultManager::myConnectMgr [protected]

Referenced by disconnectFederates(), pingForwarder(), resignForwarder(), and ~DtForwarderFaultManager().

DtForwarderIdToConnIdsMap DtForwarderFaultManager::myForwarderToFederatesMap [protected]

Referenced by pingAllForwarders(), processJoin(), and processPing().

MAKRti::DtTime DtForwarderFaultManager::myHeartbeatPeriod [protected]

Referenced by tick().

MAKRti::DtTime DtForwarderFaultManager::myLastHeartbeat [protected]

Referenced by tick().

---

The documentation for this class was generated from the following files:

• forwarderFaultManager.h
• forwarderFaultManager.cxx
