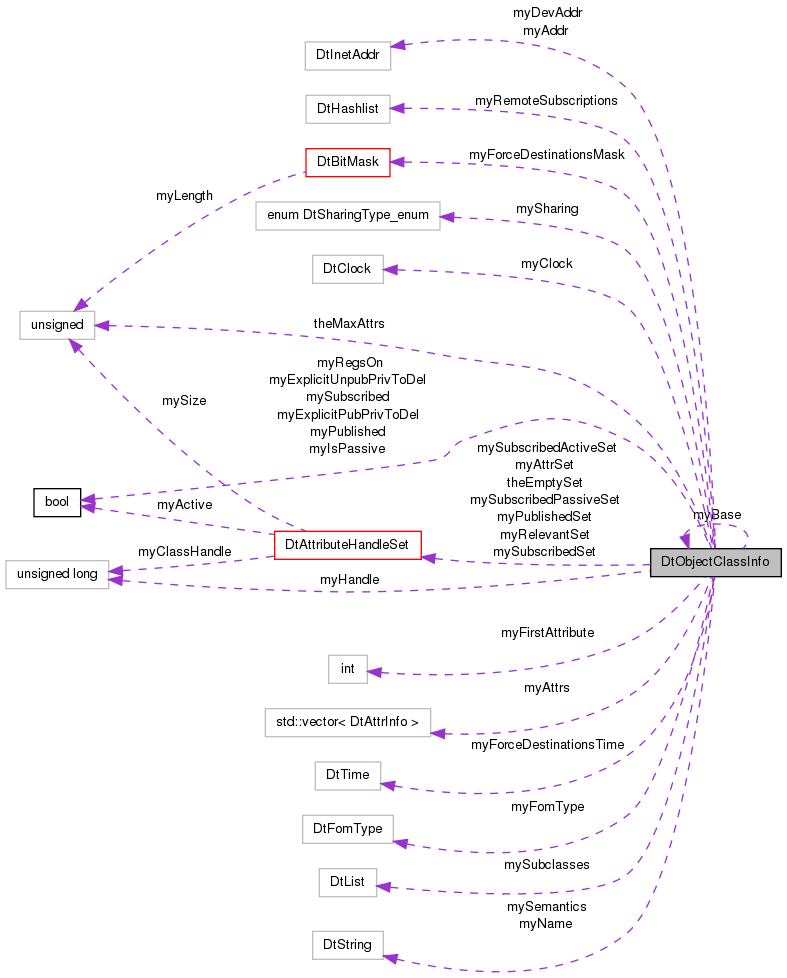

Collaboration diagram for DtObjectClassInfo:

Public Member Functions
	DtObjectClassInfo (const char name, DtObjectClassInfo base, DtObjectClassHandle handle, DtSharingType sharing, const MAKRti::DtString &semantics)
	Constructors.
	DtObjectClassInfo (const DtObjectClassInfo &orig)
virtual	~DtObjectClassInfo ()
	Destructor.
DtObjectClassInfo &	operator= (const DtObjectClassInfo &orig)
	Assignment operator (not implemented)
virtual void	setFomType (MAKRti::DtFomType type)
	Set/Get the FOM type.
virtual MAKRti::DtFomType	fomType () const
virtual DtAttrInfo *	addAttr (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics, bool addSorted)
	Adds an attribute to the class. Used when reading Fed file.
virtual DtAttrInfo *	addAttr (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSpaceHandle space, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics, bool addSorted)
	Adds an attribute to the class. Used when reading Fed file.
virtual const char *	name () const
	Return class name, as in FOM.
virtual DtSharingType	sharing () const
	sharing type access/mutate
virtual void	setSharing (DtSharingType share)
virtual const char *	semantics () const
	semantics access/mutate
virtual void	setSemantics (const MAKRti::DtString &sem)
virtual bool	isName (const char *name)
	Return boolean: name matches? Compare depends on FOM type: insensitive for 1.3 and sensitive for 1516 Root name is prepended to name if necessary.
virtual bool	isFullName (const char *name)
	Root name is required.
virtual DtObjectClassHandle	handle () const
	Set/get class handle.
virtual void	setHandle (DtObjectClassHandle handleValue)
virtual DtObjectClassInfo *	baseClass () const
	Return pointer to base class descriptor.
virtual void	setBaseClass (DtObjectClassInfo *base)
	Set base class (User should never need to set this)
virtual int	isOfClass (DtObjectClassHandle handle) const
	Returns 1 if this class is handle or is a subclass of handle.
virtual MAKRti::DtList *	subclasses ()
	Return list of subclasses.
virtual void	addSubclass (DtObjectClassInfo *sub)
	Add a subclass (called during FED processing)
virtual DtAttrInfo *	attrByName (const char *theName)
	Get Attribute descriptor by name or handle.
virtual DtAttrInfo *	attrByHandle (const DtAttributeHandle theHandle)
virtual const DtAttrInfo *	attrByName (const char *theName) const
	const versions
virtual const DtAttrInfo *	attrByHandle (const DtAttributeHandle theHandle) const
virtual DtAttributeHandle	attrHandle (const char *theName) const
	Get attribute handle from name.
virtual char *	attrName (DtAttributeHandle theHandle) const
	Get attribute name from handle.
virtual MAKRti::DtTransportType	attrTransport (DtAttributeHandle theHandle) const
	Get attribute transport type from handle.
virtual MAKRti::DtOrderType	attrOrder (DtAttributeHandle theHandle) const
	Get attribute order from handle.
virtual DtSpaceHandle	attrSpace (DtAttributeHandle theHandle) const
	Get attribute space from handle.
virtual DtAttrVector const &	attrs () const
	Returns the set of attributes.
virtual int	numAttributes () const
	Returns the number of attributes.
virtual const DtAttributeHandleSet &	allAttrs () const
	Returns the full set of attributes.
virtual void	publish (DtAttributeHandleSet const &attributeList, DtObjectMgr *objMgr, bool isReplacement, bool isRepublish)
	Publish and unpublish Publishing an empty list with replacement enabled results in unpublish from all class attributes.
virtual void	unpublishAttributes (DtAttributeHandleSet const &attributeList, bool implicitUnpublishPrivilegeToDelete, DtObjectMgr *objMgr)
virtual bool	published () const
	Return boolean: is class published?
virtual void	subscribe (const DtAttributeHandleSet &attributeList, bool isPassiveValue, bool isReplacement=true)
	Subscribe and unsubscribe.
virtual void	unsubscribeClass ()
virtual void	unsubscribeAttributes (DtAttributeHandleSet const &attributeList)
virtual bool	subscribed () const
	Return boolean: is class subscribed?
virtual bool	isPassive () const
	Return boolean: is subscription passive?
virtual const bool	isSubscribed (DtAttributeHandle attrHandle, DtRegionHandle regSetHandle) const
	Using default region handle indicates check for DM subscription only.
virtual DtAttributeHandleSet const &	subscribedAttrs () const
	Returns the set of DM subscribed attributes.
virtual DtAttributeHandleSet const &	subscribedActiveAttrs () const
virtual DtAttributeHandleSet const &	subscribedPassiveAttrs () const
virtual const DtAttributeHandleSet &	subscribedAttrs (DtHandle regSetHandle) const
	Returns all subscribed attributes if handle is the default region set Otherwise, just those subscribed attributes that match with the remote publication region.
virtual const DtAttributeHandleSet &	publishedAttrs () const
	Returns the set of published attributes.
virtual const DtAttributeHandleSet &	relevantAttrs () const
	Returns the set of relevant attributes: Attributes that could cause object discovery at a remote federate if they are published or become published.
virtual void	remoteSubscribe (const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool isReplacement, DtObjectMgr *objMgr)
	Do bookkeeping associated with a remote federate subscription.
virtual void	remotePassiveSubscribe (const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, bool replacement, DtObjectMgr *objMgr)
	Process remote passive subscription to add pending send register for any objects that could be discovered by it Replacement forces updates to any relevance changes from active to passive.
virtual void	remoteUnsubscribeAttributes (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs, DtObjectMgr *objMgr)
	Do bookkeeping associated with a remote federate unsubscription.
virtual void	removeSubscriptions (DtFederateHandle fedHandle, DtObjectMgr *objMgr)
	Remove all subscriptions from the given federate.
virtual int	numRemoteFederatesSubscribed ()
	Returns number of remote federates subscribed to this class.
virtual bool	remoteFederateIsSubscribed (DtFederateHandle fedHandle) const
	Returns true if the remote federate is subscribed to this class.
virtual DtAttributeHandleSet const *	remoteSubscription (DtFederateHandle fedHandle) const
	Returns remote federate's subscribed attributes.
virtual const MAKRti::DtHashList &	subscribedFederates () const
	Returns a list of remote federate subscribed attributes.
virtual bool	relevant () const
	Returns true if the class is relevant: registered object could cause discovery at remote federate, false otherwise.
virtual bool	relevant (DtAttributeHandle) const
	Returns true if the attribute is relevant: attribute instance could cause discovery at remote federate, false otherwise.
virtual const MAKRti::DtInetAddr &	destinationAddress () const
	Set/Get the destination to send to when using DM Filtering Inclusive sets recurse for all derived classes.
virtual const MAKRti::DtInetAddr &	destinationDevice () const
virtual void	setDestination (MAKRti::DtInetAddr addr, MAKRti::DtInetAddr devAddr, bool inclusive, MAKRti::DtInetAddr oldAddr, MAKRti::DtInetAddr oldDevAddr)
virtual void	setForcedDestinations (DtBitMask const &mask, MAKRti::DtTime delay)
	Set a forced destination mask Temporarily set a forced destinations mask for given delay A negative time delay will force the destinations indefinitely.
virtual bool	getForcedDestinations (DtBitMask &mask) const
	Get the forced destination mask if active Returns true if the forced destination mask is active.
virtual void	setSubscribedRate (float rate, const MAKRti::DtString &name, bool inclusive)
	Apply objects subscribed rate to attrInfo's.
virtual float	maxSubscribedRate ()
virtual const MAKRti::DtString &	maxSubscribedRateName ()
virtual bool	save (DtRtiSaveFile &file)
	save and restore
virtual bool	restore (DtObjectClassPacket *packet, DtRtiSaveFile &file)
virtual void	print () const
	Print the contents.
virtual bool	sameAncestry (const DtObjectClassInfo *) const
	Test equality.
bool	operator== (const DtObjectClassInfo &other) const
bool	operator!= (const DtObjectClassInfo &other) const
bool	isScaffolding () const
	Determines whether the class is a scaffolding class.
Protected Member Functions
virtual void	throwIfNotDefined (const DtAttributeHandleSet &attributeList)
	Throws AttributeNotDefined exception if any member of attrs is not a valid attribute handle.
virtual void	addRemoteSubscription (DtFederateHandle fedHandle, const DtAttributeHandleSet &attrs, bool isReplacement)
	Add/delete remote subscription to this class by indicated federate Replaces attribute set if already subscribed.
virtual void	deleteRemoteSubscription (DtFederateHandle fedHandle, DtAttributeHandleSet const &attrs)
virtual void	addRemoteSubscription (DtFederateHandle fedHandle, DtAttributeHandle attrHandle)
	Attribute subscription is added to existing subscribed set (created does not exist)
virtual void	updateRelevance (const DtAttributeHandleSet &attrs, DtFederateHandle fedHandle, DtObjectMgr *objMgr)
	Update the relevance field of this class and all subclasses, based on a particular remote and current subscriptions.
DtObjectClassInfo *	self () const
virtual DtAttrInfo *	addAttrSorted (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics)
	Insert Attributes in sorted or unsorted (deprecated) order.
virtual DtAttrInfo *	addAttrUnsorted (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics)
virtual DtAttrInfo *	addAttrUnsorted (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSpaceHandle space, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics)
	Insert Attributes in sorted or unsorted (deprecated) order.
virtual DtAttrInfo *	addAttrSorted (const char *attrName, MAKRti::DtTransportType transport, MAKRti::DtOrderType order, DtSpaceHandle space, DtSharingType sharingType, DtFomUpdateType updateType, const MAKRti::DtString &updateCondition, DtOwnershipType ownership, const MAKRti::DtString &semantics)
Static Protected Member Functions
static bool	sameObjectClass (const DtObjectClassInfo &, const DtObjectClassInfo &)
	Test class for equality (including attributes)
static bool	sameAttrs (const std::vector< DtAttrInfo > &, const std::vector< DtAttrInfo > &)
	Test attributes for equality.
Protected Attributes
MAKRti::DtString	myName
DtSharingType	mySharing
MAKRti::DtString	mySemantics
DtObjectClassHandle	myHandle
MAKRti::DtFomType	myFomType
bool	mySubscribed
bool	myPublished
bool	myIsPassive
bool	myExplicitPubPrivToDel
bool	myExplicitUnpubPrivToDel
DtObjectClassInfo *	myBase
MAKRti::DtList	mySubclasses
MAKRti::DtHashlist	myRemoteSubscriptions
bool	myRegsOn
	Have we most recently told the federate to turn on or off registration.
DtAttrVector	myAttrs
int	myFirstAttribute
DtAttributeHandleSet	myAttrSet
DtAttributeHandleSet	myPublishedSet
DtAttributeHandleSet	mySubscribedSet
DtAttributeHandleSet	mySubscribedActiveSet
DtAttributeHandleSet	mySubscribedPassiveSet
DtAttributeHandleSet	myRelevantSet
	Attributes that could cause object discovery at a remote federate if they are published or become published.
MAKRti::DtInetAddr	myAddr
MAKRti::DtInetAddr	myDevAddr
DtBitMask *	myForceDestinationsMask
	Create this bit mask to temporarily force destinations after publish.
MAKRti::DtTime	myForceDestinationsTime
MAKRti::DtClock	myClock
Static Protected Attributes
static const DtAttributeHandleSet	theEmptySet
static const unsigned int	theMaxAttrs = DtMaxAttributesPerClass

Constructor & Destructor Documentation

DtObjectClassInfo::DtObjectClassInfo	(	const char *	name,
		DtObjectClassInfo *	base,
		DtObjectClassHandle	handle,
		DtSharingType	sharing,
		const MAKRti::DtString &	semantics
	)

Constructors.

References addAttr(), addSubclass(), attrByHandle(), DtAttrInfo::dimensions(), fomType(), myAttrs, myFirstAttribute, DtAttrInfo::name(), DtAttrInfo::order(), DtAttrInfo::ownershipType(), DtAttrInfo::semantics(), DtAttrInfo::setDimensions(), setFomType(), DtAttrInfo::sharingType(), DtAttrInfo::space(), DtAttrInfo::transport(), DtAttrInfo::updateCondition(), and DtAttrInfo::updateType().

DtObjectClassInfo::DtObjectClassInfo ( const DtObjectClassInfo & orig )

References attrs(), myForceDestinationsMask, myRemoteSubscriptions, NULL, DtSubByRegionAttributes::regionHandle(), and remoteSubscription().

DtObjectClassInfo::~DtObjectClassInfo ( ) [virtual]

Destructor.

References myForceDestinationsMask, myRemoteSubscriptions, mySubclasses, and NULL.

Member Function Documentation

DtAttrInfo * DtObjectClassInfo::addAttr	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics,
		bool	addSorted
	)		`[virtual]`

Adds an attribute to the class. Used when reading Fed file.

References addAttrSorted(), addAttrUnsorted(), attrByName(), myAttrs, and theMaxAttrs.

Referenced by DtFomClassMgr::addAttribute(), DtFomClassMgr::addObjClass(), DtObjectClassInfo(), and DtFomClassMgr::mergeAttributes().

DtAttrInfo * DtObjectClassInfo::addAttr	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSpaceHandle	space,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics,
		bool	addSorted
	)		`[virtual]`

Adds an attribute to the class. Used when reading Fed file.

References addAttrSorted(), addAttrUnsorted(), attrByName(), attrName(), DtToWString(), fomType(), myAttrs, DtAttrInfo::nameIsPrivilegeToDelete(), and theMaxAttrs.

DtAttrInfo * DtObjectClassInfo::addAttrSorted	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics
	)		`[protected, virtual]`

Insert Attributes in sorted or unsorted (deprecated) order.

References DtAttributeHandleSet::add(), fomType(), myAttrs, myAttrSet, myFirstAttribute, and name().

Referenced by addAttr().

DtAttrInfo * DtObjectClassInfo::addAttrSorted	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSpaceHandle	space,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics
	)		`[protected, virtual]`

References DtAttributeHandleSet::add(), fomType(), myAttrs, myAttrSet, myFirstAttribute, and name().

DtAttrInfo * DtObjectClassInfo::addAttrUnsorted	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics
	)		`[protected, virtual]`

References DtAttributeHandleSet::add(), fomType(), myAttrs, myAttrSet, and DtAttrInfo::setTransport().

Referenced by addAttr().

DtAttrInfo * DtObjectClassInfo::addAttrUnsorted	(	const char *	attrName,
		MAKRti::DtTransportType	transport,
		MAKRti::DtOrderType	order,
		DtSpaceHandle	space,
		DtSharingType	sharingType,
		DtFomUpdateType	updateType,
		const MAKRti::DtString &	updateCondition,
		DtOwnershipType	ownership,
		const MAKRti::DtString &	semantics
	)		`[protected, virtual]`

Insert Attributes in sorted or unsorted (deprecated) order.

References DtAttributeHandleSet::add(), fomType(), myAttrs, myAttrSet, and DtAttrInfo::setTransport().

void DtObjectClassInfo::addRemoteSubscription	(	DtFederateHandle	fedHandle,
		const DtAttributeHandleSet &	attrs,
		bool	isReplacement
	)		`[protected, virtual]`

Add/delete remote subscription to this class by indicated federate Replaces attribute set if already subscribed.

References attrs(), myRemoteSubscriptions, and DtAttributeHandleSet::setUnion().

Referenced by remoteSubscribe(), and restore().

void DtObjectClassInfo::addRemoteSubscription	(	DtFederateHandle	fedHandle,
		DtAttributeHandle	attrHandle
	)		`[protected, virtual]`

Attribute subscription is added to existing subscribed set (created does not exist)

References DtAttributeHandleSet::add(), and myRemoteSubscriptions.

void DtObjectClassInfo::addSubclass ( DtObjectClassInfo * sub ) [virtual]

Add a subclass (called during FED processing)

References mySubclasses.

Referenced by DtObjectClassInfo(), and setBaseClass().

const DtAttributeHandleSet & DtObjectClassInfo::allAttrs ( ) const [virtual]

Returns the full set of attributes.

References myAttrSet.

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::cancelAcquire(), DtObjectMgr::cancelDivest(), DtObjectMgr::divestOwnership(), DtRtiObject::DtRtiObject(), DtObjectMgr::releaseResponse(), DtObjectMgr::requestObjectUpdate(), DtObjectMgr::sendNotDiscoveredMsgForSmartForwarding(), DtObjectMgr::unpublishClass(), and DtObjectMgr::unsubscribeClass().

DtAttrInfo * DtObjectClassInfo::attrByHandle ( const DtAttributeHandle theHandle ) [virtual]

References myAttrs, and NULL.

Referenced by attrName(), attrOrder(), attrSpace(), attrTransport(), DtObjectClassInfo(), DtObjOwnershipInfoXmlBlock::getOwnedAttrs(), isSubscribed(), DtRtiObject::okToReceive(), print(), DtObjectMgr::processUpdate(), DtObjectMgr::publish(), DtObjectMgr::queryOwnership(), relevant(), DtObjectMgr::requestClassUpdate(), DtObjectMgr::sendUpdate(), DtObjectMgr::subscribe(), and DtObjectMgr::unsubscribeAttributes().

const DtAttrInfo * DtObjectClassInfo::attrByHandle ( const DtAttributeHandle theHandle ) const [virtual]

DtAttrInfo * DtObjectClassInfo::attrByName ( const char * theName ) [virtual]

Get Attribute descriptor by name or handle.

References isName(), myAttrs, and NULL.

Referenced by addAttr(), DtFomClassMgr::addAttributeDimension(), attrHandle(), DtFomClassMgr::mergeAttributes(), and DtFomClassMgr::resolveAttributeDimensions().

const DtAttrInfo * DtObjectClassInfo::attrByName ( const char * theName ) const [virtual]

const versions

DtAttributeHandle DtObjectClassInfo::attrHandle ( const char * theName ) const [virtual]

Get attribute handle from name.

References attrByName(), and DtAttrInfo::handle().

Referenced by DtFomClassMgr::attrHandle().

char * DtObjectClassInfo::attrName ( DtAttributeHandle theHandle ) const [virtual]

Get attribute name from handle.

References attrByHandle(), and DtAttrInfo::name().

Referenced by addAttr(), DtFomClassMgr::attrName(), and DtAttributeHandleSet::print().

MAKRti::DtOrderType DtObjectClassInfo::attrOrder ( DtAttributeHandle theHandle ) const [virtual]

Get attribute order from handle.

References attrByHandle(), and DtAttrInfo::order().

Referenced by DtRtiObject::DtRtiObject().

DtAttrVector const & DtObjectClassInfo::attrs ( ) const [virtual]

Returns the set of attributes.

References myAttrs.

Referenced by addRemoteSubscription(), DtFomClassMgr::attrPresent(), DtObjectClassInfo(), DtPubSubXmlBlock::getAttrSubsAndPubs(), DtFomStateXmlBlock::initObjects(), isScaffolding(), maxSubscribedRate(), maxSubscribedRateName(), DtFomClassMgr::mergeAttributes(), sameObjectClass(), DtFomStateXmlBlock::setFom(), and setSubscribedRate().

DtSpaceHandle DtObjectClassInfo::attrSpace ( DtAttributeHandle theHandle ) const [virtual]

Get attribute space from handle.

References attrByHandle(), DtDefaultSpaceHandle, and DtAttrInfo::space().

MAKRti::DtTransportType DtObjectClassInfo::attrTransport ( DtAttributeHandle theHandle ) const [virtual]

Get attribute transport type from handle.

References attrByHandle(), and DtAttrInfo::transport().

Referenced by DtRtiObject::DtRtiObject(), and DtObjectMgr::sendNotDiscoveredMsgForSmartForwarding().

DtObjectClassInfo * DtObjectClassInfo::baseClass ( ) const [virtual]

Return pointer to base class descriptor.

References myBase.

Referenced by DtFomClassMgr::addObjClass(), DtObjectMgr::collectRemoteSubscriptions(), DtObjectMgr::firstSubscribedClass(), isOfClass(), DtFomClassMgr::mergeObjectInfo(), DtObjectMgr::processPub(), sameAncestry(), and updateRelevance().

void DtObjectClassInfo::deleteRemoteSubscription	(	DtFederateHandle	fedHandle,
		DtAttributeHandleSet const &	attrs
	)		`[protected, virtual]`

References DtAttributeHandleSet::isEmpty(), myRemoteSubscriptions, and DtAttributeHandleSet::removeSetIntersection().

Referenced by remoteSubscribe(), and removeSubscriptions().

const MAKRti::DtInetAddr & DtObjectClassInfo::destinationAddress ( ) const [virtual]

Set/Get the destination to send to when using DM Filtering Inclusive sets recurse for all derived classes.

References myAddr.

Referenced by DtObjectMgr::addClassMulticast(), DtFomClassMgr::initDMFilteringParameters(), DtObjectMgr::removeClassMulticast(), and DtObjectMgr::sendUpdateMessage().

const MAKRti::DtInetAddr & DtObjectClassInfo::destinationDevice ( ) const [virtual]

References myDevAddr.

Referenced by DtObjectMgr::addClassMulticast(), and DtFomClassMgr::initDMFilteringParameters().

MAKRti::DtFomType DtObjectClassInfo::fomType ( ) const [virtual]

References myFomType.

Referenced by addAttr(), addAttrSorted(), addAttrUnsorted(), DtObjectClassInfo(), isFullName(), isName(), and sameAttrs().

bool DtObjectClassInfo::getForcedDestinations ( DtBitMask & mask ) const [virtual]

Get the forced destination mask if active Returns true if the forced destination mask is active.

References myClock, myForceDestinationsMask, myForceDestinationsTime, and NULL.

Referenced by DtRtiObject::getDestinations().

DtObjectClassHandle DtObjectClassInfo::handle ( ) const [virtual]

bool DtObjectClassInfo::isFullName ( const char * name ) [virtual]

Root name is required.

References fomType(), myName, and name().

Referenced by isName().

bool DtObjectClassInfo::isName ( const char * name ) [virtual]

Return boolean: name matches? Compare depends on FOM type: insensitive for 1.3 and sensitive for 1516 Root name is prepended to name if necessary.

References fomType(), isFullName(), and name().

Referenced by attrByName().

int DtObjectClassInfo::isOfClass ( DtObjectClassHandle handle ) const [virtual]

Returns 1 if this class is handle or is a subclass of handle.

References baseClass(), handle(), and isOfClass().

Referenced by DtObjectMgr::addPendingRegister(), DtRtiObject::isOfActualClass(), isOfClass(), DtRtiObject::isOfKnownClass(), DtObjectMgr::notifyDivestedAttributes(), and DtObjectMgr::sendPendingRegister().

bool DtObjectClassInfo::isPassive ( ) const [virtual]

Return boolean: is subscription passive?

References myIsPassive.

bool DtObjectClassInfo::isScaffolding ( ) const

Determines whether the class is a scaffolding class.

References attrs(), and myFirstAttribute.

Referenced by DtFomClassMgr::mergeObjectInfo().

const bool DtObjectClassInfo::isSubscribed	(	DtAttributeHandle	attrHandle,
		DtRegionHandle	regSetHandle
	)		const `[virtual]`

Using default region handle indicates check for DM subscription only.

Return bool: does attribute subscription overlap with this region?

References attrByHandle(), DtAttributeHandleSet::isMember(), DtAttrInfo::pasRegionSet(), DtAttrInfo::subRegionSet(), and subscribedAttrs().

Referenced by DtUpdateMsg::fillFromNetAttrs(), DtUpdateMsg::fillFromNetBigAttrs(), and DtObjectMgr::processNewObj().

float DtObjectClassInfo::maxSubscribedRate ( ) [virtual]

References attrs(), and myAttrs.

Referenced by DtObjectMgr::addClassMulticast(), and DtObjectMgr::removeClassMulticast().

const MAKRti::DtString & DtObjectClassInfo::maxSubscribedRateName ( ) [virtual]

References attrs(), and myAttrs.

const char * DtObjectClassInfo::name ( ) const [virtual]

Return class name, as in FOM.

References myName.

Referenced by addAttrSorted(), DtFomClassMgr::className(), DtFomStateXmlBlock::initObjects(), isFullName(), isName(), DtFomClassMgr::mergeAttributes(), DtFomClassMgr::mergeObjectInfo(), DtFomClassMgr::objectClassPosition(), DtFomClassMgr::objectClassPresent(), sameAncestry(), sameAttrs(), sameObjectClass(), and DtFomStateXmlBlock::setFom().

int DtObjectClassInfo::numAttributes ( ) const [virtual]

Returns the number of attributes.

References myAttrs.

Referenced by DtFomClassMgr::addAttribute(), DtFomClassMgr::addObjClass(), DtRtiObject::decode(), DtRtiObject::DtRtiObject(), and DtRtiObject::encode().

int DtObjectClassInfo::numRemoteFederatesSubscribed ( ) [virtual]

Returns number of remote federates subscribed to this class.

References myRemoteSubscriptions.

bool DtObjectClassInfo::operator!= ( const DtObjectClassInfo & other ) const

References sameObjectClass().

DtObjectClassInfo& DtObjectClassInfo::operator= ( const DtObjectClassInfo & orig )

Assignment operator (not implemented)

bool DtObjectClassInfo::operator== ( const DtObjectClassInfo & other ) const

References sameObjectClass().

void DtObjectClassInfo::print ( ) const [virtual]

Print the contents.

References attrByHandle(), myAttrs, myBase, myHandle, and myName.

void DtObjectClassInfo::publish	(	DtAttributeHandleSet const &	attributeList,
		DtObjectMgr *	objMgr,
		bool	isReplacement,
		bool	isRepublish
	)		`[virtual]`

Publish and unpublish Publishing an empty list with replacement enabled results in unpublish from all class attributes.

References DtAttributeHandleSet::add(), DtObjectMgr::addPendingStartReg(), DtObjectMgr::addPendingStopReg(), DtPrivilegeToDelete, DtRtiMtdDestinationList::getMaxDestinations(), handle(), DtAttributeHandleSet::isMember(), myAttrs, myExplicitPubPrivToDel, myExplicitUnpubPrivToDel, myPublished, myPublishedSet, myRegsOn, DtObjectMgr::params(), relevantAttrs(), DtBitMask::reset(), setForcedDestinations(), DtAttributeHandleSet::setUnion(), DtAttributeHandleSet::size(), and throwIfNotDefined().

Referenced by DtObjectMgr::publish(), and unpublishAttributes().

bool DtObjectClassInfo::published ( ) const [virtual]

Return boolean: is class published?

References myPublished.

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::published(), DtObjectMgr::registerObj(), remotePassiveSubscribe(), remoteSubscribe(), restore(), DtObjectMgr::sendPendingStopReg(), DtObjectMgr::unpublishAttributes(), and DtPubSubXmlBlock::updateObjectPubsAndSubs().

const DtAttributeHandleSet & DtObjectClassInfo::publishedAttrs ( ) const [virtual]

Returns the set of published attributes.

References myPublishedSet.

Referenced by DtObjectMgr::acquireAttrs(), DtRtiObject::DtRtiObject(), DtObjectMgr::processDivest(), DtObjectMgr::publish(), DtObjectMgr::unpublishAttributes(), and updateRelevance().

bool DtObjectClassInfo::relevant ( ) const [virtual]

Returns true if the class is relevant: registered object could cause discovery at remote federate, false otherwise.

References myRelevantSet, and DtAttributeHandleSet::size().

Referenced by DtObjOwnershipInfoXmlBlock::getOwnedAttrs(), restore(), and updateRelevance().

bool DtObjectClassInfo::relevant ( DtAttributeHandle hand ) const [virtual]

Returns true if the attribute is relevant: attribute instance could cause discovery at remote federate, false otherwise.

References attrByHandle(), and DtAttrInfo::relevant().

const DtAttributeHandleSet & DtObjectClassInfo::relevantAttrs ( ) const [virtual]

Returns the set of relevant attributes: Attributes that could cause object discovery at a remote federate if they are published or become published.

The attributes must be remotely subscribed at this class or at a base class that is a discovery candidate.

References myRelevantSet.

Referenced by DtObjectMgr::acquireAttrs(), DtObjectMgr::processNotifyAcquire(), publish(), and updateRelevance().

bool DtObjectClassInfo::remoteFederateIsSubscribed ( DtFederateHandle fedHandle ) const [virtual]

Returns true if the remote federate is subscribed to this class.

References myRemoteSubscriptions, and NULL.

Referenced by remotePassiveSubscribe(), and updateRelevance().

void DtObjectClassInfo::remotePassiveSubscribe	(	const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fedHandle,
		bool	replacement,
		DtObjectMgr *	objMgr
	)		`[virtual]`

Process remote passive subscription to add pending send register for any objects that could be discovered by it Replacement forces updates to any relevance changes from active to passive.

References DtObjectMgr::addPendingRegister(), DtAttributeHandleSet::getHandle(), handle(), myAttrs, mySubclasses, NULL, published(), remoteFederateIsSubscribed(), remotePassiveSubscribe(), remoteSubscribe(), remoteUnsubscribeAttributes(), and DtAttributeHandleSet::size().

Referenced by DtObjectMgr::processSub(), and remotePassiveSubscribe().

void DtObjectClassInfo::remoteSubscribe	(	const DtAttributeHandleSet &	attrs,
		DtFederateHandle	fedHandle,
		bool	isReplacement,
		DtObjectMgr *	objMgr
	)		`[virtual]`

Do bookkeeping associated with a remote federate subscription.

Calls update relevance.

References DtObjectMgr::addPendingRegister(), addRemoteSubscription(), deleteRemoteSubscription(), DtAttributeHandleSet::getHandle(), handle(), DtAttributeHandleSet::isEmpty(), myAttrs, published(), remoteSubscription(), DtAttributeHandleSet::removeSetIntersection(), DtAttributeHandleSet::size(), and updateRelevance().

Referenced by DtObjectMgr::processSub(), remotePassiveSubscribe(), and remoteUnsubscribeAttributes().

DtAttributeHandleSet const * DtObjectClassInfo::remoteSubscription ( DtFederateHandle fedHandle ) const [virtual]

Returns remote federate's subscribed attributes.

References myRemoteSubscriptions.

Referenced by DtRtiObject::acquireRemoteSubscriptions(), DtObjectClassInfo(), remoteSubscribe(), DtObjectMgr::remoteSubscribe(), remoteUnsubscribeAttributes(), removeSubscriptions(), and DtRtiObject::setDiscoveredClass().

void DtObjectClassInfo::remoteUnsubscribeAttributes	(	DtFederateHandle	fedHandle,
		const DtAttributeHandleSet &	attrs,
		DtObjectMgr *	objMgr
	)		`[virtual]`

Do bookkeeping associated with a remote federate unsubscription.

Calls update relevance.

References remoteSubscribe(), remoteSubscription(), and DtAttributeHandleSet::removeSetIntersection().

Referenced by DtObjectMgr::processUnsub(), and remotePassiveSubscribe().

void DtObjectClassInfo::removeSubscriptions	(	DtFederateHandle	fedHandle,
		DtObjectMgr *	objMgr
	)		`[virtual]`

Remove all subscriptions from the given federate.

References DtAttributeHandleSet::add(), DtAttrInfo::deleteRemoteSubscription(), deleteRemoteSubscription(), DtAttrInfo::deleteRemoteSubscriptionWithRegion(), DtAttrInfo::handle(), DtAttributeHandleSet::isEmpty(), DtAttributeHandleSet::isMember(), myAttrs, DtAttrInfo::remoteFederateIsSubscribedWithRegion(), remoteSubscription(), and updateRelevance().

Referenced by DtObjectMgr::processResign().

bool DtObjectClassInfo::restore	(	DtObjectClassPacket *	packet,
		DtRtiSaveFile &	file
	)		`[virtual]`

bool DtObjectClassInfo::sameAncestry ( const DtObjectClassInfo * comp ) const [virtual]

Test equality.

References baseClass(), and name().

Referenced by DtFomClassMgr::mergeObjectInfo().

bool DtObjectClassInfo::sameAttrs	(	const std::vector< DtAttrInfo > &	first,
		const std::vector< DtAttrInfo > &	second
	)		`[static, protected]`

Test attributes for equality.

References fomType(), name(), and DtAttrInfo::nameIsPrivilegeToDelete().

Referenced by sameObjectClass().

bool DtObjectClassInfo::sameObjectClass	(	const DtObjectClassInfo &	first,
		const DtObjectClassInfo &	secondClass
	)		`[static, protected]`

Test class for equality (including attributes)

References attrs(), name(), and sameAttrs().

Referenced by operator!=(), and operator==().

bool DtObjectClassInfo::save ( DtRtiSaveFile & file ) [virtual]

save and restore

DtObjectClassInfo * DtObjectClassInfo::self ( ) const [protected]

const char * DtObjectClassInfo::semantics ( ) const [virtual]

semantics access/mutate

References mySemantics.

Referenced by DtFomClassMgr::mergeObjectInfo().

void DtObjectClassInfo::setBaseClass ( DtObjectClassInfo * base ) [virtual]

Set base class (User should never need to set this)

References addSubclass(), and myBase.

void DtObjectClassInfo::setDestination	(	MAKRti::DtInetAddr	addr,
		MAKRti::DtInetAddr	devAddr,
		bool	inclusive,
		MAKRti::DtInetAddr	oldAddr,
		MAKRti::DtInetAddr	oldDevAddr
	)		`[virtual]`

References myAddr, myDevAddr, and mySubclasses.

Referenced by DtFomClassMgr::initDMFilteringParameters().

void DtObjectClassInfo::setFomType ( MAKRti::DtFomType type ) [virtual]

Set/Get the FOM type.

References myFomType.

Referenced by DtFomClassMgr::addObjClassSorted(), DtFomClassMgr::addObjClassUnsorted(), and DtObjectClassInfo().

void DtObjectClassInfo::setForcedDestinations	(	DtBitMask const &	mask,
		MAKRti::DtTime	delay
	)		`[virtual]`

Set a forced destination mask Temporarily set a forced destinations mask for given delay A negative time delay will force the destinations indefinitely.

References myClock, myForceDestinationsMask, and myForceDestinationsTime.

Referenced by publish().

void DtObjectClassInfo::setHandle ( DtObjectClassHandle handleValue ) [virtual]

References myHandle.

void DtObjectClassInfo::setSemantics ( const MAKRti::DtString & sem ) [virtual]

References mySemantics.

void DtObjectClassInfo::setSharing ( DtSharingType share ) [virtual]

References mySharing.

void DtObjectClassInfo::setSubscribedRate	(	float	rate,
		const MAKRti::DtString &	name,
		bool	inclusive
	)		`[virtual]`

Apply objects subscribed rate to attrInfo's.

References attrs(), myAttrs, and mySubclasses.

Referenced by DtFomClassMgr::initUpdateRates().

DtSharingType DtObjectClassInfo::sharing ( ) const [virtual]

sharing type access/mutate

References mySharing.

Referenced by DtFomClassMgr::mergeObjectInfo().

MAKRti::DtList * DtObjectClassInfo::subclasses ( ) [virtual]

Return list of subclasses.

References mySubclasses.

Referenced by DtObjectMgr::addClassMulticast(), DtObjectMgr::removeClassMulticast(), and DtPubSubXmlBlock::updateObjectPubsAndSubs().

void DtObjectClassInfo::subscribe	(	const DtAttributeHandleSet &	attributeList,
		bool	isPassiveValue,
		bool	isReplacement = `true`
	)		`[virtual]`

Subscribe and unsubscribe.

Parameters:

isReplacement 1.3 is replacement

References DtAttributeHandleSet::add(), DtAttributeHandleSet::empty(), DtAttributeHandleSet::isMember(), myAttrs, myIsPassive, mySubscribed, mySubscribedActiveSet, mySubscribedPassiveSet, mySubscribedSet, DtAttributeHandleSet::remove(), DtAttributeHandleSet::size(), and throwIfNotDefined().

Referenced by DtObjectMgr::subscribe(), unsubscribeAttributes(), and unsubscribeClass().

bool DtObjectClassInfo::subscribed ( ) const [virtual]

Return boolean: is class subscribed?

References mySubscribed.

Referenced by DtObjectMgr::firstSubscribedClass(), restore(), DtObjectMgr::subscribe(), DtObjectMgr::subscribed(), DtObjectMgr::unsubscribeAttributes(), DtObjectMgr::unsubscribeClass(), and DtPubSubXmlBlock::updateObjectPubsAndSubs().

DtAttributeHandleSet const & DtObjectClassInfo::subscribedActiveAttrs ( ) const [virtual]

References mySubscribedActiveSet.

Referenced by DtObjectMgr::processPub(), and DtObjectMgr::sendPendingSubscription().

const DtAttributeHandleSet & DtObjectClassInfo::subscribedAttrs ( ) const [virtual]

Returns the set of DM subscribed attributes.

References mySubscribedSet.

Referenced by DtRtiObject::expecting(), isSubscribed(), DtObjectMgr::processNewObj(), and DtObjectMgr::processRegister().

const DtAttributeHandleSet & DtObjectClassInfo::subscribedAttrs ( DtHandle regSetHandle ) const [virtual]

Returns all subscribed attributes if handle is the default region set Otherwise, just those subscribed attributes that match with the remote publication region.

References DtDefaultRegionSetHandle, mySubscribedSet, and theEmptySet.

const MAKRti::DtHashList & DtObjectClassInfo::subscribedFederates ( ) const [virtual]

Returns a list of remote federate subscribed attributes.

References myRemoteSubscriptions.

Referenced by DtObjectMgr::collectRemoteSubscriptions().

DtAttributeHandleSet const & DtObjectClassInfo::subscribedPassiveAttrs ( ) const [virtual]

References mySubscribedPassiveSet.

void DtObjectClassInfo::throwIfNotDefined ( const DtAttributeHandleSet & attributeList ) [protected, virtual]

Throws AttributeNotDefined exception if any member of attrs is not a valid attribute handle.

References DtAttributeHandleSet::getHandle(), myAttrs, and DtAttributeHandleSet::size().

Referenced by publish(), subscribe(), unpublishAttributes(), and unsubscribeAttributes().

void DtObjectClassInfo::unpublishAttributes	(	DtAttributeHandleSet const &	attributeList,
		bool	implicitUnpublishPrivilegeToDelete,
		DtObjectMgr *	objMgr
	)		`[virtual]`
