DtRtiAssistantForwarderClient Class Reference

The client connection to the RTI Assistant for the an RTI Forwarder. More...

Inheritance diagram for DtRtiAssistantForwarderClient:

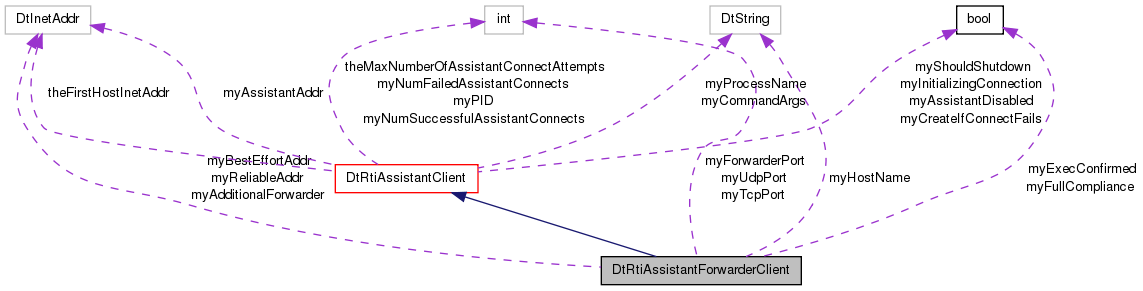

Collaboration diagram for DtRtiAssistantForwarderClient:

List of all members.

Public Member Functions
	DtRtiAssistantForwarderClient (DtAssistantComponentType type, int port=DtASSISTANT_DEFAULT_PORT)
	Constructor.
virtual	~DtRtiAssistantForwarderClient ()
	Destructor.
virtual void	updateForwarderInfo (const MAKRti::DtInetAddr &reliableIpAddr, const MAKRti::DtInetAddr &bestEffortIpAddr, int udpPort, int tcpPort, bool fullCompliance, int forwarderPort, const MAKRti::DtInetAddr &additionalForwarder)
	Updates the forwarder connection info to be sent to the Assistant.
virtual void	updateExecConfirmed (bool confirmed, bool fullyCompliant)
	Updates whether or not there is an rtiexec confirmed in order to be sent to the Assistant.
virtual void	sendClientInfo ()
	Send forwarder address and port to the Assistant.
virtual void	sendFullForwarderInfo (unsigned int numForwarderToForwarderConns, const std::vector< MAKRti::DtString > &forwarderIdentifiers, const std::vector< MAKRti::DtString > &forwarderConnectionHostNames, const std::vector< MAKRti::DtInetAddr > &forwarderConnectionAddrs, const std::vector< int > &forwarderConnectionPorts, unsigned int numForwarderExecConns, unsigned int numForwarderClientConns, const std::vector< MAKRti::DtString > &clientConnectionNames, const std::vector< MAKRti::DtString > &clientConnectionTypeNames, const std::vector< DtString > &clientConnectionProcessNames, const std::vector< DtString > &clientConnectionPIDs, const std::vector< DtString > &clientConnectionCommandArgs, const std::vector< MAKRti::DtString > &clientConnectionHostNames, const std::vector< MAKRti::DtInetAddr > &clientConnectionAddrs, const std::vector< MAKRti::DtString > &clientConnectionFederationNames, const std::vector< int > &clientConnectionHandles, const std::vector< int > &clientConnectionQueueStatus, const std::vector< DtHlaVersionId > &clientHlaVersions)
	Sends information on this forwarder and all of its connected components.
virtual void	sendWaitingForForwarders (bool isWaiting, const DtNeededFwConnMap &neededFws)
	Sends information regarding what forwarder connections we are currently waiting for.
Protected Attributes
MAKRti::DtInetAddr	myReliableAddr
	The host address for the forwarder.
MAKRti::DtInetAddr	myBestEffortAddr
	The best effort address for the forwarder.
int	myTcpPort
	The TCP port for the forwarder.
int	myUdpPort
	The UDP port for the forwarder.
MAKRti::DtString	myHostName
	The host name for the forwarder.
bool	myFullCompliance
	Whether full compliance is enabled.
int	myForwarderPort
	The port used to connect to other forwarders.
MAKRti::DtInetAddr	myAdditionalForwarder
	The IP address of an optional additional forwarder that this forwarder attempted to connect to.
bool	myExecConfirmed
	Whether an exec has connected to this forwarder or in the distributed forwarder network.

---

Detailed Description

The client connection to the RTI Assistant for the an RTI Forwarder.

That RTI forwarder can be a thread of the RtiExec or a stand along Forwarder. DtRtiAssistantForwarderClient manages the client connection of the forwarder to the RTI Assistant. Provides routines to create and send messages to the Assistant.

---

Constructor & Destructor Documentation

DtRtiAssistantForwarderClient::DtRtiAssistantForwarderClient	(	DtAssistantComponentType	type,
		int	port = DtASSISTANT_DEFAULT_PORT
	)

Constructor.

References DtRtiAssistantClient::initialize().

DtRtiAssistantForwarderClient::~DtRtiAssistantForwarderClient

(

)

[virtual]

Destructor.

---

Member Function Documentation

void DtRtiAssistantForwarderClient::sendClientInfo

(

)

[virtual]

Send forwarder address and port to the Assistant.

Reimplemented from DtRtiAssistantClient.

Reimplemented in DtRtiAssistantExecClient.

References DtAssistantRtiForwarderCompInfoMsgKind, DtRtiAssistantClient::msgFactory(), myAdditionalForwarder, myBestEffortAddr, myExecConfirmed, myForwarderPort, myFullCompliance, myHostName, myReliableAddr, myTcpPort, myUdpPort, DtRtiAssistantClient::sendMsg(), DtAssistantRtiForwarderCompInfoMsg::setAdditionalForwarderConnection(), DtAssistantRtiForwarderCompInfoMsg::setBestEffortIpAddress(), DtAssistantRtiForwarderCompInfoMsg::setExecConfirmed(), DtAssistantRtiForwarderCompInfoMsg::setForwarderPort(), DtAssistantRtiForwarderCompInfoMsg::setFullCompliance(), DtAssistantRtiForwarderCompInfoMsg::setHostName(), DtAssistantRtiForwarderCompInfoMsg::setReliableIpAddress(), DtAssistantRtiForwarderCompInfoMsg::setTcpPort(), and DtAssistantRtiForwarderCompInfoMsg::setUdpPort().

void DtRtiAssistantForwarderClient::sendFullForwarderInfo	(	unsigned int	numForwarderToForwarderConns,
		const std::vector< MAKRti::DtString > &	forwarderIdentifiers,
		const std::vector< MAKRti::DtString > &	forwarderConnectionHostNames,
		const std::vector< MAKRti::DtInetAddr > &	forwarderConnectionAddrs,
		const std::vector< int > &	forwarderConnectionPorts,
		unsigned int	numForwarderExecConns,
		unsigned int	numForwarderClientConns,
		const std::vector< MAKRti::DtString > &	clientConnectionNames,
		const std::vector< MAKRti::DtString > &	clientConnectionTypeNames,
		const std::vector< DtString > &	clientConnectionProcessNames,
		const std::vector< DtString > &	clientConnectionPIDs,
		const std::vector< DtString > &	clientConnectionCommandArgs,
		const std::vector< MAKRti::DtString > &	clientConnectionHostNames,
		const std::vector< MAKRti::DtInetAddr > &	clientConnectionAddrs,
		const std::vector< MAKRti::DtString > &	clientConnectionFederationNames,
		const std::vector< int > &	clientConnectionHandles,
		const std::vector< int > &	clientConnectionQueueStatus,
		const std::vector< DtHlaVersionId > &	clientHlaVersions
	)		[virtual]

Sends information on this forwarder and all of its connected components.

References DtAssistantForwarderStateMsgKind, DtRtiAssistantClient::msgFactory(), DtRtiAssistantClient::sendMsg(), and DtAssistantForwarderStateMsg::setAllData().

void DtRtiAssistantForwarderClient::sendWaitingForForwarders	(	bool	isWaiting,
		const DtNeededFwConnMap &	neededFws
	)		[virtual]

Sends information regarding what forwarder connections we are currently waiting for.

References DtAssistantAwaitingForwardersMsgKind, DtRtiAssistantClient::msgFactory(), DtRtiAssistantClient::sendMsg(), DtAssistantAwaitingForwardersMsg::setForwarders(), and DtAssistantAwaitingForwardersMsg::setIsWaitingForForwarders().

void DtRtiAssistantForwarderClient::updateExecConfirmed	(	bool	confirmed,
		bool	fullyCompliant
	)		[virtual]

Updates whether or not there is an rtiexec confirmed in order to be sent to the Assistant.

Note that this method does not send the data to the assistant, just stores it to be sent when sendClientInfo is called.

References myExecConfirmed, and myFullCompliance.

void DtRtiAssistantForwarderClient::updateForwarderInfo	(	const MAKRti::DtInetAddr &	reliableIpAddr,
		const MAKRti::DtInetAddr &	bestEffortIpAddr,
		int	udpPort,
		int	tcpPort,
		bool	fullCompliance,
		int	forwarderPort,
		const MAKRti::DtInetAddr &	additionalForwarder
	)		[virtual]

Updates the forwarder connection info to be sent to the Assistant.

Note that this method does not send the data to the assistant, just stores it to be sent when sendClientInfo is called.

Reimplemented in DtRtiAssistantExecClient.

References DtGetLocalHostName(), myAdditionalForwarder, myBestEffortAddr, myForwarderPort, myFullCompliance, myHostName, myReliableAddr, myTcpPort, myUdpPort, and tcpPort.

---

Member Data Documentation

MAKRti::DtInetAddr DtRtiAssistantForwarderClient::myAdditionalForwarder [protected]

The IP address of an optional additional forwarder that this forwarder attempted to connect to.

Referenced by sendClientInfo(), DtRtiAssistantExecClient::sendClientInfo(), and updateForwarderInfo().

MAKRti::DtInetAddr DtRtiAssistantForwarderClient::myBestEffortAddr [protected]

The best effort address for the forwarder.

Referenced by sendClientInfo(), DtRtiAssistantExecClient::sendClientInfo(), and updateForwarderInfo().

bool DtRtiAssistantForwarderClient::myExecConfirmed [protected]

Whether an exec has connected to this forwarder or in the distributed forwarder network.

Referenced by sendClientInfo(), and updateExecConfirmed().

int DtRtiAssistantForwarderClient::myForwarderPort [protected]

The port used to connect to other forwarders.

Referenced by sendClientInfo(), DtRtiAssistantExecClient::sendClientInfo(), and updateForwarderInfo().

bool DtRtiAssistantForwarderClient::myFullCompliance [protected]

Whether full compliance is enabled.

Referenced by sendClientInfo(), DtRtiAssistantExecClient::sendClientInfo(), updateExecConfirmed(), and updateForwarderInfo().

MAKRti::DtString DtRtiAssistantForwarderClient::myHostName [protected]

The host name for the forwarder.

Referenced by sendClientInfo(), DtRtiAssistantExecClient::sendClientInfo(), and updateForwarderInfo().

MAKRti::DtInetAddr DtRtiAssistantForwarderClient::myReliableAddr [protected]

The host address for the forwarder.

Referenced by sendClientInfo(), DtRtiAssistantExecClient::sendClientInfo(), and updateForwarderInfo().

int DtRtiAssistantForwarderClient::myTcpPort [protected]

The TCP port for the forwarder.

Referenced by sendClientInfo(), DtRtiAssistantExecClient::sendClientInfo(), and updateForwarderInfo().

int DtRtiAssistantForwarderClient::myUdpPort [protected]

The UDP port for the forwarder.

Referenced by sendClientInfo(), DtRtiAssistantExecClient::sendClientInfo(), and updateForwarderInfo().

---

The documentation for this class was generated from the following files:

• rtiAssistantForwarderClient.h
• rtiAssistantForwarderClient.cxx
