The client connection to the RTI Assistant for the Web Server. More...

Inheritance diagram for DtRtiAssistantWwwClient:

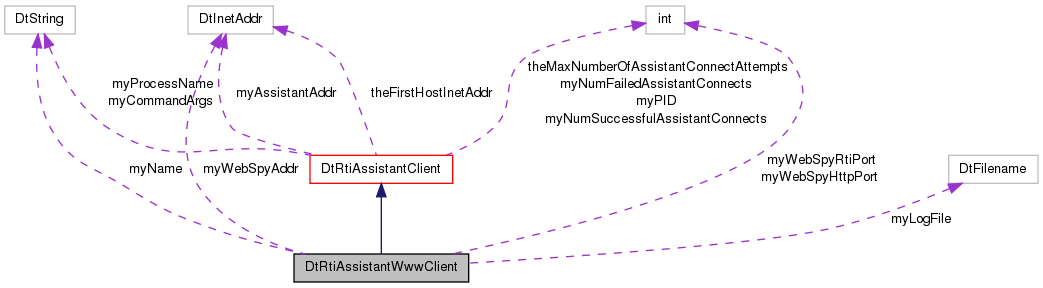

Collaboration diagram for DtRtiAssistantWwwClient:

Public Member Functions
	DtRtiAssistantWwwClient (int port=0)
virtual	~DtRtiAssistantWwwClient ()
virtual void	updateWwwLogFile (const MAKRti::DtFilename &file)
	Updates the log file name used by this Www.
virtual void	updateWebSpyInfo (DtInetAddr ipAddr, int httpPort, int rtiPort)
	Updates the information on this web server.
virtual void	sendClientInfo ()
	Sends the stored Www information to the Assistant.
Protected Attributes
MAKRti::DtString	myName
	The name the Assistant uses to identify this Www.
MAKRti::DtFilename	myLogFile
	The name and full path of the log file.
DtInetAddr	myWebSpyAddr
	The host address for the web spy.
int	myWebSpyHttpPort
	The HTTP port for the web spy.
int	myWebSpyRtiPort
	The RTI port for the web spy.

Detailed Description

The client connection to the RTI Assistant for the Web Server.

DtRtiAssistantWwwClient manages the client connection of the Web Server to the RTI Assistant. Provides routines to create and send messages to the Assistant.

Constructor & Destructor Documentation

DtRtiAssistantWwwClient::DtRtiAssistantWwwClient ( int port = 0 )

References DtRtiAssistantClient::initialize().

DtRtiAssistantWwwClient::~DtRtiAssistantWwwClient ( ) [virtual]

Member Function Documentation

void DtRtiAssistantWwwClient::sendClientInfo ( ) [virtual]

Sends the stored Www information to the Assistant.

Reimplemented from DtRtiAssistantClient.

References DtAssistantWwwCompInfoMsgKind, DtRtiAssistantClient::msgFactory(), myLogFile, myWebSpyAddr, myWebSpyHttpPort, myWebSpyRtiPort, DtRtiAssistantClient::sendMsg(), DtAssistantWwwCompInfoMsg::setLogFilename(), DtAssistantWwwCompInfoMsg::setNotifyLevel(), DtAssistantWwwCompInfoMsg::setWebSpyHttpPort(), DtAssistantWwwCompInfoMsg::setWebSpyIpAddress(), and DtAssistantWwwCompInfoMsg::setWebSpyRtiPort().

void DtRtiAssistantWwwClient::updateWebSpyInfo	(	DtInetAddr	ipAddr,
		int	httpPort,
		int	rtiPort
	)		`[virtual]`

Updates the information on this web server.

Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References myWebSpyAddr, myWebSpyHttpPort, and myWebSpyRtiPort.

void DtRtiAssistantWwwClient::updateWwwLogFile ( const MAKRti::DtFilename & file ) [virtual]

Updates the log file name used by this Www.

This is sent to the Assistant so that it may display the log to interested users. Note that this method does not send the message to the assistant, just stores the name to be sent when sendClientInfo is called.

References myLogFile, and NULL.
