DtRtiexecObserverForWebService Class Reference

Observes the rtiexec and is responsible sending information on the rtiexec to the web spy server. More...

Inheritance diagram for DtRtiexecObserverForWebService:

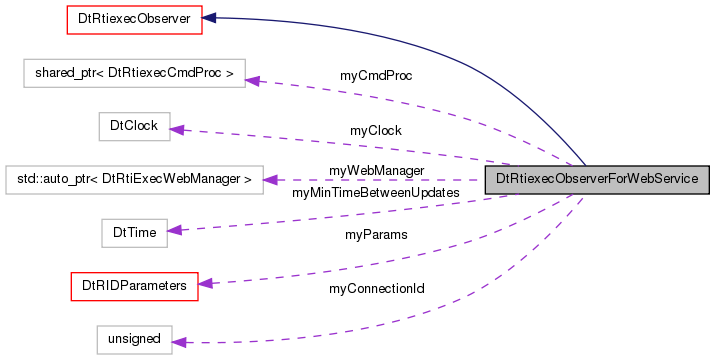

Collaboration diagram for DtRtiexecObserverForWebService:

List of all members.

Public Member Functions
	DtRtiexecObserverForWebService (const DtRIDParameters *params, DtBoost::shared_ptr< DtRtiexecCmdProc > cmdProc)
virtual	~DtRtiexecObserverForWebService ()
virtual void	startObservation ()
	Indicates that observation of the exec has begun.
virtual void	sendMsgToFederation (const DtString &federationName, std::auto_ptr< DtRtiMsg > msg)
	Send an RTI message to the specified federation.
virtual void	deleteFederate (const DtString &federationName, unsigned long federateHandle)
	Request the Deletion of a federate.
virtual void	destroyFederation (const DtString &federationName, unsigned long federationHandle)
	Request the Destruction of a federation (will simply fail if federation non-empty)
virtual void	changeRidParam (const DtString &federationName, unsigned long federateHandle, const DtString &ridParameter, const DtString &ridValue)
	Request a change to the RID Parameter of the federate.
void	setConnectionId (unsigned long connectionId)
	Sets the rtiexec connection ID.
const DtRIDParameters &	params () const
	Get the RID params.
Protected Member Functions
virtual void	addCallbacks ()
	Adds all RTI message and tick callbacks. Called when a manager is set.
virtual void	removeCallbacks ()
	Removes all RTI message and tick callbacks.
Protected Attributes
const DtRIDParameters *	myParams
	RID parameters used by this exec.
std::auto_ptr < DtRtiExecWebManager >	myWebManager
	The manager for the current web spy state.
DtBoost::shared_ptr < DtRtiexecCmdProc >	myCmdProc
	Processes commands to be performed by the rtiexec.
DtClock	myClock
	Clock used in message processing.
const DtTime	myMinTimeBetweenUpdates
	Min. time exec should wait between time state updates.
unsigned long	myConnectionId
	The rtiexecs connection ID.
Rtiexec event processing functions
virtual void	tick ()
	Periodic processing.
virtual void	processFedExCreatedEvent (DtFedExec *exec)
	Process a new federation execution created event.
virtual void	processFedExDestroyedEvent (DtFedExec *exec)
	Process a federation execution destroyed event.
virtual void	processFederateJoinedEvent (DtFedExec *exec, DtFederate *federate)
	Process a federate joined event.
virtual void	processFederateResignedEvent (DtFedExec *exec, DtFederate *federate)
	Process a federate resigned event.
virtual void	processSyncPtRegisteredEvent (DtFedExec *exec, DtSyncPt *pt)
	Process a new sync. point registered event.
virtual void	processFederationSynchronizedEvent (DtFedExec *exec, DtSyncPt *pt)
	Process a federation synchronized to an existing sync. point event.
virtual void	processSyncPtAchievedEvent (DtFedExec *exec, DtFederate *federate, DtSyncPt *pt)
	Process an existing sync. point achieved event.
virtual void	processTimeStateEvent (const DtRtiExec &exec)
	Process a federate reconnect failed event.
static void	tick (void *usr)
	Callback for periodic processing.
static void	processTimeStateEvent (const DtRtiExec &exec, void *usr)
	Callback for periodic time state processing.
RTI message processing callbacks
virtual void	processStateRspMsg (const DtWwwStateRspMsg &msg)
	Process the web spy state response message.
virtual void	processFederateStateRspMsg (const DtWwwFederateStateRspMsg &msg)
	Process the web spy state response message.
virtual void	processControlRspMsg (const DtWwwControlRspMsg &msg)
	Process the web spy state response message.
virtual void	processNetworkMapRespMsg (const DtNetworkMapRspMsg &msg)
	Process the web spy state response message.
static void	processStateRspMsg (const DtRtiMsg &msg, void *usr)
	Process the web spy state response message.
static void	processFederateStateRspMsg (const DtRtiMsg &msg, void *usr)
	Process the web spy federate state response message.
static void	processControlRspMsg (const DtRtiMsg &msg, void *usr)
	Process the web spy control response message.
static void	processNetworkMapRespMsg (const DtRtiMsg &msg, void *usr)
	Process the web spy network map response message.

---

Detailed Description

Observes the rtiexec and is responsible sending information on the rtiexec to the web spy server.

Also accepts commands from the Assistant and gives them to the rtiexec for processing.

---

Constructor & Destructor Documentation

DtRtiexecObserverForWebService::DtRtiexecObserverForWebService	(	const DtRIDParameters *	params,
		DtBoost::shared_ptr< DtRtiexecCmdProc >	cmdProc
	)

DtRtiexecObserverForWebService::~DtRtiexecObserverForWebService

(

)

[virtual]

---

Member Function Documentation

void DtRtiexecObserverForWebService::addCallbacks

(

)

[protected, virtual]

Adds all RTI message and tick callbacks. Called when a manager is set.

Implements DtRtiexecObserver.

References DtRtiexecObserver::addRtiMsgCallback(), DtRtiexecObserver::addTickCallback(), DtNetworkMapRspMsgKind, DtWwwControlRspMsgKind, DtWwwFederateStateRspMsgKind, DtWwwStateRspMsgKind, myMinTimeBetweenUpdates, processControlRspMsg(), processFederateStateRspMsg(), processNetworkMapRespMsg(), processStateRspMsg(), processTimeStateEvent(), and tick().

void DtRtiexecObserverForWebService::changeRidParam	(	const DtString &	federationName,
		unsigned long	federateHandle,
		const DtString &	ridParameter,
		const DtString &	ridValue
	)		[virtual]

Request a change to the RID Parameter of the federate.

References myCmdProc.

void DtRtiexecObserverForWebService::deleteFederate	(	const DtString &	federationName,
		unsigned long	federateHandle
	)		[virtual]

Request the Deletion of a federate.

References myCmdProc.

Referenced by DtRtiExecWebManager::issueDeleteFederateCommand().

void DtRtiexecObserverForWebService::destroyFederation	(	const DtString &	federationName,
		unsigned long	federationHandle
	)		[virtual]

Request the Destruction of a federation (will simply fail if federation non-empty)

References myCmdProc.

Referenced by DtRtiExecWebManager::issueDestroyFederationCommand().

const DtRIDParameters & DtRtiexecObserverForWebService::params

(

)

const [inline]

Get the RID params.

References myParams.

Referenced by DtRtiExecWebManager::DtRtiExecWebManager().

void DtRtiexecObserverForWebService::processControlRspMsg	(	const DtRtiMsg &	msg,
		void *	usr
	)		[static]

Process the web spy control response message.

Referenced by addCallbacks(), and removeCallbacks().

void DtRtiexecObserverForWebService::processControlRspMsg

(

const DtWwwControlRspMsg &

msg

)

[virtual]

Process the web spy state response message.

References DtWwwControlRspMsg::commandId(), DtWwwControlRspMsg::connectionId(), DtRtiMsg::fedExHandle(), myWebManager, and DtWwwControlRspMsg::sourceFederateHandle().

void DtRtiexecObserverForWebService::processFederateJoinedEvent	(	DtFedExec *	exec,
		DtFederate *	federate
	)		[virtual]

Process a federate joined event.

Reimplemented from DtRtiexecObserver.

References DtToString(), DtFedExec::fedExHandle(), DtFederate::getConnectionHandle(), DtFederate::getFederateHost(), DtFederate::getHandle(), DtFederate::getType(), DtFederate::getWebServerHost(), DtFederate::getWebServerPort(), and myWebManager.

void DtRtiexecObserverForWebService::processFederateResignedEvent	(	DtFedExec *	exec,
		DtFederate *	federate
	)		[virtual]

Process a federate resigned event.

Reimplemented from DtRtiexecObserver.

References DtFedExec::fedExHandle(), DtFederate::getHandle(), and myWebManager.

void DtRtiexecObserverForWebService::processFederateStateRspMsg	(	const DtRtiMsg &	msg,
		void *	usr
	)		[static]

Process the web spy federate state response message.

Referenced by addCallbacks(), and removeCallbacks().

void DtRtiexecObserverForWebService::processFederateStateRspMsg

(

const DtWwwFederateStateRspMsg &

msg

)

[virtual]

Process the web spy state response message.

References DtRtiMsg::fedExHandle(), myWebManager, DtWwwFederateStateRspMsg::responseType(), DtWwwFederateStateRspMsg::sourceConnectionId(), and DtWwwFederateStateRspMsg::sourceFederateHandle().

void DtRtiexecObserverForWebService::processFederationSynchronizedEvent	(	DtFedExec *	exec,
		DtSyncPt *	pt
	)		[virtual]

Process a federation synchronized to an existing sync. point event.

Reimplemented from DtRtiexecObserver.

References DtFedExec::fedExHandle(), myWebManager, and DtSyncPt::name().

void DtRtiexecObserverForWebService::processFedExCreatedEvent

(

DtFedExec *

exec

)

[virtual]

Process a new federation execution created event.

Reimplemented from DtRtiexecObserver.

References DtFedExec::fedExHandle(), DtFedExec::fedExName(), DtFedExec::fedFileName(), and myWebManager.

void DtRtiexecObserverForWebService::processFedExDestroyedEvent

(

DtFedExec *

exec

)

[virtual]

Process a federation execution destroyed event.

Reimplemented from DtRtiexecObserver.

References DtFedExec::fedExHandle(), and myWebManager.

void DtRtiexecObserverForWebService::processNetworkMapRespMsg	(	const DtRtiMsg &	msg,
		void *	usr
	)		[static]

Process the web spy network map response message.

Referenced by addCallbacks(), and removeCallbacks().

void DtRtiexecObserverForWebService::processNetworkMapRespMsg

(

const DtNetworkMapRspMsg &

msg

)

[virtual]

Process the web spy state response message.

References myConnectionId, myWebManager, DtNetworkMapRspMsg::payload(), and DtNetworkMapRspMsg::requestorId().

void DtRtiexecObserverForWebService::processStateRspMsg	(	const DtRtiMsg &	msg,
		void *	usr
	)		[static]

Process the web spy state response message.

Referenced by addCallbacks(), and removeCallbacks().

void DtRtiexecObserverForWebService::processStateRspMsg

(

const DtWwwStateRspMsg &

msg

)

[virtual]

Process the web spy state response message.

References DtRtiMsg::federateHandle(), DtRtiMsg::fedExHandle(), myWebManager, DtWwwStateRspMsg::responseType(), and DtWwwStateRspMsg::source().

void DtRtiexecObserverForWebService::processSyncPtAchievedEvent	(	DtFedExec *	exec,
		DtFederate *	federate,
		DtSyncPt *	pt
	)		[virtual]

Process an existing sync. point achieved event.

Reimplemented from DtRtiexecObserver.

References DtFedExec::fedExHandle(), DtFederate::getHandle(), myWebManager, and DtSyncPt::name().

void DtRtiexecObserverForWebService::processSyncPtRegisteredEvent	(	DtFedExec *	exec,
		DtSyncPt *	pt
	)		[virtual]

Process a new sync. point registered event.

Reimplemented from DtRtiexecObserver.

References DtSyncPt::federates(), DtFedExec::federates(), DtFedExec::fedExHandle(), DtFederate::getHandle(), DtFederateHandleSet::isMember(), myWebManager, and DtSyncPt::name().

void DtRtiexecObserverForWebService::processTimeStateEvent	(	const DtRtiExec &	exec,
		void *	usr
	)		[static]

Callback for periodic time state processing.

Referenced by addCallbacks(), and removeCallbacks().

void DtRtiexecObserverForWebService::processTimeStateEvent

(

const DtRtiExec &

exec

)

[virtual]

Process a federate reconnect failed event.

References DtToString(), DtFedExec::federates(), DtRtiExec::fedExecs(), and myWebManager.

void DtRtiexecObserverForWebService::removeCallbacks

(

)

[protected, virtual]

Removes all RTI message and tick callbacks.

Called when a manager is removed or the observer is destroyed.

Implements DtRtiexecObserver.

References DtNetworkMapRspMsgKind, DtWwwControlRspMsgKind, DtWwwFederateStateRspMsgKind, DtWwwStateRspMsgKind, processControlRspMsg(), processFederateStateRspMsg(), processNetworkMapRespMsg(), processStateRspMsg(), processTimeStateEvent(), DtRtiexecObserver::removeRtiMsgCallback(), DtRtiexecObserver::removeTickCallback(), and tick().

void DtRtiexecObserverForWebService::sendMsgToFederation	(	const DtString &	federationName,
		std::auto_ptr< DtRtiMsg >	msg
	)		[virtual]

Send an RTI message to the specified federation.

References myCmdProc.

Referenced by DtRtiExecWebManager::federateStateReqHandler(), DtRtiExecWebManager::issueChangeRidParamsCommand(), DtRtiExecWebManager::issueLrcLogRequest(), DtRtiExecWebManager::issueStateRequest(), DtRtiExecWebManager::issueUndiscoverObjectCommand(), and DtRtiExecWebManager::stateReqHandler().

void DtRtiexecObserverForWebService::setConnectionId

(

unsigned long

connectionId

)

[inline]

Sets the rtiexec connection ID.

References DtRtiexecObserver::connectionId(), and myConnectionId.

void DtRtiexecObserverForWebService::startObservation

(

)

[virtual]

Indicates that observation of the exec has begun.

Reimplemented from DtRtiexecObserver.

References myCmdProc, myConnectionId, myParams, myWebManager, and DtRIDParameters::webserviceAddrString.

void DtRtiexecObserverForWebService::tick

(

void *

usr

)

[static]

Callback for periodic processing.

References tick().

void DtRtiexecObserverForWebService::tick

(

)

[virtual]

Periodic processing.

References myClock, and myWebManager.

Referenced by addCallbacks(), removeCallbacks(), and tick().

---

Member Data Documentation

DtClock DtRtiexecObserverForWebService::myClock [protected]

Clock used in message processing.

Referenced by tick().

DtBoost::shared_ptr<DtRtiexecCmdProc> DtRtiexecObserverForWebService::myCmdProc [protected]

Processes commands to be performed by the rtiexec.

Referenced by changeRidParam(), deleteFederate(), destroyFederation(), sendMsgToFederation(), and startObservation().

unsigned long DtRtiexecObserverForWebService::myConnectionId [protected]

The rtiexecs connection ID.

Referenced by processNetworkMapRespMsg(), setConnectionId(), and startObservation().

const DtTime DtRtiexecObserverForWebService::myMinTimeBetweenUpdates [protected]

Min. time exec should wait between time state updates.

Referenced by addCallbacks().

const DtRIDParameters* DtRtiexecObserverForWebService::myParams [protected]

RID parameters used by this exec.

Referenced by params(), and startObservation().

std::auto_ptr<DtRtiExecWebManager> DtRtiexecObserverForWebService::myWebManager [protected]

The manager for the current web spy state.

Referenced by processControlRspMsg(), processFederateJoinedEvent(), processFederateResignedEvent(), processFederateStateRspMsg(), processFederationSynchronizedEvent(), processFedExCreatedEvent(), processFedExDestroyedEvent(), processNetworkMapRespMsg(), processStateRspMsg(), processSyncPtAchievedEvent(), processSyncPtRegisteredEvent(), processTimeStateEvent(), startObservation(), and tick().

---

The documentation for this class was generated from the following files:

• execObserverForWebService.h
• execObserverForWebService.cxx
