DtSignalToCallbackMapper Class Reference

Maps a single Qt signal to any number of callbacks for non-Qt classes. More...

Inheritance diagram for DtSignalToCallbackMapper:

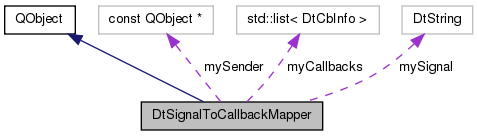

Collaboration diagram for DtSignalToCallbackMapper:

List of all members.

Classes
struct	DtCbInfo
Public Slots
void	callCallbacks ()
	Receives the signal and calls the callbacks.
Public Member Functions
	DtSignalToCallbackMapper (const QObject *sender, const char *signal)
	Constructor.
	~DtSignalToCallbackMapper ()
	Destructor.
virtual void	addCallback (DtParameterlessCb cb, void *usr)
	Adds a callback for the signal.
virtual void	removeCallback (DtParameterlessCb cb, void *usr)
	Remove a callback for the signal.
Protected Attributes
std::list< DtCbInfo >	myCallbacks
	List of callbacks.
const QObject *	mySender
	The object which sends the signal.
const MAKRti::DtString	mySignal
	The signal.
Private Member Functions
	DtSignalToCallbackMapper (DtSignalToCallbackMapper const &)
	Copy Constructor not implemented -- Copy Not Allowed!
DtSignalToCallbackMapper &	operator= (DtSignalToCallbackMapper const &)
	Assignment not implemented -- Assignment Not Allowed!

---

Detailed Description

Maps a single Qt signal to any number of callbacks for non-Qt classes.

Only for signals which do not have any parameters.

---

Constructor & Destructor Documentation

DtSignalToCallbackMapper::DtSignalToCallbackMapper	(	const QObject *	sender,
		const char *	signal
	)

Constructor.

References callCallbacks(), and connect().

DtSignalToCallbackMapper::~DtSignalToCallbackMapper

(

)

Destructor.

References callCallbacks(), myCallbacks, mySender, and mySignal.

DtSignalToCallbackMapper::DtSignalToCallbackMapper

(

DtSignalToCallbackMapper const &

)

[private]

Copy Constructor not implemented -- Copy Not Allowed!

---

Member Function Documentation

void DtSignalToCallbackMapper::addCallback	(	DtParameterlessCb	cb,
		void *	usr
	)		[virtual]

Adds a callback for the signal.

References myCallbacks.

Referenced by DtRtiAssistant::initializeAssistantServer().

void DtSignalToCallbackMapper::callCallbacks

(

)

[slot]

Receives the signal and calls the callbacks.

References myCallbacks.

Referenced by DtSignalToCallbackMapper(), and ~DtSignalToCallbackMapper().

DtSignalToCallbackMapper& DtSignalToCallbackMapper::operator=

(

DtSignalToCallbackMapper const &

)

[private]

Assignment not implemented -- Assignment Not Allowed!

void DtSignalToCallbackMapper::removeCallback	(	DtParameterlessCb	cb,
		void *	usr
	)		[virtual]

Remove a callback for the signal.

References myCallbacks.

Referenced by DtRtiAssistant::~DtRtiAssistant().

---

Member Data Documentation

std::list<DtCbInfo> DtSignalToCallbackMapper::myCallbacks [protected]

List of callbacks.

Referenced by addCallback(), callCallbacks(), removeCallback(), and ~DtSignalToCallbackMapper().

const QObject* DtSignalToCallbackMapper::mySender [protected]

The object which sends the signal.

Referenced by ~DtSignalToCallbackMapper().

const MAKRti::DtString DtSignalToCallbackMapper::mySignal [protected]

The signal.

Referenced by ~DtSignalToCallbackMapper().

---

The documentation for this class was generated from the following files:

• sigToCbMapper.h
• sigToCbMapper.cxx
