Dialog that allows a user to enter connection information. More...

Inheritance diagram for DtAssistantAddLrcConnDialog:

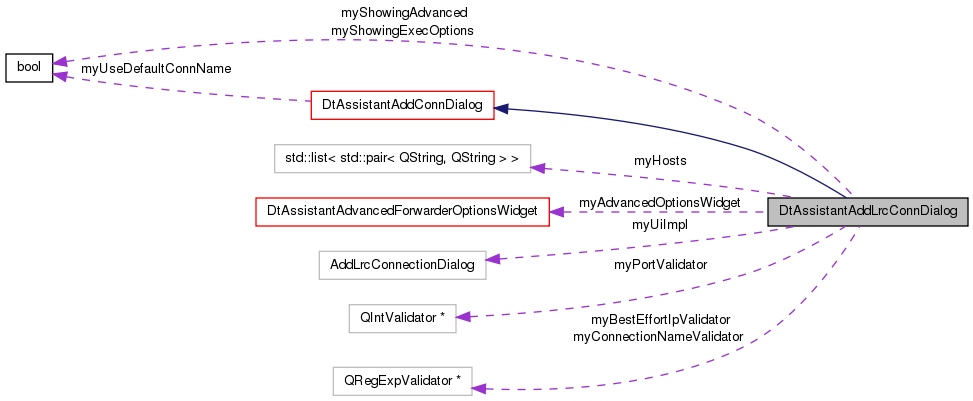

Collaboration diagram for DtAssistantAddLrcConnDialog:

Public Slots
virtual void	selectNetworkInterfaceAddrForHost (int hostIndex)
	Selects the known good network interface address for the host selection.
virtual void	udpateDefaultConnName ()
	Updates the default connection name, if in use.
void	useRtiExecClicked (bool)
	toggles between showing advanced options and not.
void	toggleAdvanced ()
	Toggles between showing and hiding advanced config options.
Public Member Functions
	DtAssistantAddLrcConnDialog (DtAssistantConnQueryWidget *parent, Qt::WindowFlags f=0)
	Constructor.
virtual	~DtAssistantAddLrcConnDialog ()
	Destructor.
virtual void	setNetworkInterfaceAddrs (const QStringList &addrs)
	Sets the list of possible network interface addresses to use.
virtual void	setAvailableHosts (const DtHostInterfaceAddrList &hosts)
	Sets the list of known hosts and their network interface addresses.
virtual void	setData (bool useRtiexec, const QString &host, int bestEffortPort, int reliablePort, const QString &bestEffortIp, const QString &networkInterfaceAddr, int forwarderPort, const QString &additionalForwarderToConnectTo)
	Sets the data in the dialog.
virtual void	setName (const QString &connName)
	Sets the name for the connection in the dialog.
virtual void	getData (bool &useRtiexec, QString &connName, QString &host, int &bestEffortPort, int &reliablePort, QString &bestEffortIp, QString &networkInterfaceAddr, int &forwarderPort, QString &additionalForwarderToConnectTo)
	Gets the data in the dialog.
Protected Member Functions
virtual void	redraw ()
	Redraw the display hiding and showing things as necessary.
Protected Attributes
Ui::AddLrcConnectionDialog	myUiImpl
	The GUI implementation of the widget.
bool	myShowingAdvanced
	Whether or not the advanced options are currently shown.
bool	myShowingExecOptions
	Whether or not the exec options are being shown .
DtAssistantAdvancedForwarderOptionsWidget *	myAdvancedOptionsWidget
	Widget which displays advanced forwarder options.
DtHostInterfaceAddrList	myHosts
	This keeps a list of hostname and network device detected pairs.

QRegExpValidator *	myBestEffortIpValidator
	Validators to check the input of the line edit boxes.
QIntValidator *	myPortValidator
	Validators to check the input of the line edit boxes.
QRegExpValidator *	myConnectionNameValidator
	Validators to check the input of the line edit boxes.

Detailed Description

Dialog that allows a user to enter connection information.

Constructor & Destructor Documentation

DtAssistantAddLrcConnDialog::DtAssistantAddLrcConnDialog	(	DtAssistantConnQueryWidget *	parent,
		Qt::WindowFlags	f = `0`
	)

Constructor.

References DtAssistantAddConnDialog::clearDefaultConnNum(), connect(), DtAssistantAddConnDialog::disableDefaultConnName(), DtGreatestValidPortNumber, myAdvancedOptionsWidget, myBestEffortIpValidator, myConnectionNameValidator, myPortValidator, myUiImpl, selectNetworkInterfaceAddrForHost(), DtAssistantAddConnDialog::storeNextDefaultConnNum(), toggleAdvanced(), udpateDefaultConnName(), and useRtiExecClicked().

DtAssistantAddLrcConnDialog::~DtAssistantAddLrcConnDialog ( ) [virtual]

Destructor.

Member Function Documentation

void DtAssistantAddLrcConnDialog::getData	(	bool &	useRtiexec,
		QString &	connName,
		QString &	host,
		int &	bestEffortPort,
		int &	reliablePort,
		QString &	bestEffortIp,
		QString &	networkInterfaceAddr,
		int &	forwarderPort,
		QString &	additionalForwarderToConnectTo
	)		`[virtual]`

Gets the data in the dialog.

References DtAssistantAdvancedForwarderOptionsWidget::addressOfOtherForwarder(), DtAssistantAdvancedForwarderOptionsWidget::distributedForwarderPort(), myAdvancedOptionsWidget, myUiImpl, and DtAssistantAdvancedForwarderOptionsWidget::specifyAdditionalConnection().

Referenced by DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

void DtAssistantAddLrcConnDialog::redraw ( ) [protected, virtual]

Redraw the display hiding and showing things as necessary.

References myAdvancedOptionsWidget, myShowingAdvanced, myShowingExecOptions, and myUiImpl.

Referenced by toggleAdvanced(), and useRtiExecClicked().

void DtAssistantAddLrcConnDialog::selectNetworkInterfaceAddrForHost ( int hostIndex ) [virtual, slot]

Selects the known good network interface address for the host selection.

References myHosts, and myUiImpl.

Referenced by DtAssistantAddLrcConnDialog().

void DtAssistantAddLrcConnDialog::setAvailableHosts ( const DtHostInterfaceAddrList & hosts ) [virtual]

Sets the list of known hosts and their network interface addresses.

A host is only added if its network interface address was set in setNetworkInterfaceAddrs().

References myHosts, and myUiImpl.

Referenced by DtAssistantLrcConnQueryWidget::promptUserForConnInfo().

void DtAssistantAddLrcConnDialog::setData	(	bool	useRtiexec,
		const QString &	host,
		int	bestEffortPort,
		int	reliablePort,
		const QString &	bestEffortIp,
		const QString &	networkInterfaceAddr,
		int	forwarderPort,
		const QString &	additionalForwarderToConnectTo
	)		`[virtual]`
