Populates and displays the Federate Information dialog. More...

Inheritance diagram for DtAssistantFederateInfoDialogMgr:

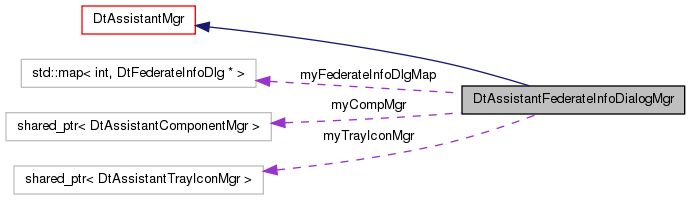

Collaboration diagram for DtAssistantFederateInfoDialogMgr:

Public Slots
void	showComponentFederateInfo (int i)
	Displays the Federate Info Dialog.
DtFederateInfoDlg *	addFederateInfoDialogToMap (int i)
	Adds a new Federate Dialog to the Federate Dialog Map.
void	removeFederateInfoDialogFromMap (int i)
void	updateFederateInfoDlgFromCompMgr (int id)
	Refreshes all data within a Federate Information Dialog.
void	updateFromLocalFederateJoined (int compId, const MAKRti::DtString &name, const MAKRti::DtString &federateName, unsigned federateHandle, const MAKRti::DtString &federationName, unsigned federationHandle, DtHlaVersionId hlaVersion)
Public Member Functions
	DtAssistantFederateInfoDialogMgr (DtBoost::shared_ptr< DtRtiAssistantServer > server, DtBoost::shared_ptr< DtRtiAssistantPeer > peer, DtBoost::shared_ptr< DtAssistantComponentMgr > compMgr, DtBoost::shared_ptr< DtAssistantTrayIconMgr > trayIconMgr)
	Constructor.
	~DtAssistantFederateInfoDialogMgr ()
	Destructor.
Protected Member Functions
DtFederateInfoDlg *	getFederateInfoDialogFromMap (int i)
	Returns the FederateInfo Dialog from Map. If not inside map and Component Info exists, then it will create one.
Private Member Functions
DtFederateInfoDlg *	findFedInfoDlg (int compId) const
	Convenience function to return a pointer to a dialog from the map.
	DtAssistantFederateInfoDialogMgr (const DtAssistantFederateInfoDialogMgr &)
	Copy Constructor not implemented.
DtAssistantFederateInfoDialogMgr &	operator= (const DtAssistantFederateInfoDialogMgr &)
	Assignment Operator not implemented.
Private Attributes
DtBoost::shared_ptr < DtAssistantComponentMgr >	myCompMgr
	The manager that keeps track of all local RTI components.
DtBoost::shared_ptr < DtAssistantTrayIconMgr >	myTrayIconMgr
	The Assistant tray icon manager, which manages the icon and its menu.
std::map< int, DtFederateInfoDlg * >	myFederateInfoDlgMap
	The Map which holds all dialogs for LRCs. This map uses compId(int) as the keys and dialogs (DtFederateInfoDlg*) as the values.

Detailed Description

Populates and displays the Federate Information dialog.

Constructor & Destructor Documentation

DtAssistantFederateInfoDialogMgr::DtAssistantFederateInfoDialogMgr	(	DtBoost::shared_ptr< DtRtiAssistantServer >	server,
		DtBoost::shared_ptr< DtRtiAssistantPeer >	peer,
		DtBoost::shared_ptr< DtAssistantComponentMgr >	compMgr,
		DtBoost::shared_ptr< DtAssistantTrayIconMgr >	trayIconMgr
	)

Constructor.

References addFederateInfoDialogToMap(), connect(), myCompMgr, myTrayIconMgr, removeFederateInfoDialogFromMap(), showComponentFederateInfo(), updateFederateInfoDlgFromCompMgr(), and updateFromLocalFederateJoined().

DtAssistantFederateInfoDialogMgr::~DtAssistantFederateInfoDialogMgr ( )

Destructor.

References myFederateInfoDlgMap.

DtAssistantFederateInfoDialogMgr::DtAssistantFederateInfoDialogMgr ( const DtAssistantFederateInfoDialogMgr & ) [private]

Copy Constructor not implemented.

Member Function Documentation

DtFederateInfoDlg * DtAssistantFederateInfoDialogMgr::addFederateInfoDialogToMap ( int i ) [slot]

Adds a new Federate Dialog to the Federate Dialog Map.

References DtAssistantComponentInfo::compType(), DtAssistantLrcComponent, findFedInfoDlg(), myCompMgr, myFederateInfoDlgMap, NULL, and DtAssistantMgr::startDialog().

Referenced by DtAssistantFederateInfoDialogMgr(), and getFederateInfoDialogFromMap().

DtFederateInfoDlg * DtAssistantFederateInfoDialogMgr::findFedInfoDlg ( int compId ) const [private]

Convenience function to return a pointer to a dialog from the map.

References myFederateInfoDlgMap, and NULL.

Referenced by addFederateInfoDialogToMap().

DtFederateInfoDlg * DtAssistantFederateInfoDialogMgr::getFederateInfoDialogFromMap ( int i ) [protected]

Returns the FederateInfo Dialog from Map. If not inside map and Component Info exists, then it will create one.

References addFederateInfoDialogToMap().

Referenced by showComponentFederateInfo(), updateFederateInfoDlgFromCompMgr(), and updateFromLocalFederateJoined().

DtAssistantFederateInfoDialogMgr& DtAssistantFederateInfoDialogMgr::operator= ( const DtAssistantFederateInfoDialogMgr & ) [private]

Assignment Operator not implemented.

void DtAssistantFederateInfoDialogMgr::removeFederateInfoDialogFromMap ( int i ) [slot]

References DtAssistantMgr::finishDialog(), and myFederateInfoDlgMap.

Referenced by DtAssistantFederateInfoDialogMgr().

void DtAssistantFederateInfoDialogMgr::showComponentFederateInfo ( int i ) [slot]

Displays the Federate Info Dialog.

References getFederateInfoDialogFromMap(), DtFederateInfoDlg::hasUpdatedOnce, DtAssistantMgr::showDialog(), and DtFederateInfoDlg::updateDialog().

Referenced by DtAssistantFederateInfoDialogMgr().

void DtAssistantFederateInfoDialogMgr::updateFederateInfoDlgFromCompMgr ( int id ) [slot]

Refreshes all data within a Federate Information Dialog.

References DtAssistantComponentInfo::compType(), DtAssistantLrcComponent, getFederateInfoDialogFromMap(), myCompMgr, and DtFederateInfoDlg::updateDialogFromCompMgr().

Referenced by DtAssistantFederateInfoDialogMgr().

void DtAssistantFederateInfoDialogMgr::updateFromLocalFederateJoined	(	int	compId,
		const MAKRti::DtString &	name,
		const MAKRti::DtString &	federateName,
		unsigned	federateHandle,
		const MAKRti::DtString &	federationName,
		unsigned	federationHandle,
		DtHlaVersionId	hlaVersion
	)		`[slot]`
